linux运维、架构之路-MySQL主从复制

陈辉煌

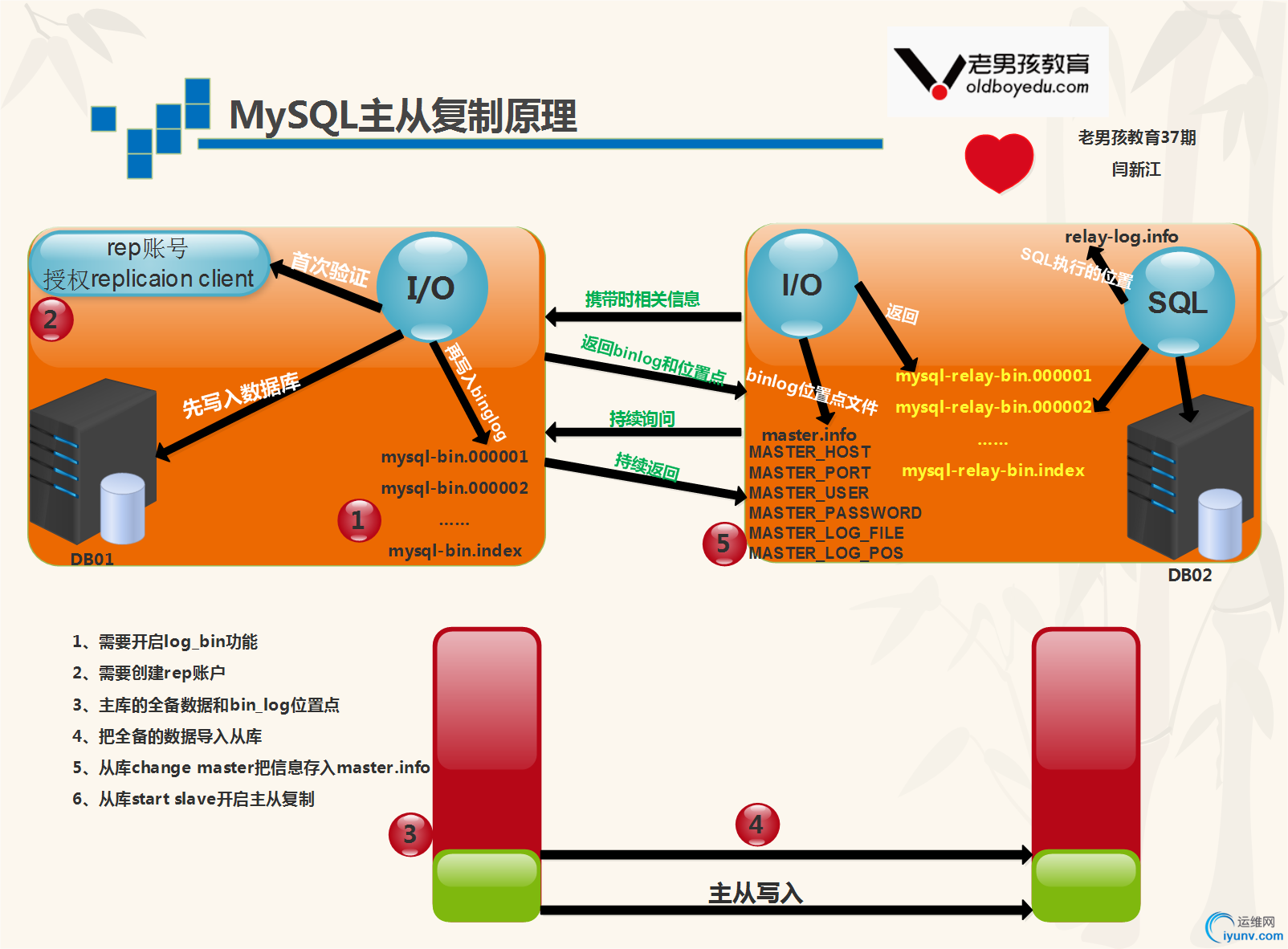

　　一、MySQL主从复制原理图
　　
　　MySQL主从复制原理：实现主从复制原理是三个线程完成的，主的I/O线程，备的I/O线程与SQL线程
　　1、首先主库db01需要开启binlog、授权一个replication client账号，锁表进行一次数据全备
　　2、从库db02、db03导入主库全备数据从而实现主从数据一致性，从库执行change master to将主机、端口、用户名、密码、binlog文件名、binlog位置点存入master.info中
　　3、从库start slave，首先由从库的I/O线程携带master.info的信息去询问主库，验证rep账号，根据binlog文件和位置点，将新增的binlog文件发回去，同时携带着发送到的文件和位置点，从库收到存到master.info中，收到的binlog日志存放在reply-bin文件中，由从库的SQL执行，先解析binlog文件再先入数据库，执行到的信息存入repay.info中。从库会一直询问主库是否有新的数据，主库有新的数据会返回给从库。
　　二、MySQL主从复制部署
　　1、部署环境



[iyunv@db01 tools]# cat /etc/redhat-release
CentOS release 6.9 (Final)
[iyunv@db01 tools]# uname -r
2.6.32-696.el6.x86_64
[iyunv@db01 tools]# ll /application/
total 4
lrwxrwxrwx  1 root  root    26 2017-10-24 11:33 mysql -> /application/mysql-5.6.34/
drwxr-xr-x 13 mysql mysql 4096 2017-10-24 11:33 mysql-5.6.34
　　2、服务器规划

服务器名称	外网IP	内网IP	主机名
MySQL数据库db01	172.19.5.51/24	172.16.1.51/24	db01
MySQL数据库db02	172.19.5.52/24	172.16.1.52/24	db02
MySQL数据库db03	172.19.5.53/24	172.16.1.53/24	db03

　　3、安装MySQL



useradd -s /sbin/nologin -M mysql
cd /server/tools
tar xf mysql-5.6.34-linux-glibc2.5-x86_64.tar.gz
mkdir -p /application/
mv /server/tools/mysql-5.6.34-*-x86_64 /application/mysql-5.6.34
ln -s /application/mysql-5.6.34/ /application/mysql
chown -R mysql.mysql /application/mysql/
/application/mysql/scripts/mysql_install_db --basedir=/application/mysql --datadir=/application/mysql/data --user=mysql
\cp /application/mysql/support-files/mysql.server /etc/init.d/mysqld
chmod +x /etc/init.d/mysqld
sed -i 's#/usr/local/mysql#/application/mysql#g' /application/mysql/bin/mysqld_safe /etc/init.d/mysqld
\cp /application/mysql/support-files/my-default.cnf /etc/my.cnf
/etc/init.d/mysqld start
lsof -i:3306
echo 'export PATH=/application/mysql/bin:$PATH' >>/etc/profile
source /etc/profile
chkconfig --add mysqld
chkconfig mysqld on
/application/mysql/bin/mysqladmin -u root password '123456'
　　4、修改db01、db02、db03数据库配置文件/etc/my.conf



[iyunv@db01 ~]# egrep "log_bin|server_id" /etc/my.cnf
log_bin = mysql-bin  #主库开启log_bin
server_id = 1        #server_id一定不能相同
[iyunv@db02 ~]# grep server_id /etc/my.cnf
server_id = 2
[iyunv@db03 ~]# grep server_id /etc/my.cnf
server_id = 3
　　5、主库db01操作



mysql -uroot -p123456#登录数据库
grant replication slave on *.* to 'rep'@'172.16.1.%' identified by '123456';#授权从库用户
flush table with read lock;#锁表
show master status; #查看主库binlog和位置点
+------------------+----------+--------------+------------------+-------------------+
| File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
+------------------+----------+--------------+------------------+-------------------+
| mysql-bin.000001 |      326 |              |                  |                   |
+------------------+----------+--------------+------------------+-------------------+
1 row in set (0.00 sec)
mysqldump -uroot -p123456 -A -B --master-data=2|gzip >/tmp/mysql_$(date +%F).sql.gz #全备主库数据
[iyunv@db01 ~]# scp -rp /tmp/mysql_2017-10-24.sql.gz 172.16.1.52:/tmp/ #分发主库全备数据到从库
[iyunv@db01 ~]# scp -rp /tmp/mysql_2017-10-24.sql.gz 172.16.1.53:/tmp/
mysql> unlock table;#解锁表
　　6、从库db02、db03操作一样



[iyunv@db02 ~]# gzip -d /tmp/mysql_2017-10-24.sql.gz
[iyunv@db02 ~]# mysql -uroot -p123456</tmp/mysql_2017-10-24.sql#从库导入主库全备数据，保证主从数据一致性
Warning: Using a password on the command line interface can be insecure.
mysql -uroot -p'123456' << EOF
CHANGE MASTER TO
MASTER_HOST='172.16.1.51', #主库IP地址
MASTER_PORT=3306,
MASTER_USER='rep', #授权用户
MASTER_PASSWORD='123456',
MASTER_LOG_FILE='mysql-bin.000001',#binlog日志
MASTER_LOG_POS=326; #位置点
EOF
mysql -uroot -p123456
start slave;#开启主从同步功能
mysql> show slave status\G#查看主从同步状态，下图看到Slave_IO和Slave_SQL为两个Yes刚证明已经同步
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 172.16.1.51
Master_User: rep
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: mysql-bin.000001
Read_Master_Log_Pos: 326
Relay_Log_File: db02-relay-bin.000002
Relay_Log_Pos: 283
Relay_Master_Log_File: mysql-bin.000001
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
