varnish性能测试

kyjh · 发表于 2015-1-16 09:05:41

安装varnish

1
2
3
4
5
6
7

[iyunv@node3 ~]# ls
anaconda-ks.cfg  install.log.syslog  varnish-docs-3.0.6-1.el6.x86_64.rpminstall.log    varnish-3.0.6-1.el6.x86_64.rpm  varnish-libs-3.0.6-1.el6.x86_64.rpm
[iyunv@node3 ~]# rpm -ivh varnish-3.0.6-1.el6.x86_64.rpm varnish-libs-3.0.6-1.el6.x86_64.rpm varnish-docs-3.0.6-1.el6.x86_64.rpm
Preparing...             ########################################### [100%]
1:varnish-libs             ########################################### [ 33%]
2:varnish                ########################################### [ 67%]
3:varnish-docs             ########################################### [100%]

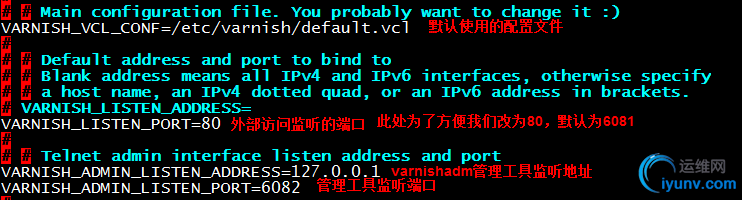

配置varnish运行属性

varnish配置文件

varnishadm管理工具连接

1
2
3
4
5
6
7
8
9
10
11
12

[iyunv@node3 ~]# varnishadm -S /etc/varnish/secret -T 127.0.0.1:6082
200
-----------------------------
Varnish Cache CLI 1.0
-----------------------------
Linux,2.6.32-504.el6.x86_64,x86_64,-sfile,-smalloc,-hcritbit
varnish-3.0.6 revision 1899836

Type 'help' for command list.
Type 'quit' to close CLI session.

varnish>

修改default.vcl配置文件测试

1
2
3
4

backend webserver {
.host = "172.16.30.11";
.port = "80";
}

varnishadm管理工具重新载入配置文件

1
2
3
4
5
6
7

varnish> vcl.load t1 /etc/varnish/default.vcl ##载入配置文件，t1是给此配置命名，后面跟配置文件，如果有错误会有提示
200
VCL compiled.
varnish> vcl.use t1                         ##使用上面载入的配置文件，不用重启varnish
200

varnish>

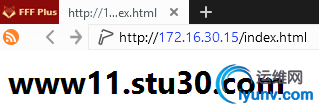

测试结果


在172.16.30.11的主机上安装好wordpress，这里不在详细列出
修改default.vcl为wordpress加速
注：此配置文件参考《高性能Linux服务器构建实战》高俊峰著

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

backend webserver {       ##定义的后端主机，此主机上有wordpress
  .host = "172.16.30.11";
  .port = "80";
}
sub vcl_recv {
      if (req.http.x-forwarded-for) {
         set req.http.X-Forwarded-For =
            req.http.X-Forwarded-For + ", " + client.ip;
      } else {
         set req.http.X-Forwarded-For = client.ip;
      }
   if (req.request != "GET" && ##如果请求的类型不是GET、HEAD、PUT、POST、TRACE、OPTIONS、DELETE时，则进入“pipe”模式
   req.request != "HEAD" &&
   req.request != "PUT" &&
   req.request != "POST" &&
   req.request != "TRACE" &&
   req.request != "OPTIONS" &&
   req.request != "DELETE") {
      /* Non-RFC2616 or CONNECT which is weird. */
      return (pipe);
   }
   if (req.request != "GET" && req.request != "HEAD") {  ##如果请求的类型不是GET或HEAD，则进入pass模式
      return (pass);
   }
   if (req.http.Authorization || req.http.Cookie) {
      return (pass);
   }
}
sub vcl_pipe {
   return (pipe);
}
sub vcl_pass {
   return (pass);
}
sub vcl_hash {
   hash_data(req.url);
   if (req.http.host) {
      hash_data(req.http.host);
   } else {
      hash_data(server.ip);
   }
   return (hash);
}
sub vcl_hit {
   return (deliver);
}

sub vcl_miss {
   return (fetch);
}
sub vcl_deliver { ##测试缓存是否命中
      if (obj.hits > 0){
      set resp.http.X-Cache = "HIT";
      } else{
      set resp.http.X-Cache = "MISS";
      }
      return (deliver);
}

测试使用和不使用varnish的区别

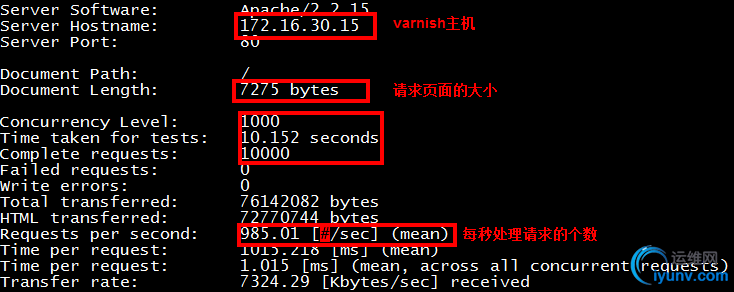

在非此两台主机的主机上使用ab进行压力测试

顺便附上varnish主机的cpu与httpd主机的cpu使用
