菜鸟帮你跳过openstack配置过程中的坑[文末新添加福利]

82870034

一：前言
　　对于一个以前做java全栈工程师而言，而且没学过Linux，很少用虚拟机（还是在大学的时候简单的用过），去配置openstack我想我入的坑肯定比有基础的一定要多，躺在每个坑中徘徊思索的时间一定比老鸟们久。所以现在总结一下openstack在配置过程中的几大坑点，让各位在配置过程中不再问天问大地，灵魂一片片凋落。
　　1. 如果是新手一定要学会用快照，一定要多用快照，从镜像安装完成开始，最好每一个章节模块配置完成后都用上一个快照，人生苦短，快照帮你性感。
　　2.一定要仔细看配种配置以及环境要求，比如控制节点: 1 处理器, 4 GB 内存, 及5 GB 存储，环境没达到只能当练手。
　　3.一定要选择自己要配置的版本，openstack目前版本不定更新，所以如果不固定版本，只从官方文档打开，将给配置带来很多问题。

二：入坑指南

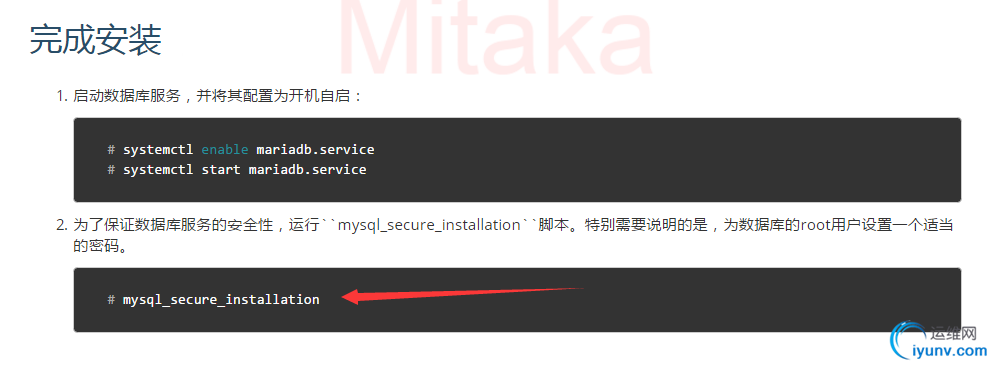

1.坑一SQL数据库

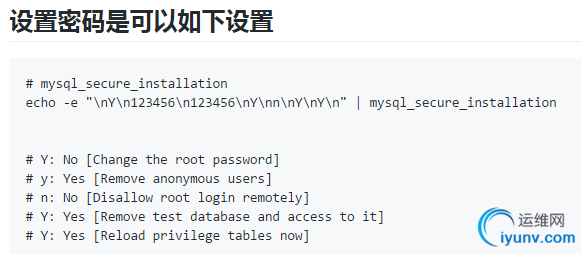

　　在为数据库的root设置适当密码时一定要注意，一步错误后面将直接无法赋予权限，那么应该怎么设置嘞？看下面。

　　建议直接运行命令# echo -e "\nY\n123456\n123456\nY\nn\nY\nY\n" | mysql_secure_installation来代替原来的mysql_secure_installation。这样将免去中间的设置。

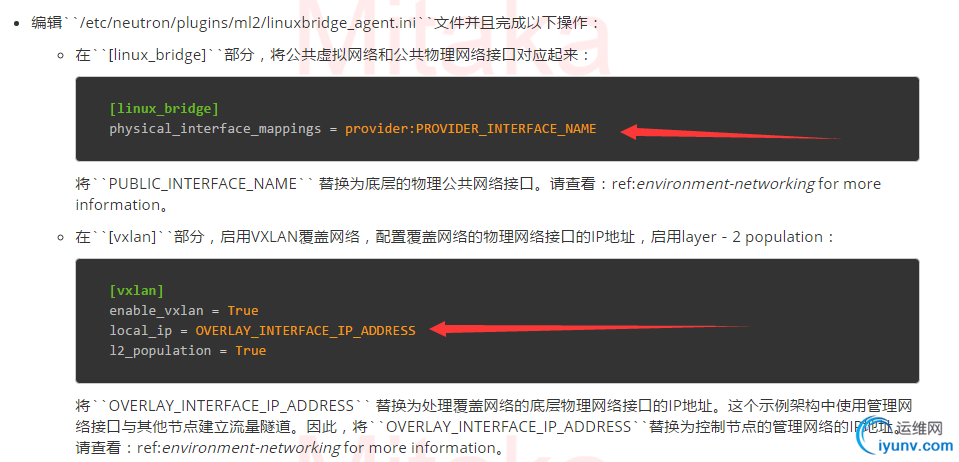

2.坑二配置Linuxbridge代理

　　这两个地方在compute和controller中将配置什么嘞？
　　直接揭晓答案吧，physical_interface_mappings = provider:PROVIDER_INTERFACE_NAME在controller和compute中都配置第二个网盘的名字。


local_ip = OVERLAY_INTERFACE_IP_ADDRESS看名字local_ip本地ip嘛，所以在controller和compute中分别配置各自的静态ip。
3.坑三Networking 服务neutron agent-list中不显示compute
　　这个可能原因有很多，但从我的错误来看，，你关闭了防火墙吗？？你关闭了SELinux吗？？ SELinux怎么关闭？？
　　查看SELinux状态：
　　1、/usr/sbin/sestatus -v      ##如果SELinux status参数为enabled即为开启状态
　　SELinux status:                 enabled
　　2、getenforce                 ##也可以用这个命令检查
　　关闭SELinux：
　　1、临时关闭（不用重启机器）：
　　setenforce 0                  ##设置SELinux 成为permissive模式
　　##setenforce 1 设置SELinux 成为enforcing模式
　　2、修改配置文件需要重启机器：
　　修改/etc/selinux/config 文件
　　将SELINUX=enforcing改为SELINUX=disabled
　　重启机器即可

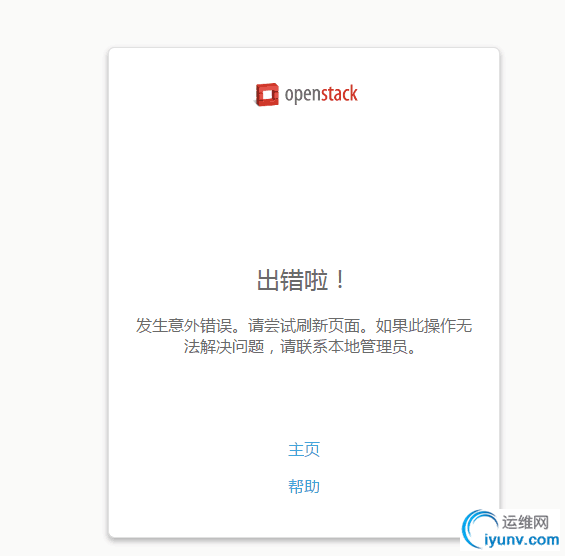

4.坑点四openstack中dashboard页面RuntimeError: Unable to create a new session key. It is likely that the cache is unavailable.




　　环境是centos7，直接跑在服务器上。
　　按照官网一步步安装openstack，到验证dashborad时出错。
　　登录http://192.168.1.73/dashboard ,输入域名，用户名，密码，出现错误，无法进入界面

　　tail -40 /etc/httpd/logs/error_log 查看打印
　　发现





[Sat Aug 12 19:42:16.701521 2017] [:error] [pid 10885] Could not process panel theme_preview: Dashboard with slug "developer" is not registered.
[Sat Aug 12 19:44:41.533207 2017] [:error] [pid 10885] Login successful for user "admin".
[Sat Aug 12 19:45:52.537140 2017] [:error] [pid 10885] Internal Server Error: /dashboard/auth/login/
[Sat Aug 12 19:45:52.556116 2017] [:error] [pid 10885] Traceback (most recent call last):
[Sat Aug 12 19:45:52.556129 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/core/handlers/base.py", line 223, in get_response
[Sat Aug 12 19:45:52.556135 2017] [:error] [pid 10885]     response = middleware_method(request, response)
[Sat Aug 12 19:45:52.556140 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/contrib/sessions/middleware.py", line 50, in process_response
[Sat Aug 12 19:45:52.556145 2017] [:error] [pid 10885]     request.session.save()
[Sat Aug 12 19:45:52.556148 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/contrib/sessions/backends/cache.py", line 53, in save
[Sat Aug 12 19:45:52.556153 2017] [:error] [pid 10885]     return self.create()
[Sat Aug 12 19:45:52.556157 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/contrib/sessions/backends/cache.py", line 48, in create
[Sat Aug 12 19:45:52.556180 2017] [:error] [pid 10885]     "Unable to create a new session key. "
[Sat Aug 12 19:45:52.556185 2017] [:error] [pid 10885] RuntimeError: Unable to create a new session key. It is likely that the cache is unavailable.
[Sat Aug 12 20:15:27.128247 2017] [:error] [pid 10885] Login successful for user "admin".
[Sat Aug 12 20:15:33.377599 2017] [:error] [pid 10885] Internal Server Error: /dashboard/auth/login/
[Sat Aug 12 20:15:33.377660 2017] [:error] [pid 10885] Traceback (most recent call last):
[Sat Aug 12 20:15:33.377665 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/core/handlers/base.py", line 132, in get_response
[Sat Aug 12 20:15:33.377668 2017] [:error] [pid 10885]     response = wrapped_callback(request, *callback_args, **callback_kwargs)
[Sat Aug 12 20:15:33.377671 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/views/decorators/debug.py", line 76, in sensitive_post_parameters_wrapper
[Sat Aug 12 20:15:33.377674 2017] [:error] [pid 10885]     return view(request, *args, **kwargs)
[Sat Aug 12 20:15:33.377677 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/utils/decorators.py", line 110, in _wrapped_view
[Sat Aug 12 20:15:33.377680 2017] [:error] [pid 10885]     response = view_func(request, *args, **kwargs)
[Sat Aug 12 20:15:33.377682 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/views/decorators/cache.py", line 57, in _wrapped_view_func
[Sat Aug 12 20:15:33.377685 2017] [:error] [pid 10885]     response = view_func(request, *args, **kwargs)
[Sat Aug 12 20:15:33.377688 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/openstack_auth/views.py", line 103, in login
[Sat Aug 12 20:15:33.377691 2017] [:error] [pid 10885]     **kwargs)
[Sat Aug 12 20:15:33.377694 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/views/decorators/debug.py", line 76, in sensitive_post_parameters_wrapper
[Sat Aug 12 20:15:33.377697 2017] [:error] [pid 10885]     return view(request, *args, **kwargs)
[Sat Aug 12 20:15:33.377699 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/utils/decorators.py", line 110, in _wrapped_view
[Sat Aug 12 20:15:33.377702 2017] [:error] [pid 10885]     response = view_func(request, *args, **kwargs)
[Sat Aug 12 20:15:33.377704 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/views/decorators/cache.py", line 57, in _wrapped_view_func
[Sat Aug 12 20:15:33.377707 2017] [:error] [pid 10885]     response = view_func(request, *args, **kwargs)
[Sat Aug 12 20:15:33.377709 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/contrib/auth/views.py", line 51, in login
[Sat Aug 12 20:15:33.377712 2017] [:error] [pid 10885]     auth_login(request, form.get_user())
[Sat Aug 12 20:15:33.377714 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/contrib/auth/__init__.py", line 110, in login
[Sat Aug 12 20:15:33.377717 2017] [:error] [pid 10885]     request.session.cycle_key()
[Sat Aug 12 20:15:33.377720 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/contrib/sessions/backends/base.py", line 285, in cycle_key
[Sat Aug 12 20:15:33.377723 2017] [:error] [pid 10885]     self.create()
[Sat Aug 12 20:15:33.377725 2017] [:error] [pid 10885]   File "/usr/lib/python2.7/site-packages/django/contrib/sessions/backends/cache.py", line 48, in create
[Sat Aug 12 20:15:33.377728 2017] [:error] [pid 10885]     "Unable to create a new session key. "
[Sat Aug 12 20:15:33.377730 2017] [:error] [pid 10885] RuntimeError: Unable to create a new session key. It is likely that the cache is unavailable.

　　意思大概是:
　　因为它周期性连接到非本地缓存有问题。官网写的有bug。
　　把/etc/openstack-dashboard/local_settings 中 SESSION_ENGINE = 'django.contrib.sessions.backends.cache' 应改为
               SESSION_ENGINE = 'django.contrib.sessions.backends.file'
　　重启服务，然后重新登录成功。

三： 提问榜
　　以上是我在部署openstack过程中遇到的几个疑问点，可能“乱拳打死老师傅”一般避开了各位的疑难点，各位可在留言中向我提问,愿意向各位讨教！----yh

四：福利（已写好脚本-简略版）
　　http://www.cnblogs.com/yaohong/p/7251852.html
