思科VTP网络架设实例

Davis

VTP(Vlan Trunk Protocols) NETWORK
Goal: PCS communication each other via VTP network. Network map as below: Environment:Cisco Packet Tracer


Workstation
Set static IP for workstaions

PC0: 192.168.1.2     255.255.255.0     192.168.1.1PC1: 192.168.4.2     255.255.255.0     192.168.4.1PC2: 192.168.3.2     255.255.255.0     192.168.3.1PC3: 192.168.2.2     255.255.255.0     192.168.2.1
Connection
VTP SERVER Gig 0/1----->VTP CLIENT1 Fa 0/1VTP SERVER Gig 0/2----->VTP CLIENT2 Fa 0/1VTP CLIENT1 Fa 0/2----->VTP CLIENT4 Fa 0/2VTP CLIENT1 Fa 0/24----->PC0VTP CLIENT2 Fa 0/2----->VTP CLIENT3 Fa 0/2VTP CLIENT2 Fa 0/24----->PC3VTP CLIENT4 Fa 0/24----->PC1VTP CLIENT3 Fa 0/24----->PC2

VTP SERVER
Create vlans

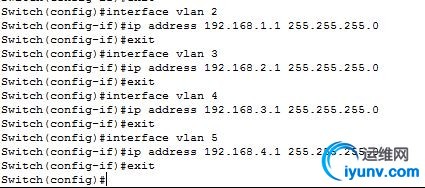

Set ip for vlans


Set the switchport (Connect with next switch) mode to trunk


Set VTP mode to server

Start Route function

VTP Clients
VTP Client 1

Set VTP mode to client


Set the switchport (Connect with next switch) mode to trunk


set the Switchport (connection with workstation) access to vlan2


VTP Client 2



VTP Client 3



VTP Client 4

Set VTP mode to client


Set the switchport (Connect with next switch) mode to trunk


Set the switchport (connection with workstation) access vlan 5



TEST

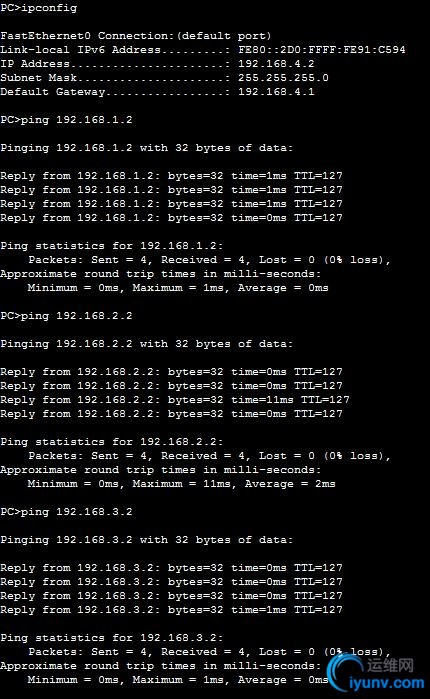

PCS Ping each other, Result:PASS


更多网络运维访问作者个人网站：http://www.davis-wiki.com
