Spring Boot 集成RabbitMQ

xiguaqq20

　　在Spring Boot中整合RabbitMQ是非常容易的，通过在Spring Boot应用中整合RabbitMQ，实现一个简单的发送、接收消息的例子。
　　首先需要启动RabbitMQ服务，并且add一个账户lg或使用guest账户
　　1. 创建一个Spring Boot项目，pom如下



<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<groupId>com.luangeng</groupId>
<artifactId>boot</artifactId>
<packaging>pom</packaging>
<version>1.0-SNAPSHOT</version>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>1.5.2.RELEASE</version>
</parent>
<properties>
<java.version>1.8</java.version>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- TEST -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
　　2.配置文件



spring.application.name=rabbitmq
spring.rabbitmq.host=localhost
spring.rabbitmq.port=5672
spring.rabbitmq.username=lg
spring.rabbitmq.password=lg
　　3.新增类Sender， 发送方，使用RabbitTemplate发送消息



@Component
public class Sender {
@Autowired
private AmqpTemplate rabbitTemplate;
private static AtomicInteger count = new AtomicInteger(1);
public void send() {
String msg = "msg" + count.getAndIncrement() + " at " + new Date();
System.out.println("Sender : " + msg);
this.rabbitTemplate.convertAndSend(RabbitConfig.queueName, msg);
}
}
　　4.新增类Receive， 消息接受方，使用@RabbitListener包装一个Queue



import org.springframework.amqp.rabbit.annotation.RabbitHandler;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@RabbitListener(queues = RabbitConfig.queueName)
public class Receiver {
@RabbitHandler
public void process(String msg) {
System.out.println("Receiver : " + msg);
}
}
　　5.Rabbit配置类，作用是初始化Queue和Exchange等



import org.springframework.amqp.core.*;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class RabbitConfig {
public final static String queueName = "myQueue";
//注入queue
    @Bean
Queue queue() {
return new Queue(queueName, false);
}
//注入exchange
    @Bean
Exchange exchange() {
//return new FanoutExchange("fanout-exchange");
//return new DirectExchange("direct-exchange");
//return new HeadersExchange("headers-exchange");
return new TopicExchange("topic-exchange");
}
//绑定exchange和queue
    @Bean
Binding binding(Queue queue, TopicExchange exchange) {
return BindingBuilder.bind(queue).to(exchange).with(queueName);
}
}
　　6.主类



@SpringBootApplication
public class Application {
public static void main(String[] args) {
SpringApplication.run(Application.class, args);
}
}
　　7.测试类



@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = Application.class)
public class ApplicationTest {
@Autowired
private Sender sender;
@Test
public void hello() throws Exception {
while(true) {
sender.send();
Thread.sleep(1000);
}
}
}
　　---
　　运行测试类，控制台输出如下：
　　Receiver : msg514 at Sun Aug 06 11:21:03 CST 2017
Sender : msg515 at Sun Aug 06 11:21:04 CST 2017
Receiver : msg515 at Sun Aug 06 11:21:04 CST 2017
Sender : msg516 at Sun Aug 06 11:21:05 CST 2017
Receiver : msg516 at Sun Aug 06 11:21:05 CST 2017
Sender : msg517 at Sun Aug 06 11:21:06 CST 2017
Receiver : msg517 at Sun Aug 06 11:21:06 CST 2017
Sender : msg518 at Sun Aug 06 11:21:07 CST 2017
Receiver : msg518 at Sun Aug 06 11:21:07 CST 2017

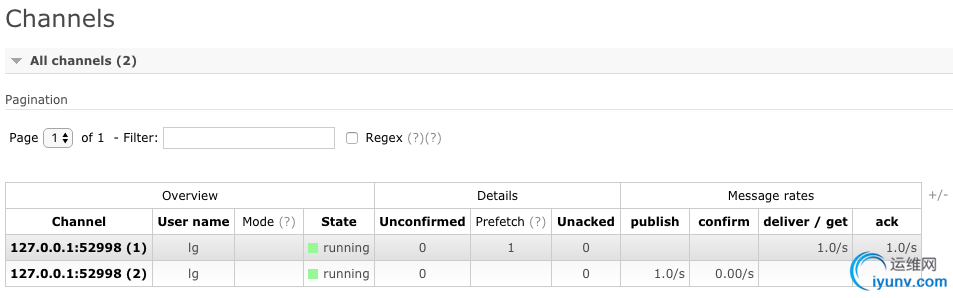

　　此时Rabbit管理页面显示：
　　
　　
　　说明消息通过RabbitMQ发送接收成功。
　　end
