监控工具zabbix安装与配置

er2121e

1、数据库授权：

1 2 3 4 5 6 7 8 9 10 11

mysql> create database zabbix charset utf8; Query OK, 1 row affected (0.00 sec)    mysql> grant all on zabbix.* to "zbxuser"@"172.16.%.%" identified by "zbxpass"; Query OK, 0 rows affected (0.00 sec)    mysql> grant all on zabbix.* to "zbxuser"@"node2.stu30.com" identified by "zbxpass";          Query OK, 0 rows affected (0.00 sec)    mysql> flush privileges; Query OK, 0 rows affected (0.00 sec)

2、安装包：本实验是以同一台机器作为server端和agent端

1 2 3 4 5 6 7 8 9 10

[iyunv@node2 zabbix-2.4]# ls zabbix-2.4.0-1.el6.x86_64.rpm                zabbix-sender-2.4.0-1.el6.x86_64.rpm zabbix-agent-2.4.0-1.el6.x86_64.rpm          zabbix-server-2.4.0-1.el6.x86_64.rpm zabbix-get-2.4.0-1.el6.x86_64.rpm            zabbix-server-mysql-2.4.0-1.el6.x86_64.rpm zabbix-java-gateway-2.4.0-1.el6.x86_64.rpm   zabbix-server-pgsql-2.4.0-1.el6.x86_64.rpm zabbix-proxy-2.4.0-1.el6.x86_64.rpm          zabbix-web-2.4.0-1.el6.noarch.rpm zabbix-proxy-mysql-2.4.0-1.el6.x86_64.rpm    zabbix-web-japanese-2.4.0-1.el6.noarch.rpm zabbix-proxy-pgsql-2.4.0-1.el6.x86_64.rpm    zabbix-web-mysql-2.4.0-1.el6.noarch.rpm zabbix-proxy-sqlite3-2.4.0-1.el6.x86_64.rpm  zabbix-web-pgsql-2.4.0-1.el6.noarch.rpm zabbix-release-2.4-1.el6.noarch.rpm

server端需要安装的包：
zabbix-server-2.4.0-1.el6.x86_64.rpm  zabbix-server-mysql-2.4.0-1.el6.x86_64.rpm zabbix-web-mysql-2.4.0-1.el6.noarch.rpm zabbix-web-2.4.0-1.el6.noarch.rpm  zabbix-2.4.0-1.el6.x86_64.rpm zabbix-get-2.4.0-1.el6.x86_64.rpm
agent端需要安装的包：
zabbix-2.4.0-1.el6.x86_64.rpm  zabbix-agent-2.4.0-1.el6.x86_64.rpm   zabbix-sender-2.4.0-1.el6.x86_64.rpm
安装软件包：
[root@node2 zabbix-2.4]# yum install -y zabbix-server-2.4.0-1.el6.x86_64.rpm zabbix-sender-2.4.0-1.el6.x86_64.rpm zabbix-server-mysql-2.4.0-1.el6.x86_64.rpm zabbix-web-mysql-2.4.0-1.el6.noarch.rpm zabbix-web-2.4.0-1.el6.noarch.rpm zabbix-get-2.4.0-1.el6.x86_64.rpm zabbix-2.4.0-1.el6.x86_64.rpm zabbix-agent-2.4.0-1.el6.x86_64.rpm

配置server端配置文件：

1 2 3 4

DBHost= DBName= DBUser= DBPassword=

导入数据库：

1 2 3 4 5 6 7

[iyunv@node2 zabbix-2.4]# cd /usr/share/doc/ [iyunv@node2 doc]# cd zabbix-server-mysql-2.4.0/create/ [iyunv@node2 create]# ls data.sql  images.sql  schema.sql [iyunv@node2 create]# mysql zabbix < schema.sql [iyunv@node2 create]# mysql zabbix < images.sql [iyunv@node2 create]# mysql zabbix < data.sql

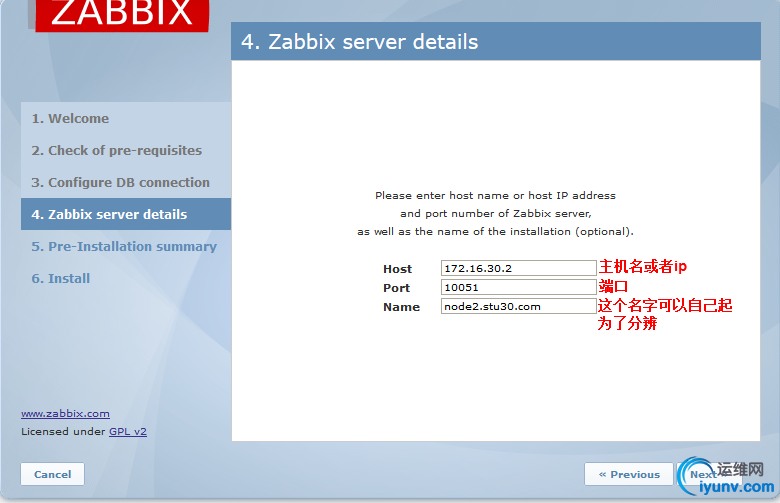

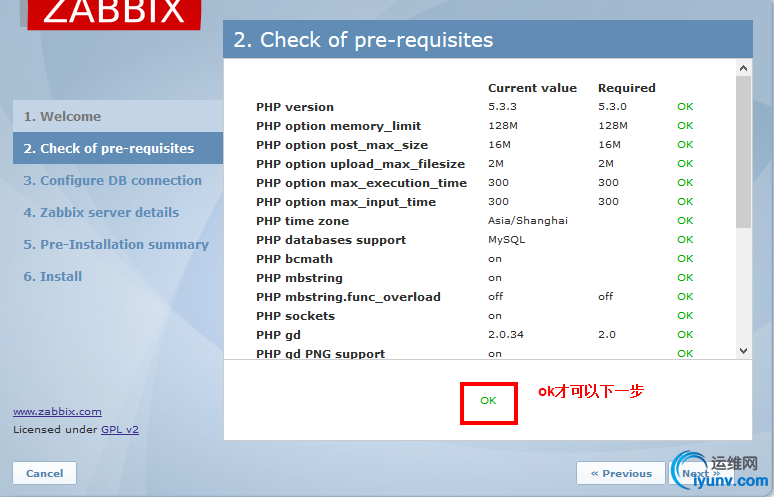

启动服务：service zabbix-server start检查端口： 修改/etc/php.ini,添加时区 重启httpd服务并访问测试，此处一定要重启httpd服务，zabbix会在/etc/httpd/conf.d/中生成一个zabbix.conf的配置文件 http://172.16.30.2/zabbix
安装agent端[iyunv@node2 zabbix-2.4]# yum install -y zabbix-agent-2.4.0-1.el6.x86_64.rpm zabbix-sender-2.4.0-1.el6.x86_64.rpm zabbix-2.4.0-1.el6.x86_64.rpm[iyunv@node2 zabbix-2.4]# vim /etc/zabbix/zabbix_agentd.confServer=127.0.0.1启动服务service zabbix-agent start检查端口： 在web服务端启动 稍等片刻刷新网页
