Apache的负载均衡之mod_jk模块实现

t4r23

先配置mod_jk的代理功能，[iyunv@org ~]# yum install -y httpd-devel
[iyunv@org ~]# rpm -ql httpd-devel
/usr/sbin/apxs
apxs是httpd安装外部模块必备的

[iyunv@org ~]# yum groupinstall"Development Tools" "Server Platform Development" -y //所需要的包组。
    编译安装需要的环境。
[iyunv@org ~]# tar xftomcat-connectors-1.2.40-src.tar.gz
[iyunv@org ~]# ls
a                            install.log              oracle
apache-tomcat-7.0.56.tar.gz  install.log.syslog       root20141030092112523.zip
apache-tomcat-8.0.20.tar.gz  jdk-8u31-linux-i586.rpm  tomcat-connectors-1.2.40-src
b                            lamp                    tomcat-connectors-1.2.40-src.tar.gz
[iyunv@org ~]# cd tomcat-connectors-1.2.40-src
[iyunv@org tomcat-connectors-1.2.40-src]# ls
conf docs  HOWTO-RELEASE.txt  jkstatus LICENSE  native  NOTICE README.txt  support  tools xdocs
[iyunv@org tomcat-connectors-1.2.40-src]# cdnative/
[iyunv@org native]# ls
aclocal.m4 apache-2.0    BUILDING.txt  configure    docs  Makefile.am  netscape   scripts     TODO.txt
apache-1.3 buildconf.sh  common        configure.ac  iis  Makefile.in  README.txt  STATUS.txt
[iyunv@org native]# ./configure--with-apxs=/usr/sbin/apxs
[iyunv@org native]# make && makeinstall
              。
              。
              。
----------------------------------------------------------------------
chmod 755/usr/lib64/httpd/modules/mod_jk.so

Please be sure to arrange/etc/httpd/conf/httpd.conf...

make[1]: Leaving directory`/root/tomcat-connectors-1.2.40-src/native/apache-2.0'
make[1]: Entering directory`/root/tomcat-connectors-1.2.40-src/native'
make[2]: Entering directory`/root/tomcat-connectors-1.2.40-src/native'
make[2]: Nothing to be done for`install-exec-am'.
make[2]: Nothing to be done for`install-data-am'.
make[2]: Leaving directory`/root/tomcat-connectors-1.2.40-src/native'
make[1]: Leaving directory`/root/tomcat-connectors-1.2.40-src/native'

[iyunv@org ~]# cd /etc/httpd
[iyunv@org httpd]# ls
conf conf.d  logs  modules run
[iyunv@org httpd]# cd conf.d/
[iyunv@org conf.d]# ls
php.conf README  welcome.conf
[iyunv@org conf.d]# vim mod_jk.conf
# Load the mod_jk
LoadModule jk_module  modules/mod_jk.so
JkWorkersFile  /etc/httpd/conf.d/workers.properties
JkLogFile logs/mod_jk.log
JkLogLevel debug
JkMount /*  TomcatA
JkMount /status/  statA
~
[iyunv@org conf.d]# vim/etc/httpd/conf.d/workers.properties
worker.list = TomcatA,statA
worker.TomcatA.port=8009
worker.TomcatA.host=192.168.1.116
worker.TomcatA.type=ajp13
worker.TomcatA.lbfactor=1
worker.statA.type = status

[iyunv@org conf.d]# httpd -t
Syntax OK
[iyunv@org conf.d]# service httpd restart
Stopping httpd:                                           [  OK  ]
Starting httpd:                                            [ OK  ]
[iyunv@org conf.d]#
    至此，一个基于mod_jk模块与后端名为TomcatA的worker通信的配置已经完成，重启httpd服务即可生效。


    还有状态信息

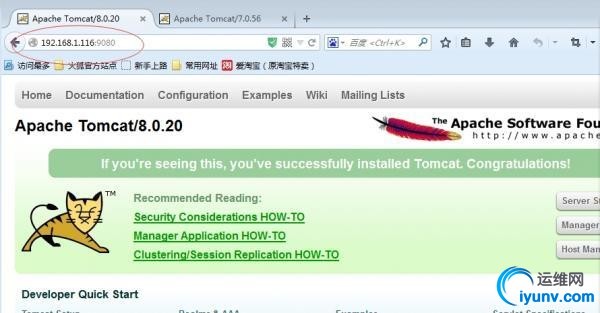

要实现负载均衡，至少需要两个tomcat还在本机上操作，配置另一个版本的tomcat,配置完成之后访问http://192.168.1.116:9080

   mod_jk可直接支持负载均衡，需要启用一个特殊型的worker：lb。

[iyunv@org conf.d]# vim mod_jk.conf
#Load the mod_jk
LoadModule jk_module  modules/mod_jk.so
JkWorkersFile  /etc/httpd/conf.d/workers.properties
JkLogFile logs/mod_jk.log
JkLogLevel debug
JkMount /*  lbcluster1
JkMount /status/  statA
~
[iyunv@org conf.d]# vim workers.properties
worker.list = lbcluster1,statA
worker.TomcatA.port=8009
worker.TomcatA.host=192.168.1.116
worker.TomcatA.type=ajp13
worker.TomcatA.lbfactor=1
worker.TomcatB.port=9009
worker.TomcatB.host=192.168.1.116
worker.TomcatB.type=ajp13
worker.TomcatB.lbfactor=1
worker.lbcluster1.type = lb
sorker.lbcluster1.sticky_session = 0
worker.lbcluster1.balance_workers =TomcatA, TomcatB
worker.statA.type = status
~
[iyunv@org conf.d]# httpd -t
Syntax OK
[iyunv@org bin]# service httpd restart
Stopping httpd:                                           [  OK  ]
Starting httpd:                                           [  OK  ]
[iyunv@org bin]#
    到此mod_jk实现负载均衡就配置好了，测试如下。

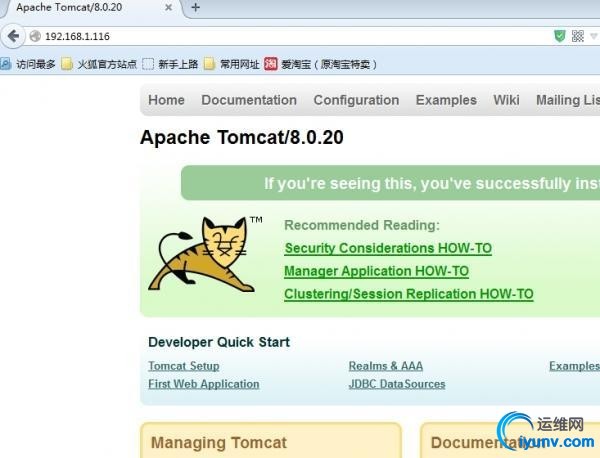

    访问http://192.168.1.116

    再次刷新
