了解saltstack的通信协议zeromq(二) 转

q986

　　上文讨论了PAIR/PAIR,REQ/REP两种模式，现在看看PUB/SUB和PUSH/PULL模式。

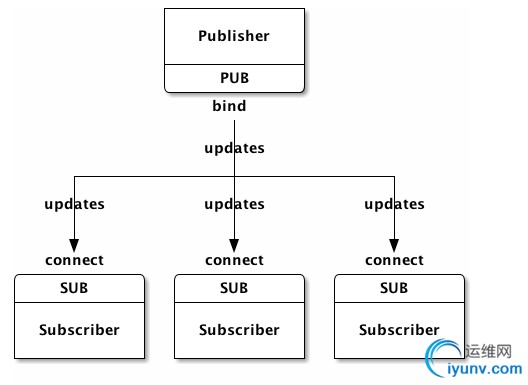

　　PUB/SUB：发布订阅模式，跟我们订阅新闻类似的，采用异步IO，多对多模式，如果没有订阅，服务端发送的消息直接丢弃掉。

　　pub_server.py
import zmqimport randomimport sysimport time port = "5556"if len(sys.argv) > 1:        port =  sys.argv[1]        int(port) context = zmq.Context()socket = context.socket(zmq.PUB)socket.bind("tcp://*:%s" % port) while True:        topic = random.randrange(9999,10005)        messagedata = random.randrange(1,215) - 80        print "%d %d" % (topic, messagedata)        socket.send("%d %d" % (topic, messagedata))        time.sleep(1)　　sub_client.py
import sysimport timeimport zmq port = "5556"# Socket to talk to servercontext = zmq.Context()socket = context.socket(zmq.SUB) print "Collecting updates from weather server..."socket.connect("tcp://localhost:%s" % port)   #socket.set(zmq.UNSUBSCRIBE, messagedata)topicfilter = "10001"socket.set(zmq.SUBSCRIBE, topicfilter) #Process 5 updatestotal_value = 0#for update_nbr in range (5):while True:        string = socket.recv()        topic, messagedata = string.split()#       total_value += int(messagedata)        print topic, messagedata        time.sleep(1)　　zmq.SUBCRIBE是用来指明订阅某种消息，这里订阅的是出现10001的信息
　　PUSH/PULL:任务分发模式，主要用于分布式计算的，将很多个任务分发到worker，然后worker将计算结果发送到结果收集器。

　　producer.py
import timeimport zmqimport random context = zmq.Context()sender = context.socket(zmq.PUSH)sender.bind('tcp://*:5557') # sync start of batch# be sure all worker connect successsink = context.socket(zmq.PUSH)sink.connect('tcp://0.0.0.0:5558')print 'Press Enter when the workers are ready:'_ = raw_input()print 'Sending tasks to workers...'sink.send(b'0')  for task_nbr in xrange(1000000):        workload = random.randint(1,10)        sender.send_string(u'%i' % workload) for i in range(10):        sender.send_string(u'0')time.sleep(1)　　consumer.py
import sysimport timeimport zmq context = zmq.Context() # Socket to recevie messages onreceiver = context.socket(zmq.PULL)receiver.connect('tcp://localhost:5557') # socket to send messagessender = context.socket(zmq.PUSH)sender.connect('tcp://localhost:5558') while True:        a_str = receiver.recv_string()        num = int(a_str)        if num % 2 == 0 or a_str == u'0':                sender.send_string(a_str)　　result.py
import sysimport timeimport zmq context = zmq.Context()# Socket to receive messages onreceiver = context.socket(zmq.PULL)receiver.bind("tcp://*:5558") # Wait for start of batchs = receiver.recv()sum = 0flag = 0# Start our clock nowtstart = time.time()while True:        a_str = receiver.recv_string()        num = int(a_str)        sum += num        if a_str == '0':                flag += 1        if flag == 10:                break tend = time.time()tdiff = tend - tstarttotal_msec = tdiff * 1000print "Total elapsed time: %d msec" % total_msec

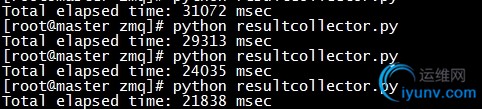

　　这个结果并不精确，分别是启动1个、2个、3个、4个consumer.py进程的测试结果，说明计算缩短了时间。
　　Queue,Forwarder,Streamer分别是REQ/REP、PUB/SUB、PUSH/PULL的代理，用于代理不同网段的机器。
　　关于代理的用法，这里不讲述。请参考下面地址。
