ganglia安装教程(centos7)

kaola4549

ganglia 安装教程
依赖软件

• 　　http://nchc.dl.sourceforge.net/project/pcre/pcre/8.32/pcre-8.32.tar.gz


• 　　tar xvzf pcre-8.32.tar.gz

• 　　cd pcre-8.32
  -./configure –prefix=/usr/local

• 　　make && make install


2.http://savannah.nongnu.org/download/confuse/confuse-2.7.tar.gz

• 　　tar xvzf confuse-2.7.tar.gz

• 　　cd confuse-2.7

• 　　CFLAGS=-fPIC ./configure –prefix=/usr/local –disable-nls

• 　　make CFLAGS=-fPIC

• 　　make CFLAGS=-fPIC install


3.http://nchc.dl.sourceforge.net/project/expat/expat/2.1.0/expat-2.1.0.tar.gz

• 　　tar -xvzf expat-2.1.0.tar.gz

• 　　cd expat-2.1.0

• 　　./configure –prefix=/usr/local

• 　　make && make install


4.http://zlib.net/zlib-1.2.8.tar.gz

• 　　tar xvzf zlib-1.2.8.tar.gz

• 　　cd zlib-1.2.8

• 　　CFLAGS=-fPIC ./configure –prefix=/usr/local

• 　　make CFLAGS=-fPIC

• 　　make CFLAGS=-fPIC install


5.ftp://xmlsoft.org/libxml2/libxml2-2.7.8.tar.gz

• 　　tar xvzf libxml2-2.7.8.tar.gz

• 　　cd libxml2-2.7.8

• 　　./configure –prefix=/usr/local –with-zlib=/usr/local

• 　　make && make install


6.http://oss.oetiker.ch/rrdtool/pub/rrdtool-1.4.8.tar.gz

• 　　tar xvzf rrdtool-1.4.8.tar.gz

• 　　cd rrdtool-1.4.8

• 　　export PKG_CONFIG_PATH=/usr/local/lib/pkgconfig

• 　　./configure –prefix=/usr/local

• 　　make && make install


7.http://cznic.dl.sourceforge.net/project/ganglia/ganglia%20monitoring%20core/3.6.0/ganglia-3.6.0.tar.gz

• 　　./configure –enable-gexec

• 　　make && make install


ganglia配置
gmetad配置
在ganglia安装目录执行如下操作

• 　　cp -a gmetad/gmetad.init /etc/init.d/gmetad

• 　　chkconfig –add gmetad

• 　　chkconfig –level 345 gmetad on

• 　　gmetad -t | tee /usr/local/etc/gmetad.conf

• 　　mkdir -p /var/lib/ganglia/rrds

• 　　chown nobody:nobody /var/lib/ganglia/rrds


配置gmetad.conf
1.修改gmetad.conf 中 data_source
data_source "hadoop201" hadoop201
gmond配置

• 　　cp -a gmond/gmond.init /etc/init.d/gmond

• 　　chkconfig –add gmond

• 　　chkconfig –level 345 gmond on

• 　　gmond -t | tee /usr/local/etc/gmond.conf


配置gmond.conf
修改 cluster中 name 为在gmetad.conf 中的data_source
cluster {
  name = "hadoop201"
  owner = "nobody"
  latlong = "unspecified"
  url = "unspecified"
}Ganglia-web环境部署

• 　　tar xvzf ganglia-web-3.6.2.tar.gz -C /var/www/html/

• 　　cd /var/www/html/

• 　　mv ganglia-web-3.5.12 ganglia

• 　　chmod -R 777 /var/www/html/ganglia

• 　　cd /var/www/html/ganglia

• 　　cp conf_default.php conf.php

• 　　vim conf.php


conf.php中有些默认配置和以上设置不一样的需要进行修改：
# Gmetad-webfrontend version. Used to check for updates.#$conf['gweb_root'] = "/var/www/html/ganglia";
$conf['gweb_confdir'] = "/var/www/html/ganglia";
include_once $conf['gweb_root'] . "/version.php";## 'readonly': No authentication is required.  All users may view all resources.  No edits are allowed.#  'enabled': Guest users may view public clusters.  Login is required to make changes.  #             An administrator must configure an authentication scheme and ACL rules.# 'disabled': Guest users may perform any actions, including edits.  No authentication is required.$conf['auth_system'] = 'readonly';## The name of the directory in "./templates" which contains the# templates that you want to use. Templates are like a skin for the# site that can alter its look and feel.#$conf['template_name'] = "default";## If you installed gmetad in a directory other than the default# make sure you change it here.## Where gmetad stores the rrd archives.$conf['gmetad_root'] = "/var/lib/ganglia";
$conf['rrds'] = "${conf['gmetad_root']}/rrds";# Where Dwoo (PHP templating engine) store compiled templates$conf['dwoo_compiled_dir'] = "${conf['gweb_confdir']}/dwoo/compiled";
$conf['dwoo_cache_dir'] = "${conf['gweb_confdir']}/dwoo/cache";# Where to store web-based configuration$conf['views_dir'] = $conf['gweb_confdir'] . '/conf';
$conf['conf_dir'] = $conf['gweb_confdir'] . '/conf';1234567891011121314151617181920212223242526272829303132333435363738问题及解决方式

• 　　编译rrdtool 错误
  /.libs/librrd.so: undefined reference to xmlTextReaderValue@LIBXML2_2.4.30'
  ./.libs/librrd.so: undefined reference toxmlTextReaderNodeType@LIBXML2_2.4.30’
  ./.libs/librrd.so: undefined reference to xmlStrdup@LIBXML2_2.4.30'
  ./.libs/librrd.so: undefined reference toxmlTextReaderName@LIBXML2_2.4.30’
  ./.libs/librrd.so: undefined reference to xmlNewTextReaderFilename@LIBXML2_2.4.30'
  ./.libs/librrd.so: undefined reference toxmlStrcasestr@LIBXML2_2.4.30’
  ./.libs/librrd.so: undefined reference to xmlFree@LIBXML2_2.4.30'
  ./.libs/librrd.so: undefined reference toxmlTextReaderRead@LIBXML2_2.4.30’
  ./.libs/librrd.so: undefined reference to xmlFreeTextReader@LIBXML2_2.4.30'
  ./.libs/librrd.so: undefined reference toxmlTextReaderGetParserLineNumber@LIBXML2_2.6.17’
  ./.libs/librrd.so: undefined reference to `xmlStrcasecmp@LIBXML2_2.4.30’


ganglia编译必须依赖rrdtool，而rrdtool安装不同机器可能出现莫名的安装错误，此时如果机器可以连接网络可以使用 yum -y install rrdtool 方式安装，但此时安装后，编译ganglia时仍然无法找到rrdtool相应的库，此时可以采用如下方法,使ganglia编译安装成功：
下载rrdtool-1.4.8.tar.gz ，解压后，将rrdtool-1.4.8/src/.libs 中相应库拷贝到如下目录：
home/hadoop/为我本机rrdtool-1.4.8所在路径：
cp /home/hadoop/rrdtool-1.4.8/src/.libs/.so /usr/local/lib/
cp /home/hadoop/rrdtool-1.4.8/src/.libs/*.a /usr/local/lib/
cp /home/hadoop/rrdtool-1.4.8/src/.libs/*.la /usr/local/lib/
cp /home/hadoop/rrdtool-1.4.8/src/rrd*.h /usr/local/include

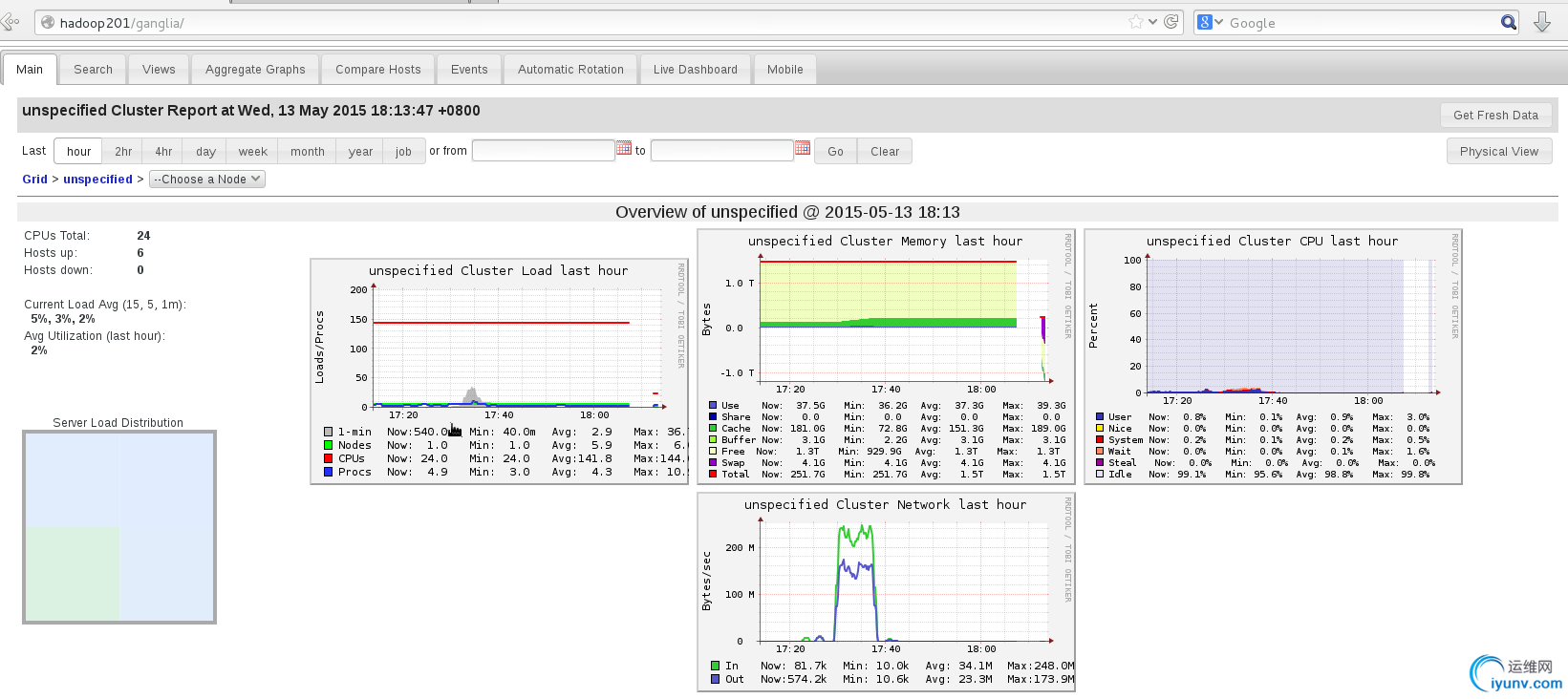

效果展示
