Zabbix安装部署

jhegw

Zabbix-server服务端安装
安装Zabbix官方源和epel源
rpm -ivh http://repo.zabbix.com/zabbix/2. ... .2-1.el6.noarch.rpm
rpm -ivh http://dl.fedoraproject.org/pub/ ... ease-6-8.noarch.rpm
安装Zabbix-Server
yum install -y zabbix zabbix-get zabbix-server zabbix-web-mysql zabbix-web zabbix-agent
安装MySQL数据路服务
yum install -y mysql-server
修改MySQL配置文件：
vim /etc/my.cnf

1 2 3 4 5 6 7 8 9 10 11

[mysqld] datadir=/var/lib/mysql socket=/var/lib/mysql/mysql.sock user=mysql # Disabling symbolic-links is recommended to prevent assorted security risks symbolic-links=0 character-set-server=utf8         #设置字符集为utf-8 innodb_file_per_table=1          #让innodb的每个表文件单独存储 [mysqld_safe] log-error=/var/log/mysqld.log pid-file=/var/run/mysqld/mysqld.pid

启动服务
chkconfig mysqld on
service mysqld start
查看服务是否启动成功
ps aux |grep mysql
1、创建Zabbix的数据库
设置MySQL的root用户密码

1 2 3 4 5

mysqladmin -uroot password admin mysql -uroot -padmin create database zabbix character set utf8; grant all privileges on zabbix.* to zabbix@localhost identified by 'zabbix'; flush privileges;

2、导入Zabbix-Server的数据库
mysql -uzabbix -pzabbix
use zabbix
source /usr/share/doc/zabbix-server-mysql-2.2.8/create/schema.sql;
show tables;
配置zabbix_server.conf
vim /etc/zabbix/zabbix_server.conf

1 2 3 4 5 6 7 8 9 10 11 12 13

LogFile=/var/log/zabbix/zabbix_server.log LogFileSize=0 PidFile=/var/run/zabbix/zabbix_server.pid DBHost=localhost DBName=zabbix DBUser=zabbix DBPassword=zabbix DBSocket=/var/lib/mysql/mysql.sock StartPollers=5 SNMPTrapperFile=/var/log/snmptt/snmptt.log CacheSize=256M AlertScriptsPath=/usr/lib/zabbix/alertscripts ExternalScripts=/usr/lib/zabbix/externalscripts

查看修改后的参数
egrep -v "(^#|^$)" /etc/zabbix/zabbix_server.conf
mkdir /etc/zabbix/alertscripts /etc/zabbix/externalscripts
启动Zabbix-Server服务
service zabbix-server start
service httpd start
添加开机启动项
chkconfig zabbix-server on
chkconfig httpd on
防火墙、Selinux及权限的设置
1、防火墙的设置
vim /etc/sysconfig/iptables

1 2 3 4 5

-A INPUT -m state --state NEW -m tcp -p tcp --dport 22 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 80 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 10051 -j ACCEPT -A OUTPUT -m state --state NEW -m tcp -p tcp --dport 10050 -j ACCEPT #-A INPUT -m state --state NEW -m tcp -p tcp --sport 10050 -j ACCEPT

service iptables restart

2、关闭Selinux
setenforce 0
getenforce      #获取当前Selinux的运行状态
或直接关闭Selinux：
vim /etc/selinux/config
SELINUX=disabled   (此方法需重启服务器生效)
3、php.ini配置文件的设置
vim /etc/httpd/conf.d/zabbix.conf

1 2 3 4 5 6

php_value date:timezone Asia/Shanghai php_value max_execution_time 300 php_value memory_limit 128M php_value post_max_size 16M php_value upload_max_filesize 2M php_value max_input_time 300

service httpd restart

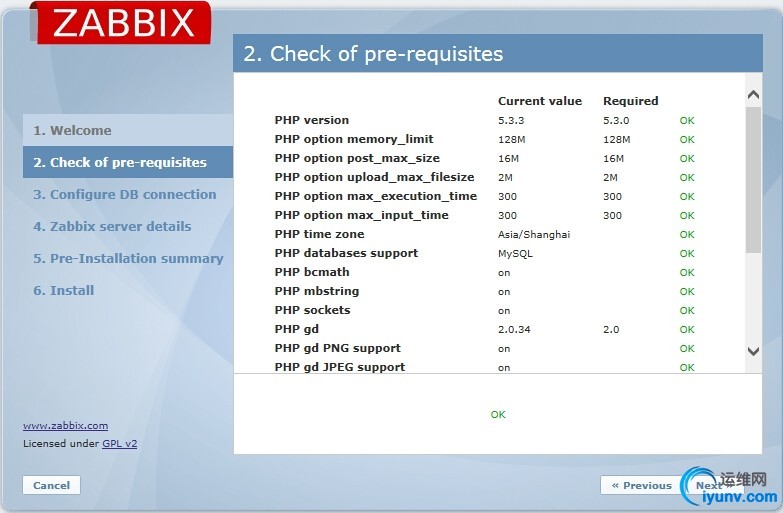

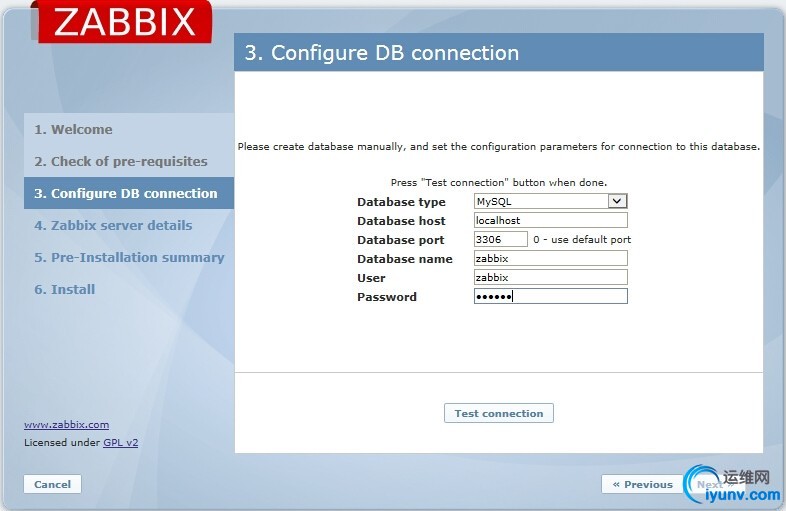

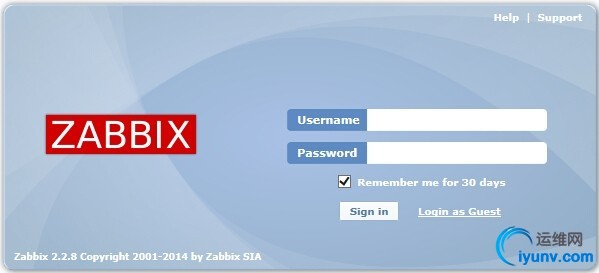

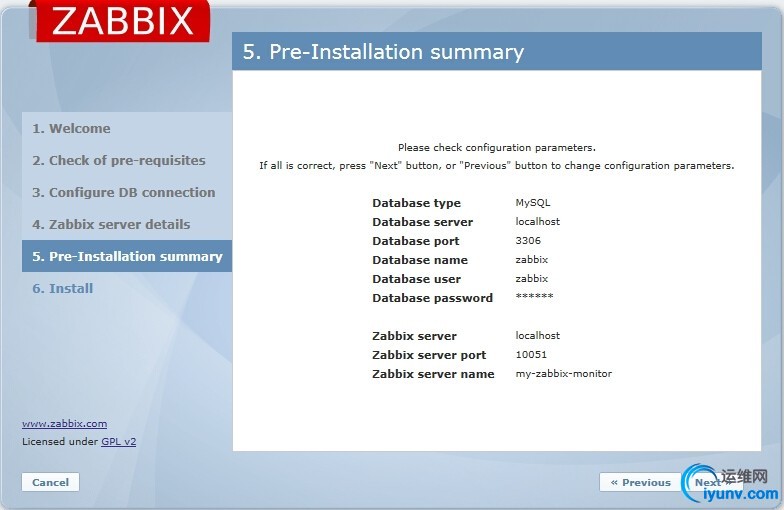

配置web界面
http://192.168.0.136/zabbix

Zabbix-Agent客户端安装

安装Zabbix官方源

rpm -ivh http://repo.zabbix.com/zabbix/2. ... .2-1.el6.noarch.rpm

安装Zabbix-Agent客户端

yum install -y zabbix zabbix-agent

关闭防火墙

iptables -F

配置zabbix_agentd.conf

egrep -v "(^#|^$)" /etc/zabbix/zabbix_agentd.conf

1 2 3 4 5 6 7

PidFile=/var/run/zabbix/zabbix_agentd.pid LogFile=/var/log/zabbix/zabbix_agentd.log LogFileSize=0 Server=127.0.0.1,192.168.0.136 ServerActive=192.168.0.136:10051 Hostname=Zabbix server Include=/etc/zabbix/zabbix_agentd.d/

chkconfig zabbix-agent on

service zabbix-agent start
