Docker创建本地仓库

yl197837

　　Docker是时下相当火热的技术，关于docker的介绍此处就不多说，本文主要介绍下如何在centos6.6环境下配置docker的本地仓库，对于想在局域网内大规模运用docker来说，频繁的从官网仓库下载镜像文件，无论从管理还是在效率上都无法接受。

　　

　　一：以容器的方式运行registry服务
　　初次运行，本地不存在registry的image，会自动从官方网站上下载一份，速度较慢
# docker run -idt -p 5000:5000 --name registry -v /data/registry:/tmp/registry registry

　　二：配置Nginx， 需要配置用户验证和https支持
　　# /usr/local/nginx/sbin/nginx -V
　　
# cat /usr/local/nginx/conf/extra/docker.conf
# For versions of Nginx > 1.3.9 that include chunked transfer encoding support
# Replace with appropriate values where necessary
upstream docker-registry {
server 127.0.0.1:5000;
}
server {
listen  443;
server_name  registry.fjhb.cn;
ssl on;
ssl_certificate     /etc/ssl/certs/nginx.crt;
ssl_certificate_key /etc/ssl/private/nginx.key;
proxy_set_header Host       $http_host;   # required for Docker client sake
proxy_set_header X-Real-IP  $remote_addr; # pass on real client IP
client_max_body_size 0; # disable any limits to avoid HTTP 413 for large image uploads
# required to avoid HTTP 411: see Issue #1486 (https://github.com/dotcloud/docker/issues/1486)
chunked_transfer_encoding on;
location / {
     # let Nginx know about our auth file
     auth_basic              "Restricted";
     auth_basic_user_file    docker-registry.htpasswd;
     proxy_pass http://docker-registry;
}
location /_ping {
     auth_basic off;
     proxy_pass http://docker-registry;
}
location /v1/_ping {
     auth_basic off;
     proxy_pass http://docker-registry;
}
}　　三：配置ssl证书和密码文件
　　1：生成根密钥
# cd /etc/pki/CA/
# touch ./{serial,index.txt}
# echo "00" > serial
# openssl  genrsa -out private/cakey.pem 2048　　2：生成根证书
# openssl  req -new -x509 -key private/cakey.pem -days 3650 -out cacert.pem

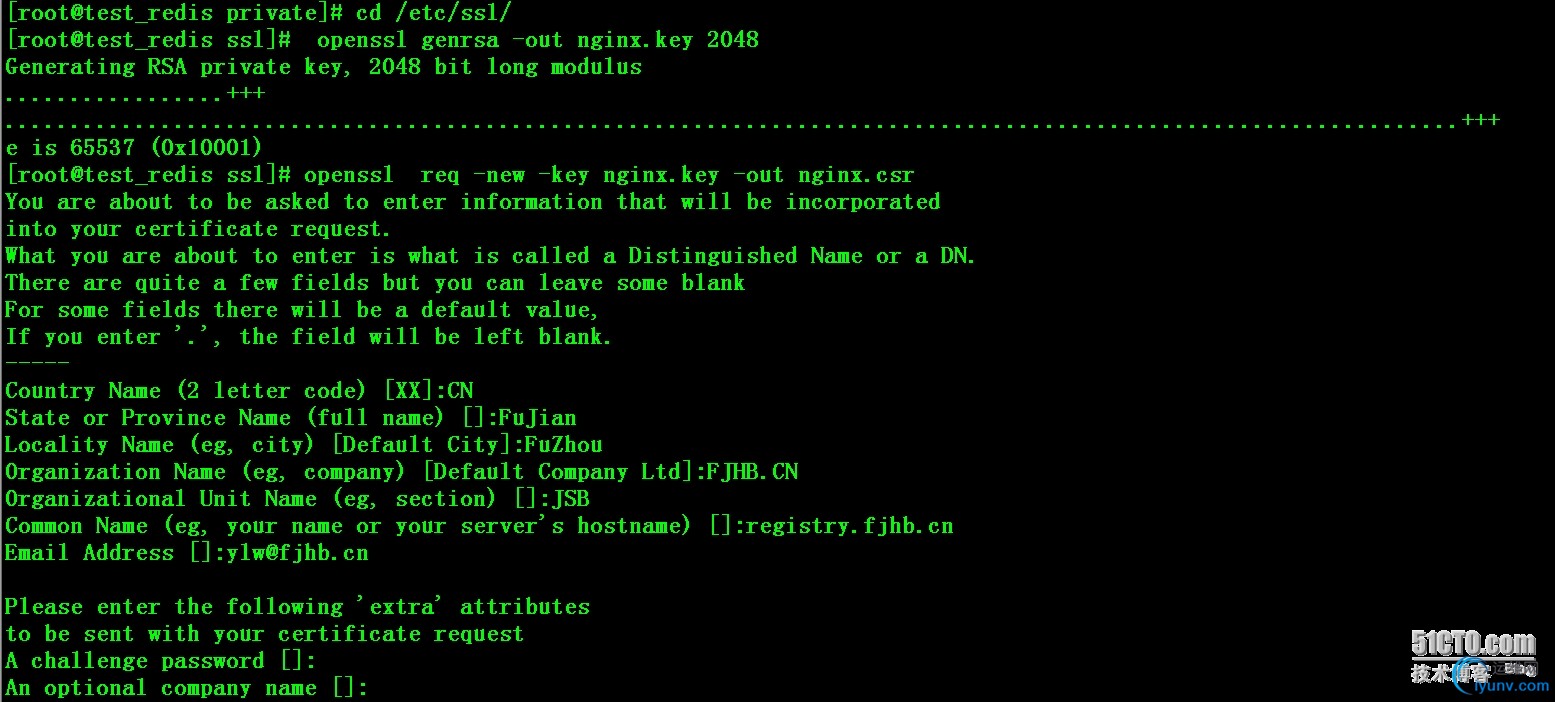

　　3：生成nginx的key和nginx.csr证书请求文件
# cd /etc/ssl/
# openssl genrsa -out nginx.key 2048
# openssl  req -new -key nginx.key -out nginx.csr

　　4：私有CA根据请求来签发证书
# openssl ca -in nginx.csr -days 3650 -out nginx.crt

# cp /etc/pki/tls/certs/ca-bundle.crt{,.bak}
# cat /etc/pki/CA/cacert.pem >> /etc/pki/tls/certs/ca-bundle.crt  #因为是自签的证书，此步骤的意义在于让系统接受该证书　　5：复制生成的证书文件到相应位置
# cp nginx.crt  certs/
# cp nginx.key  private/　　6：使用htpasswd工具创建密码文件
# yum -y install httpd-tools
# htpasswd -c /usr/local/nginx/conf/docker-registry.htpasswd yang
New password:
Re-type new password:
Adding password for user yang
# htpasswd /usr/local/nginx/conf/docker-registry.htpasswd lin
New password:
Re-type new password:

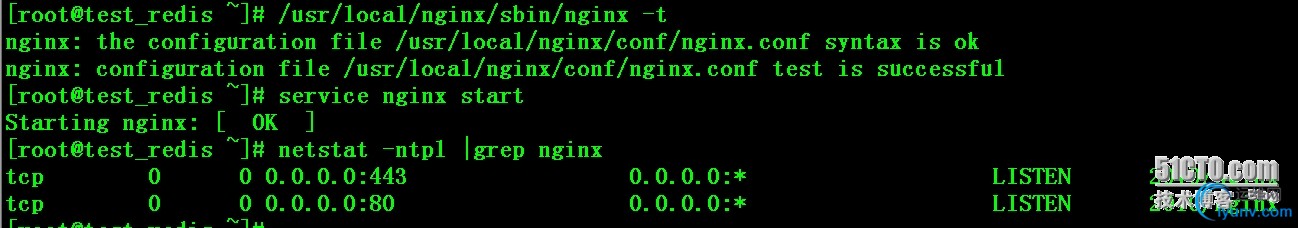

Adding password for user lin　　四：启动nginx
# /usr/local/nginx/sbin/nginx  -t
# /usr/local/nginx/sbin/nginx
# netstat -ntpl |grep nginx

　　
　　五：测试

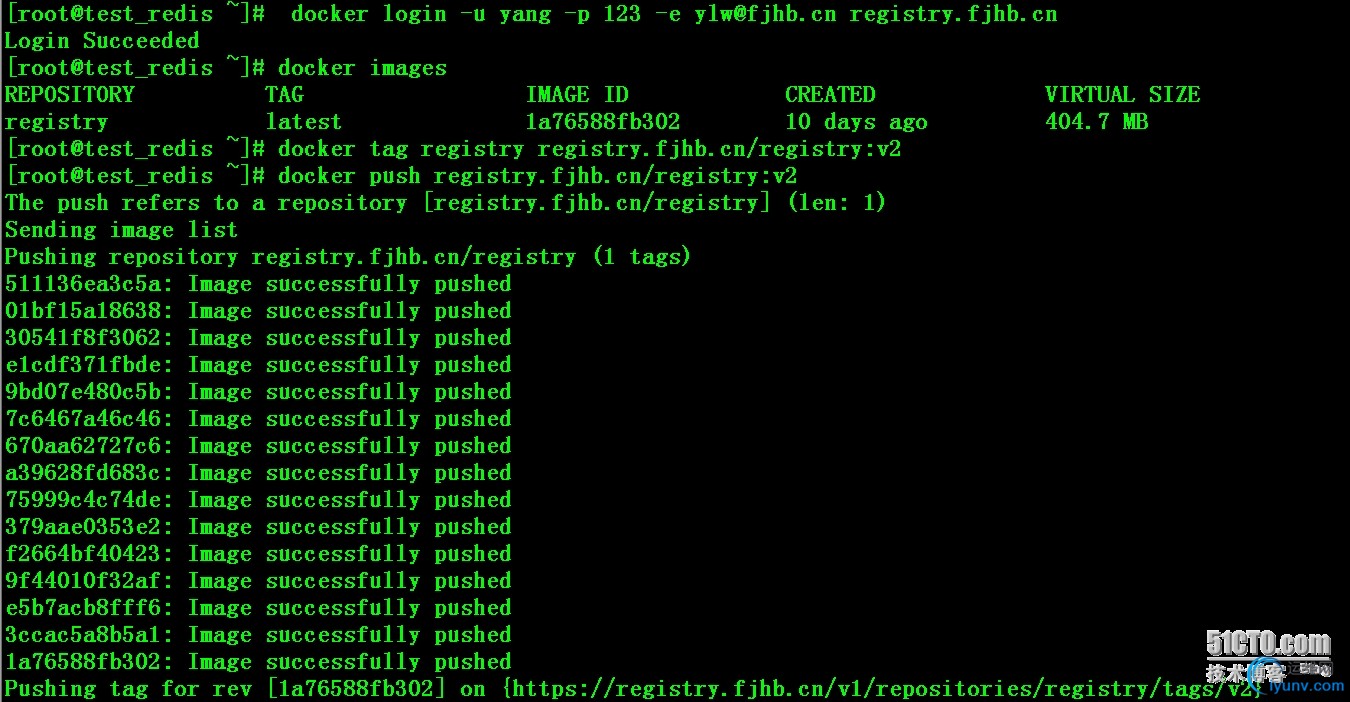

　　1：本地测试push
# docker login -u yang -p 123 -e ylw@fjhb.cn registry.fjhb.cn
# docker images
# docker tag registry registry.fjhb.cn/registry:v2
# docker push registry.fjhb.cn/registry:v2

　　2：其他客户端测试pull和push
# tail -1 /etc/hosts
192.168.1.12    registry.fjhb.cn
# scp /etc/pki/CA/cacert.pem root@192.168.1.227:/root
# cp /etc/pki/tls/certs/ca-bundle.crt{,.bak}
# cat cacert.pem >> /etc/pki/tls/certs/ca-bundle.crt
# curl -u yang:123  https://registry.fjhb.cn/v1/search
# service docker restart
# docker  login -u yang -p 123 -e ylw@fjhb.cn https://registry.fjhb.cn
Login Succeeded
# docker  images
# docker tag centos6 registry.fjhb.cn/centos6
# docker push registry.fjhb.cn/centos6　　

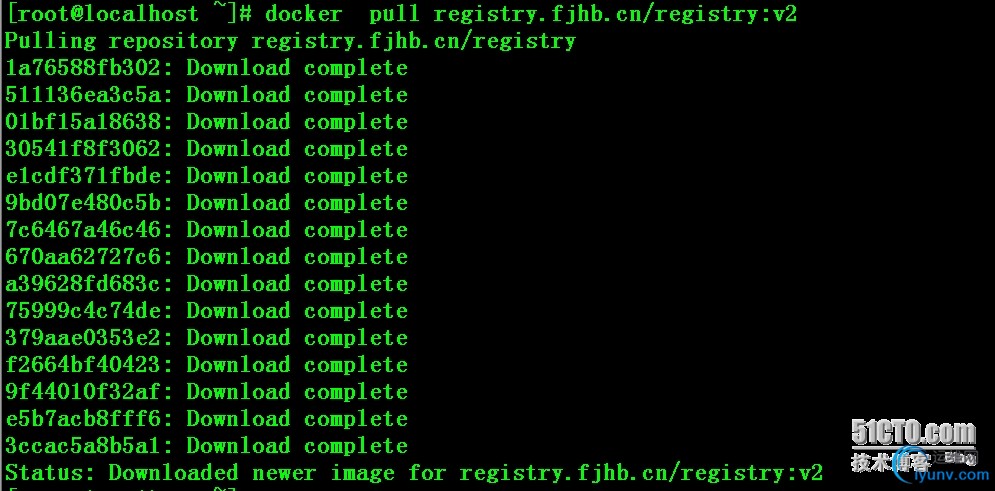

# docker  pull registry.fjhb.cn/registry:v2

　　异常处理：
　　
# scp  /etc/pki/CA/cacert.pem root@192.168.2.227:/root
# cat cacert.pem >> /etc/ssl/certs/ca-bundle.crt　　参考：
　　http://blog.94it.net/post/openssl-ca.html
　　http://segmentfault.com/blog/seanlook/1190000000801162
