fuel-server
ui,admin/admin
https://172.18.7.120:8443
默认超级管理员root\r00tme
5.2、配置本地源和bootstrap制作
具体参考参考文档,大概思路是,下载MOS9.0的源,并放到一台nginx服务器上,然后修改/usr/share/fuel-mirror/ubuntu.yaml文件,把archive.ubuntu.com换成mirrors.aliyun.com,把mirror.fuel-infra.org换成那台nginx的地址,注意路径是否正确,然后运行 fuel-createmirror,然后等吧,看/var/www/nailgun/mirrors下面应该有个文件夹,分别是mos和ubuntu的本地源,总大小在2.5G-3G之间。
编辑/etc/fuel-bootstrap-cli/fuel_bootstrap_cli.yaml,把Ubuntu相关的大概3-4条换成aliyun的源,保存后运行fuel-bootstrap build,大概10-20分钟后提示有个文件生成在/tmp/11.......gz,使用“fuel-bootstrap import 路径”导入,导入成功后使用“fuel-bootstrap activate ID”即可,可以通过fuel-bootstrap list查看是否导入成功
备份源
ubuntu deb http://archive.ubuntu.com/ubuntu/ trusty main universe multiverse
ubuntu-updates deb http://archive.ubuntu.com/ubuntu/ trusty-updates main universe multiverse
ubuntu-security deb http://archive.ubuntu.com/ubuntu/ trusty-security main universe multiverse
mos deb http://172.18.7.120:8080/mitaka-9.0/ubuntu/x86_64 mos9.0 main restricted 1050
mos-updates deb http://mirror.fuel-infra.org/mos-repos/ubuntu/9.0/ mos9.0-updates main restricted 1050
mos-security deb http://mirror.fuel-infra.org/mos-repos/ubuntu/9.0/ mos9.0-security main restricted 1050
mos-holdback deb http://mirror.fuel-infra.org/mos-repos/ubuntu/9.0/ mos9.0-holdback main restricted 1100
Auxiliary deb http://172.18.7.120:8080/mitaka-9.0/ubuntu/auxiliary auxiliary main restricted 1150
本地源(这里不用挨个修改fuel的设置了,制作本地源OK后会自动替换)
deb http://172.18.7.120:8080/mirrors/ubuntu/ trusty main universe multiverse
deb http://172.18.7.120:8080/mirrors/ubuntu/ trusty-updates main universe multiverse
deb http://172.18.7.120:8080/mirrors/ubuntu/ trusty-security main universe multiverse
deb http://172.18.7.120:8080/mitaka-9.0/ubuntu/x86_64 mos9.0 main restricted
deb http://172.18.7.120:8080/mirrors/mos-repos/ubuntu/9.0/ mos9.0-updates main restricted
deb http://172.18.7.120:8080/mirrors/mos-repos/ubuntu/9.0/ mos9.0-security main restricted
deb http://172.18.7.120:8080/mirrors/mos-repos/ubuntu/9.0/ mos9.0-holdback main restricted
deb http://172.18.7.120:8080/mitaka-9.0/ubuntu/auxiliary auxiliary main restricted
5.3、PXE安装bootstarp
启动controller、compute、stroage三台机器,记住光盘处默认不动,看到选择ubuntu...bootstrap,选择即可,大概1-5分钟自动安装完毕,打开fuel界面会看到这3台设备。
5.4、fuel添加节点

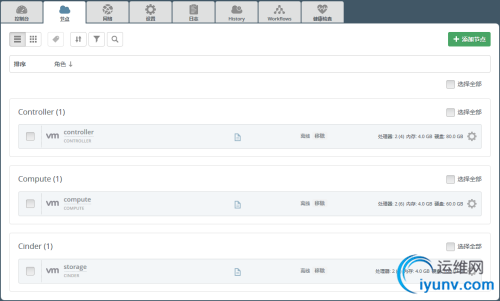

进入fule主界面,添加新环境,基本全是默认,其他什么的不要选,省的麻烦。完成后,添加节点,只要controller\compute\storage(cinder)对应上就OK,如图
都添加好后,修改网络接口配置,顺序都是PXE-管理-存储-公开-私有,如图
5.5、配置网络及其他

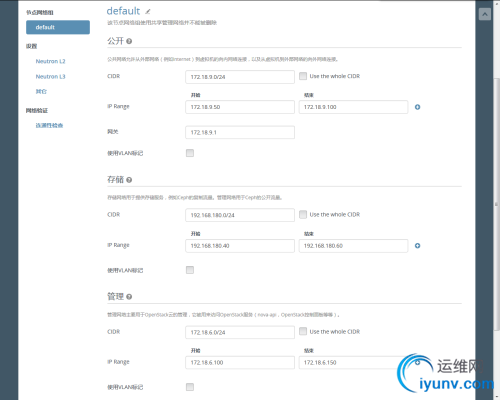

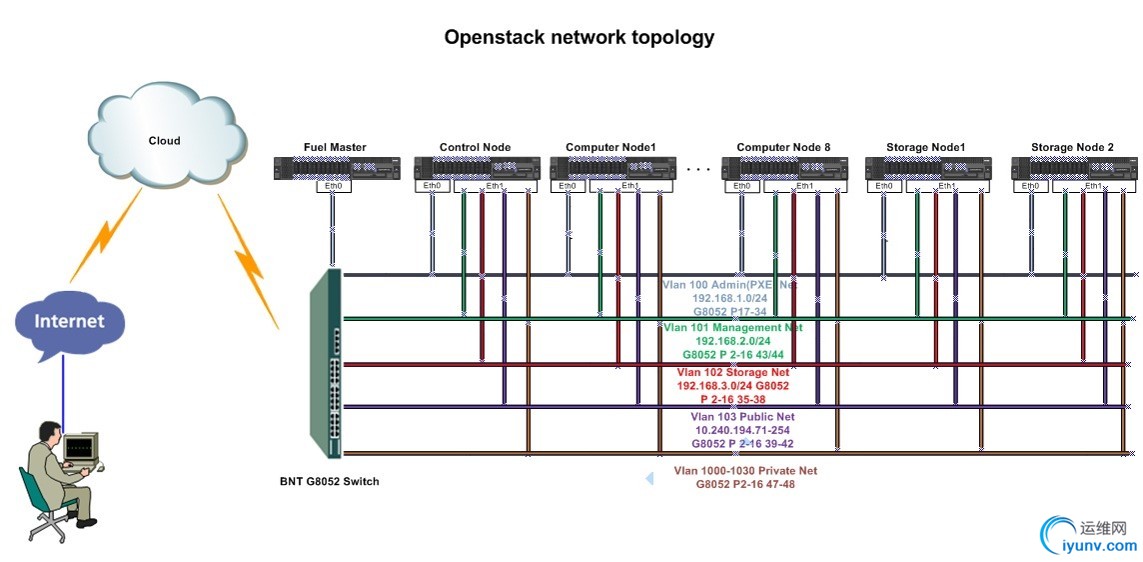

网络配置请参考网络规划的情况配置,如图
Neutron L2选项中,选择80-90,是我这几各网段的vlanid范围,其他选项中自己看着办。最后进行“连通性检查”,一般会出现各种错误,自己慢慢调试吧。
5.6、部署
去设置-基础配置,找到operating system access,修改密码为简单点的,不然部署好以后输入密码可麻烦了!然后回到环境首页,点击部署,一般安装ubuntu14.04基本很顺利,但是各种尝试最后仍然爆出一个systemctl enable atop返回为状态1说这个无法执行,各种百度google都没有找到办法,倒是官网12.9号确定为危急bug。。。至此无法继续!立贴为证防止以后再次回来bug修复后,再从头来一遍就没意思了。
