3.6 Nova控制节点的部署
创建nova用户，并加入到service项目中，赋予admin权限
[root@node1 ~]# source admin-openrc.sh[root@node1 ~]# openstack user create --domain default --password=nova nova+-----------+----------------------------------+| Field | Value |+-----------+----------------------------------+| domain_id | default || enabled | True || id | 4ab17ba8c8804d5f888acb243675388b || name | nova |+-----------+----------------------------------+[root@node1 ~]# openstack role add --project service --user nova admin修改nova的配置文件，配置结果如下
1.数据库
2.keystone
3.RabbitMQ
4.网络相关
5.注册相关
[root@node1 ~]# grep -n "^[a-Z]" /etc/nova/nova.conf1 [DEFAULT]198 my_ip=192.168.8.150 //变量，方便调用344 enabled_apis=osapi_compute,metadata //禁用ec2的API506 auth_strategy=keystone //(使用keystone验证，分清处这个是default模块下的)838 network_api_class=nova.network.neutronv2.api.API //网络使用neutron的，中间的.代表目录结构930 linuxnet_interface_driver=nova.network.linux_net.NeutronLinuxBridgeInterfaceDriver //（以前的类的名称LinuxBridgeInterfaceDriver，现在叫做NeutronLinuxBridgeInterfaceDriver）1064 security_group_api=neutron //设置安全组sg为neutron1240 firewall_driver=nova.virt.firewall.NoopFirewallDriver //（关闭防火墙）1277 debug=true1283 verbose=true1422 rpc_backend=rabbit //使用rabbitmq消息队列1719 [database]1742 connection=mysql://nova:nova@192.168.8.150/nova1936 [glance]1943 host=$my_ip //glance的地址2120 [keystone_authtoken]2125 auth_uri = http://192.168.8.150:50002126 auth_url = http://192.168.8.150:353572127 auth_plugin = password2128 project_domain_id = default2129 user_domain_id = default2130 project_name = service //使用service项目2131 username = nova2132 password = nova2737 [oslo_concurrency]2752 lock_path=/var/lib/nova/tmp //锁路径2870 [oslo_messaging_rabbit]2924 rabbit_host=192.168.8.150 //指定rabbit主机2928 rabbit_port=5672 //rabbitmq端口2940 rabbit_userid=openstack //rabbitmq用户2944 rabbit_password=openstack //rabbitmq密码3302 [vnc]3320 vncserver_listen=$my_ip //vnc监听地址3325 vncserver_proxyclient_address=$my_ip //代理客户端地址本机配置:
[root@node1 ~]# grep -n "^[a-Z]" /etc/nova/nova.conf198:my_ip=192.168.8.150344:enabled_apis=osapi_compute,metadata506:auth_strategy=keystone838:network_api_class=nova.network.neutronv2.api.API930:linuxnet_interface_driver=nova.network.linux_net.NeutronLinuxBridgeInterfaceDriver1064:security_group_api=neutron1240:firewall_driver=nova.virt.firewall.NoopFirewallDriver1277:debug=true1283:verbose=true1422:rpc_backend=rabbit1742:connection=mysql://nova:nova@192.168.8.150/nova1943:host=$my_ip2125:auth_uri = http://192.168.8.150:50002126:auth_url = http://192.168.8.150:353572127:auth_plugin = password2128:project_domain_id = default2129:user_domain_id = default2130:project_name = service2131:username = nova2132:password = nova2752:lock_path=/var/lib/nova/tmp2933:rabbit_host=192.168.8.1502937:rabbit_port=56722949:rabbit_userid=openstack2953:rabbit_password=openstack3320:vncserver_listen=$my_ip3325:vncserver_proxyclient_address=$my_ip同步数据库
[root@node1 ~]# su -s /bin/sh -c "nova-manage db sync" nova/usr/lib64/python2.7/site-packages/sqlalchemy/engine/default.py:450: Warning: Duplicate index 'block_device_mapping_instance_uuid_virtual_name_device_name_idx' defined on the table 'nova.block_device_mapping'. This is deprecated and will be disallowed in a future release. cursor.execute(statement, parameters)/usr/lib64/python2.7/site-packages/sqlalchemy/engine/default.py:450: Warning: Duplicate index 'uniq_instances0uuid' defined on the table 'nova.instances'. This is deprecated and will be disallowed in a future release. cursor.execute(statement, parameters)[root@node1 ~]# mysql -uroot -p123456Welcome to the MariaDB monitor. Commands end with ; or \g.Your MariaDB connection id is 19Server version: 5.5.50-MariaDB MariaDB ServerCopyright (c) 2000, 2016, Oracle, MariaDB Corporation Ab and others.Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.MariaDB [nova]> use nova;Database changedMariaDB [nova]> show tables;+--------------------------------------------+| Tables_in_nova |+--------------------------------------------+| agent_builds || aggregate_hosts || aggregate_metadata || aggregates || block_device_mapping || bw_usage_cache || cells || certificates || compute_nodes || console_pools || consoles || dns_domains || fixed_ips || floating_ips || instance_actions || instance_actions_events || instance_extra || instance_faults || instance_group_member || instance_group_policy || instance_groups || instance_id_mappings || instance_info_caches || instance_metadata || instance_system_metadata || instance_type_extra_specs || instance_type_projects || instance_types || instances || key_pairs || migrate_version || migrations || networks || pci_devices || project_user_quotas || provider_fw_rules || quota_classes || quota_usages || quotas || reservations || s3_images || security_group_default_rules || security_group_instance_association || security_group_rules || security_groups || services || shadow_agent_builds || shadow_aggregate_hosts || shadow_aggregate_metadata || shadow_aggregates || shadow_block_device_mapping || shadow_bw_usage_cache || shadow_cells || shadow_certificates || shadow_compute_nodes || shadow_console_pools || shadow_consoles || shadow_dns_domains || shadow_fixed_ips || shadow_floating_ips || shadow_instance_actions || shadow_instance_actions_events || shadow_instance_extra || shadow_instance_faults || shadow_instance_group_member || shadow_instance_group_policy || shadow_instance_groups || shadow_instance_id_mappings || shadow_instance_info_caches || shadow_instance_metadata || shadow_instance_system_metadata || shadow_instance_type_extra_specs || shadow_instance_type_projects || shadow_instance_types || shadow_instances || shadow_key_pairs || shadow_migrate_version || shadow_migrations || shadow_networks || shadow_pci_devices || shadow_project_user_quotas || shadow_provider_fw_rules || shadow_quota_classes || shadow_quota_usages || shadow_quotas || shadow_reservations || shadow_s3_images || shadow_security_group_default_rules || shadow_security_group_instance_association || shadow_security_group_rules || shadow_security_groups || shadow_services || shadow_snapshot_id_mappings || shadow_snapshots || shadow_task_log || shadow_virtual_interfaces || shadow_volume_id_mappings || shadow_volume_usage_cache || snapshot_id_mappings || snapshots || tags || task_log || virtual_interfaces || volume_id_mappings || volume_usage_cache |+--------------------------------------------+105 rows in set (0.01 sec)启动nova的全部服务
[root@node1 ~]# systemctl enable openstack-nova-api.service openstack-nova-cert.service openstack-nova-consoleauth.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.serviceCreated symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-api.service to /usr/lib/systemd/system/openstack-nova-api.service.Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-cert.service to /usr/lib/systemd/system/openstack-nova-cert.service.Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-consoleauth.service to /usr/lib/systemd/system/openstack-nova-consoleauth.service.Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-scheduler.service to /usr/lib/systemd/system/openstack-nova-scheduler.service.Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-conductor.service to /usr/lib/systemd/system/openstack-nova-conductor.service.Created symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-novncproxy.service to /usr/lib/systemd/system/openstack-nova-novncproxy.service.[root@node1 ~]# systemctl start openstack-nova-api.service openstack-nova-cert.service openstack-nova-consoleauth.service openstack-nova-scheduler.service openstack-nova-conductor.service openstack-nova-novncproxy.service在keystone上注册nova，并检查控制节点的nova服务是否配置成功
[root@node1 ~]# openstack service create --name nova --description "OpenStack Compute" compute+-------------+----------------------------------+| Field | Value |+-------------+----------------------------------+| description | OpenStack Compute || enabled | True || id | c80323b6a0b743bf95b40ebd031d407d || name | nova || type | compute |+-------------+----------------------------------+[root@node1 ~]# openstack endpoint create --region RegionOne compute public http://192.168.8.150:8774/v2/%\(tenant_id\)s+--------------+--------------------------------------------+| Field | Value |+--------------+--------------------------------------------+| enabled | True || id | ea10c9cdf2064825bc6f634bb84f2030 || interface | public || region | RegionOne || region_id | RegionOne || service_id | c80323b6a0b743bf95b40ebd031d407d || service_name | nova || service_type | compute || url | http://192.168.8.150:8774/v2/%(tenant_id)s |+--------------+--------------------------------------------+[root@node1 ~]# openstack endpoint create --region RegionOne compute internal http://192.168.8.150:8774/v2/%\(tenant_id\)s+--------------+--------------------------------------------+| Field | Value |+--------------+--------------------------------------------+| enabled | True || id | 86c1a8c2b7774239b4cfaa659734c155 || interface | internal || region | RegionOne || region_id | RegionOne || service_id | c80323b6a0b743bf95b40ebd031d407d || service_name | nova || service_type | compute || url | http://192.168.8.150:8774/v2/%(tenant_id)s |+--------------+--------------------------------------------+[root@node1 ~]# openstack endpoint create --region RegionOne compute admin http://192.168.8.150:8774/v2/%\(tenant_id\)s+--------------+--------------------------------------------+| Field | Value |+--------------+--------------------------------------------+| enabled | True || id | 0d41fab3fa474a9ba555290396c3dd52 || interface | admin || region | RegionOne || region_id | RegionOne || service_id | c80323b6a0b743bf95b40ebd031d407d || service_name | nova || service_type | compute || url | http://192.168.8.150:8774/v2/%(tenant_id)s |+--------------+--------------------------------------------+[root@node1 ~]# openstack host list+-----------+-------------+----------+| Host Name | Service | Zone |+-----------+-------------+----------+| node1 | conductor | internal | //conductor用来访问数据库| node1 | consoleauth | internal | //consoleauth用来做控制台验证的| node1 | scheduler | internal | //scheduler用来作调度的| node1 | cert | internal | //cert用来作身份验证+-----------+-------------+----------+3.7 Nova compute 计算节点的部署
图解Novacpmpute
nova-compute一般运行在计算节点上，通过Message Queue接收并管理VM的生命周期
nova-compute通过Libvirt管理KVM，通过XenAPI管理Xen等
配置时间同步
修改其配置文件
[root@node2 ~]# vi /etc/chrony.confserver 192.168.8.150 iburst（只保留这一个server，也就是控制节点的时间）chrony开机自启动，并且启动
[root@node2 ~]# systemctl enable chronyd.service[root@node2 ~]# systemctl start chronyd.service设置Centos7的时区
[root@node2 ~]# timedatectl set-timezone Asia/Shanghai[root@node2 ~]# timedatectl status Local time: Mon 2016-09-26 21:29:02 CST Universal time: Mon 2016-09-26 13:29:02 UTC RTC time: Mon 2016-09-26 13:29:03 Time zone: Asia/Shanghai (CST, +0800) NTP enabled: yesNTP synchronized: yes RTC in local TZ: no DST active: n/a[root@node2 ~]# dateMon Sep 26 21:30:38 CST 2016开始部署计算节点:
更改计算节点上的配置文件，直接使用控制节点的配置文件
[root@node1 ~]# scp /etc/nova/nova.conf 192.168.8.155:/etc/nova/The authenticity of host '192.168.0.155 (192.168.8.155)' can't be established.ECDSA key fingerprint is 48:6c:b4:31:5b:52:e7:d6:1f:e5:c6:bf:43:ca:c2:9b.Are you sure you want to continue connecting (yes/no)? yesWarning: Permanently added '192.168.0.155' (ECDSA) to the list of known hosts.root@192.168.0.155's password:nova.conf 100% 116KB 116.1KB/s 00:00 (在控制节点上操作的scp)更改配置文件后的过滤结果
[root@node2 ~]# grep -n '^[a-Z]' /etc/nova/nova.conf61:rpc_backend=rabbit124:my_ip=192.168.8.155 //改成本机ip268:enabled_apis=osapi_compute,metadata425:auth_strategy=keystone1053:network_api_class=nova.network.neutronv2.api.API1171:linuxnet_interface_driver=nova.network.linux_net.NeutronLinuxBridgeInterfaceDriver1331:security_group_api=neutron1370:debug=true1374:verbose=True1760:firewall_driver = nova.virt.firewall.NoopFirewallDriver1820:novncproxy_base_url=http://192.168.8.150:6080/vnc_auto.html //指定novncproxy的IP地址和端口1828:vncserver_listen=0.0.0.0 vnc监听0.0.0.01832:vncserver_proxyclient_address= $my_ip1835:vnc_enabled=true 启用vnc1838:vnc_keymap=en-us 英语键盘2213:connection=mysql://nova:nova@192.168.8.150/nova1936 [glance]1943 host=192.168.8.150 //glance主机地址2546:auth_uri = http://192.168.8.150:50002547:auth_url = http://192.168.8.150:353572548:auth_plugin = password2549:project_domain_id = default2550:user_domain_id = default2551:project_name = service2552:username = nova2553:password = nova2308 # Libvirt domain type (string value)2309 # Allowed values: kvm, lxc, qemu, uml, xen, parallels2310 virt_type=kvm //使用kvm虚拟机，需要cpu支持，可通过grep "vmx" /proc/cpuinfo或egrep -c '(vmx|svm)' /proc/cpuinfo查看。 如果这个命令返回 ``1或者更大``的值，说明您的计算节点支持硬件加速，一般不需要进行额外的配置。
如果这个命令返回``0``，你的计算节点不支持硬件加速，你必须配置 libvirt 使用QEMU而不是使用KVM。如果不支持，配置成qemu。
3807:lock_path=/var/lib/nova/tmp3970:rabbit_host=192.168.56.113974:rabbit_port=56723986:rabbit_userid=openstack3990:rabbit_password=openstack本机配置：
[root@node2 ~]# grep -n '^[a-Z]' /etc/nova/nova.conf198:my_ip=192.168.8.155344:enabled_apis=osapi_compute,metadata506:auth_strategy=keystone838:network_api_class=nova.network.neutronv2.api.API930:linuxnet_interface_driver=nova.network.linux_net.NeutronLinuxBridgeInterfaceDriver1064:security_group_api=neutron1240:firewall_driver=nova.virt.firewall.NoopFirewallDriver1277:debug=true1283:verbose=true1422:rpc_backend=rabbit1742:connection=mysql://nova:nova@192.168.8.150/nova1943:host=192.168.8.1502125:auth_uri = http://192.168.8.150:50002126:auth_url = http://192.168.8.150:353572127:auth_plugin = password2128:project_domain_id = default2129:user_domain_id = default2130:project_name = service2131:username = nova2132:password = nova2310:virt_type=qemu2752:lock_path=/var/lib/nova/tmp2933:rabbit_host=192.168.8.1502937:rabbit_port=56722949:rabbit_userid=openstack2953:rabbit_password=openstack3311:novncproxy_base_url=http://192.168.8.150:6080/vnc_auto.html3320:vncserver_listen=0.0.0.03325:vncserver_proxyclient_address=$my_ip3329:enabled=true3333:keymap=en-us启动计算节点的libvirt和nova-compute
[root@node2 ~]# systemctl enable libvirtd openstack-nova-computeCreated symlink from /etc/systemd/system/multi-user.target.wants/openstack-nova-compute.service to /usr/lib/systemd/system/openstack-nova-compute.service.[root@node2 ~]# systemctl start libvirtd openstack-nova-compute在控制节点中查看注册的host,最后一个compute即是注册的host
[root@node1 ~]# openstack host list+-----------+-------------+----------+| Host Name | Service | Zone |+-----------+-------------+----------+| node1 | conductor | internal || node1 | consoleauth | internal || node1 | scheduler | internal || node1 | cert | internal || node2 | compute | nova |+-----------+-------------+----------+在控制节点中测试nova和glance连接正常，nova链接keystone是否正常
本机查询结果：[root@node1 ~]# nova image-list+--------------------------------------+--------+--------+--------+| ID | Name | Status | Server |+--------------------------------------+--------+--------+--------+| 7ecc81e4-2b8f-4834-8686-00add29b70c4 | cirros | ACTIVE | |+--------------------------------------+--------+--------+--------+[root@node1 ~]# nova endpointsWARNING: nova has no endpoint in ! Available endpoints for this service:+-----------+---------------------------------------------------------------+| nova | Value |+-----------+---------------------------------------------------------------+| id | 100773762e7f483daf1332afeef09382 || interface | public || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:8774/v2/572d9f4e16574cd6855bee7f0115cda7 |+-----------+---------------------------------------------------------------++-----------+---------------------------------------------------------------+| nova | Value |+-----------+---------------------------------------------------------------+| id | 28b1ad74bcee4564861ec106d1755824 || interface | admin || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:8774/v2/572d9f4e16574cd6855bee7f0115cda7 |+-----------+---------------------------------------------------------------++-----------+---------------------------------------------------------------+| nova | Value |+-----------+---------------------------------------------------------------+| id | fc38ec07e26e46ae8c026a9fc06e77dd || interface | internal || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:8774/v2/572d9f4e16574cd6855bee7f0115cda7 |+-----------+---------------------------------------------------------------+WARNING: glance has no endpoint in ! Available endpoints for this service:+-----------+----------------------------------+| glance | Value |+-----------+----------------------------------+| id | 5e7489ec5c1f425b85412a5f02b6012b || interface | public || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:9292 |+-----------+----------------------------------++-----------+----------------------------------+| glance | Value |+-----------+----------------------------------+| id | 733af08c94d640c0a6db0de7876a6d1b || interface | internal || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:9292 |+-----------+----------------------------------++-----------+----------------------------------+| glance | Value |+-----------+----------------------------------+| id | cf60f4e48d0c402c870d8239bebb064c || interface | admin || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:9292 |+-----------+----------------------------------+WARNING: keystone has no endpoint in ! Available endpoints for this service:+-----------+----------------------------------+| keystone | Value |+-----------+----------------------------------+| id | 4cf9cab338934ae19240f3935621da1f || interface | internal || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:5000/v2.0 |+-----------+----------------------------------++-----------+----------------------------------+| keystone | Value |+-----------+----------------------------------+| id | 54b10b9ff3c9487a87a1c8ae3b770d28 || interface | public || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:5000/v2.0 |+-----------+----------------------------------++-----------+----------------------------------+| keystone | Value |+-----------+----------------------------------+| id | ab228da361974bf8b6010f3b08271ac7 || interface | admin || region | RegionOne || region_id | RegionOne || url | http://192.168.8.150:35357/v2.0 |+-----------+----------------------------------+3.8 Neturn 服务部署
注册neutron服务
[root@node1 ~]# source admin-openrc.sh[root@node1 ~]# openstack service create --name neutron --description "OpenStack Networking" network+-------------+----------------------------------+| Field | Value |+-------------+----------------------------------+| description | OpenStack Networking || enabled | True || id | c208003fbb63477b85b5b20effb5e36b || name | neutron || type | network |+-------------+----------------------------------+[root@node1 ~]# openstack endpoint create --region RegionOne network public http://192.168.8.150:9696+--------------+----------------------------------+| Field | Value |+--------------+----------------------------------+| enabled | True || id | ae523c7a0fc44b91a0f4666c78bc0710 || interface | public || region | RegionOne || region_id | RegionOne || service_id | c208003fbb63477b85b5b20effb5e36b || service_name | neutron || service_type | network || url | http://192.168.8.150:9696 |+--------------+----------------------------------+[root@node1 ~]# openstack endpoint create --region RegionOne network internal http://192.168.8.150:9696+--------------+----------------------------------+| Field | Value |+--------------+----------------------------------+| enabled | True || id | b01b0cc592dc4d5087f89cf7afb9dec1 || interface | internal || region | RegionOne || region_id | RegionOne || service_id | c208003fbb63477b85b5b20effb5e36b || service_name | neutron || service_type | network || url | http://192.168.8.150:9696 |+--------------+----------------------------------+[root@node1 ~]# openstack endpoint create --region RegionOne network admin http://192.168.8.150:9696+--------------+----------------------------------+| Field | Value |+--------------+----------------------------------+| enabled | True || id | 14bd745d9bb64269bad11ece209bf3f3 || interface | admin || region | RegionOne || region_id | RegionOne || service_id | c208003fbb63477b85b5b20effb5e36b || service_name | neutron || service_type | network || url | http://192.168.8.150:9696 |+--------------+----------------------------------+创建neutron用户，并添加到service项目，给予admin权限
[root@node1 ~]# openstack user create --domain default --password=neutron neutron+-----------+----------------------------------+| Field | Value |+-----------+----------------------------------+| domain_id | default || enabled | True || id | aa76750cf0414ba59e9b2ae3952994b8 || name | neutron |+-----------+----------------------------------+[root@node1 ~]# openstack role add --project service --user neutron admin****修改neturn配置文件****
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/neutron.conf1 [DEFAULT]3 verbose = True20:state_path = /var/lib/neutron60 core_plugin = ml2 //核心插件为ml261 # Example: core_plugin = ml278 service_plugins = router //服务插件为router93 auth_strategy = keystone361 notify_nova_on_port_status_changes = True //端口改变需通知nova365 notify_nova_on_port_data_changes = True368 nova_url = http://192.168.8.150:8774/v2574 rpc_backend=rabbit720 [keystone_authtoken]726 auth_uri = http://192.168.8.150:5000727 auth_url = http://192.168.8.150:35357728 auth_plugin = password729 project_domain_id = default730 user_domain_id = default731 project_name = service732 username = neutron733 password = neutron727 [database]731 connection = mysql://neutron:neutron@192.168.8.150:3306/neutron786 [nova]787 auth_url = http://192.168.8.150:35357788 auth_plugin = password789 project_domain_id = default790 user_domain_id = default791 region_name = RegionOne792 project_name = service793 username = nova794 password = nova831 lock_path = $state_path/lock957 [oslo_messaging_rabbit]1000 rabbit_host = 192.168.8.1501004 rabbit_port = 56721016 rabbit_userid = openstack1020 rabbit_password = openstack本机配置：
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/neutron.conf3:verbose = True20:state_path = /var/lib/neutron60:core_plugin = ml278:service_plugins = router93:auth_strategy = keystone361:notify_nova_on_port_status_changes = True365:notify_nova_on_port_data_changes = True368:nova_url = http://192.168.8.150:8774/v2574:rpc_backend=rabbit727:auth_uri = http://192.168.8.150:5000728:auth_url = http://192.168.8.150:35357729:auth_plugin = password730:project_domain_id = default731:user_domain_id = default732:project_name = service733:username = neutron734:password = neutron740:connection = mysql://neutron:neutron@192.168.8.150:3306/neutron787:auth_url = http://192.168.8.150:35357788:auth_plugin = password789:project_domain_id = default790:user_domain_id = default791:region_name = RegionOne792:project_name = service793:username = nova794:password = nova831:lock_path = $state_path/lock1011:rabbit_host = 192.168.8.1501015:rabbit_port = 56721027:rabbit_userid = openstack1031:rabbit_password = openstack修改ml2的配置文件,ml2后续会有详细说明
[root@node1 ~]# grep "^[a-Z]" /etc/neutron/plugins/ml2/ml2_conf.ini1 [ml2]type_drivers = flat,vlan,gre,vxlan,geneve //各种驱动tenant_network_types = vlan,gre,vxlan,geneve //网络类型mechanism_drivers = openvswitch,linuxbridge //支持的底层驱动extension_drivers = port_security //端口安全flat_networks = physnet1 //使用单一扁平网络（和host一个网络）enable_ipset = True本机配置：
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/plugins/ml2/ml2_conf.ini5:type_drivers = flat,vlan,gre,vxlan,geneve12:tenant_network_types = vlan,gre,vxlan,geneve18:mechanism_drivers = openvswitch,linuxbridge28:extension_drivers = port_security69:flat_networks = physnet1123:enable_ipset = True修改的linuxbridge配置文件、
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/plugins/ml2/linuxbridge_agent.ini1 [linux_bridge]9:physical_interface_mappings = physnet1:eth0 //网卡映射eth12 [vxlan]16:enable_vxlan = false //关闭vxlan48 [agent]51:prevent_arp_spoofing = True58 [securitygroup]60:firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver61:enable_security_group = True本机配置：
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/plugins/ml2/linuxbridge_agent.ini9:physical_interface_mappings = physnet1:eth016:enable_vxlan = false56:prevent_arp_spoofing = True60:firewall_driver = neutron.agent.linux.iptables_firewall.IptablesFirewallDriver66:enable_security_group = True修改dhcp的配置文件
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/dhcp_agent.ini27:interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver31:dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq //默认使用Dnsmasq作为dhcp服务55 enable_isolated_metadata = True本机配置：
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/dhcp_agent.ini27:interface_driver = neutron.agent.linux.interface.BridgeInterfaceDriver34:dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq55:enable_isolated_metadata = True修改metadata_agent.ini配置文件
[root@node1 ~]# grep -n "^[a-Z]" /etc/neutron/metadata_agent.ini1 [DEFAULT]4:auth_uri = http://192.168.8.150:50005:auth_url = http://192.168.8.150:353576:auth_region = RegionOne7:auth_plugin = password8:project_domain_id = default9:user_domain_id = default10:project_name = service11:username = neutron12:password = neutron29:nova_metadata_ip = 192.168.8.15053:metadata_proxy_shared_secret = neutron注释21-23行在控制节点的nova中添加关于neutron的配置，`添加如下内容到neutron模块即可
[root@node1 ~]# vi /etc/nova/nova.conf[neutron]2575:url = http://192.168.8.150:96962636:auth_url = http://192.168.8.150:353572639:auth_plugin = password2666:project_domain_id = default2691:user_domain_id = default2610:region_name = RegionOne2675 project_name = service2701:username = neutron2663:password = neutron2565:service_metadata_proxy = True2568:metadata_proxy_shared_secret = neutron创建ml2的软连接
[root@node1 ~]# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini同步neutron数据库,并检查结果
[root@node1 ~]# su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file \ /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutronINFO [alembic.runtime.migration] Context impl MySQLImpl.INFO [alembic.runtime.migration] Will assume non-transactional DDL. Running upgrade for neutron ...INFO [alembic.runtime.migration] Context impl MySQLImpl.INFO [alembic.runtime.migration] Will assume non-transactional DDL.INFO [alembic.runtime.migration] Running upgrade -> juno, juno_initialINFO [alembic.runtime.migration] Running upgrade juno -> 44621190bc02, add_uniqueconstraint_ipavailability_rangesINFO [alembic.runtime.migration] Running upgrade 44621190bc02 -> 1f71e54a85e7, ml2_network_segments models change for multi-segment network.INFO [alembic.runtime.migration] Running upgrade 1f71e54a85e7 -> 408cfbf6923c, remove ryu pluginINFO [alembic.runtime.migration] Running upgrade 408cfbf6923c -> 28c0ffb8ebbd, remove mlnx pluginINFO [alembic.runtime.migration] Running upgrade 28c0ffb8ebbd -> 57086602ca0a, scrap_nsx_adv_svcs_modelsINFO [alembic.runtime.migration] Running upgrade 57086602ca0a -> 38495dc99731, ml2_tunnel_endpoints_tableINFO [alembic.runtime.migration] Running upgrade 38495dc99731 -> 4dbe243cd84d, nsxvINFO [alembic.runtime.migration] Running upgrade 4dbe243cd84d -> 41662e32bce2, L3 DVR SNAT mappingINFO [alembic.runtime.migration] Running upgrade 41662e32bce2 -> 2a1ee2fb59e0, Add mac_address unique constraintINFO [alembic.runtime.migration] Running upgrade 2a1ee2fb59e0 -> 26b54cf9024d, Add index on allocatedINFO [alembic.runtime.migration] Running upgrade 26b54cf9024d -> 14be42f3d0a5, Add default security group tableINFO [alembic.runtime.migration] Running upgrade 14be42f3d0a5 -> 16cdf118d31d, extra_dhcp_options IPv6 supportINFO [alembic.runtime.migration] Running upgrade 16cdf118d31d -> 43763a9618fd, add mtu attributes to networkINFO [alembic.runtime.migration] Running upgrade 43763a9618fd -> bebba223288, Add vlan transparent property to networkINFO [alembic.runtime.migration] Running upgrade bebba223288 -> 4119216b7365, Add index on tenant_id columnINFO [alembic.runtime.migration] Running upgrade 4119216b7365 -> 2d2a8a565438, ML2 hierarchical bindingINFO [alembic.runtime.migration] Running upgrade 2d2a8a565438 -> 2b801560a332, Remove Hyper-V Neutron PluginINFO [alembic.runtime.migration] Running upgrade 2b801560a332 -> 57dd745253a6, nuage_kilo_migrateINFO [alembic.runtime.migration] Running upgrade 57dd745253a6 -> f15b1fb526dd, Cascade Floating IP Floating Port deletionINFO [alembic.runtime.migration] Running upgrade f15b1fb526dd -> 341ee8a4ccb5, sync with cisco repoINFO [alembic.runtime.migration] Running upgrade 341ee8a4ccb5 -> 35a0f3365720, add port-security in ml2INFO [alembic.runtime.migration] Running upgrade 35a0f3365720 -> 1955efc66455, weight_schedulerINFO [alembic.runtime.migration] Running upgrade 1955efc66455 -> 51c54792158e, Initial operations for subnetpoolsINFO [alembic.runtime.migration] Running upgrade 51c54792158e -> 589f9237ca0e, Cisco N1kv ML2 driver tablesINFO [alembic.runtime.migration] Running upgrade 589f9237ca0e -> 20b99fd19d4f, Cisco UCS Manager Mechanism DriverINFO [alembic.runtime.migration] Running upgrade 20b99fd19d4f -> 034883111f, Remove allow_overlap from subnetpoolsINFO [alembic.runtime.migration] Running upgrade 034883111f -> 268fb5e99aa2, Initial operations in support of subnet allocation from a poolINFO [alembic.runtime.migration] Running upgrade 268fb5e99aa2 -> 28a09af858a8, Initial operations to support basic quotas on prefix space in a subnet poolINFO [alembic.runtime.migration] Running upgrade 28a09af858a8 -> 20c469a5f920, add index for portINFO [alembic.runtime.migration] Running upgrade 20c469a5f920 -> kilo, kiloINFO [alembic.runtime.migration] Running upgrade kilo -> 354db87e3225, nsxv_vdr_metadata.pyINFO [alembic.runtime.migration] Running upgrade 354db87e3225 -> 599c6a226151, neutrodb_ipamINFO [alembic.runtime.migration] Running upgrade 599c6a226151 -> 52c5312f6baf, Initial operations in support of address scopesINFO [alembic.runtime.migration] Running upgrade 52c5312f6baf -> 313373c0ffee, Flavor frameworkINFO [alembic.runtime.migration] Running upgrade 313373c0ffee -> 8675309a5c4f, network_rbacINFO [alembic.runtime.migration] Running upgrade kilo -> 30018084ec99, Initial no-op Liberty contract rule.INFO [alembic.runtime.migration] Running upgrade 30018084ec99, 8675309a5c4f -> 4ffceebfada, network_rbacINFO [alembic.runtime.migration] Running upgrade 4ffceebfada -> 5498d17be016, Drop legacy OVS and LB plugin tablesINFO [alembic.runtime.migration] Running upgrade 5498d17be016 -> 2a16083502f3, Metaplugin removalINFO [alembic.runtime.migration] Running upgrade 2a16083502f3 -> 2e5352a0ad4d, Add missing foreign keysINFO [alembic.runtime.migration] Running upgrade 2e5352a0ad4d -> 11926bcfe72d, add geneve ml2 type driverINFO [alembic.runtime.migration] Running upgrade 11926bcfe72d -> 4af11ca47297, Drop cisco monolithic tablesINFO [alembic.runtime.migration] Running upgrade 8675309a5c4f -> 45f955889773, quota_usageINFO [alembic.runtime.migration] Running upgrade 45f955889773 -> 26c371498592, subnetpool hashINFO [alembic.runtime.migration] Running upgrade 26c371498592 -> 1c844d1677f7, add order to dnsnameserversINFO [alembic.runtime.migration] Running upgrade 1c844d1677f7 -> 1b4c6e320f79, address scope support in subnetpoolINFO [alembic.runtime.migration] Running upgrade 1b4c6e320f79 -> 48153cb5f051, qos db changesINFO [alembic.runtime.migration] Running upgrade 48153cb5f051 -> 9859ac9c136, quota_reservationsINFO [alembic.runtime.migration] Running upgrade 9859ac9c136 -> 34af2b5c5a59, Add dns_name to Port OK查看同步结果:
MariaDB [(none)]> use neutron;Database changedMariaDB [neutron]> show tables;+-----------------------------------------+| Tables_in_neutron |+-----------------------------------------+| address_scopes || agents || alembic_version || allowedaddresspairs || arista_provisioned_nets || arista_provisioned_tenants || arista_provisioned_vms || brocadenetworks || brocadeports || cisco_csr_identifier_map || cisco_hosting_devices || cisco_ml2_apic_contracts || cisco_ml2_apic_host_links || cisco_ml2_apic_names || cisco_ml2_n1kv_network_bindings || cisco_ml2_n1kv_network_profiles || cisco_ml2_n1kv_policy_profiles || cisco_ml2_n1kv_port_bindings || cisco_ml2_n1kv_profile_bindings || cisco_ml2_n1kv_vlan_allocations || cisco_ml2_n1kv_vxlan_allocations || cisco_ml2_nexus_nve || cisco_ml2_nexusport_bindings || cisco_port_mappings || cisco_router_mappings || consistencyhashes || csnat_l3_agent_bindings || default_security_group || dnsnameservers || dvr_host_macs || embrane_pool_port || externalnetworks || extradhcpopts || firewall_policies || firewall_rules || firewalls || flavors || flavorserviceprofilebindings || floatingips || ha_router_agent_port_bindings || ha_router_networks || ha_router_vrid_allocations || healthmonitors || ikepolicies || ipallocationpools || ipallocations || ipamallocationpools || ipamallocations || ipamavailabilityranges || ipamsubnets || ipavailabilityranges || ipsec_site_connections || ipsecpeercidrs || ipsecpolicies || lsn || lsn_port || maclearningstates || members || meteringlabelrules || meteringlabels || ml2_brocadenetworks || ml2_brocadeports || ml2_dvr_port_bindings || ml2_flat_allocations || ml2_geneve_allocations || ml2_geneve_endpoints || ml2_gre_allocations || ml2_gre_endpoints || ml2_network_segments || ml2_nexus_vxlan_allocations || ml2_nexus_vxlan_mcast_groups || ml2_port_binding_levels || ml2_port_bindings || ml2_ucsm_port_profiles || ml2_vlan_allocations || ml2_vxlan_allocations || ml2_vxlan_endpoints || multi_provider_networks || networkconnections || networkdhcpagentbindings || networkgatewaydevicereferences || networkgatewaydevices || networkgateways || networkqueuemappings || networkrbacs || networks || networksecuritybindings || neutron_nsx_network_mappings || neutron_nsx_port_mappings || neutron_nsx_router_mappings || neutron_nsx_security_group_mappings || nexthops || nsxv_edge_dhcp_static_bindings || nsxv_edge_vnic_bindings || nsxv_firewall_rule_bindings || nsxv_internal_edges || nsxv_internal_networks || nsxv_port_index_mappings || nsxv_port_vnic_mappings || nsxv_router_bindings || nsxv_router_ext_attributes || nsxv_rule_mappings || nsxv_security_group_section_mappings || nsxv_spoofguard_policy_network_mappings || nsxv_tz_network_bindings || nsxv_vdr_dhcp_bindings || nuage_net_partition_router_mapping || nuage_net_partitions || nuage_provider_net_bindings || nuage_subnet_l2dom_mapping || ofcfiltermappings || ofcnetworkmappings || ofcportmappings || ofcroutermappings || ofctenantmappings || packetfilters || poolloadbalanceragentbindings || poolmonitorassociations || pools || poolstatisticss || portbindingports || portinfos || portqueuemappings || ports || portsecuritybindings || providerresourceassociations || qos_bandwidth_limit_rules || qos_network_policy_bindings || qos_policies || qos_port_policy_bindings || qosqueues || quotas || quotausages || reservations || resourcedeltas || router_extra_attributes || routerl3agentbindings || routerports || routerproviders || routerroutes || routerrules || routers || securitygroupportbindings || securitygrouprules || securitygroups || serviceprofiles || sessionpersistences || subnetpoolprefixes || subnetpools || subnetroutes || subnets || tz_network_bindings || vcns_router_bindings || vips || vpnservices |+-----------------------------------------+155 rows in set (0.00 sec)重启nova-api，并启动neutron服务
[root@node1 ~]# systemctl restart openstack-nova-api.service[root@node1 ~]# systemctl enable neutron-server.service neutron-linuxbridge-agent.service neutron-dhcp-agent.service neutron-metadata-agent.serviceCreated symlink from /etc/systemd/system/multi-user.target.wants/neutron-server.service to /usr/lib/systemd/system/neutron-server.service.Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-linuxbridge-agent.service to /usr/lib/systemd/system/neutron-linuxbridge-agent.service.Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-dhcp-agent.service to /usr/lib/systemd/system/neutron-dhcp-agent.service.Created symlink from /etc/systemd/system/multi-user.target.wants/neutron-metadata-agent.service to /usr/lib/systemd/system/neutron-metadata-agent.service.[root@node1 ~]# systemctl start neutron-server.service \ neutron-linuxbridge-agent.service neutron-dhcp-agent.service \ neutron-metadata-agent.service检查neutron-agent结果:
[root@node1 ~]# neutron agent-list+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+| id | agent_type | host | alive | admin_state_up | binary |+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+| 46374c4b-098e-477d-8423-ae3787d58881 | Linux bridge agent | node1 | :-) | True | neutron-linuxbridge-agent || a6dd32be-341a-49ad-a1ae-6ec6944a9dc1 | Metadata agent | node1 | :-) | True | neutron-metadata-agent || c3606b15-fecf-4142-b664-61cbc712c781 | DHCP agent | node1 | :-) | True | neutron-dhcp-agent |+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+开始部署neutron的计算节点，在这里直接scp过去，不需要做任何更改
[root@node1 ~]# scp /etc/neutron/neutron.conf 192.168.8.155:/etc/neutron/root@192.168.8.155's password:neutron.conf 100% 36KB 35.8KB/s 00:00[root@node1 ~]# scp /etc/neutron/plugins/ml2/linuxbridge_agent.ini 192.168.8.155:/etc/neutron/plugins/ml2/root@192.168.8.155's password:linuxbridge_agent.ini 100% 2808 2.7KB/s 00:00修改计算节点的nova配置，添加如下内容到neutron模块即可
[root@node2 ~]# vi /etc/nova/nova.conf[neutron]2575:url = http://192.168.8.150:96962636:auth_url = http://192.168.8.150:353572639:auth_plugin = password2666:project_domain_id = default2691:user_domain_id = default2610:region_name = RegionOne2675 project_name = service2701:username = neutron2663:password = neutron2565:service_metadata_proxy = True2568:metadata_proxy_shared_secret = neutron创建ml2的软连接,复制ml2_conf.ini文件，无需更改，并创建ml2软连接
[root@node1 ~]# scp /etc/neutron/plugins/ml2/ml2_conf.ini 192.168.8.155:/etc/neutron/plugins/ml2/root@192.168.8.155's password:ml2_conf.ini 100% 4874 4.8KB/s 00:00[root@node2 ~]# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini重启计算节点的nova-computer
[root@node2 ~]# systemctl restart openstack-nova-compute.service计算节点上启动linuxbridge_agent服务
[root@node2 ~]# systemctl enable neutron-linuxbridge-agent.serviceCreated symlink from /etc/systemd/system/multi-user.target.wants/neutron-linuxbridge-agent.service to /usr/lib/systemd/system/neutron-linuxbridge-agent.service.[root@node2 ~]# systemctl start neutron-linuxbridge-agent.service******检查neutron的结果，有四个（控制节点一个，计算节点两个）结果代表正确********
[root@node1 ~]# neutron agent-list
+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+| id | agent_type | host | alive | admin_state_up | binary |+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+| 46374c4b-098e-477d-8423-ae3787d58881 | Linux bridge agent | node1 | :-) | True | neutron-linuxbridge-agent || a6dd32be-341a-49ad-a1ae-6ec6944a9dc1 | Metadata agent | node1 | :-) | True | neutron-metadata-agent || c3606b15-fecf-4142-b664-61cbc712c781 | DHCP agent | node1 | :-) | True | neutron-dhcp-agent |+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+ 明显看到neutron-agent list查询出来的结果不对，检查node2计算节点的配置并没有错误，服务状态也是活动的，网络也是通的，那剩下的就是selinux和firewall了，检查了下，firewall因为系统安装的是mini的所有默认没有安装，selinux确定是打开的：
[root@node2 ~]# getenforceEnforcing[root@node2 ~]# setenforce 0[root@node2 ~]# getenforcePermissive[root@node2 ~]# systemctl restart openstack-nova-compute.service[root@node2 ~]# systemctl restart neutron-linuxbridge-agent.service 暂时设置为宽容模式，并重启计算节点node2的计算服务和桥接代理服务后，此时再在neutron服务端node1节点查看桥接代理节点列表如下：
[root@node1 ~]# neutron agent-list+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+| id | agent_type | host | alive | admin_state_up | binary |+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+| 0d698be2-fbe8-4539-b8c2-b7856c5e4ccb | Linux bridge agent | node2 | :-) | True | neutron-linuxbridge-agent || 46374c4b-098e-477d-8423-ae3787d58881 | Linux bridge agent | node1 | :-) | True | neutron-linuxbridge-agent || a6dd32be-341a-49ad-a1ae-6ec6944a9dc1 | Metadata agent | node1 | :-) | True | neutron-metadata-agent || c3606b15-fecf-4142-b664-61cbc712c781 | DHCP agent | node1 | :-) | True | neutron-dhcp-agent |+--------------------------------------+--------------------+-------+-------+----------------+---------------------------+可以看到，现在的neutron-agent list查询结果是正确的，是4个，node1是3个，node2是一个。
四、创建一台虚拟机

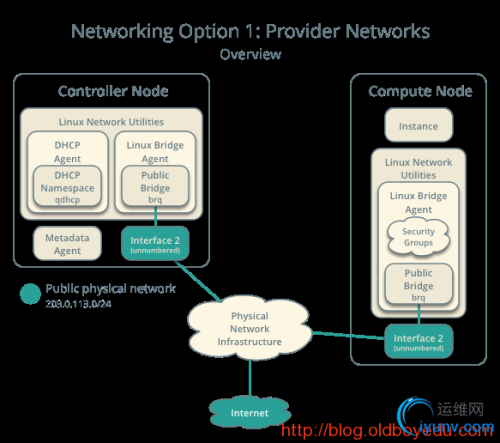

图解网络，并创建一个真实的桥接网络
创建一个单一扁平网络（名字：flat），网络类型为flat，网络适共享的（share），网络提供者：physnet1，它是和eth0关联起来的
[root@node1 ~]# source admin-openrc.sh[root@node1 ~]# neutron net-create flat --shared --provider:physical_network physnet1 --provider:network_type flatCreated a new network:+---------------------------+--------------------------------------+| Field | Value |+---------------------------+--------------------------------------+| admin_state_up | True || id | 7e68ff60-b8a0-4506-b47f-9026dea6a682 || mtu | 0 || name | flat || port_security_enabled | True || provider:network_type | flat || provider:physical_network | physnet1 || provider:segmentation_id | || router:external | False || shared | True || status | ACTIVE || subnets | || tenant_id | 4c1ee18980c64098a1e86fb43a2429bb |+---------------------------+--------------------------------------+对上一步创建的网络创建一个子网，名字为：subnet-create flat，设置dns和网关
[root@node1 ~]# neutron subnet-create flat 192.168.8.0/24 --name flat-subnet --allocation-pool start=192.168.8.160,end=192.168.8.189 --dns-nameserver 192.168.8.2 --gateway 192.168.8.2Created a new subnet:+-------------------+----------------------------------------------------+| Field | Value |+-------------------+----------------------------------------------------+| allocation_pools | {"start": "192.168.8.160", "end": "192.168.8.189"} || cidr | 192.168.8.0/24 || dns_nameservers | 192.168.8.2 || enable_dhcp | True || gateway_ip | 192.168.8.2 || host_routes | || id | 55797b4f-532b-4a1d-8b2b-620a2d45e9a9 || ip_version | 4 || ipv6_address_mode | || ipv6_ra_mode | || name | flat-subnet || network_id | a2263708-13d2-490d-a4bf-1f55d55f32ef || subnetpool_id | || tenant_id | 572d9f4e16574cd6855bee7f0115cda7 |+-------------------+----------------------------------------------------+查看创建的网络和子网
[root@node1 ~]# neutron subnet-list+--------------------------------------+-------------+----------------+----------------------------------------------------+| id | name | cidr | allocation_pools |+--------------------------------------+-------------+----------------+----------------------------------------------------+| 55797b4f-532b-4a1d-8b2b-620a2d45e9a9 | flat-subnet | 192.168.8.0/24 | {"start": "192.168.8.160", "end": "192.168.8.189"} |+--------------------------------------+-------------+----------------+----------------------------------------------------+ 注：创建虚拟机之前，由于一个网络下不能存在多个dhcp，所以一定关闭其他的dhcp选项 下面开始正式创建虚拟机，为了可以连上所创建的虚拟机，在这里要创建一对公钥和私钥，并添加openstack中
[root@node1 ~]# source demo-openrc.sh[root@node1 ~]# ssh-keygen -q -N ""Enter file in which to save the key (/root/.ssh/id_rsa):[root@node1 ~]# nova keypair-add --pub-key .ssh/id_rsa.pub mykeyMessage from syslogd@node1 at Oct 22 09:31:31 ... kernel:BUG: soft lockup - CPU#0 stuck for 25s! [kswapd0:153]出错了，意思是：
【博士】北京-林夕(630995935) 9:57:40
CPU无响应了一段时间。
CPU#0 stuck for 25s! 这个看到了吗? soft lockup 也就是软锁啦。
【博士】~~~@懒人一个(1729294227) 9:58:52
怎么解决呢
【博士】北京-林夕(630995935) 9:59:04
玩openstack平台，太耗费CPU和内存资源啦。
【博士】~~~@懒人一个(1729294227) 9:59:14
是啊
我也发现
【博士】~~~@懒人一个(1729294227) 10:00:34
难道说是内存不够了？
【硕士】北京-sky(946731984) 10:01:54
系统性能跟不上呗
【博士】北京-林夕(630995935) 10:01:59
解决办法是提高系统的CPU和内存配置吧。
【硕士】北京-sky(946731984) 10:02:03
另外你这是拿虚拟机做的nova节点么
如果是的话，那就是资源超分了
【博士】~~~@懒人一个(1729294227) 10:02:36
明白了，是啊
哦，好的，谢谢
提高CPU和内存资源后，再次尝试，确实可以了。[root@node1 ~]# nova keypair-add --pub-key .ssh/id_rsa.pub mykey[root@node1 ~]# nova keypair-list+-------+-------------------------------------------------+| Name | Fingerprint |+-------+-------------------------------------------------+| mykey | cb:f8:66:58:49:84:62:21:c2:89:fb:fd:de:a1:93:19 |+-------+-------------------------------------------------+[root@node1 ~]# ls .ssh/id_rsa id_rsa.pub known_hosts创建一个安全组，打开icmp和开放22端口
[root@node1 ~]# nova secgroup-add-rule default icmp -1 -1 0.0.0.0/0+-------------+-----------+---------+-----------+--------------+| IP Protocol | From Port | To Port | IP Range | Source Group |+-------------+-----------+---------+-----------+--------------+| icmp | -1 | -1 | 0.0.0.0/0 | |+-------------+-----------+---------+-----------+--------------+[root@node1 ~]# nova secgroup-add-rule default tcp 22 22 0.0.0.0/0+-------------+-----------+---------+-----------+--------------+| IP Protocol | From Port | To Port | IP Range | Source Group |+-------------+-----------+---------+-----------+--------------+| tcp | 22 | 22 | 0.0.0.0/0 | |+-------------+-----------+---------+-----------+--------------+ 创建虚拟机之前要进行的确认虚拟机类型flavor（相当于EC2的intance的type）、需要的镜像（EC2的AMI），需要的网络（EC2的VPC），安全组(EC2的sg)
[root@node1 ~]# nova flavor-list+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+| ID | Name | Memory_MB | Disk | Ephemeral | Swap | VCPUs | RXTX_Factor | Is_Public |+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+| 1 | m1.tiny | 512 | 1 | 0 | | 1 | 1.0 | True || 2 | m1.small | 2048 | 20 | 0 | | 1 | 1.0 | True || 3 | m1.medium | 4096 | 40 | 0 | | 2 | 1.0 | True || 4 | m1.large | 8192 | 80 | 0 | | 4 | 1.0 | True || 5 | m1.xlarge | 16384 | 160 | 0 | | 8 | 1.0 | True |+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+[root@node1 ~]# nova image-list+--------------------------------------+--------+--------+--------+| ID | Name | Status | Server |+--------------------------------------+--------+--------+--------+| c25c409d-6e7d-4855-9322-41cc1141c350 | cirros | ACTIVE | |+--------------------------------------+--------+--------+--------+[root@node1 ~]# neutron net-list+--------------------------------------+------+-----------------------------------------------------+| id | name | subnets |+--------------------------------------+------+-----------------------------------------------------+| 7e68ff60-b8a0-4506-b47f-9026dea6a682 | flat | 9b95b3da-c7ec-4165-b37a-d3ea86d4ffe6 192.168.0.0/24 |+--------------------------------------+------+-----------------------------------------------------+[root@node1 ~]# nova secgroup-list+--------------------------------------+---------+------------------------+| Id | Name | Description |+--------------------------------------+---------+------------------------+| a67a675a-9dcb-4940-a189-bc9d13134a79 | default | Default security group |+--------------------------------------+---------+------------------------+ 创建一台虚拟机，类型为m1.tiny，镜像为cirros（上文wget的），网络id为neutronnet-list出来的，安全组就是默认的，选择刚开的创建的key-pair，虚拟机的名字为hello-instance
[root@node1 ~]# nova boot --flavor m1.tiny --image cirros --nic net-id=a2263708-13d2-490d-a4bf-1f55d55f32ef --security-group default --key-name mykey hello-instance+--------------------------------------+-----------------------------------------------+| Property | Value |+--------------------------------------+-----------------------------------------------+| OS-DCF:diskConfig | MANUAL || OS-EXT-AZ:availability_zone | || OS-EXT-STS:power_state | 0 || OS-EXT-STS:task_state | scheduling || OS-EXT-STS:vm_state | building || OS-SRV-USG:launched_at | - || OS-SRV-USG:terminated_at | - || accessIPv4 | || accessIPv6 | || adminPass | NKDqtk6N6sD5 || config_drive | || created | 2016-11-14T15:57:48Z || flavor | m1.tiny (1) || hostId | || id | eaaa70b1-afe0-4be6-93e6-9b3150f2b899 || image | cirros (cca2b796-6c5e-4746-b697-f126604f7063) || key_name | mykey || metadata | {} || name | hello-instance || os-extended-volumes:volumes_attached | [] || progress | 0 || security_groups | default || status | BUILD || tenant_id | 7af679b7d62b49908822bbdf6d36428d || updated | 2016-11-14T15:57:48Z || user_id | 331d3cf73bcc4b03914bb44d4cb85041 |+--------------------------------------+-----------------------------------------------+***查看所创建的虚拟机状态***
[root@node1 ~]# nova list+--------------------------------------+----------------+--------+------------+-------------+--------------------+| ID | Name | Status | Task State | Power State | Networks |+--------------------------------------+----------------+--------+------------+-------------+--------------------+| 4ed8bb06-1f95-4483-ac76-f99460222fdd | hello-instance | ACTIVE | - | Running | flat=192.168.8.102 |+--------------------------------------+----------------+--------+------------+-------------+--------------------+ssh连接到所创建的虚拟机
[root@node1 ~]# ping 192.168.8.102PING 192.168.8.102 (192.168.8.102) 56(84) bytes of data.64 bytes from 192.168.8.102: icmp_seq=1 ttl=64 time=3.89 ms64 bytes from 192.168.8.102: icmp_seq=2 ttl=64 time=0.969 ms64 bytes from 192.168.8.102: icmp_seq=3 ttl=64 time=1.68 ms64 bytes from 192.168.8.102: icmp_seq=4 ttl=64 time=1.50 ms64 bytes from 192.168.8.102: icmp_seq=5 ttl=64 time=1.18 ms[root@node1 ~]# ssh cirros@192.168.8.102$ ip ad li1: lo: <LOOPBACK,UP,LOWER_UP> mtu 16436 qdisc noqueue link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 inet 127.0.0.1/8 scope host lo inet6 ::1/128 scope host valid_lft forever preferred_lft forever2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast qlen 1000 link/ether fa:16:3e:20:a7:78 brd ff:ff:ff:ff:ff:ff inet 192.168.8.102/24 brd 192.168.8.255 scope global eth0 inet6 fe80::f816:3eff:fe20:a778/64 scope link valid_lft forever preferred_lft forever$ ls /bin home linuxrc old-root run usrboot init lost+found opt sbin vardev initrd.img media proc sys vmlinuzetc lib mnt root tmp通过vnc生成URL在web界面上链接虚拟机

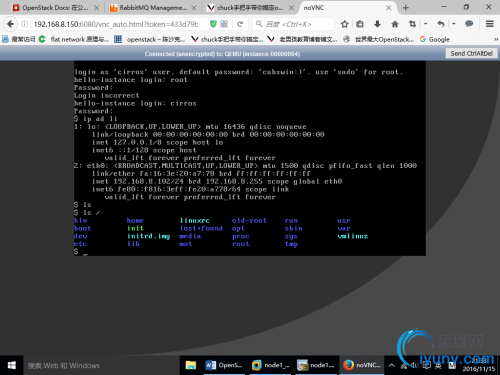

[root@node1 ~]# nova get-vnc-console hello-instance novnc+-------+------------------------------------------------------------------------------------+| Type | Url |+-------+------------------------------------------------------------------------------------+| novnc | http://192.168.8.150:6080/vnc_auto.html?token=433d79b8-b651-454a-818d-41d9cafbca0a |+-------+------------------------------------------------------------------------------------+
五、Dashboard演示
5.1 编辑dashboard的配置文件
[root@linux-node1 ~]# vim /etc/openstack-dashboard/local_settings29 ALLOWED_HOSTS = ['*', 'localhost'] //哪些主机可以访问，localhost代表列表138 OPENSTACK_HOST = "192.168.56.11" //改成keystone的地址140 OPENSTACK_KEYSTONE_DEFAULT_ROLE = "user" //keystone之前创建的108 CACHES = {109 'default': {110 'BACKEND': 'django.core.cache.backends.memcached.Memcac hedCache',111 'LOCATION': '192.168.56.11:11211',112 }113 } //打开使用memcached320 TIME_ZONE = " Asia/Shanghai " //设置时区重启apache
[root@linux-node1 ~]# systemctlrestart httpd
5.2 操作dashboard

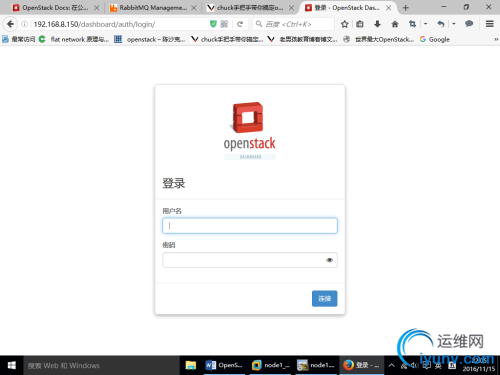

5.2.1 登录dashboard
使用keystone的demo用户登录（只有在管理员admin权限下才能看到所有instance）

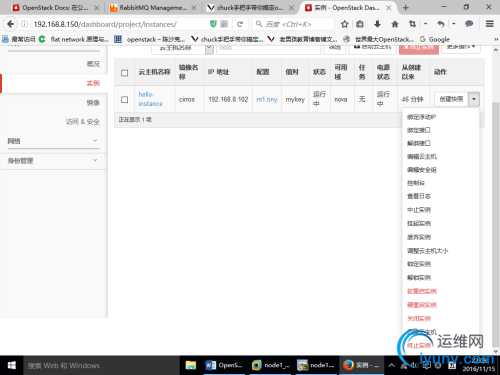

5.2.2 删除之前的虚拟机并重新创建一台虚拟机
了解针对虚拟机的各个状态操作
绑定浮动ip：Eip
绑定/解绑接口：绑定或者解绑API
编辑云主机：修改云主机的参数
编辑安全组：修改secrity group的参数
控制台：novnc控制台
查看日志：查看console.log
中止实例：stop虚拟机
挂起实例：save 状态
废弃实例：将实例暂时留存
调整云主机大小： 调整其type
锁定/解锁实例：锁定/解锁这个云主机
软重启实例：正常重启，先stop后start
硬重启实例：类似于断电重启
关闭实例： shutdown该实例
重建云主机：重新build一个同样的云主机
终止实例： 删除云主机
5.2.3 launch instance
总算搞出来了，期间碰到很多坑，在热心网友及好友的帮助下，还算顺利，都一 一填掉了，在此真心感谢各，滴水之恩，无以为报，为有整理出实战过程，奉献给广大网友，后续会继续奉上理论部分采纳参照了以下博客及官网:
老男孩教育博客: http://blog.oldboyedu.com/openstack/ |
