zabbix创建screen脚本

ere2w · 发表于 2015-3-20 09:04:42

下面是创建screen的脚本，可以把一个主机的所有graphs放在一个screen里查看。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172

#!/usr/bin/env python
import urllib2
import json
import argparse


def authenticate(url, username, password):
values = {'jsonrpc': '2.0',
            'method': 'user.login',
            'params': {
               'user': username,
               'password': password
            },
            'id': '0'
            }

data = json.dumps(values)
req = urllib2.Request(url, data, {'Content-Type': 'application/json-rpc'})
response = urllib2.urlopen(req, data)
output = json.loads(response.read())

try:
      message = output['result']
except:
      message = output['error']['data']
      print message
      quit()

return output['result']


def getGraph(hostname, url, auth, graphtype, dynamic, columns):
if (graphtype == 0):
      selecttype = ['graphid']
      select = 'selectGraphs'
if (graphtype == 1):
      selecttype = ['itemid', 'value_type']
      select = 'selectItems'

values = {'jsonrpc': '2.0',
            'method': 'host.get',
            'params': {
               select: selecttype,
               'output': ['hostid', 'host'],
               'searchByAny': 1,
               'filter': {
                  'host': hostname
               }
            },
            'auth': auth,
            'id': '2'
            }

data = json.dumps(values)
req = urllib2.Request(url, data, {'Content-Type': 'application/json-rpc'})
response = urllib2.urlopen(req, data)
host_get = response.read()

output = json.loads(host_get)
# print json.dumps(output)

graphs = []
if (graphtype == 0):
      for i in output['result'][0]['graphs']:
         graphs.append(i['graphid'])

if (graphtype == 1):
      for i in output['result'][0]['items']:
         if int(i['value_type']) in (0, 3):
            graphs.append(i['itemid'])

graph_list = []
x = 0
y = 0

for graph in graphs:
      graph_list.append({
         "resourcetype": graphtype,
         "resourceid": graph,
         "width": "500",
         "height": "100",
         "x": str(x),
         "y": str(y),
         "colspan": "0",
         "rowspan": "0",
         "elements": "0",
         "valign": "0",
         "halign": "0",
         "style": "0",
         "url": "",
         "dynamic": str(dynamic)
      })
      x += 1
      if x == columns:
         x = 0
         y += 1

return graph_list


def screenCreate(url, auth, screen_name, graphids, columns):
# print graphids
if len(graphids) % columns == 0:
      vsize = len(graphids) / columns
else:
      vsize = (len(graphids) / columns) + 1

values = {"jsonrpc": "2.0",
            "method": "screen.create",
            "params": [{
               "name": screen_name,
               "hsize": columns,
               "vsize": vsize,
               "screenitems": []
            }],
            "auth": auth,
            "id": 2
            }

for i in graphids:
      values['params'][0]['screenitems'].append(i)

data = json.dumps(values)
req = urllib2.Request(url, data, {'Content-Type': 'application/json-rpc'})
response = urllib2.urlopen(req, data)
host_get = response.read()

output = json.loads(host_get)

try:
      message = output['result']
except:
      message = output['error']['data']

print json.dumps(message)


def main():
# 修改下面三行
url = 'http://<zabbix url>/zabbix/api_jsonrpc.php'
username = "Your API Users Username"
password = "Your API Users Username"

parser = argparse.ArgumentParser(description='Create Zabbix screen from all of a host Items or Graphs.')
parser.add_argument('hostname', metavar='H', type=str,
                     help='Zabbix Host to create screen from')
parser.add_argument('screenname', metavar='N', type=str,
                     help='Screen name in Zabbix.  Put quotes around it if you want spaces in the name.')
parser.add_argument('-c', dest='columns', type=int, default=3,
                     help='number of columns in the screen (default: 3)')
parser.add_argument('-d', dest='dynamic', action='store_true',
                     help='enable for dynamic screen items (default: disabled)')
parser.add_argument('-t', dest='screentype', action='store_true',
                     help='set to 1 if you want item simple graphs created (default: 0, regular graphs)')

args = parser.parse_args()
hostname = args.hostname
screen_name = args.screenname
columns = args.columns
dynamic = (1 if args.dynamic else 0)
screentype = (1 if args.screentype else 0)

auth = authenticate(url, username, password)
graphids = getGraph(hostname, url, auth, screentype, dynamic, columns)

print "Screen Name: " + screen_name
print "Total Number of Graphs: " + str(len(graphids))

screenCreate(url, auth, screen_name, graphids, columns)

if __name__ == '__main__':
main()

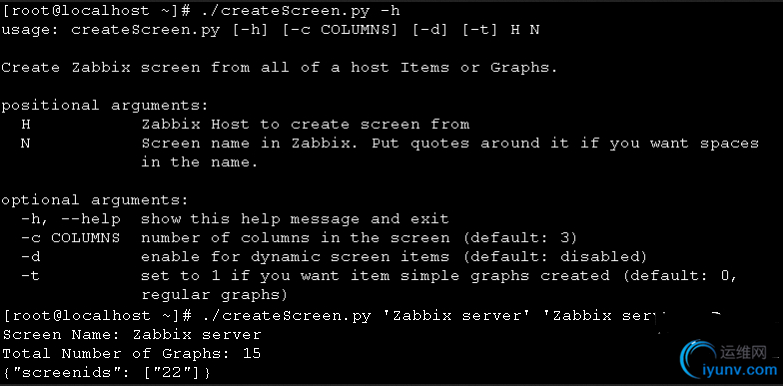

脚本使用方法：
