Hadoop、Hbase完全分布式搭建

yhgfds

一、Hadoop1.0到2.0的架构变化

1、Hadoop 2.0由HDFS、MapReduce和YARN三个分支构成
2、HDFSNN Federation、HA
3、MapReduce运行在YARN上的MR
4、YARN资源管理系统

二、HDFS 2.0
1、解决HDFS 1.0中单点故障和内存受限问题。
2、解决单点故障
   HDFS HA通过主备NameNode解决
   如果主NameNode发生故障则切换到备NameNode上
3、解决内存受限问题
   HDFS Federation(联邦)
   水平扩展支持多个NameNode
   每个NameNode分管一部分目录
   所有NameNode共享所有DataNode存储资
4、仅是架构上发生了变化使用方式不变
  对HDFS使用者透明
   HDFS 1.0中的命令和API仍可以使用$ hadoop fs -ls /user/hadoop/$ hadoop fs -mkdir           /user/hadoop/data

三、HDFS 2.0 HA
1、主备NameNode
2、解决单点故障
   主NameNode对外提供服务备NameNode同步主NameNode元数据以待切换
   所有DataNode同时向两个NameNode汇报数据块信息
3、两种切换选择
   手动切换通过命令实现主备之间的切换可以用HDFS升级等场合
   自动切换基于Zookeeper实现
4、基于Zookeeper自动切换方案
   Zookeeper Failover Controller监控NameNode健康状态并向Zookeeper注册NameNode
   NameNode挂掉后ZKFC为NameNode竞争锁获得ZKFC 锁的NameNode变为active

四、环境搭建
192.168.1.2  master

192.168.1.3  slave1
192.168.1.4  slave2
Hadoop versionhadoop-2.2.0.tar.gz
Hbase  versionhbase-0.98.11-hadoop2-bin.tar.gz
Zookeeper versionzookeeper-3.4.5.tar.gz
JDK versionjdk-7u25-linux-x64.gz

1、主机HOSTS文件配置

1 2 3 4 5 6 7 8 9 10 11 12

[iyunv@master ~]# cat /etc/hosts 192.168.1.2 master 192.168.1.3 slave1 192.168.1.4 slave2 [iyunv@slave1 ~]# cat /etc/hosts 192.168.1.2 master 192.168.1.3 slave1 192.168.1.4 slave2 [iyunv@slave2 ~]# cat /etc/hosts 192.168.1.2 master 192.168.1.3 slave1 192.168.1.4 slave2

2、配置节点之间互信

1 2 3 4 5 6 7 8 9 10

[iyunv@master ~]# useradd hadoop [iyunv@slave1 ~]# useradd hadoop [iyunv@slave2 ~]# useradd hadoop [iyunv@master ~]# passwd hadoop [iyunv@slave1 ~]# passwd hadoop [iyunv@slave2 ~]# passwd hadoop [iyunv@master ~]# su - hadoop [hadoop@master ~]$ ssh-copy-id -i ~/.ssh/id_rsa.pub slave1 [hadoop@master ~]$ ssh-copy-id -i ~/.ssh/id_rsa.pub slave2 [hadoop@master ~]$ ssh-copy-id -i ~/.ssh/id_rsa.pub master

3、JDK环境配置

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

[iyunv@master ~]# tar jdk-7u25-linux-x64.gz [iyunv@master ~]# mkdir /usr/java [iyunv@master ~]# mv jdk-7u25-linux-x64.gz /usr/java [iyunv@master ~]# cd /usr/java/ [iyunv@master java]# ln -s jdk1.7.0_25 jdk # 修改/etc/profile,添加 export JAVA_HOME=/usr/java/jdk export CLASSPATH=$CLASSPATH:$JAVA_HOME/lib:$JAVA_HOME/jre/lib export PATH=/usr/java/jdk/bin:$PATH [iyunv@master ~]# source /etc/profile [iyunv@master ~]# java -version java version "1.7.0_25" Java(TM) SE Runtime Environment (build 1.7.0_25-b15) Java HotSpot(TM) 64-Bit Server VM (build 23.25-b01, mixed mode) # slave1,slave2同样操作

4.Hadoop安装

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159

[iyunv@master ~]# tar zxvf hadoop-2.2.0.tar.gz [iyunv@master ~]# mv hadoop-2.2.0 /home/hadoop/ [iyunv@master ~]# cd /home/hadoop/ [iyunv@master hadoop]# ln -s hadoop-2.2.0 hadoop [iyunv@master hadoop]# chown -R hadoop.hadoop /home/hadoop/ [iyunv@master ~]# cd /home/hadoop/hadoop/etc/hadoop # 修改hadoop-env.sh文件 export JAVA_HOME=/usr/java/jdk export HADOOP_HEAPSIZE=200 # 修改mapred-env.sh文件 export JAVA_HOME=/usr/java/jdk export HADOOP_JOB_HISTORYSERVER_HEAPSIZE=1000 # 修改yarn-env.sh文件 export JAVA_HOME=/usr/java/jdk JAVA_HEAP_MAX=-Xmx300m YARN_HEAPSIZE=100 # 修改core-site.xml文件             fs.defaultFS         hdfs://master:9000                     hadoop.tmp.dir             /home/hadoop/tmp                 hadoop.proxyuser.hadoop.hosts         *                 hadoop.proxyuser.hadoop.groups         *     # 修改hdfs-site.xml文件             dfs.namenode.secondary.http-address         master:9001                 dfs.namenode.name.dir         /home/hadoop/dfs/name                 dfs.datanode.data.dir         /home/hadoop/dfs/data                 dfs.replication         2                 dfs.webhdfs.enabled         true     # 修改mapred-site.xml文件             mapreduce.framework.name         yarn                 mapreduce.jobhistory.address         master:10020                 mapreduce.jobhistory.webapp.address         master:19888                 mapreduce.map.memory.mb         512                 mapreduce.map.cpu.vcores         1                 mapreduce.reduce.memory.mb         512     # 修改yarn-site.xml文件             yarn.nodemanager.aux-services         mapreduce_shuffle                 yarn.nodemanager.aux-services.mapreduce.shuffle.class         org.apache.hadoop.mapred.ShuffleHandler                 yarn.resourcemanager.address         master:8032                 yarn.resourcemanager.scheduler.address         master:8030                 yarn.resourcemanager.resource-tracker.address         master:8031                 yarn.resourcemanager.admin.address         master:8033                 yarn.resourcemanager.webapp.address         master:8088                 yarn.scheduler.minimum-allocation-mb         100                 yarn.scheduler.maximum-allocation-mb         200                 yarn.scheduler.minimum-allocation-vcores         1                 yarn.scheduler.maximum-allocation-vcores         2     # 修改slaves文件 slave1 slave2 # 修改 /home/hadoop/.bashrc export HADOOP_DEV_HOME=/home/hadoop/hadoop export PATH=$PATH:$HADOOP_DEV_HOME/bin export PATH=$PATH:$HADOOP_DEV_HOME/sbin export HADOOP_MAPARED_HOME=${HADOOP_DEV_HOME} export HADOOP_COMMON_HOME=${HADOOP_DEV_HOME} export HADOOP_HDFS_HOME=${HADOOP_DEV_HOME} export YARN_HOME=${HADOOP_DEV_HOME} export HADOOP_CONF_DIR=${HADOOP_DEV_HOME}/etc/hadoop export HDFS_CONF_DIR=${HADOOP_DEV_HOME}/etc/hadoop export YARN_CONF_DIR=${HADOOP_DEV_HOME}/etc/hadoop # 将上面修改的文件全部传送到slave1,slave2节点

5、在master节点上启动hdfs

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28

[hadoop@master ~]$ cd /home/hadoop/hadoop/sbin/ [hadoop@master sbin]$ ./start-dfs.sh 15/03/21 00:49:35 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable Starting namenodes on [master] master: starting namenode, logging to /home/hadoop/hadoop-2.2.0/logs/hadoop-hadoop-namenode-master.out slave2: starting datanode, logging to /home/hadoop/hadoop-2.2.0/logs/hadoop-hadoop-datanode-slave2.out slave1: starting datanode, logging to /home/hadoop/hadoop-2.2.0/logs/hadoop-hadoop-datanode-slave1.out Starting secondary namenodes [master] master: starting secondarynamenode, logging to /home/hadoop/hadoop-2.2.0/logs/hadoop-hadoop-secondarynamenode-master.out # 查看进程 [hadoop@master ~]$ jps 39093 Jps 38917 SecondaryNameNode 38767 NameNode [iyunv@slave1 ~]# jps 2463 Jps 2379 DataNode [iyunv@slave2 ~]# jps 2463 Jps 2379 DataNode #启动jobhistory [hadoop@master sbin]$ mr-jobhistory-daemon.sh start historyserver starting historyserver, logging to /home/hadoop/hadoop-2.2.0/logs/mapred-hadoop-historyserver-master.out

6、启动yarn

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

[hadoop@master ~]$ cd /home/hadoop/hadoop/sbin/ [hadoop@master sbin]$ ./start-yarn.sh starting yarn daemons starting resourcemanager, logging to /home/hadoop/hadoop-2.2.0/logs/yarn-hadoop-resourcemanager-master.out slave2: starting nodemanager, logging to /home/hadoop/hadoop-2.2.0/logs/yarn-hadoop-nodemanager-slave2.out slave1: starting nodemanager, logging to /home/hadoop/hadoop-2.2.0/logs/yarn-hadoop-nodemanager-slave1.out # 查看进程 [hadoop@master sbin]$ jps 39390 Jps 38917 SecondaryNameNode 39147 ResourceManager 38767 NameNode [hadoop@slave1 ~]$ jps 2646 Jps 2535 NodeManager 2379 DataNode [hadoop@slave2 ~]$ jps 8261 Jps 8150 NodeManager 8004 DataNode

7、查看hdfs文件系统

1 2 3 4 5

[hadoop@master sbin]$ hadoop fs -ls / 15/03/21 15:56:05 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable Found 2 items drwxr-xr-x   - hadoop supergroup          0 2015-03-20 17:46 /hbase drwxrwx---   - hadoop supergroup          0 2015-03-20 16:56 /tmp

8、安装Zookeeper

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

[iyunv@master ~]# tar zxvf zookeeper-3.4.5.tar.gz -C /home/hadoop/ [iyunv@master ~]# cd /home/hadoop/ [iyunv@master hadoop]# ln -s zookeeper-3.4.5 zookeeper [iyunv@master hadoop]# chown -R hadoop.hadoop /home/hadoop/zookeeper [iyunv@master hadoop]# cd zookeeper/conf/ [iyunv@master conf]# cp zoo_sample.cfg zoo.cfg # 修改zoo.cfg dataDir=/home/hadoop/zookeeper/data dataLogDir=/home/hadoop/zookeeper/logs server.1=192.168.1.2:7000:7001 server.2=192.168.1.3:7000:7001 server.3=192.168.1.4:7000:7001 #在slave1,slave2执行相同的操作 [hadoop@master conf]# cd /home/hadoop/zookeeper/data/ [hadoop@master data]# echo 1 > myid [hadoop@slave1 data]# echo 2 > myid [hadoop@slave2 data]# echo 3 > myid #启动zookeeper [hadoop@master ~]$ cd zookeeper/bin/ [hadoop@master bin]$ ./zkServer.sh start [hadoop@slave1 ~]$ cd zookeeper/bin/ [hadoop@slave1 bin]$ ./zkServer.sh start [hadoop@slave2 ~]$ cd zookeeper/bin/ [hadoop@slave2 bin]$ ./zkServer.sh start

9、Hbase安装

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

[iyunv@master ~]# tar zxvf hbase-0.98.11-hadoop2-bin.tar.gz -C /home/hadoop/ [iyunv@master ~]# cd /home/hadoop/ [iyunv@master hadoop]# ln -s hbase-0.98.11-hadoop2 hbase [iyunv@master hadoop]# chown -R hadoop.hadoop /home/hadoop/hbase [iyunv@master hadoop]# cd /home/hadoop/hbase/conf/ # 修改hbase-env.sh文件 export JAVA_HOME=/usr/java/jdk export HBASE_HEAPSIZE=50 # 修改 hbase-site.xml 文件             hbase.rootdir         hdfs://master:9000/hbase                 hbase.cluster.distributed         true                          hbase.zookeeper.property.clientPort                2181                      hbase.zookeeper.quorum           master,slave1,slave2     # 修改regionservers文件 slave1 slave2 # 将上面修改的文件传送到slave1,slave2

10、在master上面启动Hbase

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50

[hadoop@master ~]$ cd hbase/bin/ [hadoop@master bin]$ ./start-hbase.sh master: starting zookeeper, logging to /home/hadoop/hbase/bin/../logs/hbase-hadoop-zookeeper-master.out slave1: starting zookeeper, logging to /home/hadoop/hbase/bin/../logs/hbase-hadoop-zookeeper-slave1.out slave2: starting zookeeper, logging to /home/hadoop/hbase/bin/../logs/hbase-hadoop-zookeeper-slave2.out starting master, logging to /home/hadoop/hbase/bin/../logs/hbase-hadoop-master-master.out slave1: starting regionserver, logging to /home/hadoop/hbase/bin/../logs/hbase-hadoop-regionserver-slave1.out slave2: starting regionserver, logging to /home/hadoop/hbase/bin/../logs/hbase-hadoop-regionserver-slave2.out # 查看进程 [hadoop@master bin]$ jps 39532 QuorumPeerMain 38917 SecondaryNameNode 39147 ResourceManager 39918 HMaster 38767 NameNode 40027 Jps [hadoop@slave1 data]$ jps 3021 HRegionServer 3133 Jps 2535 NodeManager 2379 DataNode 2942 HQuorumPeer [hadoop@slave2 ~]$ jps 8430 HRegionServer 8351 HQuorumPeer 8150 NodeManager 8558 Jps 8004 DataNode # 验证 [hadoop@master bin]$ ./hbase shell 2015-03-21 16:11:44,534 INFO  [main] Configuration.deprecation: hadoop.native.lib is deprecated. Instead, use io.native.lib.available HBase Shell; enter 'help' for list of supported commands. Type "exit" to leave the HBase Shell Version 0.98.11-hadoop2, r6e6cf74c1161035545d95921816121eb3a516fe0, Tue Mar  3 00:23:49 PST 2015 hbase(main):001:0> list TABLE                                                                                                                                                                                           SLF4J: Class path contains multiple SLF4J bindings. SLF4J: Found binding in [jar:file:/home/hadoop/hbase-0.98.11-hadoop2/lib/slf4j-log4j12-1.6.4.jar!/org/slf4j/impl/StaticLoggerBinder.class] SLF4J: Found binding in [jar:file:/home/hadoop/hadoop-2.2.0/share/hadoop/common/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class] SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation. 2015-03-21 16:11:56,499 WARN  [main] util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable 0 row(s) in 1.9010 seconds => []

11、查看集群状态
HDFS UIhttp://192.168.1.2:50070/dfshealth.jsp


YARN UIhttp://192.168.1.2:8088/cluster


jobhistory UIhttp://192.168.1.2:19888/jobhistory

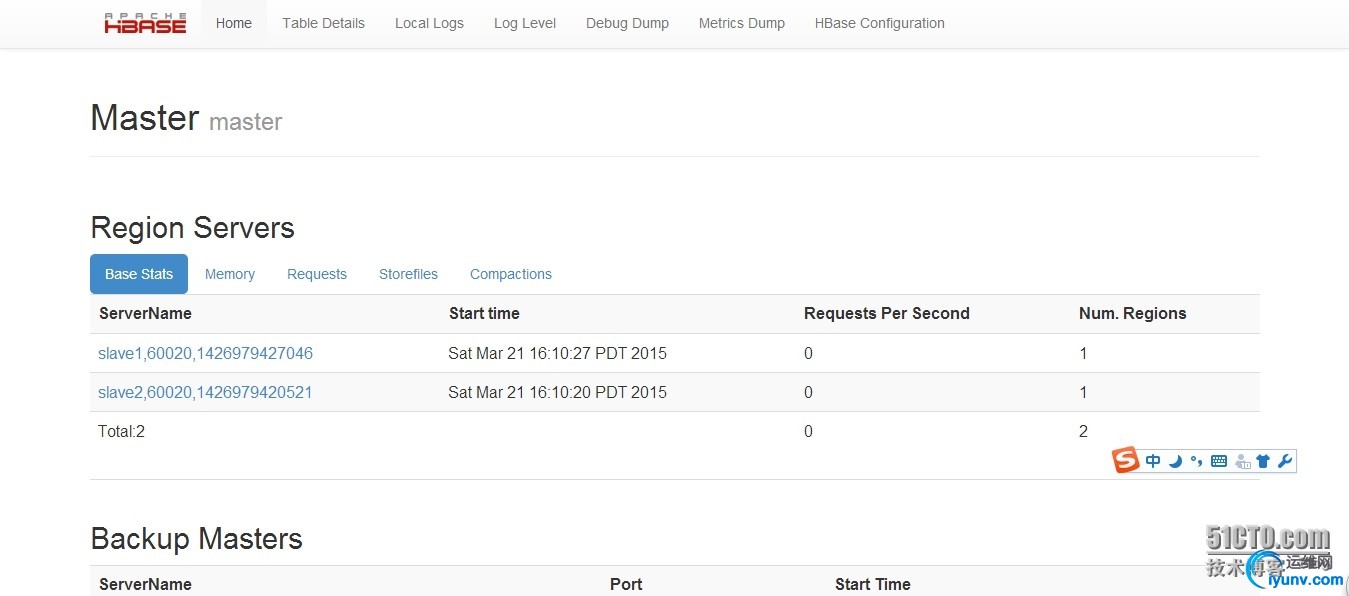

HBASE UIhttp://192.168.1.2:60010/master-status
