CentOS上安装FastDFS分布式文件系统

506629361

　　鱼大自己写的项目简介：http://bbs.chinaunix.net/thread-1920470-1-1.html
　　架构简介：http://www.programmer.com.cn/4380/
　　下载地址：http://sourceforge.net/projects/fastdfs/files/
　　下载后编译client
　　我们主要下载了一下安装包
　　nginx-1.6.0.tar.gz
　　fastdfs_client_java_v1.10.tar.gz
　　FastDFS_v5.01.tar.gz
　　fastdfs-nginx-module_v1.16.tar.gz
　　我们准备在30、33上装Tracker，31、32装Storage Grup1，34、35装Storage Group2
　　
　　一、安装FastDFS
　　首先安装Tracker：
　　解压fastDFS，进入目录，make.sh，然后make.sh install
　　之后看见：



[iyunv@bxcs_repository bin]# ll /usr/local/bin/
总用量 35196
-rwxr-xr-x   1 root root  522862 6月  26 00:38 fdfs_appender_test
-rwxr-xr-x   1 root root  522815 6月  26 00:38 fdfs_appender_test1
-rwxr-xr-x   1 root root  513967 6月  26 00:38 fdfs_append_file
-rwxr-xr-x   1 root root  513377 6月  26 00:38 fdfs_crc32
-rwxr-xr-x   1 root root  513911 6月  26 00:38 fdfs_delete_file
-rwxr-xr-x   1 root root  514321 6月  26 00:38 fdfs_download_file
-rwxr-xr-x   1 root root  514077 6月  26 00:38 fdfs_file_info
-rwxr-xr-x   1 root root  525008 6月  26 00:38 fdfs_monitor
-rwxr-xr-x   1 root root    1768 6月  26 00:38 fdfs_restart.sh
-rwxr-xr-x   1 root root    1680 6月  26 00:38 fdfs_stop.sh
-rwxr-xr-x   1 root root 1179634 6月  26 00:38 fdfs_storaged
-rwxr-xr-x   1 root root  529789 6月  26 00:38 fdfs_test
-rwxr-xr-x   1 root root  527718 6月  26 00:38 fdfs_test1
-rwxr-xr-x   1 root root  655761 6月  26 00:38 fdfs_trackerd
-rwxr-xr-x   1 root root  514157 6月  26 00:38 fdfs_upload_appender
-rwxr-xr-x   1 root root  514943 6月  26 00:38 fdfs_upload_file
-rwxr-xr-x 111 root root 6917090 6月  10 11:28 git
-rwxr-xr-x   2 root root  162417 6月  10 11:28 git-cvsserver
-rwxr-xr-x   1 root root  344042 6月  10 11:28 gitk
-rwxr-xr-x 111 root root 6917090 6月  10 11:28 git-receive-pack
-rwxr-xr-x   2 root root 3305225 6月  10 11:28 git-shell
-rwxr-xr-x 111 root root 6917090 6月  10 11:28 git-upload-archive
-rwxr-xr-x   2 root root 3371963 6月  10 11:28 git-upload-pack
　　其中fdfs_restart.sh和fdfs_stop.sh以前叫restart.sh、stop.sh，为了避免混淆，重命名了。



mv /usr/local/bin/restart.sh /usr/local/bin/fdfs_restart.sh
mv /usr/local/bin/stop.sh /usr/local/bin/fdfs_stop.sh
　　
　　配置文件：



[iyunv@bxcs_repository FastDFS]# ll /etc/fdfs/
总用量 56
-rw-r--r-- 1 root root  1461 6月  26 00:38 client.conf
-rw-r--r-- 1 root root   858 6月  26 00:38 http.conf
-rw-r--r-- 1 root root 31172 6月  26 00:38 mime.types
-rw-r--r-- 1 root root  7535 6月  26 00:38 storage.conf
-rw-r--r-- 1 root root  6993 6月  26 00:43 tracker.conf
　　我们改一下tracker.conf



vim /etc/fdfs/tracker.conf

#一般只需改动以下几个参数即可：
disabled=false            #启用配置文件
port=22122                #设置tracker的端口号
base_path=/usr/local/fdfs/tracker   #设置tracker的数据文件和日志目录（需预先创建）
http.server_port=9090     #设置http端口号
　　上面的路径 /usr/local/fdfs/tracker需要提前创建好
　　运行tracker试试：



[iyunv@bxcs_repository FastDFS]# fdfs_trackerd /etc/fdfs/tracker.conf restart
查看状态：
[iyunv@bxcs_repository FastDFS]# netstat -unltp | grep fdfs
tcp        0      0 0.0.0.0:22122               0.0.0.0:*                   LISTEN      2225/fdfs_trackerd
[iyunv@bxcs_repository FastDFS]# ps -ef |grep fdfs
root      2225     1  0 00:50 ?        00:00:00 fdfs_trackerd /etc/fdfs/tracker.conf restart
　　去tracker的日志看看有没有错：



[iyunv@bxcs_repository FastDFS]# tail -f /usr/local/fdfs/tracker/logs/trackerd.log
[2014-06-26 00:50:48] INFO - FastDFS v5.01, base_path=/usr/local/fdfs/tracker, run_by_group=, run_by_user=, connect_timeout=30s, network_timeout=60s, port=22122, bind_addr=, max_connections=256, accept_threads=1, work_threads=4, store_lookup=2, store_group=, store_server=0, store_path=0, reserved_storage_space=10.00%, download_server=0, allow_ip_count=-1, sync_log_buff_interval=10s, check_active_interval=120s, thread_stack_size=64 KB, storage_ip_changed_auto_adjust=1, storage_sync_file_max_delay=86400s, storage_sync_file_max_time=300s, use_trunk_file=0, slot_min_size=256, slot_max_size=16 MB, trunk_file_size=64 MB, trunk_create_file_advance=0, trunk_create_file_time_base=02:00, trunk_create_file_interval=86400, trunk_create_file_space_threshold=20 GB, trunk_init_check_occupying=0, trunk_init_reload_from_binlog=0, trunk_compress_binlog_min_interval=0, use_storage_id=0, id_type_in_filename=ip, storage_id_count=0, rotate_error_log=0, error_log_rotate_time=00:00, rotate_error_log_size=0, store_slave_file_use_link=0, use_connection_pool=0, g_connection_pool_max_idle_time=3600s
[2014-06-26 00:50:48] INFO - local_host_ip_count: 2,  127.0.0.1  192.168.3.30
　　开机启动Tracker：



[iyunv@bxcs_repository FastDFS]# vim /etc/rc.local
/usr/local/bin/fdfs_trackerd /etc/fdfs/tracker.conf restart
　　OK,我们给另外一台机器192.168.3.33也安装上Tracker。
　　
　　然后安装Storage：
　　同样，解压，然后./make.sh   ./make.sh install在/usr/local/bin和 /etc/fdfs/下有一堆命令和配置文件。
　　重命名一下shell脚本，不然容易混淆：



mv /usr/local/bin/restart.sh /usr/local/bin/fdfs_restart.sh
mv /usr/local/bin/stop.sh /usr/local/bin/fdfs_stop.sh
　　配置Storage节点：
　　多个tracker可以配置多次tracker_server，这样可以解决tracker_server的单点问题：



vim /etc/fdfs/storage.conf

#一般只需改动以下几个参数即可：
disabled=false                    #启用配置文件
group_name=group1                 #组名，根据实际情况修改
port=23000                        #设置storage的端口号
base_path=/fdfs/storage           #设置storage的日志目录（需预先创建）
store_path_count=1                #存储路径个数，需要和store_path个数匹配
base_path=/usr/local/fdfs/storage
store_path0=/usr/local/fdfs/storage #存储路径,store_path#, based 0, if store_path0 not exists, it's value is base_path
tracker_server=192.168.3.30:22122 #tracker服务器的IP地址和端口号

tracker_server=192.168.3.33:22122 #tracker服务器的IP地址和端口号

http.server_port=9090 #设置http端口号
　　必须先创建/usr/local/fdfs/storage目录，否则启动报错：



[2014-06-26 01:12:09] ERROR - file: ../common/process_ctrl.c, line: 189, "/usr/local/fdfs/storage" can't be accessed, error info: No such file or directory
　　创建后启动：
　　/usr/local/bin/fdfs_storaged /etc/fdfs/storage.conf restart



data path: /usr/local/fdfs/storage/data, mkdir sub dir...
mkdir data path: 00 ...
mkdir data path: 01 ...
mkdir data path: 02 ...
mkdir data path: 03 ...
mkdir data path: 04 ...
mkdir data path: 05 ...
mkdir data path: 06 ...
mkdir data path: 07 ...
mkdir data path: 08 ...
mkdir data path: 09 ...
mkdir data path: 0A ...
mkdir data path: 0B ...
....
....
....
mkdir data path: FA ...
mkdir data path: FB ...
mkdir data path: FC ...
mkdir data path: FD ...
mkdir data path: FE ...
mkdir data path: FF ...
data path: /usr/local/fdfs/storage/data, mkdir sub dir done.
　　然后查看网络：



[iyunv@bxcsweb bin]# netstat -unltp | grep fdfs
tcp        0      0 0.0.0.0:23000               0.0.0.0:*                   LISTEN      2129/fdfs_storaged
　　查看进程：



[iyunv@bxcsweb bin]# ps -ef | grep fdfs
root      2129     1  0 01:13 ?        00:00:00 fdfs_storaged /etc/fdfs/storage.conf restart
root      2141  1595  0 01:14 pts/0    00:00:00 grep fdfs
　　查看启动日志：
　　tail -f /usr/local/fdfs/storage/logs/storaged.log



[2014-06-26 03:52:47] INFO - FastDFS v5.01, base_path=/usr/local/fdfs/storage, store_path_count=1, subdir_count_per_path=256, group_name=group1, run_by_group=, run_by_user=, connect_timeout=30s, network_timeout=60s, port=23000, bind_addr=, client_bind=1, max_connections=256, accept_threads=1, work_threads=4, disk_rw_separated=1, disk_reader_threads=1, disk_writer_threads=1, buff_size=256KB, heart_beat_interval=30s, stat_report_interval=60s, tracker_server_count=2, sync_wait_msec=50ms, sync_interval=0ms, sync_start_time=00:00, sync_end_time=23:59, write_mark_file_freq=500, allow_ip_count=-1, file_distribute_path_mode=0, file_distribute_rotate_count=100, fsync_after_written_bytes=0, sync_log_buff_interval=10s, sync_binlog_buff_interval=10s, sync_stat_file_interval=300s, thread_stack_size=512 KB, upload_priority=10, if_alias_prefix=, check_file_duplicate=0, file_signature_method=hash, FDHT group count=0, FDHT server count=0, FDHT key_namespace=, FDHT keep_alive=0, HTTP server port=9090, domain name=, use_access_log=0, rotate_access_log=0, access_log_rotate_time=00:00, rotate_error_log=0, error_log_rotate_time=00:00, rotate_access_log_size=0, rotate_error_log_size=0, file_sync_skip_invalid_record=0, use_connection_pool=0, g_connection_pool_max_idle_time=3600s
[2014-06-26 03:52:47] INFO - file: storage_param_getter.c, line: 191, use_storage_id=0, id_type_in_filename=ip, storage_ip_changed_auto_adjust=1, store_path=0, reserved_storage_space=10.00%, use_trunk_file=0, slot_min_size=256, slot_max_size=16 MB, trunk_file_size=64 MB, trunk_create_file_advance=0, trunk_create_file_time_base=02:00, trunk_create_file_interval=86400, trunk_create_file_space_threshold=20 GB, trunk_init_check_occupying=0, trunk_init_reload_from_binlog=0, trunk_compress_binlog_min_interval=0, store_slave_file_use_link=0
[2014-06-26 03:52:47] INFO - file: storage_func.c, line: 175, tracker_client_ip: 192.168.3.31, my_server_id_str: 192.168.3.31, g_server_id_in_filename: 520333504
[2014-06-26 03:52:47] ERROR - file: tracker_proto.c, line: 48, server: 192.168.3.33:22122, response status 2 != 0
[2014-06-26 03:52:47] INFO - local_host_ip_count: 2,  127.0.0.1  192.168.3.31
[2014-06-26 03:52:47] INFO - file: tracker_client_thread.c, line: 308, successfully connect to tracker server 192.168.3.30:22122, as a tracker client, my ip is 192.168.3.31
[2014-06-26 03:52:47] INFO - file: tracker_client_thread.c, line: 308, successfully connect to tracker server 192.168.3.33:22122, as a tracker client, my ip is 192.168.3.31
[2014-06-26 03:52:47] INFO - file: tracker_client_thread.c, line: 1124, tracker server 192.168.3.30:22122, set tracker leader: 192.168.3.30:22122
　　
　　看见成功启动了。
　　使用fdfs_monitor命令查看Storage是否已登记到Tracker：（注意标红那一行）



[iyunv@bxcsweb bin]# fdfs_monitor /etc/fdfs/storage.conf
[2014-06-26 01:19:07] DEBUG - base_path=/usr/local/fdfs/storage, connect_timeout=30, network_timeout=60, tracker_server_count=1, anti_steal_token=0, anti_steal_secret_key length=0, use_connection_pool=0                                   , g_connection_pool_max_idle_time=3600s, use_storage_id=0, storage server id count: 0
server_count=1, server_index=0
tracker server is 192.168.3.33:22122
group count: 1
Group 1:
group name = group1
disk total space = 10079 MB
disk free space = 7267 MB
trunk free space = 0 MB
storage server count = 1
active server count = 1
storage server port = 23000
storage HTTP port = 9090
store path count = 1
subdir count per path = 256
current write server index = 0
current trunk file id = 0
Storage 1:
id = 192.168.3.31
ip_addr = 192.168.3.31 (bxcsweb)  ACTIVE
http domain =
version = 5.01
join time = 2014-06-26 01:13:14
up time = 2014-06-26 01:13:14
total storage = 10079 MB
free storage = 7267 MB
upload priority = 10
store_path_count = 1
subdir_count_per_path = 256
storage_port = 23000
storage_http_port = 9090
current_write_path = 0
source storage id=
if_trunk_server= 0
total_upload_count = 0
success_upload_count = 0
total_append_count = 0
success_append_count = 0
total_modify_count = 0
success_modify_count = 0
total_truncate_count = 0
success_truncate_count = 0
total_set_meta_count = 0
success_set_meta_count = 0
total_delete_count = 0
success_delete_count = 0
total_download_count = 0
success_download_count = 0
total_get_meta_count = 0
success_get_meta_count = 0
total_create_link_count = 0
success_create_link_count = 0
total_delete_link_count = 0
success_delete_link_count = 0
total_upload_bytes = 0
success_upload_bytes = 0
total_append_bytes = 0
success_append_bytes = 0
total_modify_bytes = 0
success_modify_bytes = 0
stotal_download_bytes = 0
success_download_bytes = 0
total_sync_in_bytes = 0
success_sync_in_bytes = 0
total_sync_out_bytes = 0
success_sync_out_bytes = 0
total_file_open_count = 0
success_file_open_count = 0
total_file_read_count = 0
success_file_read_count = 0
total_file_write_count = 0
success_file_write_count = 0
last_heart_beat_time = 2014-06-26 01:20:53
last_source_update = 1970-01-01 08:00:00
last_sync_update = 1970-01-01 08:00:00
last_synced_timestamp = 1970-01-01 08:00:00
　　如果一个group1内有多个storage机器，上面的监控应该显示



Group 1:
group name = group1
disk total space = 10079 MB
disk free space = 7229 MB
trunk free space = 0 MB
storage server count = 2
active server count = 2
storage server port = 23000
storage HTTP port = 9090
store path count = 1
subdir count per path = 256
current write server index = 0
current trunk file id = 0
Storage 1:
id = 192.168.3.31
ip_addr = 192.168.3.31 (localhost)  ACTIVE
。。。。
。。。。
Storage 2:
id = 192.168.3.32
ip_addr = 192.168.3.32 (bxcscache)  ACTIVE
。。。。
。。。。
　　设置开机启动：



[iyunv@bxcsweb bin]# vim /etc/rc.local
#start FastDFS
/usr/local/bin/fdfs_storaged /etc/fdfs/storage.conf restart
　　
　　两台Tracker(30/33)、四台Storage【分为两个Group，分别命名为group1(31/32)、group2(34/35)】安装完之后的信息：



[iyunv@bxcs_mongoSlave FastDFS]# fdfs_monitor /etc/fdfs/storage.conf
[2014-06-26 05:25:20] DEBUG - base_path=/usr/local/fdfs/storage, connect_timeout=30, network_timeout=60, tracker_server_count=2, anti_steal_token=0, anti_steal_secret_key length=0, use_connection_pool=0, g_connection_pool_max_idle_time=3600s, use_storage_id=0, storage server id count: 0
server_count=2, server_index=0
tracker server is 192.168.3.30:22122
group count: 2
Group 1:
group name = group1
disk total space = 10079 MB
disk free space = 7229 MB
trunk free space = 0 MB
storage server count = 2
active server count = 2
storage server port = 23000
storage HTTP port = 9090
store path count = 1
subdir count per path = 256
current write server index = 0
current trunk file id = 0
Storage 1:
id = 192.168.3.31
ip_addr = 192.168.3.31 (localhost)  ACTIVE
。。。
Storage 2:
id = 192.168.3.32
ip_addr = 192.168.3.32 (localhost)  ACTIVE
。。。
Group 2:
group name = group2
disk total space = 10079 MB
disk free space = 7477 MB
trunk free space = 0 MB
storage server count = 2
active server count = 2
storage server port = 23000
storage HTTP port = 9090
store path count = 1
subdir count per path = 256
current write server index = 0
current trunk file id = 0
Storage 1:
id = 192.168.3.34
ip_addr = 192.168.3.34 (localhost)  ACTIVE
...
Storage 2:
id = 192.168.3.35
ip_addr = 192.168.3.35 (bxcs_mongoSlave)  ACTIVE
...
　　
　　
　　storage节点安装nginx和fastdfs-nginx-module模块：
　　“在storage上安装的nginx主要为了提供http的访问服务，同时解决group中storage服务器的同步延迟问题。”
　　要求必须先安装zlib和pcre包。



yum -y install zlib zlib-devel openssl openssl--devel pcre pcre-devel
　　安装nginx可参见之前的博文http://www.iyunv.com/radio/p/3782280.html，只是安装的时候注意config的时候添加一个模块：



./configure --prefix=/usr/local/nginx --add-module=/usr/local/fastdfs-nginx-module/src
　　结果输出：



adding module in /usr/local/fastdfs-nginx-module/src/
+ ngx_http_fastdfs_module was configured
checking for PCRE library ... found
checking for PCRE JIT support ... not found
checking for md5 in system md library ... not found
checking for md5 in system md5 library ... not found
checking for md5 in system OpenSSL crypto library ... not found
checking for sha1 in system md library ... not found
checking for sha1 in system OpenSSL crypto library ... not found
checking for zlib library ... found
creating objs/Makefile
Configuration summary
+ using system PCRE library
+ OpenSSL library is not used
+ using builtin md5 code
+ sha1 library is not found
+ using system zlib library
nginx path prefix: "/usr/local/nginx"
nginx binary file: "/usr/local/nginx/sbin/nginx"
nginx configuration prefix: "/usr/local/nginx/conf"
nginx configuration file: "/usr/local/nginx/conf/nginx.conf"
nginx pid file: "/usr/local/nginx/logs/nginx.pid"
nginx error log file: "/usr/local/nginx/logs/error.log"
nginx http access log file: "/usr/local/nginx/logs/access.log"
nginx http client request body temporary files: "client_body_temp"
nginx http proxy temporary files: "proxy_temp"
nginx http fastcgi temporary files: "fastcgi_temp"
nginx http uwsgi temporary files: "uwsgi_temp"
nginx http scgi temporary files: "scgi_temp"
　　然后 make、make install就OK。
　　安装完之后，将插件的配置文件拷贝到FastDFS配置文件目录下：



[iyunv@bxcs_mongoSlave conf]# cp /usr/local/fastdfs-nginx-module/src/mod_fastdfs.conf /etc/fdfs/
　　然后编辑这个配置文件：



[iyunv@bxcs_mongoSlave conf]# vim /etc/fdfs/mod_fastdfs.conf
一般只需改动以下几个参数即可：
base_path=/usr/local/fdfs/storage #保存日志目录
tracker_server=192.168.3.30:22122 #tracker服务器的IP地址以及端口号
tracker_server=192.168.3.33:22122 #tracker服务器的IP地址以及端口号
storage_server_port=23000         #storage服务器的端口号
group_name=group2                 #当前服务器的group名
url_have_group_name = true        #文件url中是否有group名
store_path_count=1                #存储路径个数，需要和store_path个数匹配
store_path0=/usr/local/fdfs/storage  #存储路径
http.need_find_content_type=true  #从文件扩展名查找文件类型（nginx时为true）没找到这个配置参数，可能新版移除了。
group_count = 2                   #设置组的个数
在末尾增加3个组的具体信息：
[group1]
group_name=group1
storage_server_port=23000
store_path_count=1
store_path0=/usr/local/fdfs/storage
# group settings for group #2
# since v1.14
# when support multi-group, uncomment following section as neccessary
[group2]
group_name=group2
storage_server_port=23000
store_path_count=1
store_path0=/usr/local/fdfs/storage
　　建立软连接：（暂时不明白什么意思，不清楚为什么nginx和此处的M00有何对应，想必应该是Tracker会在URL后面加上M00）



[iyunv@bxcs_mongoSlave sbin]# ln -s /usr/local/fdfs/storage/data/ /usr/local/fdfs/storage/data/M00
　　nginx配置：



    server {
listen       9090;
server_name  localhost;
location ~/group[1-2]/M00 {
root /usr/local/fdfs/storage/data;
ngx_fastdfs_module;
}
}
　　然后进入nginx的sbin，./nginx启动，看看错误日志：



[iyunv@bxcs_mongoSlave sbin]# cat /usr/local/nginx/logs/error.log
ngx_http_fastdfs_process_init pid=5232
ngx_http_fastdfs_process_init pid=5233
[2014-06-26 07:07:42] INFO - local_host_ip_count: 2,  127.0.0.1  192.168.3.35
[2014-06-26 07:07:42] INFO - local_host_ip_count: 2,  127.0.0.1  192.168.3.35
[2014-06-26 07:07:42] INFO - fastdfs apache / nginx module v1.15, response_mode=proxy, base_path=/tmp, url_have_group_name=1, group_count=2, connect_timeout=2, network_timeout=30, tracker_server_count=2, if_alias_prefix=, local_host_ip_count=2, anti_steal_token=0, token_ttl=0s, anti_steal_secret_key length=0, token_check_fail content_type=, token_check_fail buff length=0, load_fdfs_parameters_from_tracker=1, storage_sync_file_max_delay=86400s, use_storage_id=0, storage server id count=0, flv_support=1, flv_extension=flv
[2014-06-26 07:07:42] INFO - group 1. group_name=group1, storage_server_port=23000, path_count=1, store_path0=/usr/local/fdfs/storage
[2014-06-26 07:07:42] INFO - group 2. group_name=group2, storage_server_port=23000, path_count=1, store_path0=/usr/local/fdfs/storage
[2014-06-26 07:07:42] INFO - fastdfs apache / nginx module v1.15, response_mode=proxy, base_path=/tmp, url_have_group_name=1, group_count=2, connect_timeout=2, network_timeout=30, tracker_server_count=2, if_alias_prefix=, local_host_ip_count=2, anti_steal_token=0, token_ttl=0s, anti_steal_secret_key length=0, token_check_fail content_type=, token_check_fail buff length=0, load_fdfs_parameters_from_tracker=1, storage_sync_file_max_delay=86400s, use_storage_id=0, storage server id count=0, flv_support=1, flv_extension=flv
[2014-06-26 07:07:42] INFO - group 1. group_name=group1, storage_server_port=23000, path_count=1, store_path0=/usr/local/fdfs/storage
[2014-06-26 07:07:42] INFO - group 2. group_name=group2, storage_server_port=23000, path_count=1, store_path0=/usr/local/fdfs/storage
　　没有ERROR,然后看这台机器的9090端口可以打开nginx服务页面。
　　
　　OK，接着在31、32、34的storage机器上也安装nginx。
　　
　　Tracker机器安装Nginx
　　我们没有用缓存模块，直接常规安装就行，注意一下配置文件：



    #fastDFS group1
upstream fastDFS_group1{
#ip_hash
server 192.168.3.31:9090;
server 192.168.3.32:9090;
}
#fastDFS group2
upstream fastDFS_group2{
server 192.168.3.34:9090;
server 192.168.3.35:9090;
}
server {
#Current FastDFS Tracker Http Port at /etc/fdfs/tracker.conf
listen       9090;
server_name  fastDFS_Tracker_Http;
#proxy: Redirect Tracker Http Request to Storage Node nginx Server
location /group1/M00 {
proxy_pass http://fastDFS_group1;
            include proxy.conf;
}
location /group2/M00 {
proxy_pass http://fastDFS_group2;
            include proxy.conf;
}
}
　　PS:如果要用缓存，需要给nginx安装缓存模块ngx_cache_purge，详见下方参考目录。
　　
　　安装完之后启动起来。
　　测试Tracker的Http：
　　先编辑30Tracker的client.conf，然后我们上传一个图片。



vim /etc/fdfs/client.conf
修改以下参数：
base_path=/usr/local/fdfs/tracker                    #日志存放路径
tracker_server=192.168.3.30:22122          #tracker服务器IP地址和端口号
tracker_server=192.168.3.33:22122          #tracker服务器IP地址和端口号
http.tracker_server_port=9090              #tracker服务器的http端口号
　　编辑完之后上传两个图片：（使用了/usr/local/bin中的fdfs_upload_file命令）



[iyunv@bxcs_repository sbin]# fdfs_upload_file /etc/fdfs/client.conf /usr/local/test.png
group2/M00/00/00/wKgDIlOrbiyAcv0PAAA3CQYsNEs507.png


[iyunv@bxcs_repository sbin]# fdfs_upload_file /etc/fdfs/client.conf /usr/local/test.jpeg
group2/M00/00/00/wKgDI1Orb9aAeJnkAAEFKS6QV9I89.jpeg
　　FastDFS为我们返回了这个文件的路径：group2/M00/00/00/wKgDI1Orb9aAeJnkAAEFKS6QV9I89.jpeg

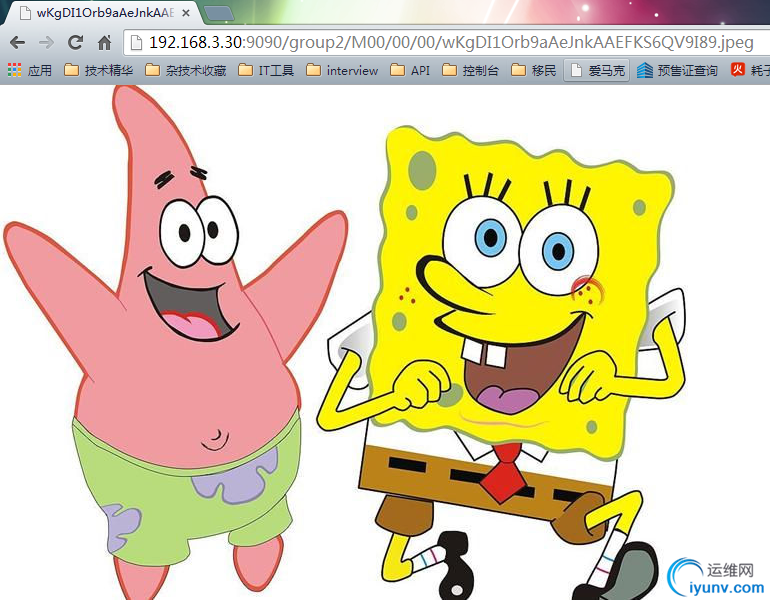

　　我们在浏览器中访问Tracker：http://192.168.3.30:9090/group2/M00/00/00/wKgDI1Orb9aAeJnkAAEFKS6QV9I89.jpeg
　　结果成功读取了这个文件！

　　
　　
　　停止和重启脚本：



停止
/usr/local/bin/fdfs_stop.sh /usr/local/bin/fdfs_trackerd /etc/fdfs/tracker.conf
/usr/local/bin/fdfs_stop.sh /usr/local/bin/fdfs_storaged /etc/fdfs/storage.conf
重启:
/usr/local/bin/fdfs_restart.sh /usr/local/bin/fdfs_trackerd /etc/fdfs/tracker.conf
/usr/local/bin/fdfs_restart.sh /usr/local/bin/fdfs_storaged /etc/fdfs/storage.conf
　　
　　OK，至此FastDFS安装完毕。
　　接下来就是使用鱼大的javaDriver操作FastDFS了。
　　
　　本文参考了：
　　http://bbs.chinaunix.net/thread-4133106-1-1.html （缓存配置，详见此文）
　　另外，可用资料：
　　常见问题：http://www.iyunv.com/chinacloud/archive/2011/01/19/1938870.html
　　一个配置文件详解：http://blog.iyunv.com/poechant/article/details/6996047
