　　Creating the distributed key management container in Active Directory
　　Some of the data stored by VMM needs to be held securely, so it cannot be compromised.
　　For example, when you store user credentials in VMM for Run As accounts, the passwords for

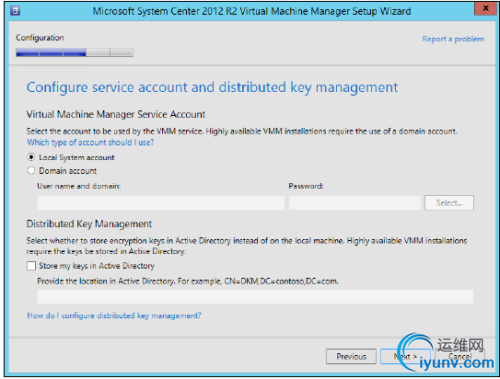

　　these are encrypted. When you install VMM, you are given the choice of where to store the
　　encryption keys, as shown in the following screenshot:

　　It is required to always store your encryption keys in Active Directory if you are going to deploy
　　a highly available (clustered) installation of VMM.
　　The account used to install VMM must have full control over the container in Active Directory
　　for the duration of the installation. During the installation, the installer program reconfigures
　　the security of the container to ensure that only the correct security principles have access.
　　For a small scale installation, a single container in the root of Active Directory could
　　be created to store the encryption keys. For a large-scale implementation where several
　　different installations of VMM may be required due to the number of hosts and/or virtual
　　machines, it is advisable to create a parent container in Active Directory and then have
　　containers within the parent for each installation of VMM.
　　Installing Virtual Machine Manager
　　Getting ready
　　You will need to have sufficient access to Active Directory to create Container objects.
　　How to do it…
　　The following diagram shows you the high-level steps involved in this recipe and the tasks
　　required to complete this recipe:

　　Overview of Recipe:
　　Actions:
　　Creation of new container in Active Directory for
　　Distributed Key Management in VMM using
　　PowerShell
　　Applying the required security permissions to the
　　newly created Active Directory container using
　　PowerShell
　　Prerequisites (not covered by this recipe):
　　Obtaining an account with sufficient privileges for
　　creating a container in Active Directory
　　Obtaining an account with sufficient privileges for
　　changing ACLs on the new container in Active
　　Directory
　　There are two possible methods of creating a container in Active Directory: one is using ADSI
　　Edit and the other is via PowerShell. The method discussed here will be PowerShell-based:
　　1. On a Domain Controller, or a machine where the Active Directory PowerShell Module
　　is installed, open an elevated PowerShell console.
　　2. The following PowerShell line will create a container called DKMVMM in the root of
　　Active Directory:
　　New-ADObject –Name DKMVMM –Type container –Path
　　"DC=ad,DC=demo,DC=com"
　　3. Once the container has been created, the user who will be installing VMM needs to
　　have full control of the container and that permission must apply to the container and
　　all descendant objects. The following PowerShell will perform this function:
　　Set-PSDrive AD:
　　$VMMInstallAccount = Get-ADUser -Identity Install_VMM
　　$SID = New-Object
　　System.Security.Principal.SecurityIdentifier
　　$VMMInstallAccount.SID
　　$DKMVMMacl = Get-Acl -Path "CN=DKMVMM,DC=ad,DC=demo,DC=com"
　　$ObjectGuid = New-Object Guid 00000000-0000-0000-0000-
　　000000000000
　　$newACL = New-Object
　　System.DirectoryServices.ActiveDirectoryAcce***ule
　　$SID,"GenericAll","Allow",$objectguid,"All"
　　$DKMVMMacl.AddAcce***ule($newACL)
　　Set-Acl -AclObject $DKMVMMacl -Path
　　"CN=DKMVMM,DC=ad,DC=demo,DC=com"
　　This recipe is complete and the Distributed Key Management container is now ready to be
　　used by DEMO\Install_VMM during installation.
