　　Last summer I was invited by the Nexus 7000 product management team  at Cisco to help co-author a whitepaper covering general guidelines and  best practices for network integration of Cisco UCS with Cisco Nexus  7000.  The>Cisco UCS Networking Best Practices (in HD), extract the material most>　　I am pleased to announce that as of today this whitepaper is now the official Cisco publication:

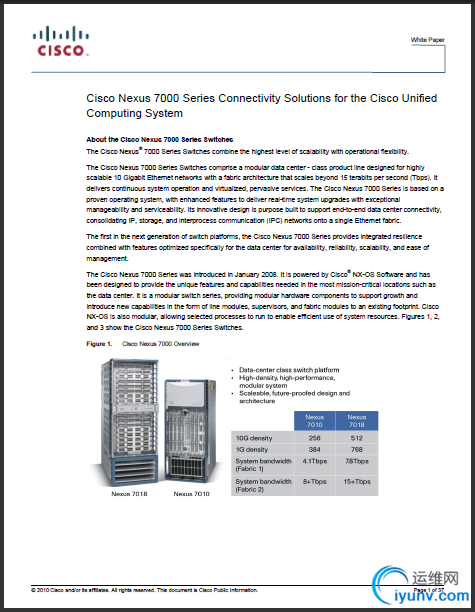

　　Cisco Nexus 7000 Series Connectivity Solutions for the Cisco Unified Computing System
　　In summary, this whitepaper discusses the following topics:

• Nexus 7000 bandwidth and density complimenting Cisco UCS deployments

• Cisco UCS network connectivity overview

• Cisco UCS End Host Mode vs. Switch Mode

• Why End Host Mode is the preferred (and default) mode of operation

• Why vPC uplinks from Cisco UCS to Nexus 7000 are preferred

• Traffic patterns and failure scenarios with vPC uplinks to Nexus 7000

• Why attaching Cisco UCS without vPC to Nexus 7000′s configured for vPC should be avoided

• No vPC? No problem!  Best practices when connecting Cisco UCS to Nexus 7000 without vPC

• Connecting Cisco UCS to separated Layer 2 networks

• Connecting Cisco UCS to networks with Nexus 5000 and Nexus 7000 using vPC

• Why connecting Cisco UCS to a Spanning Tree influenced Layer 2 access topology should be avoided.

• Summary of Cisco UCS + Nexus 7000 networking best practice recommendations

• Cisco Nexus 7000 architectural advantages for Cisco UCS connectivity



  • Hitless ISSU, Stateful process restarts, Stateful supervisor switchover

  • N+1 and Grid level power supply redundancy

  • End of row L2/L3 connectivity for high density compute pods

  • Scalability for large deployments, 128,000 MAC addresses – hardware learning

  • Infrastructure consolidation with virtual device contexts (VDC)

  • Support for next generation switching fabrics with FabricPath, and TRILL

  • SAN/LAN infrastructure consolidation with future support for FCoE & FCF




　　What’s NOT covered in this whitepaper:

• Connecting Cisco UCS to Nexus 7000 FabricPath networks

• Guidance on choosing Nexus 7000 F1 or M1 series linecards for Cisco UCS connectivity

• FCoE uplinks from Cisco UCS to Nexus 7000


　　The above items not covered in this whitepaper may be the subject of future blogs here and/or additional Cisco whitepapers and CVD‘s.  However, I will take this opportunity to write a few comments on each subject.
Connecting Cisco UCS to Nexus 7000 FabricPath networks
　　Nexus 7000 switches configured for FabricPath have a new switch port  mode available called, you guessed it, a FabricPath port.  These are the  ports that directly connect to other FabricPath capable switches and  must be explicitly configured as such.
　　interface Ethernet 1/1
　　description Connection to FabricPath network
　　switchport mode fabricpath
　　All other standard non-FabricPath ports are referred to as “Classic  Ethernet” ports that normal switches and servers connect to without any  knowledge or awareness of FabricPath.  This is the default port setting.
　　The Cisco UCS fabric interconnect is not a FabricPath aware switch,  and as such should be connected to the Nexus 7000 on a normal “Classic  Ethernet” port, in either End Host mode or Switch mode (end host mode is  still preferred).  The Nexus 7000 may be participating in a larger  FabricPath network upstream, but this fact is completely transparent to  Cisco UCS or any other device attached to a normal “Classic Ethernet”  port.
　　interface Ethernet 2/1
　　description Connection to Cisco UCS
　　switchport mode trunk
　　spanning-tree port type edge trunk
　　The Nexus 7000 “Classic Ethernet” ports can still be configured for  vPC, so the best practice recommendation of connecting Cisco UCS to  Nexus 7000 with vPC uplinks in End Host mode still applies, with or  without FabricPath.

　　The Nexus 7000 configured for FabricPath has an enhancement to normal vPC, called vPC+ which  basically makes the Nexus 7000 vPC domain appear as one Switch>　　In a nutshell, connecting Cisco UCS to a Nexus 7000 FabricPath  network has little impact in how you would normally connect Cisco UCS.   Just make sure you’re connecting Cisco UCS to a normal “Classic  Ethernet” port on the Nexus 7000.
　　More in this later…
Guidance on choosing Nexus 7000 F1 or M1 series linecards for Cisco UCS connectivity
　　First lets understand the some of the key differences in terms of price and capabilities…
　　The Nexus 7000 M1 series  are the normal Layer 2 and Layer 3  capable linecards available since  the beginning with an 80 Gbps connection to the switch fabric and 4:1  oversubscribed at the front panel 32 ports.  Additionally, the M1 series  linecard support hardware learning for 128,000 MAC addresses, and  roughly 1 million IP routes.  The M1 linecard Layer 3 capabilities and  MAC scalability provides flexibility that is both simple and scalable,  but at twice the price of the F1 linecard for an equivalent 32-ports of  10GE.  If price is more important than density, an 8-port non-oversubscribed M1 linecard is available for almost half the price of the 32-port card.
　　The Nexus 7000 F1 series is a new 32-port 10GE linecard  that supports Layer 2 forwarding only with a 230 Gbps connection to the  switch fabric and line rate non-blocking forwarding (320 Gbps) for all  Layer 2 flows local to the linecard.  Additionally, the F1 linecard  supports FabricPath and is FCoE ready.  Every two front panel ports are  serviced by a switch on chip (SoC) that supports hardware learning for  16,000 MAC addresses.  If you simply spread all VLANs across all ports  (all SoC), the entire linecard supports 16,000 MAC addresses.  With  careful planning, you can try to isolate VLANs to fewer ports, and  therefore expose the MAC addresses in those VLANs to fewer SoC.  The  extreme case would be keeping any given VLAN unique to only one SoC,  resulting in the F1 linecard supporting 256,000 unique MAC addresses (16  SoC’s each with 16K unique MACs).
　　Side note: When the F1 linecard receives  traffic that needs Layer 3 switching, it will forward that traffic  across the internal fabric to an M1 linecard (if one exists) for the  Layer 3 lookup and forwarding.
　　Which linecard is best for Cisco UCS connectivity?  Each is a good  choice with pros & cons, so it really depends on what’s more  important to you: cost, scalability, flexibility,  bandwidth, over-subscription, etc.
　　You might choose the M1 linecard under these criteria:

• Scalability with simplicity, e.g. 128,000 MAC’s with no special planning.

• You are linking Cisco UCS to the Aggregation layer Nexus 7000 where Layer 3 switching is required.

• Consistency and simplicity of local forwarding for Layer 2 and Layer 3 flows.

• Line rate non-oversubscribed forwarding for all Layer 2 and Layer 3 flows (8-port M1)

• Low cost & low over-subscription more important than port density (8-port M1)


　　You might choose the F1 linecard under these criteria:

• You are linking Cisco UCS to an Access/Edge Nexus 7000 where only Layer 2 switching is required.

• You are linking Cisco UCS to a Nexus 7000 at the Edge of a FabricPath network.

• Low over-subscription, low latency, for all end-to-end Layer 2 flows is a concern.

• Both port density and cost are key concerns

• MAC scalability is not a concern


　　In my experience, most customers connect their Cisco UCS to the  Aggregation layer (this makes sense if you view the fabric interconnect  as the Access layer).  Of those customers, given the choice, most choose  the M1 linecard, except for those where cost, low latency, and low  over-subscription for Pod-to-Pod layer 2 forwarding is a key concern.
　　Some customers are beginning to deploy Nexus 7000 in both the Access  (end of row) and Aggregation layers for density requirements and to  prepare themselves for FabricPath.  These customers are connecting their  Cisco UCS fabric interconnects to the Nexus 7000 Access/Edge switch  which is Layer 2 only by design, so the F1 linecard there is a  no-brainer.
　　More on this later…
FCoE uplinks from Cisco UCS to Nexus 7000
　　There isn’t a lot of detail that can be discussed right now because  two things still need to happen.  But I think I can give you a hint of  where this is heading.

• Nexus 7000 software (NX-OS) support for Fibre Channel forwarding (FCF)

• Cisco UCS Manager software support for FCoE uplinks


　　The key word in both items is software – Meaning, no new hardware that isn’t already available today will be required.
　　When these software capabilities arrive, we will begin to see topologies  where Cisco UCS can link to a common pair of Nexus 7000′s that provide  both the LAN and SAN infrastructure.  The holy grail of unified fabric  consolidation at both the access and aggregation layers starts to become  a real world reality.
　　More on that later too…
Disclaimer:  The views and opinions expressed are those of the  author, and not necessarily the views and opinions of the author’s  employer.  The author is not an official media spokesperson for Cisco  Systems, Inc.  For design guidance that best suites your needs, please  consult your local Cisco representative.
