　　In this article, I will briefly explain the active/standby failover configuration on the cisco ASA. The lab is done in GNS3.

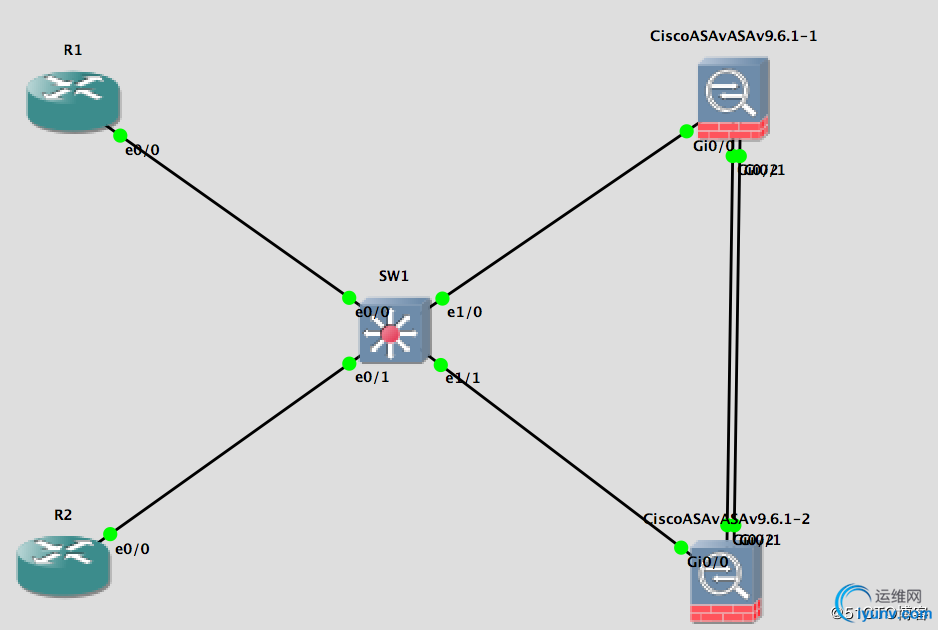

• Physical Topology:




• 　　configuration:
  　　ciscoasa/act/pri(config)# sh run failover
  　　failover
  　　failover lan unit primary
  　　failover lan interface Failover_Stateless GigabitEthernet0/2
  　　failover link Failover_Stateful GigabitEthernet0/1
  　　failover interface ip Failover_Stateless 169.254.0.15 255.255.255.0 standby 169.254.0.16
  　　failover interface ip Failover_Stateful 169.254.1.15 255.255.255.0 standby 169.254.1.16


• pitfall:
  　　The failover ASA pair should have>　　The failover configuration order is important. It could blank your active configuration if the order is not correct.
  　　Also, whenever there is an configuration update, it should be done on the primary / active unit, so the change could be synched to the standby.
  　　Do this:
  　　config # prompt hostname state priority


• the failover could be stateless and stateful, the above configuration configured G0/1 as stateful failover interface.

• 　　The "show failover" command will provide the current failover state. If you need to have any interface monitored, do below and add a standby ip address for the interface:
  　　config # monitor-interface inside | outside | etc.
  　　ciscoasa/act/pri(config)# sh monitor-interface
  　　This host: Primary - Active
  　　Interface management (172.16.212.96): Normal (Waiting)
  　　Interface inside (10.1.1.1): Normal (Monitored)
  　　Interface outside (150.1.115.1): Normal (Monitored)
  　　Other host: Secondary - Standby Ready
  　　Interface management (0.0.0.0): Normal (Waiting)
  　　Interface inside (10.1.1.2): Normal (Monitored)
  　　Interface outside (150.1.115.2): Normal (Monitored)


• when doing the test, you could enter "failover active" on the secondary ASA, and there will be no interruption for the telnet tcp connection that already exists. As the connection is on both ASA.


　　ciscoasa/stby/sec# sh conn
　　9 in use, 9 most used

　　TCP outside  150.1.115.100:23 inside  10.1.1.100:32526,>　　ciscoasa/stby/sec#
　　ciscoasa/stby/sec# sh conn
　　9 in use, 9 most used

　　TCP outside  150.1.115.100:23 inside  10.1.1.100:32526,>　　ciscoasa/stby/sec#
　　ciscoasa/act/pri# sh failover interface
　　interface Failover_Stateless GigabitEthernet0/2
　　System IP Address: 169.254.0.15 255.255.255.0
　　My IP Address    : 169.254.0.15
　　Other IP Address : 169.254.0.16
　　interface Failover_Stateful GigabitEthernet0/1
　　System IP Address: 169.254.1.15 255.255.255.0
　　My IP Address    : 169.254.1.15
　　Other IP Address : 169.254.1.16
　　

ciscoasa/act/pri# sh failover　　

　　Failover On
　　Failover unit Primary
　　Failover LAN Interface: Failover_Stateless GigabitEthernet0/2 (up)
　　Reconnect timeout 0:00:00
　　Unit Poll frequency 1 seconds, holdtime 15 seconds
　　Interface Poll frequency 5 seconds, holdtime 25 seconds
　　Interface Policy 1
　　Monitored Interfaces 3 of 36 maximum
　　MAC Address Move Notification Interval not set
　　Version: Ours 9.6(2), Mate 9.6(2)
　　Serial Number: Ours 9A9PLK9VKN2, Mate 9A8UNB99VES
　　Last Failover at: 11:59:50 UTC Jun 2 2018
　　This host: Primary - Active
　　Active time: 1082 (sec)
　　slot 0: empty
　　Interface management (172.16.212.96): Normal (Waiting)
　　Interface inside (10.1.1.1): Normal (Monitored)
　　Interface outside (150.1.115.1): Normal (Monitored)
　　Other host: Secondary - Standby Ready
　　Active time: 137 (sec)
　　Interface management (0.0.0.0): Normal (Waiting)
　　Interface inside (10.1.1.2): Normal (Monitored)
　　Interface outside (150.1.115.2): Normal (Monitored)

• Interesting Log:


　　This is from primary:
　　ciscoasa(config)# failover
　　ciscoasa(config)# %ASA-1-105002: (Primary) Enabling failover.
　　.
　　

    No Active mate detected　　

　　Beginning configuration replication: Sending to mate.
　　%ASA-1-709003: (Primary) Beginning configuration replication: Send to mate.
　　End Configuration Replication to mate
　　%ASA-1-709004: (Primary) End Configuration Replication (ACT)
　　This is from Secondary:
　　Detected an Active mate
　　Beginning configuration replication from mate.
　　%ASA-1-709005: (Secondary) Beginning configuration replication: Receiving from mate.
　　WARNING: Disabling auto import may affect Smart Licensing
　　Creating trustpoint "_SmartCallHome_ServerCA" and installing certificate...
　　Trustpoint CA certificate accepted.
　　WARNING: Failover is enabled but standby IP address is not configured for this interface.
　　WARNING: Failover is enabled but standby IP address is not configured for this interface.
　　WARNING: Failover is enabled but standby IP address is not configured for this interface.
　　WARNING: Trustpoint _SmartCallHome_ServerCA is already authenticated.
　　End configuration replication from mate.
　　ciscoasa(config)# %ASA-4-405003: IP address collision detected between host 169.254.0.15 at 5260.89c0.6003 and interface Failover_Stateless, 5260.89e7.4903
　　ciscoasa/act/pri# sh arp
　　inside 10.1.1.100 aabb.cc00.0200 2408
　　outside 150.1.115.100 aabb.cc00.0300 1761
　　Failover_Stateless 169.254.0.16 5260.89c0.6003 1248
　　Failover_Stateful 169.254.1.16 5260.89c0.6002 2030
　　ciscoasa/stby/sec# sh arp
　　inside 10.1.1.100 aabb.cc00.0200 2069
　　Failover_Stateless 169.254.0.15 5260.89e7.4903 1289
　　outside 150.1.115.100 aabb.cc00.0300 1802
　　Failover_Stateful 169.254.1.15 5260.89e7.4902 207
