原创1：dell sc1425老服务器安装vmware虚拟机esxi 5.0－系统配置

lujiguo115

若转发，请保留原地址　　保修信息



国家和地区:
中国


发货日期:
2005/7/23　　





服务提供商开始日期截止日期剩余天数标准技术电话支持Dell2005/7/232010/7/2404小时(24X7)(4小时上门服务，24X7)Dell2005/7/232008/7/240POW(仅限部件保修)Dell2007/7/232008/7/240NBD(下一工作日上门服务)Dell2007/7/232008/7/240
　　系统配置：



部件号码
数量
说明
点击此处查看常见部件的中文说明



00025
2
Integration Information

00035
1
INFORMATION..., NO KYBD REQUIRED

06791
3
PLUG..., ENDCAP, CONNECTOR..., PWRSPL

0R397
1
COMPACT DISK DRIVE..., 650M, I, INTERNAL..., THIRD HEIGHT..., 24X, BLACK..., TEAC...

0U332
1
SYSTEM INTEGRATION..., LABEL..., ASSET TAG, E SUPPORT

0U333
1
SYSTEM INTEGRATION..., INFORMATION..., ASSET TAG, E SUPPORT

0U334
1
Dell Tech Support Website Label

0U380
1
CFI Process INFO MOD

0U381
1
SYSTEM INTEGRATION..., INFORMATION..., STD PROCESS, CONTROLLER/NO CABLE...

13148
1
INFORMATION..., SOFTWARE..., FORMAT TO SERVER

1451P
1
SERVICE CHARGE..., SOFTWARE..., DRIVER..., I, COMPACT DISK DRIVE...

23503
2
LABEL..., BARCODE..., TRACK, SYSTEM BOARD..., GENERIC...

2751P
2
INFORMATION..., SOFTWARE..., UTILITY PARTITION..., UPGRADE..., SERVER, SERVER CHASSIS...

292RH
1
CARD (DOCUMENT)..., END USER LICENSE AGREEMENT...

3T192
1
SHIPPING MATERIAL..., OPT-BX, W/KYBD, MEDIUM...

48480
9
SCREW..., 6*32X1/4", HX, THREAD FORMED..., ZINC PLATED STEEL..., T

4F666
1
No Operating System, Microsoft Configuration

4M147
1
SERVICE CHARGE..., UTILITY PARTITION..., DELL SCSI DRIVE ARRAY..., SERVER, SERVER CHASSIS...

58156
1
INFORMATION..., HD CABLED TO RAID CNTL

6054E
1
GUIDE..., PLACING SERV CALL, CHINA CUSTOMER CENTER...

61275
1
Server Identifier Info Mod

6204U
1
LABEL..., BARCODE..., SYSTEM BOARD..., BOX, GENERIC..., 4X6, ASIA PACIFIC CUSTOMER CENTER...

65807
1
No Mouse

65808
1
INFORMATION..., NO MSE, VALIDATOR...

6N206
1
INFORMATION..., AUTRY

6X609
1
LABEL..., REGULATORY..., SIDE, UNIVERSAL..., BLANK ..., RAMJET...

7213U
1
INFORMATION..., PRINTED DOCS OPTION

7H154
1
INFORMATION..., RACK..., RK-MNT, NO RAILS

7H157
1
No Rack Mounting Rails

7N438
1
INFORMATION..., AUTRY VALIDATOR RESTRICT

88678
1
SERVICE CHARGE..., SOFTWARE..., NO OS, UP, MULTI-LANGUAGE...

C4272
1
CARD (CIRCUIT)..., CONTROLLER..., U320..., SCSI (SMALL COMPUTER SYSTEMS INTERFACE)..., PWS/PWREDG

C7129
1
PowerEdge(TM) SC1425 with Intel(R) Xeon(R) Processor 2.8GHz/1M, 800MHz FSB

C7160
1
Power Cord with IEC C13-C14 plugs for UPS/PDU connection

D4291
1
KIT..., DOCUMENTATION..., P1425SC, SIMPLE/SIMPLIFIED CHINESE...

D7057
1
C6: SCSI configuration (Non RAID) 2 HDD

D7449
1
ASSEMBLY..., TRAY..., MOTHERBOARD..., RISER..., SC1425

D7466
1
INFORMATION..., OSA, ROYALTY, BASEBOARD MANAGEMENT CONTROLLER..., WORLD WIDE...

D7539
1
24x IDE slim CD-ROM Drive

D7589
2
PROCESSOR..., 80546K, 2.8G, 1M, XEON NOCONA..., 800, E0

D8633
1
KIT..., CABLE..., INTERFACE..., POWER..., DORADO/ATHENS/TUALATIN/ALMODOR..., SCSI (SMALL COMPUTER SYSTEMS INTERFACE)...

F7219
1
INFORMATION..., OSA, ROYALTY, EMP, WORLD WIDE...

F8023
1
TECHNICAL SHEET..., DOCUMENTATION..., UPDATE..., P1425SC, WORLD WIDE...

FC039
1
KIT..., DOCUMENTATION ON COMPACT DISK..., DOCUMENT OBJECT MODEL..., SINGLE CHANNEL..., V2.4, WORLD WIDE...

G5067
2
HARD DRIVE..., 36GB, S, U320..., 15K, 68P, SEAGATE...

H3327
1
GUIDE..., GETTING STARTED..., P1425SC, APCC/CCC

H5058
1
GUIDE..., PRODUCT..., INFORMATION..., POWEREDGE..., APCC/CCC

H6052
1
KIT..., DOCUMENTATION..., U320-39320, SIMPLE/SIMPLIFIED CHINESE...

H6238
2
36GB Ultra320 (15K RPM, 68-pin) SCSI Hard Drive

H7609
1
User's Guide and Installation & Troubleshooting Guide for PESC1425 (SCHI)

HC968
1
SERVICE CHARGE..., SOFTWARE..., ADAPTEC..., EMULATOR..., V2.12, UTILITIES, UTILITY...

J4477
1
SERVICE CHARGE..., SOFTWARE..., INTEL..., INFORMATION FILE..., PE1420SC

J5993
1
ASSEMBLY..., LABEL..., INFORMATION..., SYSTEM..., SC1425, ENGLAND/ENGLISH...

J6033
1
User's Guide for 39320 Adapter(R) SCSI Controller Card (S.Chinese)

K1925
1
SERVICE CHARGE..., SOFTWARE..., MICROSOFT..., SLIM FORM FACTOR..., OPTICAL..., SERVER ENHANCED..., PROGRAMMED INPUT/OUTPUT...

K4307
1
SERVICE CHARGE..., SOFTWARE..., INTEL..., 100/1000, V8.2

K4630
1
Adaptec(R) SCSI Card 39320 - Dual Channel Ultra320 Controller

K4679
1
CARD (CIRCUIT)..., INTERFACE..., LOW PIN COUNT..., COMPACT DISK/FLOPPY DRIVE COMBO ..., PE750

M7024
1
SHIPPING MATERIAL..., CONTAINER..., SYSTEM BOARD..., CHINA CUSTOMER CENTER..., SC1425

N4492
1
ASSEMBLY..., CABLE..., INTERFACE..., DORADO/ATHENS/TUALATIN/ALMODOR..., COMPACT DISK DRIVE...

P3742
1
SERVICE CHARGE..., SOFTWARE..., RADEON-7000M, POWEREDGE

P4148
1
SERVICE CHARGE..., SOFTWARE..., U320..., SCSI (SMALL COMPUTER SYSTEMS INTERFACE)..., DRIVER..., ENTERPRISE...

P4853
1
ASSEMBLY..., CHASSIS..., SYSTEM..., SC1425

P4860
1
HEATSINK..., SC1425, QUANTA...

P7120
1
Bezel for PowerEdge(TM) SC1425

R6909
1
Dell(TM) OpenManage(TM) Software Kit for PowerEdge(TM) SC1425

T4070
1
ASSEMBLY..., BEZEL..., PLASTIC..., FRONT..., SC1425

U1974
1
4GB (4x1024), DDR-2 400MHz ECC 1R Memory

U6931
1
TECHNICAL SHEET..., 39320, CONTROLLER..., CONFIGURATION / CONFIGURABLE..., WORLD WIDE...

U8650
1
CORD..., POWER..., 250V, 4METERS, RACK..., CHINA/CHINESE...

W4024
1
No Keyboard

X1562
4
DUAL IN-LINE MEMORY MODULE..., 1G, 400M, 128X72, 8K, 240, BALL GRID ARRAY...

X6506
1
2nd Intel(R) Xeon(R) Processor 2.8GHz/1M, 800MHz FSB

X6510
1　　INFORMATION..., PESC1425, CONFIG6, AS2
　　　　内存
　　体系结构
　　72 位、ECC、PC-3200、非缓冲 DDR II SDRAM、DIMM，额定运行速率为 400 MHz
　　内存模块插槽
　　六个 240 针
　　内存模块容量
　　256 MB、512 MB、1 GB 或 2 GB
　　最小 RAM
　　256 MB（一个 256 MB 模块）
　　最大 RAM
　　12 GB（如果有）

　　1、Buffer和Unbuffer
　　Buffer即缓存器，也可理解成高速缓存，在服务器及图形工作站内存有较多应用，容量多为64K，但随着内存容量的不断增大，其容量也不断增加，具有Buffer的内存将对内存的读写速度有较大提高，象早期168芯EDO ECC服务器内存大多都带Buffer，Unbuffer表示不具有高速缓存。有Buffer的内存几乎都带ECC功能，Unbuffer内存只有少数带ECC功能。其在内存编号上也有较明显特征，以维京内存PC133 128M为例，其编号为ME16641U4SS3-CL3，其中的字母U就代表Unbuffer。
　　2、Register
　　Register即寄存器或目录寄存器，在内存上的作用我们可以把它理解成书的目录，有了它，当内存接到读写指令时，会先检索此目录，然后再进行读写操作，这将大大提高服务器内存工作效率。带有Register的内存一定带Buffer，并且目前能见到的Register内存也都具有ECC功能，其主要应用在中高端服务器及图形工作站上，如IBM Netfinity 5000。
　　3、SDRAM
　　即同步动态随机存储器(Synchronous Dynamic RAM)内存。该内存历史较长，它的特点是让所有的输入输出信号保持与系统时钟同步，内存就是工作在系统的外部频率下。工作电压3.3V。
　　4、DDR SDRAM
　　双倍数据速率(Double Data Rate，DDR)SDRAM是一种以SDRAM为基础发展而来的内存技术。因此，DDR内存加倍了内存的频宽，提高了数据的传输量。DDR内存工作电压为2.5V。 由于DDR内存比SDRAM能增加更多的效能，并且能降低成本，而且DDR内存晶片能用现有的SDRAM设备制造及测试，不必再投资大量资金用于设备及生产上。此外DDR内存增加了内存频宽及效率，因此广泛使用在许多商业、多媒体及娱乐相关产品上，将逐渐取代SDRAM。
　　5、DIMM(Dual-In line Memory Module)-双边接触内存模组
　　　　形象的说:内存条正反两面金手指是不导通的，如常见的有100线、168线、200线内存(long Dimm)和72线、144线(SO-Dimm)。DIMM一般有64位带宽，并且正反面相同位置的引脚不同;而SIMM一般只有32位带宽，需要两条两条同时使用，一般通过72线金手指与主板相连。
　　
　　
　　编号有P、R和F三种，分别表示带校验的registered内存、普通服务器用registered内存以及前两年特别火的FB-DIMM

Unbuffered Ecc DIMM	低端服务器工作站内存
Registered DIMM	高端服务器工作站内存
Fully Buffered DIMM	全缓冲服务器内存

　　在产品报价上看到产品名称带FB的，一般都为全缓冲服务器内存，暂不需要考虑此类产品
　　要带ECC纠错技术，通过IC颗粒的分布可以看出是否带有ECC功能，ECC比普通NO ECC内存多1颗IC芯片
　　内存常识：http://www.biosrepair.com/pic/pic67.htm

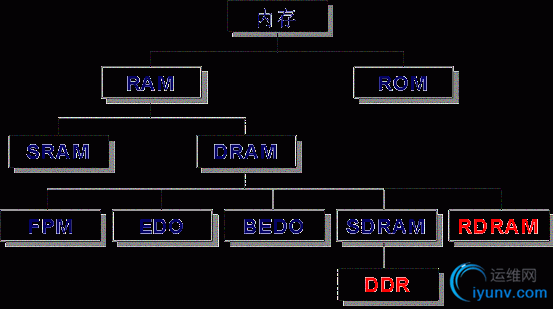

　　1）内存类型分类
RAM  (Random Access Memory)
随机读写存储器

ROM (Read Only Memory)
只读存储器

SRAM (Static Random Access Memory)
静态随机读写存储器

DRAM (Dynamic Random Access Memory)
动态随机读写存储器

2）内存芯片分类
FPM (Fast-Page Mode) DRAM
快速页面模式的DRAM
EDO  (Extended Data Out) DRAM
即扩展数据输出DRAM 速度比FPM DRAM快15%~30%

BEDO (Burst EDO) DRAM
突发式EDO DRAM 性能提高40%左右

SDRAM (Synchronous DRAM)
同步DRAM 与CPU的外部工作时钟同步

RDRAM (Rambus DRAM )
DDR (Double Data Rate) DRAM

　　3）按内存速度分
PC66
PC100
PC133
PC200
PC266
　　4）按内存接口形式分



SIMM(Single-In Line Memory Module)
单边接触内存条,分为30线和72线两种。
DIMM(Dual In-Line Memory Module)
双边接触内存条，168线，184线，200线等，目前广泛使用168线DIMM。
SODIMM Small Outline Dual In-line Memory Module
144线DIMM主要用于笔记本型电脑
RIMM

5）按是否有缓冲分

　　Unbuffered
Registered

6）按是否有校验分



Non-ECC

　　ECC
Xeon (DP) & Xeon MP (64-bit)
[edit]Nocona and Irwindale

Main article: Pentium 4#Prescott
List: List of Intel Xeon microprocessors#"Nocona" (90 nm)
List: List of Intel Xeon microprocessors#"Irwindale" (90_nm)　　Due to a lack of success with Intel's Itanium and Itanium 2 processors, AMD was able to introduce x86-64, a 64-bit extension to the x86 architecture. Intel followed suit by including Intel 64 (formerly EM64T; it is almost identical to AMD64) in the 90 nm version of the Pentium 4 ("Prescott"), and a Xeon version codenamed "Nocona" with 1 MB L2 cache was released in 2004. Released with it were the E7525 (workstation), E7520 and E7320 (both server) chipsets, which added support for PCI Express, DDR-II and Serial ATA. The Xeon was noticeably slower than AMD's Opteron, although it could be faster in situations where Hyper-Threading came into play.
　　A slightly updated core called "Irwindale" was released in early 2005, with 2 MB L2 cache and the ability to have its clock speed reduced during low processor demand. Although it was a bit more competitive than the Nocona had been, independent tests showed that AMD's Opteron still outperformed Irwindale. Both of these Prescott-derived Xeons have the product code 80546.

Power consumption of each PC type measured with
an Infratek 106A power analyzer
Off / idle / full charge
– Elonex Mono CPU 2.4 GHz 6,4 W / 55 W / 96 W
– Melrow Mono CPU 2.4 GHz 4,5 W / 59 W / 100 W
– Melrow Dual CPU 2.8 GHz CW2 8,5 W / 134 W / 241 W
– Melrow Dual CPU 2.8 GHz WV2 12 W / 118 W / 225 W
– Melrow Dual CPU 3.06 GHz CW2 8 W / 127 W / 269 W
– Dell SC1425 Dual CPU 2.8 GHz - / 172 W / 276 W
– Estimation of full power consumption of a rack 　　with 44 Dell SC1425 Î 12144 W
