思科/华为IS-IS协议基本配置命令（华为eNSP模拟器）

trzxycx

　　

<Huawei>sys 进系统视图模式，华为不区分用户和全局配置模式，统一为systom-view

[Huawei]undo info-center enable   关闭弹出信息防止干扰操作

Info: Information center is disabled.

[Huawei]int gig 0/0/0       进接口

[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.1 30 华为配IP可以直接跟掩码长度

[Huawei-GigabitEthernet0/0/0]undo shut  华为不是no,是undo。

[Huawei-GigabitEthernet0/0/2]int loo0

[Huawei-LoopBack0]ip add 1.1.1.1 32

[Huawei-LoopBack0]quit   对应思科的exit

[Huawei]isis 110开启isis进程，如果设备只运行一个isis协议，后面进程号可以不写

　　[Huawei-isis-110]network-entity 49.0001.0010.0100.1001.00  配置net地址

[Huawei-isis-110]is-level level-1

[Huawei-isis-110]quit

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]isis enable 110   进接口启用isis进程配置

[Huawei-GigabitEthernet0/0/0]int loo0

[Huawei-LoopBack0]isis enable 110

　　
　　AR1:

<Huawei>sys

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.2 30

[Huawei-GigabitEthernet0/0/0]undo shut 模拟器其实不需要激活，真是设备需要激活

[Huawei-GigabitEthernet0/0/0]int gig 0/0/2

[Huawei-GigabitEthernet0/0/2]ip add 192.168.1.5 30

[Huawei-GigabitEthernet0/0/2]undo shut

[Huawei-GigabitEthernet0/0/2]int loo0

[Huawei-LoopBack0]ip add 2.2.2.2 32

[Huawei-LoopBack0]quit

[Huawei]isis 110

　　[Huawei-isis-110]network-entity 49.0001.0020.0200.2002.00

[Huawei-isis-110]is-level level-1-2

[Huawei-isis-110]quit

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]isis enable 110

[Huawei-GigabitEthernet0/0/0]isis circuit-level level-1 根据需要设置路由器级别

[Huawei-GigabitEthernet0/0/0]int gig 0/0/2

[Huawei-GigabitEthernet0/0/2]isis enable 110

[Huawei-GigabitEthernet0/0/2]isis circuit-level level-2

[Huawei-GigabitEthernet0/0/2]int loo0

[Huawei-LoopBack0]isis enable 110

　　
　　AR2：

<Huawei>sys

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.6 30

[Huawei-GigabitEthernet0/0/0]undo shut

[Huawei-GigabitEthernet0/0/0]int gig 0/0/1

[Huawei-GigabitEthernet0/0/1]ip add 192.168.1.9 30

[Huawei-GigabitEthernet0/0/1]undo shut

[Huawei-GigabitEthernet0/0/1]int loo0

[Huawei-LoopBack0]ip add 3.3.3.3 32

[Huawei-LoopBack0]quit

[Huawei]isis 110

　　[Huawei-isis-110]network-entity 49.0002.0030.0300.3003.00

[Huawei-isis-110]is-level level-2

[Huawei-isis-110]quit

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]isis enable 110

[Huawei-GigabitEthernet0/0/0]int gig 0/0/1

[Huawei-GigabitEthernet0/0/1]isis enable 110

[Huawei-GigabitEthernet0/0/1]int loo0

[Huawei-LoopBack0]isis enable 110

　　
　　AR3：

<Huawei>sys

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.10 30

[Huawei-GigabitEthernet0/0/0]undo shut

[Huawei-GigabitEthernet0/0/0]int gig 0/0/1

[Huawei-GigabitEthernet0/0/1]ip add 192.168.1.13 30

[Huawei-GigabitEthernet0/0/1]undo shut

[Huawei-GigabitEthernet0/0/1]int loo0

[Huawei-LoopBack0]ip add 4.4.4.4 32

[Huawei-LoopBack0]quit

[Huawei]isis 110

　　[Huawei-isis-110]network-entity 49.0002.0040.0400.4004.00

[Huawei-isis-110]is-level level-2

[Huawei-isis-110]quit

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]isis enable 110

[Huawei-GigabitEthernet0/0/0]int gig 0/0/1

[Huawei-GigabitEthernet0/0/1]isis enable 110

[Huawei-GigabitEthernet0/0/1]int loo0

[Huawei-LoopBack0]isis enable 110

　　AR4：

<Huawei>sys

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.14 30

[Huawei-GigabitEthernet0/0/0]undo shut

[Huawei-GigabitEthernet0/0/0]int gig 0/0/1

[Huawei-GigabitEthernet0/0/1]ip add 192.168.1.17 30

[Huawei-GigabitEthernet0/0/1]undo shut

[Huawei-GigabitEthernet0/0/1]int loo0

[Huawei-LoopBack0]ip add 5.5.5.5 32

[Huawei-LoopBack0]quit

[Huawei]isis 110

　　[Huawei-isis-110]network-entity 49.0003.0050.0500.5005.00

[Huawei-isis-110]is-level level-1-2

[Huawei-isis-110]quit

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]isis enable 110

[Huawei-GigabitEthernet0/0/0]isis circuit-level level-2

[Huawei-GigabitEthernet0/0/0]int gig 0/0/1

[Huawei-GigabitEthernet0/0/1]isis enable 110

[Huawei-GigabitEthernet0/0/1]isis circuit-level level-1

[Huawei-GigabitEthernet0/0/1]int loo0

[Huawei-LoopBack0]isis enable 110

　　
　　AR5：

<Huawei>sys

[Huawei]undo info-center enable

Info: Information center is disabled.

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]ip add 192.168.1.18 30

[Huawei-GigabitEthernet0/0/0]undo shut

[Huawei-GigabitEthernet0/0/2]int loo0

[Huawei-LoopBack0]ip add 6.6.6.6 32

[Huawei-LoopBack0]quit

[Huawei]isis 110

　　[Huawei-isis-110]network-entity 49.0003.0060.0600.6006.00

[Huawei-isis-110]is-level level-1

[Huawei-isis-110]quit

[Huawei]int gig 0/0/0

[Huawei-GigabitEthernet0/0/0]isis enable 110

[Huawei-GigabitEthernet0/0/0]int loo0

[Huawei-LoopBack0]isis enable 110

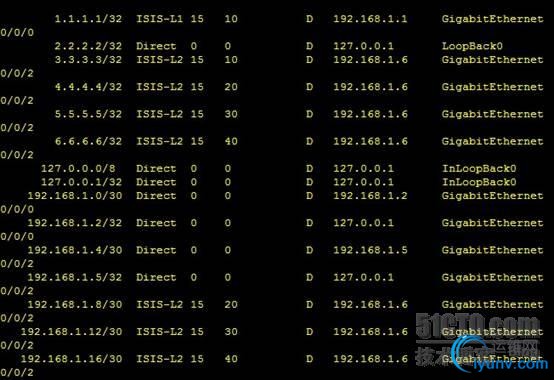

AR1路由表截图：
