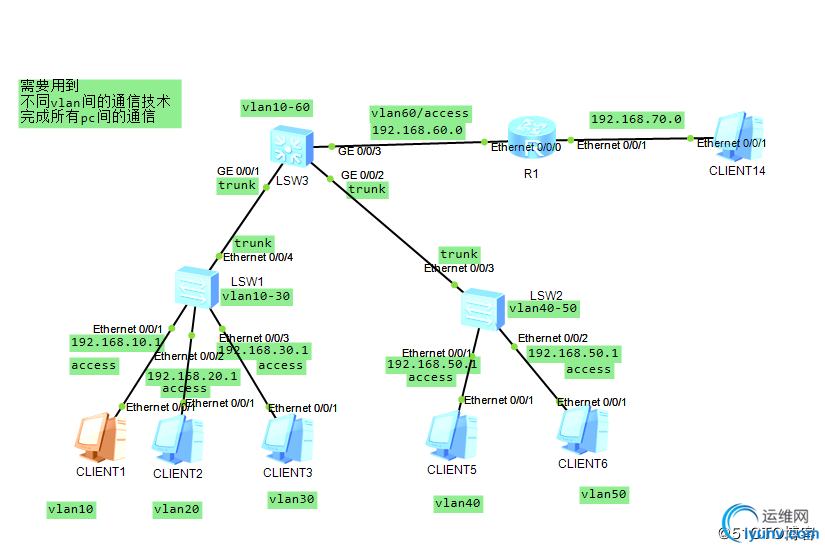

小型网络构架（华为）

wojkxlq

　　配置命令
　　交换机LSW1：
　　<Huawei>system-view
　　[Huawei]vlan batch 10 20 30
　　[Huawei]interface Ethernet 0/0/1
　　[Huawei-Ethernet0/0/1]port link-type access
　　[Huawei-Ethernet0/0/1]port default vlan 10
　　[Huawei-Ethernet0/0/1]quit
　　[Huawei]interface Ethernet 0/0/2
　　[Huawei-Ethernet0/0/2]port link-type access
　　[Huawei-Ethernet0/0/2]port default vlan 20
　　[Huawei-Ethernet0/0/2]quit
　　[Huawei]interface Ethernet 0/0/3
　　[Huawei-Ethernet0/0/3]port link-type access
　　[Huawei-Ethernet0/0/3]port default vlan 30
　　[Huawei-Ethernet0/0/3]quit
　　[Huawei]interface Ethernet 0/0/4
　　[Huawei-Ethernet0/0/4]port link-type trunk
　　[Huawei-Ethernet0/0/4]port trunk allow-pass vlan all
　　交换机LSW2：
　　<Huawei>system-view
　　[Huawei]vlan batch 40 50
　　[Huawei]interface Ethernet 0/0/1
　　[Huawei-Ethernet0/0/1]port link-type access
　　[Huawei-Ethernet0/0/1]port default vlan 40
　　[Huawei-Ethernet0/0/1]quit
　　[Huawei]interface Ethernet 0/0/2
　　[Huawei-Ethernet0/0/2]port link-type access
　　[Huawei-Ethernet0/0/2]port default vlan 50
　　[Huawei-Ethernet0/0/2]quit
　　[Huawei]interface Ethernet 0/0/3
　　[Huawei-Ethernet0/0/3]port link-type trunk
　　[Huawei-Ethernet0/0/3]port trunk allow-pass vlan all
　　交换机LSW3：
　　<Huawei>system-view
　　[Huawei]vlan batch 10 20 30 40 50 60
　　[Huawei]interface GigabitEthernet 0/0/1
　　[Huawei-GigabitEthernet0/0/1]port link-type trunk
　　[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
　　[Huawei-GigabitEthernet0/0/1]quit
　　[Huawei]interface GigabitEthernet 0/0/2
　　[Huawei-GigabitEthernet0/0/2]port link-type trunk
　　[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan all
　　[Huawei-GigabitEthernet0/0/2]quit
　　[Huawei]interface GigabitEthernet 0/0/3
　　[Huawei-GigabitEthernet0/0/3]port link-type access
　　[Huawei-GigabitEthernet0/0/3]port default vlan 60
　　[Huawei-GigabitEthernet0/0/3]quit
　　[Huawei]interface vlan 10
　　[Huawei-Vlanif10]ip address 192.168.10.254 24
　　[Huawei-Vlanif10]quit
　　[Huawei]interface vlan 20
　　[Huawei-Vlanif20]ip address 192.168.20.254 24
　　[Huawei-Vlanif20]quit
　　[Huawei]interface vlan 30
　　[Huawei-Vlanif30]ip address 192.168.30.254 24
　　[Huawei-Vlanif30]quit
　　[Huawei]interface vlan 40
　　[Huawei-Vlanif40]ip address 192.168.40.254 24
　　[Huawei-Vlanif40]quit
　　[Huawei]interface vlan 50
　　[Huawei-Vlanif50]ip address 192.168.50.254 24
　　[Huawei-Vlanif50]quit
　　[Huawei]interface vlan 60
　　[Huawei-Vlanif60]ip address 192.168.60.1 24
　　[Huawei-Vlanif60]quit
　　[Huawei]ip route-static 192.168.70.0 24 192.168.60.254
　　路由器R1：
　　<Huawei>system-view
　　[Huawei]interface Ethernet 0/0/0
　　[Huawei-Ethernet0/0/0]ip address 192.168.60.254 24
　　[Huawei-Ethernet0/0/0]quit
　　[Huawei]interface Ethernet 0/0/1
　　[Huawei-Ethernet0/0/1]ip address 192.168.70.254 24
　　[Huawei-Ethernet0/0/1]quit
　　[Huawei]ip route-static 0.0.0.0 0.0.0.0 192.168.60.1
　　PC机ip地址随意配置
