华为S系列交换机流策略使用方式和流量统计

woxio770

　　华为系列的交换机，支持使用MQC流分类的方式查看IP,VLAN,MAC的报文流量，也支持简化的ACL的简化流策略的方式查看流量统计，甚至可以直接查看接口流量

使用流策略进行限速
根据 IP 地址进行限速
　　对IP地址为192.168.1.10的PC限速，带宽限制为4M。
　　<HUAWEI> system-view
　　[HUAWEI] acl 2000
　　[HUAWEI-acl-basic-2000] rule permit source 192.168.1.10 0.0.0.0
　　[HUAWEI-acl-basic-2000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 2000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] car cir 4096
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
对某网段设备进行限速
　　对IP地址为192.168.1.0网段设备进行限速，带宽限制为50M。
　　<HUAWEI> system-view
　　[HUAWEI] acl 2000
　　[HUAWEI-acl-basic-2000] rule permit source 192.168.1.0 0.0.0.255
　　[HUAWEI-acl-basic-2000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 2000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] car cir 51200
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
根据 IP 地址和协议进行限速
　　限制192.168.1.0网段设备访问Internet的HTTP（端口号为80）流量不超过10Mbps。
　　<HUAWEI> system-view
　　[HUAWEI] acl 3000
　　[HUAWEI-acl-adv-3000] rule permit tcp destination-port eq 80 source 192.168.1.0 0.0.0.255
　　[HUAWEI-acl-adv-3000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 3000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] car cir 10240
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
使用流策略对报文进行过滤
禁止指定主机访问网络
　　禁止IP地址为192.168.1.10的PC访问网络。
　　<HUAWEI> system-view
　　[HUAWEI] acl 2000
　　[HUAWEI-acl-basic-2000] rule deny source 192.168.1.10 0.0.0.0
　　[HUAWEI-acl-basic-2000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 2000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] deny
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
禁止指定网段所有设备访问网络
　　禁止192.168.1.0网段所有设备访问网络。
　　<HUAWEI> system-view
　　[HUAWEI] acl 2000
　　[HUAWEI-acl-basic-2000] rule deny source 192.168.1.0 0.0.0.255
　　[HUAWEI-acl-basic-2000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 2000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] deny
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
过滤指定应用协议报文
　　l 禁止TCP目的端口号为25的报文（ SMTP）通过。
　　l 禁止TCP目的端口号为110的报文（ POP3）通过。
　　l 禁止TCP目的端口号为80的报文（ HTTP）通过。
　　<HUAWEI> system-view
　　[HUAWEI] acl 3000
　　[HUAWEI-acl-adv-3000] rule deny tcp destination-port eq 25
　　[HUAWEI-acl-adv-3000] rule deny tcp destination-port eq 110
　　[HUAWEI-acl-adv-3000] rule deny tcp destination-port eq 80
　　[HUAWEI-acl-adv-3000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 3000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] deny
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
使用流策略配置流量统计
配置指定主机的统计信息
　　配置对源MAC为0000-0000-0003的报文进行流量统计。
　　<HUAWEI> system-view
　　[HUAWEI] acl 4000
　　[HUAWEI-acl-L2-4000] rule permit source-mac 0000-0000-0003 ffff-ffff-ffff
　　[HUAWEI-acl-L2-4000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 4000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] statistic enable
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 outbound
配置对 ICMP 报文进行统计
　　<HUAWEI> system-view
　　[HUAWEI] acl 3000
　　[HUAWEI-acl-adv-3000] rule 0 permit icmp source 192.168.1.1 0 destination 192.168.2.1 0
　　[HUAWEI-acl-adv-3000] rule 5 permit icmp source 192.168.2.1 0 destination 192.168.1.1 0
　　[HUAWEI-acl-adv-3000] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-c1] if-match acl 3000
　　[HUAWEI-classifier-c1] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] statistic enable
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy p1

　　[HUAWEI-trafficpolicy-p1]>　　[HUAWEI-trafficpolicy-p1] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 inbound
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy p1 outbound
配置对 ARP 报文进行统计
　　统计接口发送的ARP报文和回应的ARP报文。
　　<HUAWEI> system-view

　　[HUAWEI] traffic>　　[HUAWEI-classifier-arp-request] if-match l2-protocol arp
　　[HUAWEI-classifier-arp-request] if-match source-mac 1111-1111-1111
　　[HUAWEI-classifier-arp-request] if-match destination-mac ffff-ffff-ffff
　　[HUAWEI-classifier-arp-request] quit

　　[HUAWEI] traffic>　　[HUAWEI-classifier-arp-reply] if-match l2-protocol arp
　　[HUAWEI-classifier-arp-reply] if-match source-mac 2222-2222-2222
　　[HUAWEI-classifier-arp-reply] if-match destination-mac 1111-1111-1111
　　[HUAWEI-classifier-arp-reply] quit
　　[HUAWEI] traffic behavior b1
　　[HUAWEI-behavior-b1] statistic enable
　　[HUAWEI-behavior-b1] quit
　　[HUAWEI] traffic policy arp-request

　　[HUAWEI-trafficpolicy-arp-request]>　　[HUAWEI-trafficpolicy-arp-request] quit
　　[HUAWEI] traffic policy arp-reply

　　[HUAWEI-trafficpolicy-arp-reply]>　　[HUAWEI-trafficpolicy-arp-reply] quit
　　[HUAWEI] interface gigabitethernet 0/0/1
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy arp-request inbound
　　[HUAWEI-GigabitEthernet0/0/1] traffic-policy arp-reply outbound
查看报文统计信息
配置通过流策略对报文进行统计之后，可以使用如下命令查看报文统计信息。
　　显示全局入方向应用流策略后基于匹配规则的报文统计信息。
　　<HUAWEI> display traffic policy statistics interface GigabitEthernet 0/0/1 inbound verbose rule
　　base
　　Interface: GigabitEthernet0/0/1
　　Traffic policy inbound: arp-request
　　Rule number: 1
　　Current status: OK!
　　Statistics interval: 300
　　Classifier: arp-request operator and
　　Behavior: b1
　　if-match l2-protocol arp
　　if-match source-mac 1111-1111-1111
　　if-match destination-mac ffff-ffff-ffff
　　Board : 0
Passed | Packets: 0
　　| Bytes: 0
　　| Rate(pps): 0
　　| Rate(bps): 0
Dropped | Packets: 0
　　| Bytes: 0
　　| Rate(pps): 0
　　| Rate(bps): 0
基于简化ACL简化流策略配置流量统计

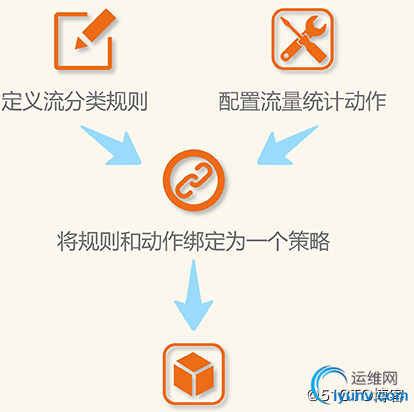

　　基于MQC方式配置流量统计时，虽然分类丰富多样，但是比较繁琐。因此，交换机提供ACL简化流策略的方式进行。在全局，VLAN或者接口下配置traffic-statistic,对匹配ACL的报文进行统计
　　<HUAWEI> system-view
　　[HUAWEI]interface gigabitethernet 0/0/1
　　[HUAWEI-gigabitethernet 0/0/1]traffic-statistic inbound acl 3000 rule 1
　　配置完成后通过display traffic-statistic 命令查看
