华为eNSP多层交换机不同vlan之间的通信

banbanbai

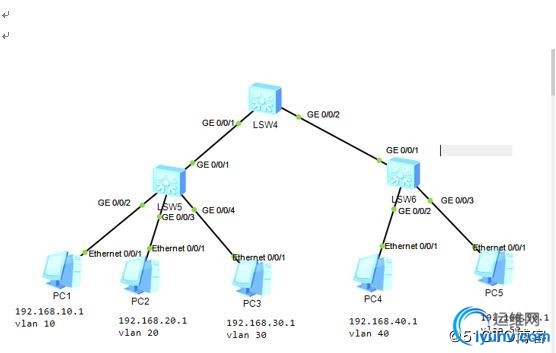

　　如图所示：
　　PC1的IP地址192.168.10.1，vlan 10 网关192.168.10.254
　　PC2的IP地址192.168.20.1，vlan 20 网关192.168.20.254
　　PC3的IP地址192.168.30.1，vlan 30 网关192.168.30.254
　　PC4的IP地址192.168.40.1，vlan 40 网关192.168.40.254
　　PC5的ip地址192.168.50.1，vlan 50 网关192.168.50.254
　　LSW5
　　<Huawei>undo terminal monitor   #关闭提示信息
　　Info: Current terminal monitor is off.
　　<Huawei>sys     #进入系统视图
　　[Huawei]vlan batch 10 20 30  #连续创建vlan 10 20 30
　　[Huawei]int vlan 10       #进入vlan 10
　　[Huawei-Vlanif10]ip add 192.168.10.254 24   #配置vlan 10的网关地址
　　[Huawei-Vlanif10]int vlanif 20      #进入vlan 20
　　[Huawei-Vlanif20]ip add 192.168.20.254 24    #配置vlan 20的网关地址
　　[Huawei-Vlanif20]int vlanif 30      #进入vlan 30
　　[Huawei-Vlanif30]ip add 192.168.30.254 24    #配置vlan 30的网关地址
　　[Huawei-Vlanif30]q             #退出vlan 30的配置界面
　　[Huawei]int g0/0/2                #进入端口视图
　　[Huawei-GigabitEthernet0/0/2]port link-type access #将端口设置为access模式
　　[Huawei-GigabitEthernet0/0/2]port default vlan 10  #将端口加入到vlan 10
　　[Huawei-GigabitEthernet0/0/2]q     #退出端口视图
　　[Huawei]int g0/0/3
　　[Huawei-GigabitEthernet0/0/3]port link-type access
　　[Huawei-GigabitEthernet0/0/3]port default vlan 20
　　[Huawei-GigabitEthernet0/0/3]q
　　[Huawei]int g0/0/4
　　[Huawei-GigabitEthernet0/0/4]port link-type access
　　[Huawei-GigabitEthernet0/0/4]port default vlan 30
　　[Huawei-GigabitEthernet0/0/4]q
　　[Huawei]int g0/0/1
　　[Huawei-GigabitEthernet0/0/1]port link-type trunk
　　[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
　　[Huawei-GigabitEthernet0/0/1]q
　　LSW4
　　<Huawei>undo terminal monitor
　　Info: Current terminal monitor is off.
　　<Huawei>sys
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]vlan batch 10 20 30 40 50
　　Info: This operation may take a few seconds. Please wait for a moment...done.
　　[Huawei]int vlanif 10
　　[Huawei-Vlanif10]ip add 192.168.10.254 24
　　[Huawei-Vlanif10]int vlanif 20
　　[Huawei-Vlanif20]ip add 192.168.20.254 24
　　[Huawei-Vlanif20]int vlanif 30
　　[Huawei-Vlanif30]ip add 192.168.30.254 24
　　[Huawei-Vlanif30]int vlanif 40
　　[Huawei-Vlanif40]ip add 192.168.40.254 24
　　[Huawei-Vlanif40]int vlanif 50
　　[Huawei-Vlanif50]ip add 192.168.50.254 24
　　[Huawei-Vlanif50]q
　　[Huawei]int g0/0/1
　　[Huawei-GigabitEthernet0/0/1]port link-type trunk
　　[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
　　[Huawei-GigabitEthernet0/0/1]q
　　[Huawei]int g0/0/2
　　[Huawei-GigabitEthernet0/0/2]port link-type trunk
　　[Huawei-GigabitEthernet0/0/2]port trunk allow-pass vlan all
　　[Huawei-GigabitEthernet0/0/2]q
　　LSW6
　　<Huawei>undo terminal monitor
　　Info: Current terminal monitor is off.
　　<Huawei>sys
　　Enter system view, return user view with Ctrl+Z.
　　[Huawei]vlan batch 40 50
　　Info: This operation may take a few seconds. Please wait for a moment...done.
　　[Huawei]int vlanif 40
　　[Huawei-Vlanif40]ip add 192.168.40.254 24
　　[Huawei-Vlanif40]int vlanif 50
　　[Huawei-Vlanif50]ip add 192.168.50.254 24
　　[Huawei-Vlanif50]q
　　[Huawei]int g0/0/2
　　[Huawei-GigabitEthernet0/0/2]port link-type access
　　[Huawei-GigabitEthernet0/0/2]port default vlan 40
　　[Huawei-GigabitEthernet0/0/2]q
　　[Huawei]int g0/0/3
　　[Huawei-GigabitEthernet0/0/3]port link-type access
　　[Huawei-GigabitEthernet0/0/3]port default vlan 50
　　[Huawei-GigabitEthernet0/0/3]q
　　[Huawei]int g0/0/1
　　[Huawei-GigabitEthernet0/0/1]port link-type trunk
　　[Huawei-GigabitEthernet0/0/1]port trunk allow-pass vlan all
　　[Huawei-GigabitEthernet0/0/1]q
　　验证：5台主机互通，用PC1  ping192.168.20.1/192.168.30.1/192.168.40.1/192.168.50.1
