nagios+centreon监控构建

wuyijie

监控系统是运维人员的一个重要工具，熟悉其的构建与应用必不可少。nagios与centreon的搭

配是开源软件最佳选择。现在将我的构建与应用过程记录如下。

一.环境预安装

1.获取主软件包

wget http://jaist.dl.sourceforge.net/ ... nagios-3.5.0.tar.gz wget http://download.centreon.com/centreon/centreon-2.4.2.tar.gz wget http://nchc.dl.sourceforge.net/p ... ugins-1.4.16.tar.gz wget http://nchc.dl.sourceforge.net/p ... outils-1.5.2.tar.gz wget http://svn.centreon.com/trunk/nd ... ls1.5.2_light.patch wget http://nchc.dl.sourceforge.net/p ... 14/nrpe-2.14.tar.gz

2.安装第三方源

[iyunv@localhost ~]# wget http://packages.sw.be/rpmforge-r ... 2-1.el6.rf.i686.rpm [iyunv@localhost ~]#rpm -ivh rpmforge-release-0.5.2-1.el6.rf.i686.rpm

如果不安装第三方源会导致相关软件包不能安装，进而导致主安装出现相关问题。

3.安装相关软件包

安装apache [iyunv@localhost ~]# yum -y install httpd [iyunv@localhost ~]# usermod -U apache [iyunv@localhost ~]# service httpd start [iyunv@localhost ~]# yum install mysql-devel openssl-devel mysql-server [iyunv@localhost ~]# service mysqld start [iyunv@localhost ~]# mysqladmin -u root password '123456' 在/etc/my.conf中的[mysqld]加入 innodb_file_per_table=1 否则在web安装第七步时会有提示。 安装php [iyunv@localhost ~]# yum -y install php php-mysql php-gd php-ldap php-xml php-mbstring [iyunv@localhost ~]# yum -y install gd fontconfig-devel libjpeg-devel libpng-devel gd-devel perl-GD RRDTools [iyunv@localhost ~]# yum -y install rrdtool perl-rrdtool 安装perl [iyunv@localhost ~]# yum -y install perl-Config-IniFiles perl-DBI perl-DBD-MySQL 安装SNMP [iyunv@localhost ~]# yum -y install perl-Crypt-DES perl-Digest-SHA1 perl-Digest-HMAC net-snmp-utils [iyunv@localhost ~]# yum -y install perl-Socket6 perl-IO-Socket-INET6 net-snmp net-snmp-libs php-snmp dmidecode lm_sensors perl-Net-SNMP net-snmp-perl 安装PEAR [iyunv@localhost ~]# yum -y install php-pear [iyunv@localhost ~]# pear channel-update pear.php.net [iyunv@localhost ~]# pear install --force PEAR-1.9.1 [iyunv@localhost ~]# pear upgrade-all

二. 主软件包安装

nagios主要监控系统与网络信息，同时监控远程与本地主机及相关服务，还提供信息异常功能

1.安装nagios

添加相关用户及组 [iyunv@localhost ~]# useradd -m nagios [iyunv@localhost ~]# passwd nagios 更改用户 nagios 的密码 。 新的 密码： 无效的密码： 过于简单化/系统化 无效的密码： 过于简单 重新输入新的 密码： passwd： 所有的身份验证令牌已经成功更新。 [iyunv@localhost ~]# groupadd nagcmd [iyunv@localhost ~]# usermod -G nagios,nagcmd nagios [iyunv@localhost ~]# usermod -G nagios,nagcmd apache 安装nagios [iyunv@localhost monitor]# tar -zxvf nagios-3.5.0.tar.gz [iyunv@localhost nagios]# ./configure --prefix=/usr/local/nagios --with-command-group=nagcmd --enable-nanosleep --enable-event-broker --enable-embedded-perl [iyunv@localhost nagios]# make all [iyunv@localhost nagios]# make install [iyunv@localhost nagios]# make install-init [iyunv@localhost nagios]# make install-commandmode [iyunv@localhost nagios]# make install-config [iyunv@localhost nagios]# /etc/init.d/nagios start

nagios如果少了其插件，将什么也做不了，其功能主要通过插件来完成的。

2.nagios-pluigns安装

[iyunv@localhost monitor]# tar -zxvf nagios-plugins-1.4.16.tar.gz [iyunv@localhost nagios-plugins-1.4.16]# ./configure --with-nagios-user=nagios --with-nagios-group=nagios --with-openssl=/usr/bin/openssl --enable-perl-modules [iyunv@localhost nagios-plugins-1.4.16]# make && make install

3.ndoutils安装

  ndoutils主要将相关数据存储到数据库，ndoutils非常重要。

[iyunv@localhost ndoutils-1.5.2]# tar -zxvf ndoutils-1.5.2.tar.gz [iyunv@localhost ndoutils-1.5.2]# patch -p1 -N < ndoutils1.5.2_light.patch [iyunv@localhost ndoutils-1.5.2]# ./configure --prefix=/usr/local/nagios/ --enable-mysql --with-ndo2db-user=nagios --with-ndo2db-group=nagios [iyunv@localhost ndoutils-1.5.2]# make && make install [iyunv@localhost ndoutils-1.5.2]# cp daemon-init /etc/init.d/ndo2db [iyunv@localhost ndoutils-1.5.2]# chmod 755 /etc/init.d/ndo2db [iyunv@localhost ndoutils-1.5.2]# cp config/ndo2db.cfg-sample /usr/local/nagios/etc/ndo2db.cfg [iyunv@localhost ndoutils-1.5.2]# /etc/init.d/ndoutils start

4.centreon安装

  centreon以web方式展现给用户，通过第三方软件实现对网络，应用程序，主机的监控。

注：如下安装过程只做参考，其不是第一次安装 ，与第一次安装可能有所不同，第一次安装时会更新相关模块。

文本安装

[iyunv@localhost monitor]# tar -zxvf centreon-2.4.2.tar.gz [iyunv@localhost centreon-2.4.2]# ./install.sh -i ############################################################################### # # # Centreon (www.centreon.com) # # Thanks for using Centreon # # # # v2.4.2 # # # # infos@centreon.com # # # # Make sure you have installed and configured # # sudo - sed - php - apache - rrdtool - mysql # # # ############################################################################### ------------------------------------------------------------------------ Checking all needed binaries ------------------------------------------------------------------------ rm OK cp OK mv OK /bin/chmod OK /bin/chown OK echo OK more OK mkdir OK find OK /bin/grep OK /bin/cat OK /bin/sed OK You will now read Centreon Licence. Press enter to continue. Do you accept GPL license ? [y/n], default to [n]: > y ------------------------------------------------------------------------ Please choose what you want to install ------------------------------------------------------------------------ Do you want to install : Centreon Web Front [y/n], default to [n]: > y Do you want to install : Centreon CentCore [y/n], default to [n]: > y Do you want to install : Centreon Nagios Plugins [y/n], default to [n]: > y Do you want to install : Centreon Snmp Traps process [y/n], default to [n]: > y ------------------------------------------------------------------------ Start CentWeb Installation ------------------------------------------------------------------------ Where is your Centreon directory? default to [/usr/local/centreon] > Do you want me to create this directory ? [/usr/local/centreon] [y/n], default to [n]: > y Path /usr/local/centreon OK Where is your Centreon log directory default to [/usr/local/centreon/log] > Do you want me to create this directory ? [/usr/local/centreon/log] [y/n], default to [n]: > y Path /usr/local/centreon/log OK Where is your Centreon etc directory default to [/etc/centreon] > /usr/local/centreon/etc Do you want me to create this directory ? [/usr/local/centreon/etc] [y/n], default to [n]: > y Path /usr/local/centreon/etc OK Where is your Centreon binaries directory default to [/usr/local/centreon/bin] > Do you want me to create this directory ? [/usr/local/centreon/bin] [y/n], default to [n]: > y Path /usr/local/centreon/bin OK Where is your Centreon data informations directory default to [/usr/local/centreon/data] > Do you want me to create this directory ? [/usr/local/centreon/data] [y/n], default to [n]: > y Path /usr/local/centreon/data OK Where is your Centreon generation_files directory? default to [/usr/local/centreon] > Path /usr/local/centreon OK Where is your Centreon variable library directory? default to [/var/lib/centreon] > /usr/local/centreon/var/lib Do you want me to create this directory ? [/usr/local/centreon/var/lib] [y/n], default to [n]: > y Path /usr/local/centreon/var/lib OK Where is your CentPlugins Traps binary default to [/usr/local/centreon/bin] > Path /usr/local/centreon/bin OK Where is the RRD perl module installed [RRDs.pm] default to [/usr/lib/perl5/RRDs.pm] > Path /usr/lib/perl5 OK /usr/bin/rrdtool OK /bin/mail OK /usr/bin/php OK Where is PEAR [PEAR.php] default to [/usr/share/php/PEAR.php] > /usr/share/pear/PEAR.php Path /usr/share/pear OK /usr/bin/perl OK Finding Apache user : apache Finding Apache group : apache What is the Centreon group ? [centreon] default to [centreon] > What is the Centreon user ? [centreon] default to [centreon] > What is the Monitoring engine user ? > nagios What is the Broker user ? (optional) > nagios What is the Monitoring engine log directory ? >/usr/local/nagios/var/ Where is your monitoring plugins (libexec) directory ? default to [/usr/lib/nagios/plugins] > /usr/local/nagios/libexec Path /usr/local/nagios/libexec OK Add group centreon to user apache OK Add group centreon to user nagios OK Add group nagios to user apache OK Add group nagios to user centreon OK ------------------------------------------------------------------------ Configure Sudo ------------------------------------------------------------------------ Where is sudo configuration file default to [/etc/sudoers] > /etc/sudoers OK What is the Monitoring engine init.d script ? >/etc/init.d/nagios What is the Monitoring engine binary ? > /usr/local/nagios/bin/nagios What is the Monitoring engine configuration directory ? > /usr/local/nagios/etc/ Where is the configuration directory for broker module ? > /usr/local/nagios/etc/ Where is the init script for broker module daemon ? > /etc/init.d/ndo2db Your sudo has been configured previously Do you want me to reconfigure your sudo ? (WARNING) [y/n], default to [n]: > y Configuring Sudo OK ------------------------------------------------------------------------ Configure Apache server ------------------------------------------------------------------------ Finding Apache Centreon configuration file '/etc/httpd/conf.d/centreon.conf' : OK Do you want to update Centreon Apache sub configuration file ? [y/n], default to [n]: > y Backup Centreon Apache configuration completed Create '/etc/httpd/conf.d/centreon.conf' OK Configuring Apache OK Do you want to reload your Apache ? [y/n], default to [n]: > y Reloading Apache service OK Preparing Centreon temporary files Change right on /usr/local/centreon/log OK Change right on /usr/local/centreon/etc OK Change macros for insertBaseConf.sql OK Change macros for sql update files OK Change macros for php files OK Change right on /usr/local/nagios/etc OK Add group nagios to user apache OK Add group nagios to user nagios OK Add group centreon to user nagios OK Copy CentWeb in system directory Install CentWeb (web front of centreon) OK Change right for install directory Change right for install directory OK Install libraries OK Write right to Smarty Cache OK Copying libinstall OK Change macros for centreon.cron OK Install Centreon cron.d file OK Change macros for centAcl.php OK Change macros for downtimeManager.php OK Change macros for eventReportBuilder.pl OK Change macros for dashboardBuilder.pl OK Install cron directory OK Change right for eventReportBuilder.pl OK Change right for dashboardBuilder.pl OK Change macros for centreon.logrotate OK Install Centreon logrotate.d file OK Prepare export-mysql-indexes OK Install export-mysql-indexes OK Prepare import-mysql-indexes OK Install import-mysql-indexes OK Prepare indexes schema OK Install indexes schema OK ------------------------------------------------------------------------ Pear Modules ------------------------------------------------------------------------ Check PEAR modules PEAR 1.4.9 1.9.4 OK DB 1.7.6 1.7.14 OK DB_DataObject 1.8.4 1.11.2 OK DB_DataObject_FormBuilder 1.0.0RC4 1.0.2 OK MDB2 2.0.0 2.4.1 OK Date 1.4.6 1.4.7 OK HTML_Common 1.2.2 1.2.5 OK HTML_QuickForm 3.2.5 3.2.13 OK HTML_QuickForm_advmultiselect 1.1.0 1.5.1 OK HTML_Table 1.6.1 1.8.3 OK Archive_Tar 1.1 1.3.11 OK Auth_SASL 1.0.1 1.0.6 OK Console_Getopt 1.2 1.3.1 OK Net_SMTP 1.2.8 1.6.1 OK Net_Socket 1.0.1 1.0.10 OK Net_Traceroute 0.21 0.21.3 OK Net_Ping 2.4.1 2.4.5 OK Validate 0.6.2 0.8.5 OK XML_RPC 1.4.5 1.5.5 OK SOAP 0.10.1 0.13.0 OK Log 1.9.11 1.12.7 OK Archive_Zip 0.1.2 0.1.2 OK All PEAR modules OK ------------------------------------------------------------------------ Centreon Post Install ------------------------------------------------------------------------ Create /usr/local/centreon/www/install/install.conf.php OK Create /usr/local/centreon/etc/instCentWeb.conf OK ------------------------------------------------------------------------ Start CentStorage Installation ------------------------------------------------------------------------ Where is your Centreon Run Dir directory? default to [/var/run/centreon] > /usr/local/centreon/var/run Do you want me to create this directory ? [/usr/local/centreon/var/run] [y/n], default to [n]: > y Path /usr/local/centreon/var/run OK Where is your CentStorage binary directory default to [/usr/local/centreon/bin] > Path /usr/local/centreon/bin OK Where is your CentStorage RRD directory default to [/var/lib/centreon] >/usr/local/centreon/var/lib Path /usr/local/centreon/var/lib OK Preparing Centreon temporary files /tmp/centreon-setup exists, it will be moved... install www/install/createTablesCentstorage.sql OK Creating Centreon Directory '/usr/local/centreon/var/lib/stOKus' Creating Centreon Directory '/usr/local/centreon/var/lib/meOKics' Change macros for centstorage binary OK Install CentStorage binary OK Install library for centstorage OK Change right : /usr/local/centreon/var/run OK Change macros for centstorage init script OK Do you want me to install CentStorage init script ? [y/n], default to [n]: > y CentStorage init script installed OK Do you want me to install CentStorage run level ? [y/n], default to [n]: > y Change macros for logAnalyser OK Install logAnalyser OK Change macros for logAnalyser-cbroker OK Install logAnalyser-cbroker OK Change macros for nagiosPerfTrace OK Install nagiosPerfTrace OK Change macros for purgeLogs OK Install purgeLogs OK Change macros for purgeCentstorage OK Install purgeCentstorage OK Change macros for centreonPurge.sh OK Install centreonPurge.sh OK Change macros for centstorage.cron OK Install CentStorage cron OK Change macros for centstorage.logrotate OK Install Centreon Storage logrotate.d file OK Create /usr/local/centreon/etc/instCentStorage.conf OK ------------------------------------------------------------------------ Start CentCore Installation ------------------------------------------------------------------------ Where is your CentCore binary directory default to [/usr/local/centreon/bin] > Path /usr/local/centreon/bin OK /usr/bin/ssh OK /usr/bin/scp OK Preparing Centreon temporary files /tmp/centreon-setup exists, it will be moved... Change CentCore Macro OK Copy CentCore in binary directory OK Change right : /usr/local/centreon/var/run OK Change right : /usr/local/centreon/var/lib OK Change macros for centcore.logrotate OK Install Centreon Core logrotate.d file OK Replace CentCore init script Macro OK Do you want me to install CentCore init script ? [y/n], default to [n]: > y CentCore init script installed OK Do you want me to install CentCore run level ? [y/n], default to [n]: > y Create /usr/local/centreon/etc/instCentCore.conf OK ------------------------------------------------------------------------ Start CentPlugins Installation ------------------------------------------------------------------------ Where is your CentPlugins lib directory default to [/var/lib/centreon/centplugins] > /usr/local/centreon/var/lib/centplugins/ Do you want me to create this directory ? [/usr/local/centreon/var/lib/centplugins/] [y/n], default to [n]: > y Path /usr/local/centreon/var/lib/centplugins/ OK Preparing Centreon temporary files /tmp/centreon-setup exists, it will be moved... Change macros for CentPlugins OK Installing the plugins OK Change right on centreon.conf OK CentPlugins is installed ------------------------------------------------------------------------ Start CentPlugins Traps Installation ------------------------------------------------------------------------ Where is your SNMP configuration directory default to [/etc/snmp] > /etc/snmp OK Where is your SNMPTT binaries directory default to [/usr/local/centreon/bin/] > /usr/local/centreon/bin/ OK Finding Apache user : apache Preparing Centreon temporary files /tmp/centreon-setup exists, it will be moved... Change macros for CentPluginsTraps OK Change macros for init scripts OK Installing the plugins Trap binaries OK Change macros for snmptrapd.conf OK Change macros for snmptt.ini OK SNMPTT init script installed OK Install : snmptrapd.conf OK Install : snmp.conf OK Install : snmptt.ini OK Install : snmptt OK Install : snmptthandler OK Install : snmpttconvertmib OK Create /usr/local/centreon/etc/instCentPlugins.conf OK ############################################################################### # # # Go to the URL : http://localhost/centreon/ # # to finish the setup # # # # Report bugs at http://forge.centreon.com # # # # Thanks for using Centreon. # # ----------------------- # # Contact : infos@centreon.com # # http://www.centreon.com # # # ###############################################################################

web安装

(1)centreon的欢迎界面

(2)检查依赖关系

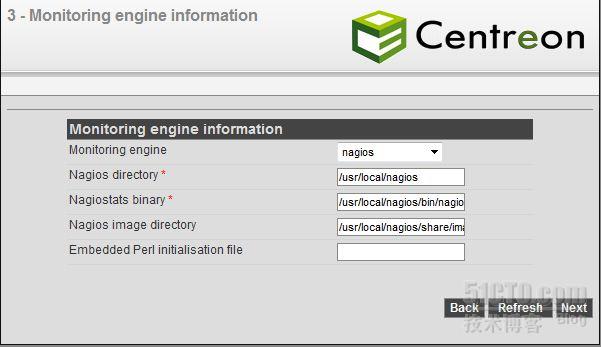

(3)配置nagios信息

(4)配置ndoutils模块

(5)配置admin用户

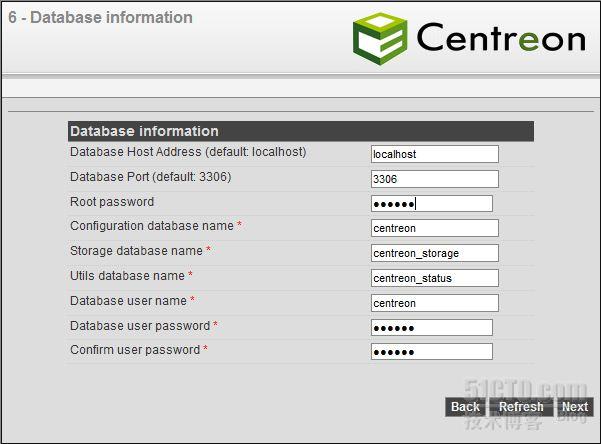

(6)配置数据库信息

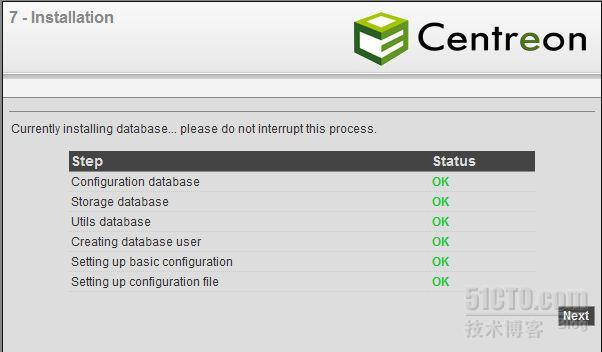

(7)安装

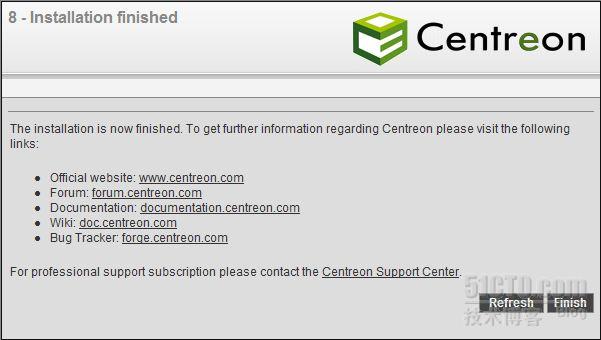

(8)安装完成

5.nrpe安装

  nrpe是nagios组件，能够执行远程主机的本地检测脚本，监控运行状态。

[iyunv@localhost monitor]# tar -zxvf nrpe-2.14.tar.gz [iyunv@localhost nrpe-2.14]# ./configure [iyunv@localhost nrpe-2.14]# make all && make install

三.后续登录错误

1.错误信息

2.日志信息

25/4/2013 18:36:01 - 25/4/2013 18:36:1 - DBI connect('database=centreon_storage;host=localhost:3306','centreon',...) failed: Access denied for user 'centreon'@'localhost' to database 'centreon_storage' at /usr/local/centreon/bin/logAnalyser line 596

3.解决方法

mysql> grant all on centreon.* to centreon@localhost identified by '123456'; Query OK, 0 rows affected (0.07 sec)mysql> grant all on centreon_status.* to centreon@localhost identified by '123456'; Query OK, 0 rows affected (0.00 sec) mysql> grant all on centreon_storage.* to centreon@localhost identified by '123456'; Query OK, 0 rows affected (0.00 sec) mysql> flush privileges; Query OK, 0 rows affected (0.06 sec)

成功页面如下

四.检查重新生成配置文件

(1)检查main.cfg的配置

(2)检查ndo2db.cfg的配置

(3)检查ndomod.cfg的配置

(4)生成nagios配置文件

web页面重启完成后，查看nagios相关日志

[iyunv@localhost ~]# tail -f /usr/local/nagios/var/nagios.log | grep ndomod [1366898324] ndomod: Successfully connected to data sink. 122 queued items to flush. [1366898324] ndomod: Successfully flushed 122 queued items to data sink.

如果有以上信息代表成功，因为ndoutils是nagios与centreon的纽带，必须保证其正常运行。

centreon的服务器端已经配置完成，对于其被监控主机上也安装nagios-plugins和nrpe软件包，这里就不再重复，centreon的应用配置及汉化后续再出。
