二、nova-api
步骤3：nova-api接收请求
nova-api接收请求，也不是随便怎么来都接收的，而是需要设定rate limits，默认的实现是在ratelimit的middleware里面实现的。
然而有时候，我们希望实现distributed rate-limiting，从而Turnstile是一个不错的选择。
https://github.com/klmitch/turnstile
http://pypi.python.org/pypi/turnstile
步骤4：对Token的验证
步骤5：查看Policy
这两步已经在keystone的时候研究过
步骤6：检查quota
nova, neutron, Cinder各有各的quota，并且可以从命令行进行管理
# nova -h | grep quota
quota-class-show List the quotas for a quota class.
quota-class-update Update the quotas for a quota class.
quota-defaults List the default quotas for a tenant.
quota-delete Delete quota for a tenant/user so their quota will
quota-show List the quotas for a tenant/user.
quota-update Update the quotas for a tenant/user.
# nova quota-show
+-----------------------------+-------+
| Quota | Limit |
+-----------------------------+-------+
| instances | 10 |
| cores | 20 |
| ram | 51200 |
| floating_ips | 10 |
| fixed_ips | -1 |
| metadata_items | 128 |
| injected_files | 5 |
| injected_file_content_bytes | 10240 |
| injected_file_path_bytes | 255 |
| key_pairs | 100 |
| security_groups | 10 |
| security_group_rules | 20 |
+-----------------------------+-------+
# cinder -h | grep quota
quota-class-show List the quotas for a quota class.
quota-class-update Update the quotas for a quota class.
quota-defaults List the default quotas for a tenant.
quota-show List the quotas for a tenant.
quota-update Update the quotas for a tenant.
quota-usage List the quota usage for a tenant.
# cinder quota-show 1779b3bc725b44b98726fb0cbdc617b1
+-----------+-------+
| Property | Value |
+-----------+-------+
| gigabytes | 1000 |
| snapshots | 10 |
| volumes | 10 |
+-----------+-------+
# neutron -h | grep quota
quota-delete Delete defined quotas of a given tenant.
quota-list List quotas of all tenants who have non-default quota values.
quota-show Show quotas of a given tenant
quota-update Define tenant's quotas not to use defaults.
# neutron quota-show 1779b3bc725b44b98726fb0cbdc617b1
+---------------------+-------+
| Field | Value |
+---------------------+-------+
| floatingip | 50 |
| network | 10 |
| port | 50 |
| router | 10 |
| security_group | 10 |
| security_group_rule | 100 |
| subnet | 10 |
+---------------------+-------+
推荐下面的文章
openstack nova 基础知识——Quota（配额管理）
http://www.sebastien-han.fr/blog/2012/09/19/openstack-play-with-quota/
步骤7：在数据库中创建Instance实例
有关nova的database schema参考下面的文章
http://www.prestonlee.com/2012/05/03/openstack-nova-essex-mysql-database-schema-diagram-and-sql/
MySQL是Openstack中最重要的组件之一，所以在生产环境中High Availability是必须的。
MySQL的HA有下面几种方式：
http://dev.mysql.com/doc/mysql-ha-scalability/en/index.html
| Requirement | MySQL Replication | MySQL with DRBD with Corosync and Pacemaker | MySQL Cluster | | Availability | | | | | Platform Support | All Supported by MySQL Server | Linux | All Supported by MySQL Cluster | | Automated IP Failover | No | Yes | Depends on Connector and Configuration | | Automated Database Failover | No | Yes | Yes | | Automatic Data Resynchronization | No | Yes | Yes | | Typical Failover Time | User / Script Dependent | Configuration Dependent, 60 seconds and Above | 1 Second and Less | | Synchronous Replication | No, Asynchronous and Semisynchronous | Yes | Yes | | Shared Storage | No, Distributed | No, Distributed | No, Distributed | | Geographic redundancy support | Yes | Yes, via MySQL Replication | Yes, via MySQL Replication | | Update Schema On-Line | No | No | Yes | | Scalability | | | | | Number of Nodes | One Master, Multiple Slaves | One Active (primary), one Passive (secondary) Node | 255 | | Built-in Load Balancing | Reads, via MySQL Replication | Reads, via MySQL Replication | Yes, Reads and Writes | | Supports Read-Intensive Workloads | Yes | Yes | Yes | | Supports Write-Intensive Workloads | Yes, via Application-Level Sharding | Yes, via Application-Level Sharding to Multiple Active/Passive Pairs | Yes, via Auto-Sharding | | Scale On-Line (add nodes, repartition, etc.) | No | No | Yes |
要想系统的学习Mysql replication，推荐下面的这本书
《MySQL High Availability Tools for Building Robust Data Centers》
还有一种方式是Mysql + galera，可以搭建Active + Active的Mysql应用
参考下面的两篇文章
http://www.sebastien-han.fr/blog/2012/04/08/mysql-galera-cluster-with-haproxy/
http://www.sebastien-han.fr/blog/2012/04/01/mysql-multi-master-replication-with-galera/
还有一种常见的HA的技术，就是pacemaker
最底层是通信层corosync/openais
负责cluster中node之间的通信
上一层是Resource Allocation Layer，包含下面的组件：
CRM Cluster Resouce Manager
是总管，对于resource做的任何操作都是通过它。每个机器上都有一个CRM。
CIB Cluster Information Base
CIB由CRM管理，是在内存中的XML数据库，保存了cluster的配置和状态。我们查询出来的configuration都是保存在CIB里面的。nodes, resources, constraints, relationship.
DC Designated Coordinator
每个node都有CRM，会有一个被选为DC，是整个Cluster的大脑，这个DC控制的CIB是master CIB，其他的CIB都是副本。
PE Policy Engine
当DC需要进行一些全局配置的时候，首先由PE根据当前的状态和配置，计算出将来的状态，并生成一系列的action，使得cluster从初始状态变为结果状态。PE仅仅在DC上运行。
LRM Local Resource Manager
本地的resource管理，调用resource agent完成操作，启停resource，将结果返回给CRM
再上一层是Resource Layer
包含多个resource agent。resource agent往往是一些shell script，用来启动，停止，监控resource的状态。
要弄懂Pacemaker，推荐读《SUSE high availability guide》
https://www.suse.com/documentation/sle_ha/singlehtml/book_sleha/book_sleha.html
本人做了一些笔记和实验，请参考
High Availability手册(1): 环境
High Availability手册(2): 架构
High Availability手册(3): 配置
步骤8：创建filter_properties，用于nova scheduler
步骤9：发送RPC给nova-conductor
有关nova-conductor的文章
http://cloudystuffhappens.blogspot.com/2013/04/understanding-nova-conductor-in.html
在Openstack中，RPC的发送是通过RabbitMQ
RabbitMQ可以通过Pacemaker进行HA，当然也可以搭建自己的RabbitMQ Cluster
学习RabbitMQ当然首推《RabbitMQ in Action》
本人也做了一些笔记
RabbitMQ in Action (1): Understanding messaging
RabbitMQ in Action (2): Running and administering Rabbit
RabbitMQ in Action(5): Clustering and dealing with failure
还没完全读完，敬请谅解
当然Openstack中对于RabbitMQ的使用，一篇很好的文章是
NOVA源码分析——NOVA中的RabbitMQ解析
本人也对RPC的调用过程进行了代码分析
Openstack中RabbitMQ RPC代码分析
步骤10：nova-condutor创建request_spec，用于scheduler
步骤11：nova-conductor发送RPC给nova-scheduler
三、nova-scheduler
选择一个物理机来创建虚拟机，我们称为schedule的过程

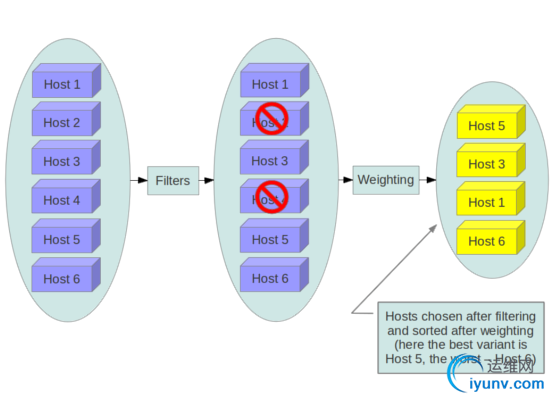

nova scheduler的一个经典的图如下
就是先Filter再Weighting，其实scheduler的过程在很早就参与了。
步骤13：对Host进行Filtering
Filtering主要通过两个变量进行，request_spec和filter_properties，而这些变量在前面的步骤，都已经准备好了。
而不同的Filter只是利用这些信息，然后再根据从HostManager统计上来的HostState信息，选出匹配的Host。
request_spec中的第一个信息就是image的properties信息，尤其是当你想支持多种Hypervisor的时候，Xen的image, KVM的image, Hyper-V的image各不相同，如何保证image跑在正确的Hypervisor上？在image里面这种hypervisor_type property就很必要。
请阅读下面的文章
http://www.cloudbase.it/filtering-glance-images-for-hyper-v/
image properties还会有min_ram, min_disk，只有内存和硬盘够大才可以。
Flavor里面可以设置extra_specs，这是一系列key-value值，在数据结构中，以instance_type变量实现，可以在里面输入这个Flavor除了资源需求的其他参数，从而在Filter的时候，可以使用。
host aggregates将所有的Host分成多个Group，当然不同的Group可以根据不同的属性Metadata划分，一种是高性能和低性能。
在Openstack文档中，这个例子很好的展示了host aggregates和Flavor extra_specs的配合使用
http://docs.openstack.org/trunk/config-reference/content/section_compute-scheduler.html
Example: Specify compute hosts with SSDs
This example configures the Compute service to enable users to request nodes that have solid-state drives (SSDs). You create a fast-io host aggregate in the nova availability zone and you add the ssd=true key-value pair to the aggregate. Then, you add the node1, and node2 compute nodes to it.
$ nova aggregate-create fast-io nova
+----+---------+-------------------+-------+----------+
| Id | Name | Availability Zone | Hosts | Metadata |
+----+---------+-------------------+-------+----------+
| 1 | fast-io | nova | | |
+----+---------+-------------------+-------+----------+
$ nova aggregate-set-metadata 1 ssd=true
+----+---------+-------------------+-------+-------------------+
| Id | Name | Availability Zone | Hosts | Metadata |
+----+---------+-------------------+-------+-------------------+
| 1 | fast-io | nova | [] | {u'ssd': u'true'} |
+----+---------+-------------------+-------+-------------------+
$ nova aggregate-add-host 1 node1
+----+---------+-------------------+-----------+-------------------+
| Id | Name | Availability Zone | Hosts | Metadata |
+----+---------+-------------------+------------+-------------------+
| 1 | fast-io | nova | [u'node1'] | {u'ssd': u'true'} |
+----+---------+-------------------+------------+-------------------+
$ nova aggregate-add-host 1 node2
+----+---------+-------------------+---------------------+-------------------+
| Id | Name | Availability Zone | Hosts | Metadata |
+----+---------+-------------------+----------------------+-------------------+
| 1 | fast-io | nova | [u'node1', u'node2'] | {u'ssd': u'true'} |
+----+---------+-------------------+----------------------+-------------------+
Use the nova flavor-create command to create the ssd.large flavor called with an ID of 6, 8 GB of RAM, 80 GB root disk, and four vCPUs.
$ nova flavor-create ssd.large 6 8192 80 4
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+-------------+
| ID | Name | Memory_MB | Disk | Ephemeral | Swap | VCPUs | RXTX_Factor | Is_Public | extra_specs |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+-------------+
| 6 | ssd.large | 8192 | 80 | 0 | | 4 | 1 | True | {} |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+-------------+
Once the flavor is created, specify one or more key-value pairs that match the key-value pairs on the host aggregates. In this case, that is the ssd=true key-value pair. Setting a key-value pair on a flavor is done using the nova flavor-key command.
$ nova flavor-key ssd.large set ssd=true
Once it is set, you should see the extra_specs property of the ssd.large flavor populated with a key of ssd and a corresponding value of true.
$ nova flavor-show ssd.large
+----------------------------+-------------------+
| Property | Value |
+----------------------------+-------------------+
| OS-FLV-DISABLED:disabled | False |
| OS-FLV-EXT-DATA:ephemeral | 0 |
| disk | 80 |
| extra_specs | {u'ssd': u'true'} |
| id | 6 |
| name | ssd.large |
| os-flavor-access:is_public | True |
| ram | 8192 |
| rxtx_factor | 1.0 |
| swap | |
| vcpus | 4 |
+----------------------------+-------------------+
Now, when a user requests an instance with the ssd.large flavor, the scheduler only considers hosts with the ssd=true key-value pair. In this example, these are node1 and node2.
另一个作用是Xen和KVM的POOL分开，有利于XEN进行Live Migration
另一个作用是Windows和Linux的POOL分开，因为Windows是需要收费的，而Linux大多不需要，Windows的收费是按照物理机，而非虚拟机来收费的，所有需要尽量的将windows的虚拟机放到一个物理机上。
Filter_properties的里面scheduler_hints是一个json，里面可以设置任何值，用于Filter的时候使用。
例如JsonFilter
The JsonFilter allows a user to construct a custom filter by passing a scheduler hint in JSON format. The following operators are supported:
The filter supports the following variables:
- $free_ram_mb
- $free_disk_mb
- $total_usable_ram_mb
- $vcpus_total
- $vcpus_used
Using the nova command-line tool, use the --hint flag:
$ nova boot --image 827d564a-e636-4fc4-a376-d36f7ebe1747 --flavor 1 --hint query='[">=","$free_ram_mb",1024]' server1
With the API, use the os:scheduler_hints key:
{
"server": {
"name": "server-1",
"imageRef": "cedef40a-ed67-4d10-800e-17455edce175",
"flavorRef": "1"
},
"os:scheduler_hints": {
"query": "[>=,$free_ram_mb,1024]"
}
}
我们可以指定某个物理机，用下面的命令--availability-zone :
步骤14：对合适的Hosts进行weighting并且排序
选出了Hosts，接下来就是进行Weighting的操作
Weighting可以根据很多变量来，一般来说Memory和disk是最先需要满足的，CPU和network io则需要次要考虑，一般来说，对于付钱较少的Flavor，能满足memory和disk就可以了，对于付钱较多的Flavor，则需要保证其CPU和network io.
步骤15：nova-scheduler想选出的Host发送RPC |
|
