perl snmp rrdtool 画图

mgjj

　　在上一篇文章中，有兄弟问我要code source，因前面写的数据收集用的是本地获取的，所以就想先改进下数据收集方式，再发出来。今天，我采用snmp方式把数据收集出来，并画图。
　　以下代码仅供参考:
　　

• #!/usr/bin/perl

• use Net::SNMP;

• use RRDs;

•

• my @hosts=("localhost","127.0.0.1","192.168.x.y");

• my $debug=1;

• my $rrd_path="/usr/rrd/";

• my $pic_path="/usr/rrd/pic/";

• my $oid=".1.3.6.1.4.1.2021.51.101.1";

•

• sub CREATERRD{

• my ($rrdname)=shift;

•

• RRDs::create("$rrdname",

• "--step", 300,

• "DS:1min:GAUGE:600:U:U",

• "DS:5min:GAUGE:600:U:U",

• "DS:15min:GAUGE:600:U:U",

• "RRA:AVERAGE:0.5:1:600",

• "RRA:AVERAGE:0.5:6:700",

• "RRA:AVERAGE:0.5:24:775",

• "RRA:AVERAGE:0.5:288:797",

• );

• my $ERROR = RRDs::error;

• if ($ERROR){

• print "ERROR unable to create ${ERROR} \n " if $debug;

• print "create no\n" if $debug;

• return 0;

• }else{

• print "$rrdname createok\n" if $debug;

• return 1;

• }

• }

•

• sub UPDATERRD{

•     my ($rrdname,$L1min,$L5min,$L15min)=@_;

•     RRDs::update ("$rrdname","N:$L1min:$L5min:$L15min");

•     my $ERROR=RRDs::error;

•     if ($ERROR){

•         print "ERROR unable to update ${ERROR} \n" if $debug;

•         return 0;

•     }else{

•         print "update success\n" if $debug;

•         return 1;

•     }

• }

•

•

• sub GRAPHPNG{

•     my ($rrdfile,$starttime)=@_;

•     my $rrdtitle1;

•     if($rrdfile=~/(.*)\.rrd$/i){

•         $rrdtitle1=$1;

•

•     }else{

•         $rrdtitle1=$rrdfile;

•     }

•     my $pngfile=$pic_path.$rrdtitle1.".png";

•     print $pngfile."\n" if $debug;

•     my $rrdfile=$rrd_path.$rrdfile;

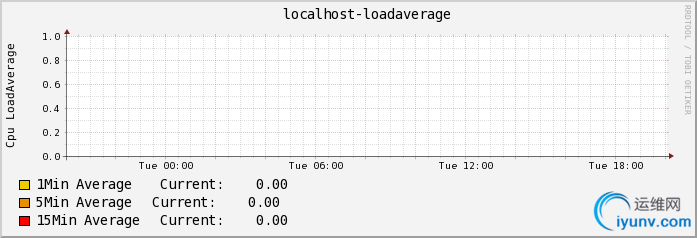

• RRDs::graph($pngfile,

• '--title',$rrdtitle1,

• '--font', 'TITLE:10:',

• '--font', 'LEGEND:10:',

• '--base',1000,

• '--height',120,

• '--width',600,

• '--vertical-label','Cpu LoadAverage',

• '--start',-$starttime,

• "DEF:1min=$rrdfile:1min:AVERAGE",

• "DEF:5min=$rrdfile:5min:AVERAGE",

• "DEF:15min=$rrdfile:15min:AVERAGE",

• "AREA:1min#EACC00FF:1Min Average",

• 'GPRINT:1min:LAST: Current\:%8.2lf%s\n',

• "AREA:5min#EA8F00FF:5Min Average",

• 'GPRINT:5min:LAST:Current\:%8.2lf%s\n',

• "AREA:15min#FF0000FF:15Min Average",

• 'GPRINT:5min:LAST:Current\:%8.2lf%s\n',

• );

• if (my $ERROR = RRDs::error) {

• print "ERROR: $ERROR\n" if $debug;

• return 0;

• }

• }

•

• sub GETSNMP {

•     my $s = shift;

•     my $oid = shift || return "U";

•     my $response = $s->get_request($oid);

•     my $retval = $response->{$oid} || "U";

•     print "$oid -> $retval\n" if $debug;

•     return ($retval =~ /(\d+)/) ? $retval : 'U';

• }

•

• foreach my $ip(@hosts){

•      #create rrd

•      my $rrd_filename = "$rrd_path$ip-loadaverage.rrd";

•      print "$rrd_filename\n" if $debug;

•      unless(-e $rrd_filename){

•          &CREATERRD($rrd_filename);

•      }

•

•     #get data

•      my($s, $err) = Net::SNMP->session(

•      -hostname => $ip,

•      -community => "CHKTIME",

•      -timeout => 1,

•      -version => 2

•      );

•

•     my $LoadAverage = GETSNMP($s,$oid);

•     print $LoadAverage."\n" if $debug;

•     my ($L1m,$L5m,$L15m)=split(" ",$LoadAverage);

•     print "\n".$L1m."\t".$L5m."\t".$L15m."\n" if $debug;

•

•     #update rrd

•     if( -e $rrd_filename){

•          &UPDATERRD($rrd_filename,$L1m,$L5m,$L15m);

•    }

•

•     #graph picture

•     &GRAPHPNG("$ip-loadaverage.rrd",86400);

• }
