postfix邮件服务器搭建

zhaoming

两台不用域不同网段的邮件服务器互发邮件

开三台虚拟机，第一台做192.168.1.0/24网段的vfast.com域的邮件服务器，第二台作为DNS服务器作为两个域的邮件服务器的DNS服务器，第三台作为192.168.2.0/24网段的benet.com域的邮件服务器；第一台网卡桥接方式为VMnet2，第二台两块网卡分别桥接为VMnet2和VMnet3，第三台网卡桥接为VMnet3.
（一）首先配置vfast.com域邮件服务器和benet.com域邮件服务器的DNS服务器。

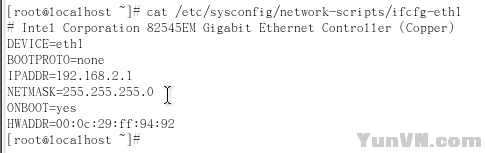

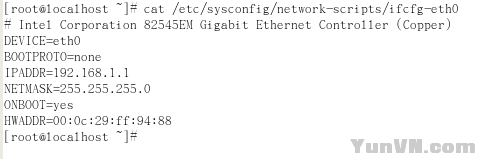

1、配置网卡ip地址




2、安装bind，并配置文件
[iyunv@localhost ~ ]#yum -y install bind*
[iyunv@localhost ~ ]#vim /var/named/chroot/etc/named.conf


3、配置域名解析文件
[iyunv@localhost ~ ]#cp /usr/share/doc/bind-9.3.6/sample/var/named/localdomain.zone
/var/named/chroot/var/named/vfast.com.zone

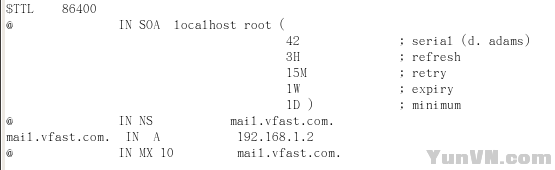

[iyunv@localhost ~ ]#vim /var/named/chroot/var/named/vfast.com.zone


[iyunv@localhost ~ ]#cp /usr/share/doc/bind-9.3.6/sample/var/named/localdomain.zone
/var/named/chroot/var/named/benet.com.zone

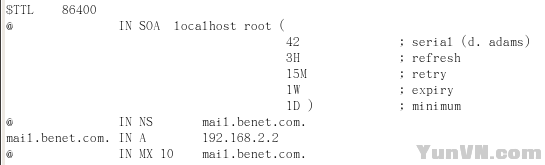

[iyunv@localhost ~ ]#vim /var/named/chroot/var/named/benet.com.zone


4、重启named服务，并加入到开机启动项
[iyunv@localhost ~ ]#service named restart
[iyunv@localhost ~ ]#chkconfig named on
5、DNS配置完成
（二）配置vfast.com域的邮件服务器
1、停止sendmail服务，并设定开机不启动
[iyunv@localhost ~ ]#service sendmail stop
[iyunv@localhost ~ ]#chkconfig sendmail off
2、安装httpd服务，并设定开机启动
[iyunv@localhost ~ ]#yum install httpd
[iyunv@localhost ~ ]#service httpd restart
[iyunv@localhost ~ ]#chkconfig httpd on
3、安装postfix，并完成相关配置
[iyunv@localhost ~ ]#yum -y install postfix

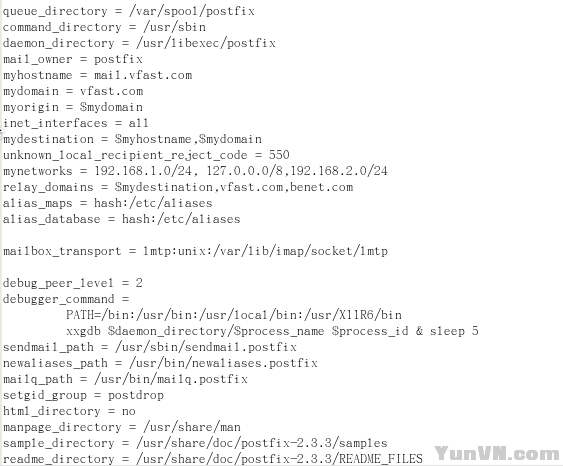

[iyunv@localhost ~ ]#vim /etc/postfix/main.cf


4、设置Saslauthd
[iyunv@localhost ~ ]#vim /etc/sysconfig/saslauthd

[iyunv@localhost ~ ]#/etc/init.d/saslauthd restart
[iyunv@localhost ~ ]#chkconfig saslauthd on
5、创建用户aa，并设置密码为‘123.com’
[iyunv@localhost ~ ]#useradd aa
[iyunv@localhost ~ ]#echo "123.com" > passwd --stdin aa

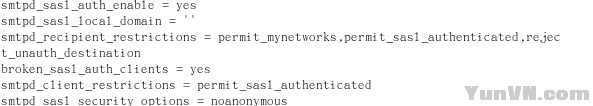

[iyunv@localhost ~ ]#vim /etc/postfix/main.cf    在配置文件下面添加如下几行：


[iyunv@localhost ~ ]#service postfix restart 重启动postfix服务
[iyunv@localhost ~ ]#chkconfig postfix  on  加入到开机启动项
6、安装dovecot，并设置开机启动
[iyunv@localhost ~ ]#yum -y install dovecot
[iyunv@localhost ~ ]#vim /etc/dovecot.conf  解除注释如下两段，并改为此样


[iyunv@localhost ~ ]#service dovecot restart
[iyunv@localhost ~ ]#chkconfig dovecot on
7、安装cyrus-imapd 并完成相关配置
[iyunv@localhost ~ ]#yum -y install cyrus-imapd cyrus-imapd-devel


[iyunv@localhost ~ ]#cyradm -u aa localhost
IMAP Password:
             localhost.localdomain>cm user.aa
localhost.localdomain>quit


[iyunv@localhost ~ ]#service cyrus-imapd restart
[iyunv@localhost ~ ]#chkconfig cyrus-imapd on
8、安装squirrelmail并进行webmail的后台相关配置
[iyunv@localhost ~ ]#yum -y install squirrelmail
[iyunv@localhost ~ ]#/usr/share/squirrelmail/config/conf.pl
D.  Set pre-defined settings for specific IMAP servers
d
cyrus       = Cyrus IMAP server

cyrus
2.  Server Settings

2


1
vfast.com
3
2
r
4.  General Options

4


5
y
r
10. Languages
10


1
zh_CN
2
gb2312
9、vfast.com域的邮件系统就配置完成了
（三）配置benet.com域的邮件系统
1、停止sendmail服务，并设定开机不启动
[iyunv@localhost ~ ]#service sendmail stop
[iyunv@localhost ~ ]#chkconfig sendmail off
2、安装httpd服务，并设定开机启动
[iyunv@localhost ~ ]#yum install httpd
[iyunv@localhost ~ ]#service httpd restart
[iyunv@localhost ~ ]#chkconfig httpd on
3、安装postfix，并完成相关配置
[iyunv@localhost ~ ]#yum -y install postfix
[iyunv@localhost ~ ]#vim /etc/postfix/main.cf



4、设置Saslauthd
[iyunv@localhost ~ ]#vim /etc/sysconfig/saslauthd

[iyunv@localhost ~ ]#/etc/init.d/saslauthd restart
[iyunv@localhost ~ ]#chkconfig saslauthd on
5、创建用户aa，并设置密码为‘123.com’
[iyunv@localhost ~ ]#useradd aa
[iyunv@localhost ~ ]#echo "123.com" > passwd --stdin aa

[iyunv@localhost ~ ]#vim /etc/postfix/main.cf    在配置文件下面添加如下几行：


[iyunv@localhost ~ ]#service postfix restart 重启动postfix服务
[iyunv@localhost ~ ]#chkconfig postfix  on  加入到开机启动项
6、安装dovecot，并设置开机启动
[iyunv@localhost ~ ]#yum -y install dovecot
[iyunv@localhost ~ ]#vim /etc/dovecot.conf  解除注释如下两段，并改为此样


[iyunv@localhost ~ ]#service dovecot restart
[iyunv@localhost ~ ]#chkconfig dovecot on
7、安装cyrus-imapd 并完成相关配置
[iyunv@localhost ~ ]#yum -y install cyrus-imapd cyrus-imapd-devel


[iyunv@localhost ~ ]#cyradm -u aa localhost
IMAP Password:
             localhost.localdomain>cm user.aa
localhost.localdomain>quit


[iyunv@localhost ~ ]#service cyrus-imapd restart
[iyunv@localhost ~ ]#chkconfig cyrus-imapd on
8、安装squirrelmail并进行webmail的后台相关配置
[iyunv@localhost ~ ]#yum -y install squirrelmail
[iyunv@localhost ~ ]#/usr/share/squirrelmail/config/conf.pl
D.  Set pre-defined settings for specific IMAP servers
d
cyrus       = Cyrus IMAP server
cyrus

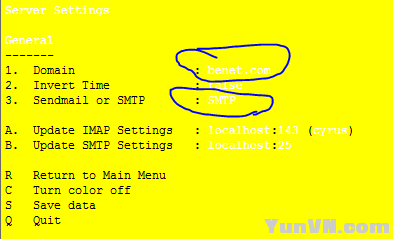

2.  Server Settings
2


1
benet.com
3
2
r
4.  General Options
4


5
y
r
10. Languages
10


1
zh_CN
2
gb2312

9、benet.com域的邮件服务器安装完成
（四）测试，不同的域邮件服务器互发邮件测试

1、benet.com域服务器的aa用户发一份邮件给vfast.com域邮件服务器的aa用户

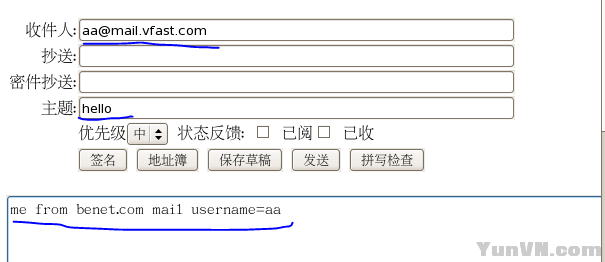

benet.com域用户aa的发件内容如下：

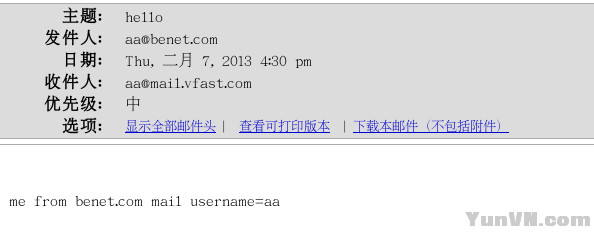

vfast.com域用户aa收件情况如下：


2、测试vfast.com的域用户aa给benet.com的域用户aa发一封邮件

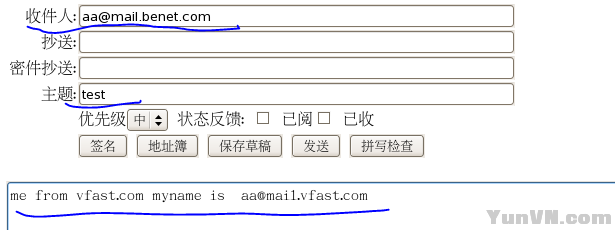

vfast.com域用户的发件内容如下：

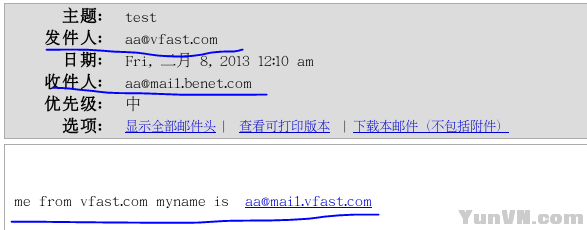

benet.com域用户aa收件情况如下：
