Install hadoop with Cloudera Manager 5.2 using Parcel on CentOS 6.5

张颢镡

　　主机分配考虑：
　　master:
　　HDFS NameNode 1 + HDFS NameNode 2
　　YARN ResourceManager 1 + YARN ResourceManager 2
　　slave: (these roles co-deployed)
　　HDFS DataNode + YARN NodeManager + HBase RegionServer + Impala Daemon
　　others:
　　HBase Master: multiple, on dedicated nodes
　　ZooKeeper + Jounal Node: >3, odd number, recommended on dedicated nodes, not with flume agent service together
　　
　　Hive + Hue + Impala + Oozie + Solr + Sqoop2
　　Spark (like MapReduce)
　　Cloudera Management Service
　　分区考虑，不要使用LVM
　　root -- >50G
　　var -- >100G
　　opt -- >50G
　　/tmp -- >100G (run job失败的话请查看此目录空间)
　　swap -- 2倍系统内存
　　RAM -- >8GB
　　Master node:
　　RAID 10, dual Ethernet cards, dual power supplies, etc.
　　Slave node:
　　1. RAID is not necessary
　　2. HDFS分区, not using LVM
　　/etc/fstab -- ext3/ext4    defaults,noatime
　　挂载到/data/N/, for N=0,1,2... (one partition per disk)
　　挂载到/data/N/, for N=0,1,2... (one partition per disk)
　　Cloudera CDH repository:
　　http://archive.cloudera.com/cdh5
　　http://archive-primary.cloudera.com/cm5
　　http://archive.cloudera.com/gplextras5

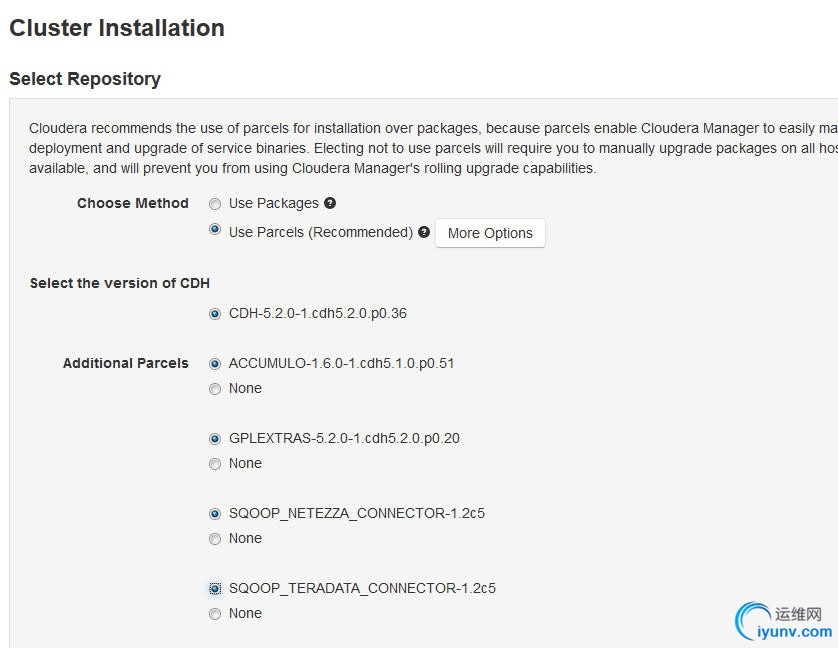

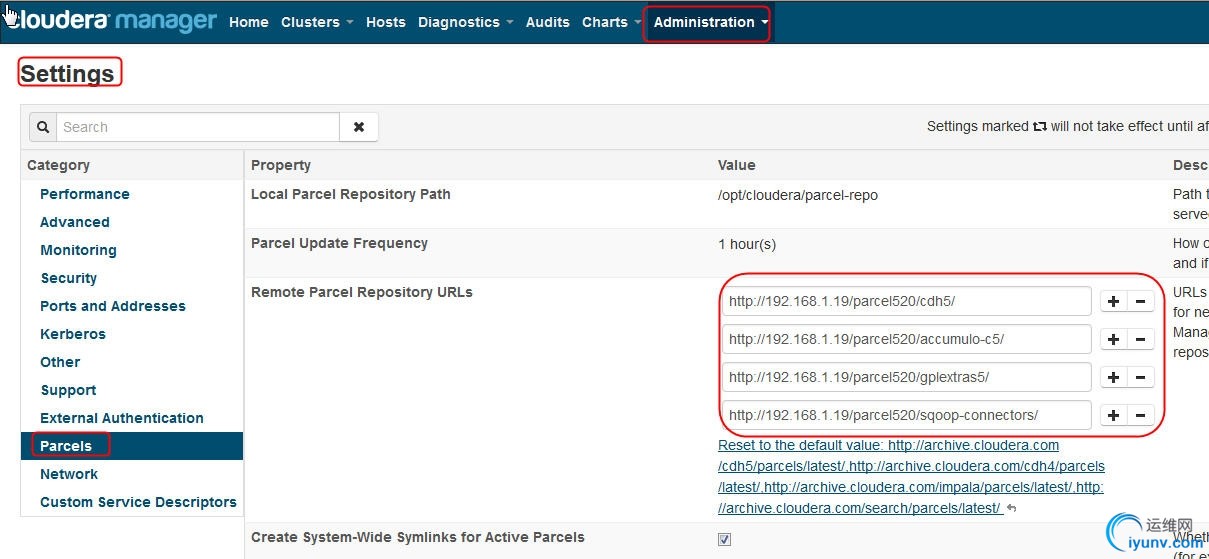

　　Cloudera parcel repository:
　　http://archive.cloudera.com/cdh5/parcels/
　　http://archive.cloudera.com/gplextras5/parcels/
　　http://archive.cloudera.com/sqoop-connectors/parcels/
　　http://archive.cloudera.com/accumulo-c5/parcels/
　　http://archive.cloudera.com/kafka/parcels/
　　Cloudera Labs repository:
　　http://archive-primary.cloudera.com/cloudera-labs/
　　on cloudera manager and all cluster nodes (including master + slave nodes):
　　at least 3 Servers for ZooKeeper, 3 DataNodes for HDFS.
　　1.disable selinux and iptables
　　service iptables stop
　　chkconfig iptables off; chkconfig ip6tables off
　　setenforce 0
　　sed -i 's,SELINUX=enforcing,SELINUX=disabled,g' /etc/selinux/config
　　2. disable ipv6 and kernel parameters tuning
　　echo "net.ipv6.conf.all.disable_ipv6 = 1" >> /etc/sysctl.conf
　　echo "vm.swappiness = 0" >> /etc/sysctl.conf
　　echo 'net.ipv4.tcp_retries2 = 2' >> /etc/sysctl.conf
　　echo 'vm.overcommit_memory = 1' >> /etc/sysctl.conf
　　echo "fs.file-max = 6815744" >> /etc/sysctl.conf
　　echo "fs.aio-max-nr = 1048576" >> /etc/sysctl.conf
　　echo "net.core.rmem_default = 262144" >> /etc/sysctl.conf
　　echo "net.core.wmem_default = 262144" >> /etc/sysctl.conf
　　echo "net.core.rmem_max = 16777216" >> /etc/sysctl.conf
　　echo "net.core.wmem_max = 16777216" >> /etc/sysctl.conf
　　echo "net.ipv4.tcp_rmem = 4096 262144 16777216" >> /etc/sysctl.conf
　　echo "net.ipv4.tcp_wmem = 4096 262144 16777216" >> /etc/sysctl.conf
　　only on ResourceManager and JobHistory Server
　　echo "net.core.somaxconn = 1000" >> /etc/sysctl.conf
　　sysctl -p
　　echo "echo never > /sys/kernel/mm/redhat_transparent_hugepage/enabled" >> /etc/rc.local
　　echo "echo never > /sys/kernel/mm/redhat_transparent_hugepage/defrag" >> /etc/rc.local
　　echo "echo no > /sys/kernel/mm/redhat_transparent_hugepage/khugepaged/defrag" >> /etc/rc.local
　　3. vi /etc/hosts to add all hosts FQDN, like below:
　　192.168.1.19    cm5.local cm5 archive.cloudera.com
　　192.168.1.20    master1.local master1  # HDFS NameNode
　　192.168.1.21    master2.local master2  # YARN ResourceManager
　　192.168.1.22    slave1.local slave1
　　192.168.1.23    slave2.local slave2
　　192.168.1.24    slave3.local slave3
　　vi /etc/sysconfig/network to set FQDN
　　yum -y install ntp openssh-clients lzo
　　service ntpd start; chkconfig ntpd on
　　cat  /etc/yum.repos.d/iso.repo
　　[iso]
　　name=iso
　　baseurl=http://mirrors.aliyun.com/centos/6.5/os/x86_64
　　enable=1
　　gpgcheck=0
　　EOF
　　vi /etc/security/limits.conf
　　*         soft    core         unlimited
　　*         hard    core         unlimited
　　*         soft    nofile       65536
　　*         hard    nofile       65536
　　*         soft    nproc        unlimited
　　*         hard    nproc        unlimited
　　*         soft    memlock      unlimited
　　*         hard    memlock      unlimited
　　vi /etc/grub.conf
　　add "elevator=deadline"(no quotes) at the end of kernel line
　　reboot to take effect
　　4. On cloudera manager, we will install mysql 5.6 and apache
　　rpm -e --nodeps mysql-libs
　　yum -y install libaio perl
　　rpm -ivh MySQL-shared-compat-5.6.20-1.el6.x86_64.rpm
　　rpm -ivh MySQL-shared-5.6.20-1.el6.x86_64.rpm
　　rpm -ivh MySQL-server-5.6.20-1.el6.x86_64.rpm
　　rpm -ivh MySQL-client-5.6.20-1.el6.x86_64.rpm
　　vi /etc/my.cnf
　　[mysqld]
　　transaction-isolation=READ-COMMITTED
　　symbolic-links=0
　　key_buffer = 16M
　　key_buffer_size = 32M
　　max_allowed_packet = 32M
　　thread_stack = 256K
　　thread_cache_size = 64
　　query_cache_limit = 8M
　　query_cache_size = 64M
　　query_cache_type = 1
　　# Allow 100 maximum connections for each database and then add 50 extra connections
　　max_connections = 550
　　log-bin=mysql-bin
　　binlog_format=mixed
　　expire_logs_days=10
　　max_binlog_size=100M
　　read_buffer_size = 2M
　　read_rnd_buffer_size = 16M
　　sort_buffer_size = 8M
　　join_buffer_size = 8M
　　# InnoDB settings
　　innodb_file_per_table = 1
　　innodb_flush_log_at_trx_commit = 2
　　innodb_log_buffer_size = 64M
　　innodb_buffer_pool_size = 4G
　　innodb_thread_concurrency = 8
　　innodb_flush_method = O_DIRECT
　　innodb_log_file_size = 512M
　　service mysql start; chkconfig mysql on
　　cat ~/.mysql_secret
　　mysqladmin -uroot -p'oldpassword' password newpassword
　　mysql_secure_installation
　　mysql -u root -p
　　# for Activity Monitor
　　create database amon DEFAULT CHARACTER SET utf8;

　　grant all on amon.* TO 'amon'@'%'>
　　grant all on amon.* TO 'amon'@'localhost'>　　# for Reports Manager
　　create database rman DEFAULT CHARACTER SET utf8;

　　grant all on rman.* TO 'rman'@'%'>
　　grant all on rman.* TO 'rman'@'localhost'>　　# for Hive Metastore Server
　　create database metastore DEFAULT CHARACTER SET utf8;

　　grant all on metastore.* TO 'hive'@'%'>
　　grant all on metastore.* TO 'hive'@'localhost'>　　# for Sentry Server
　　create database sentry DEFAULT CHARACTER SET utf8;

　　grant all on sentry.* TO 'sentry'@'%'>
　　grant all on sentry.* TO 'sentry'@'localhost'>　　# for Cloudera Navigator Audit Server
　　create database nav DEFAULT CHARACTER SET utf8;

　　grant all on nav.* TO 'nav'@'%'>
　　grant all on nav.* TO 'nav'@'localhost'>　　flush privileges;
　　yum -y install httpd
　　service httpd start; chkconfig httpd on
　　mkdir /var/www/html/cm520
　　mkdir /var/www/html/parcel520
　　mount -o loop cm520.iso /var/www/html/cm520
　　mount -o loop parcel520.iso /var/www/html/parcel520
　　cat  /etc/yum.repos.d/cm520.repo
　　[cm520]
　　name=cm520
　　baseurl=http://192.168.1.19/cm520
　　enable=1
　　gpgcheck=0
　　EOF
　　yum -y install oracle-j2sdk1.7 cloudera-manager-daemons cloudera-manager-server
　　ln -s  /usr/java/jdk1.7.0_67-cloudera /usr/java/default
　　echo 'export JAVA_HOME=/usr/java/default' >> /etc/profile
　　echo 'export PATH=$JAVA_HOME/bin:$PATH' >> /etc/profile
　　source /etc/profile

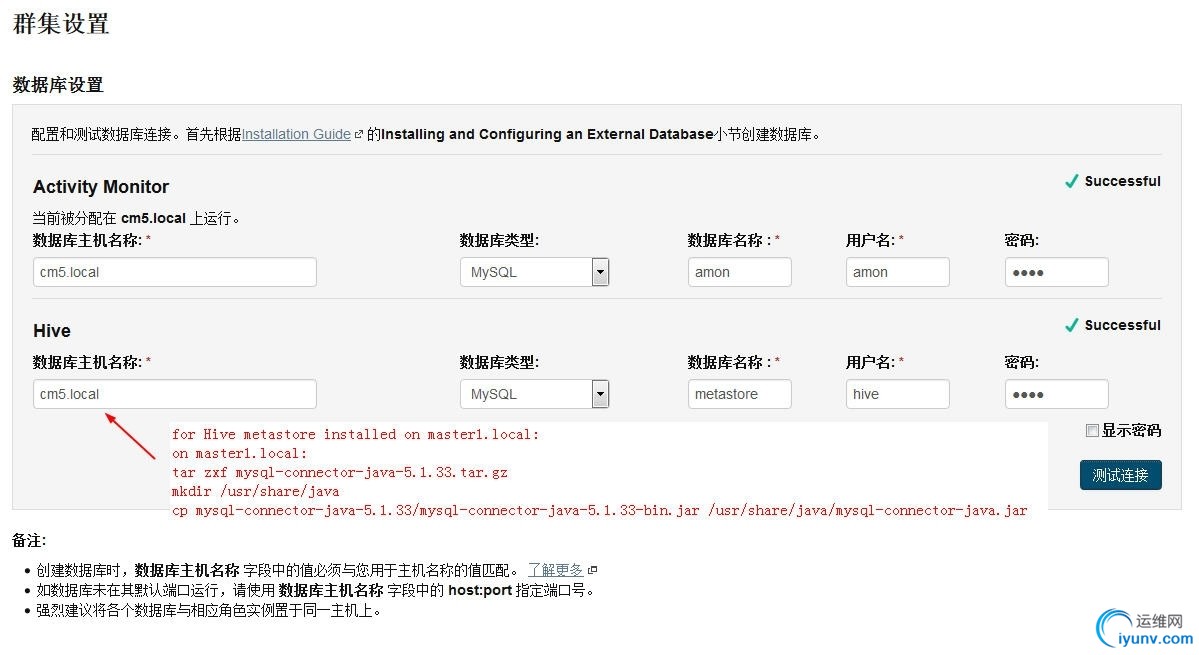

　　Install mysql jdbc connector:
　　tar zxf mysql-connector-java-5.1.33.tar.gz
　　mkdir /usr/share/java
　　cp mysql-connector-java-5.1.33/mysql-connector-java-5.1.33-bin.jar /usr/share/java/mysql-connector-java.jar
　　/usr/share/cmf/schema/scm_prepare_database.sh mysql -uroot -ppassword cm5 cm5 cm5
　　(Running the script when MySQL is installed on another host
　　on mysql server:

　　grant all on *.* to 'temp'@'%'>　　flush privileges;
　　on cloudera manager server:
　　/usr/share/cmf/schema/scm_prepare_database.sh mysql -h mysql-server-ip -utemp -ptemp --scm-host scm-host-ip cm5 cm5 cm5)
　　service cloudera-scm-server start

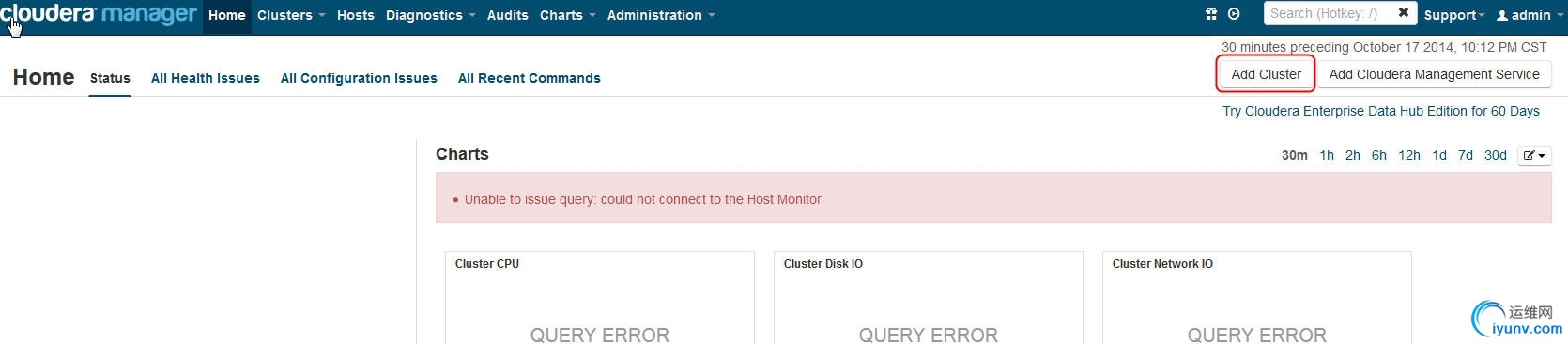

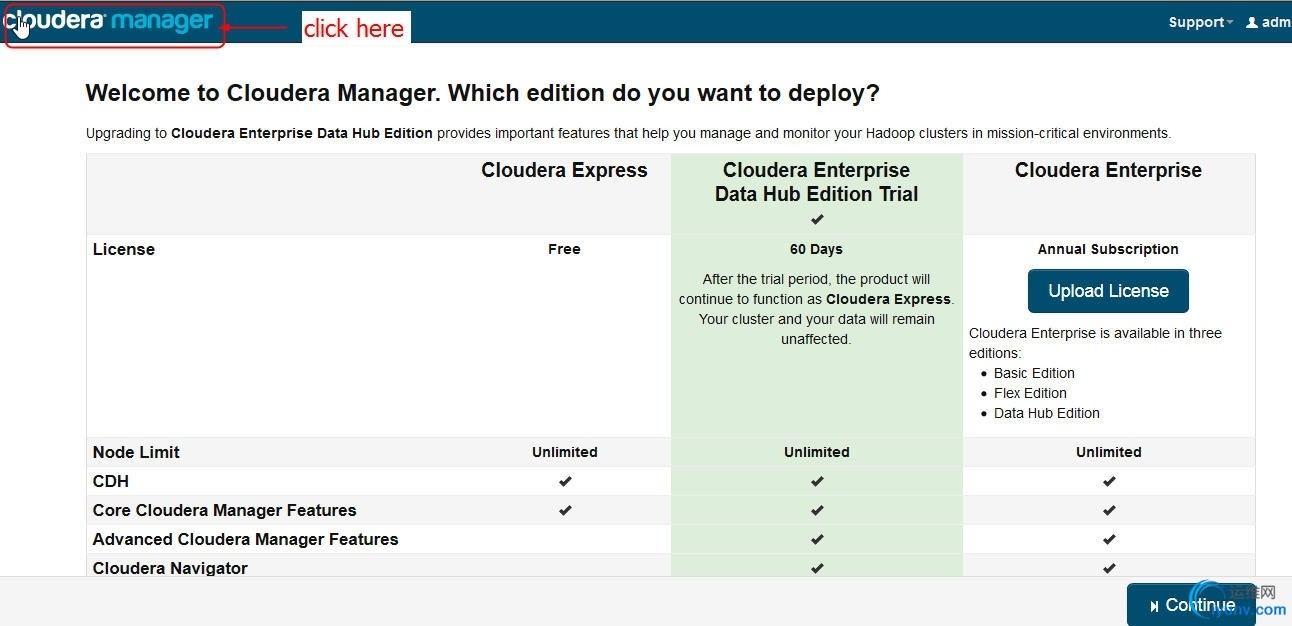

　　wait several minutes, then open http://192.168.1.19:7180
　　username/password: admin/admin
　　if it's ok
　　yum -y install cloudera-manager-agent
　　service cloudera-scm-agent start
　　5. on all cluster nodes
　　cat  /etc/yum.repos.d/cm520.repo
　　[cm520]
　　name=cm520
　　baseurl=http://192.168.1.19/cm520
　　enable=1
　　gpgcheck=0
　　EOF
　　yum -y install oracle-j2sdk1.7 cloudera-manager-agent cloudera-manager-daemons
　　ln -s  /usr/java/jdk1.7.0_67-cloudera /usr/java/default
　　echo 'export JAVA_HOME=/usr/java/default' >> /etc/profile
　　echo 'export PATH=$JAVA_HOME/bin:$PATH' >> /etc/profile
　　source /etc/profile
　　vi /etc/cloudera-scm-agent/config.ini
　　server_host=cm5.local
　　server_port=7182
　　service cloudera-scm-agent start

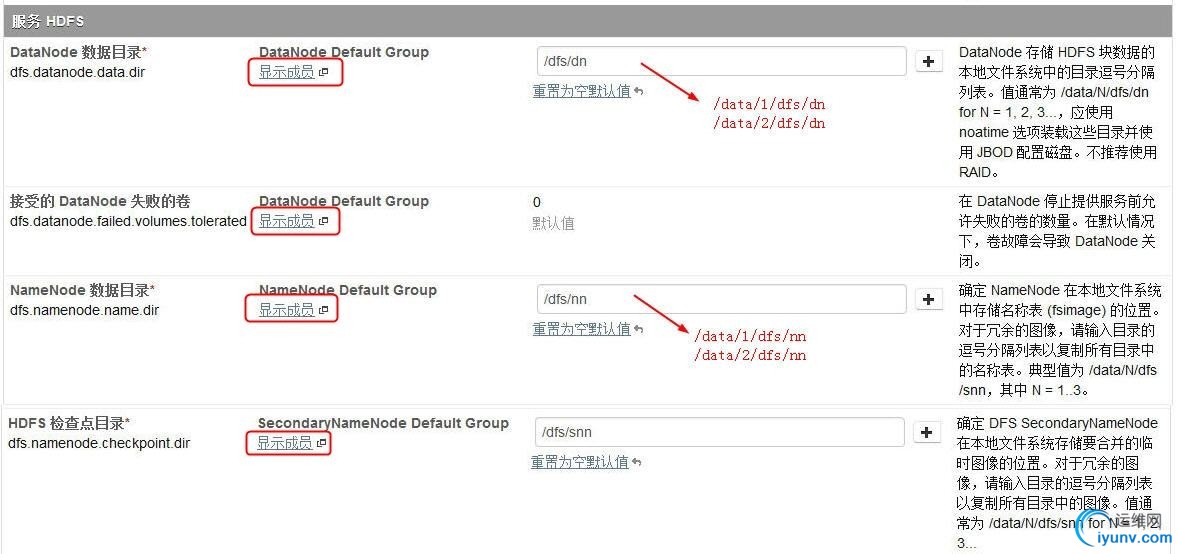

　　dfs.datanode.failed.volumes.tolerated
　　If you have > three or four disks, you might want to set this to 1 or if you have many disks, two or more.

　　关机的正确步骤：
　　1. stop Cluster and cloudera management service
　　2. poweroff hosts
　　ok
