memcached演练(4) 使用apache+memcached

ab168

　　继续《memcached演练(3) 使用apache+搭建双节点tomcat集群 》,已经简单完成了双节点tomcat集群的搭建。本章在原来集群的基础上，测试session相关内容。
　　主要内容

• 　　测试apache+mod_jk+2个tomcat集群环境,session管理情况

• 　　搭建apache+mod_jk+2个tomcat+memcached-session-manager集群环境

• 　　测试2个环境的吞吐量


　　1.测试apache+mod_jk+2个tomcat集群环境,session管理情况
　　1.1 准备测试JSP(testSession.jsp)


    Tomcat集群测试


        服务器信息:
    session分发:      　　1.2 将两个节点的对应测试应用examples，web.xml添加以下配置
　　1.3 将jsp文件复制应用中
cp testSession.jsp /u01/tomcat-sets/apache-tomcat-node1/webapps/examples
cp testSession.jsp /u01/tomcat-sets/apache-tomcat-node2/webapps/examples　　1.4 回顾下/etc/httpd/workers.properties
worker.list=tomcat1
worker.tomcat1.port=8009
worker.tomcat1.host=127.0.0.1
worker.tomcat1.type=ajp13
worker.tomcat1.lbfactor=1
worker.tomcat2.port=8019
worker.tomcat2.host=127.0.0.1
worker.tomcat2.type=ajp13
worker.tomcat2.lbfactor=1
worker.loadbalancer.type=lb
worker.loadbalancer.balance_workers=tomcat1,tomcat2
worker.loadbalancer.sticky_session=true　　sticky_session=false    表明需求会话复制。

　　sticky_session=true  表明为会话粘性，不进行会话复制，当某用户的请求第一次分发到哪台Tomcat后，后继的请求会一直分发到此Tomcat服务器上处理。
　　1.5 先设置sticky_session=false
[root@hadoop1 ~]# cat /etc/httpd/conf/workers.properties
worker.list=loadbalancer
worker.tomcat1.port=8009
worker.tomcat1.host=127.0.0.1
worker.tomcat1.type=ajp13
worker.tomcat1.lbfactor=1
worker.tomcat2.port=8019
worker.tomcat2.host=127.0.0.1
worker.tomcat2.type=ajp13
worker.tomcat2.lbfactor=1
worker.loadbalancer.type=lb
worker.loadbalancer.balance_workers=tomcat1,tomcat2

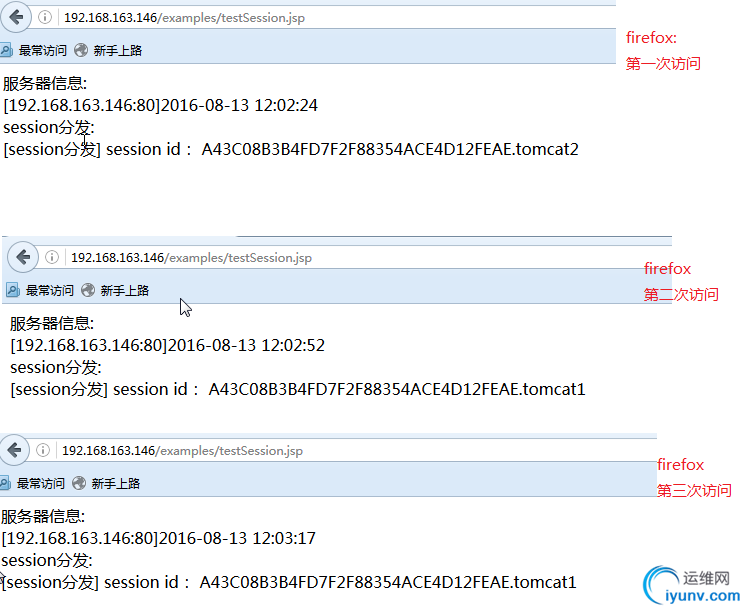

worker.loadbalancer.sticky_session=false　　1.6测试sticky_session=false效果

　　经过验证，sticky_session=false时，同一个浏览器多次访问，实现了负载均衡，服务可以切换。
　　1.7 测试下吞吐量（sticky_session=false）
　　本次测试是独立的，和memcached演练(3)中的数据没有可比性，两者响应报文大小和特点都不同。
C:\Apache24\bin>ab  -n 10000 -c 4  http://192.168.163.146/examples/testSession.jsp
This is ApacheBench, Version 2.3
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/
Benchmarking 192.168.163.146 (be patient)
Completed 1000 requests
...
Completed 10000 requests
Finished 10000 requests

Server Software:        Apache/2.2.15
Server Hostname:        192.168.163.146
Server Port:            80
Document Path:          /examples/testSession.jsp
Document Length:        328 bytes
Concurrency Level:      4
Time taken for tests:   15.796 seconds
Complete requests:      10000
Failed requests:        0
Total transferred:      5870000 bytes
HTML transferred:       3280000 bytes
Requests per second:    633.06 [#/sec] (mean)
Time per request:       6.319 [ms] (mean)
Time per request:       1.580 [ms] (mean, across all concurrent requests)
Transfer rate:          362.90 [Kbytes/sec] received　　吞吐量：633.06.
　　1.8 先设置sticky_session=true
[root@hadoop1 ~]# cat /etc/httpd/conf/workers.properties
worker.list=loadbalancer
worker.tomcat1.port=8009
worker.tomcat1.host=127.0.0.1
worker.tomcat1.type=ajp13
worker.tomcat1.lbfactor=1
worker.tomcat2.port=8019
worker.tomcat2.host=127.0.0.1
worker.tomcat2.type=ajp13
worker.tomcat2.lbfactor=1
worker.loadbalancer.type=lb
worker.loadbalancer.balance_workers=tomcat1,tomcat2
worker.loadbalancer.sticky_session=true　　1.9 重启httpd
service httpd stop
service httpd start　　1.10 测试结果

　　经过验证，sticky_session=false时，同一个浏览器多次访问，将请求都发到同一个服务上，实现了session粘滞效果。
　　2.11 测试下吞吐量（sticky_session=true）
c:\Apache24\bin>ab  -n 10000 -c 4  http://192.168.163.146/examples/testSession.jsp
This is ApacheBench, Version 2.3
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/
Benchmarking 192.168.163.146 (be patient)
Completed 1000 requests
...
Finished 10000 requests

Server Software:        Apache/2.2.15
Server Hostname:        192.168.163.146
Server Port:            80
Document Path:          /examples/testSession.jsp
Document Length:        328 bytes
Concurrency Level:      4
Time taken for tests:   11.719 seconds
Complete requests:      10000
Failed requests:        0
Total transferred:      5870000 bytes
HTML transferred:       3280000 bytes
Requests per second:    853.29 [#/sec] (mean)
Time per request:       4.688 [ms] (mean)
Time per request:       1.172 [ms] (mean, across all concurrent requests)
Transfer rate:          489.14 [Kbytes/sec] received
Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    0   0.6      1       8
Processing:     0    4   7.5      3     115
Waiting:        0    4   7.0      2     115
Total:          0    5   7.5      3     115
WARNING: The median and mean for the initial connection time are not within a normal deviation
        These results are probably not that reliable.　　吞吐量：853.29.
　　通过对比，设置了session粘滞，吞吐量提升很大的空间。
　　

　　

2.搭建apache+mod_jk+2个tomcat+memcached-session-manager集群环境

　　确认memcached环境。（具体见）
[hadoop@hadoop1 tomcat-sets]$ ps -ef |grep memcached
nobody    2028     1  0 10:07 ?        00:00:03 /usr/local/memcached/bin/memcached -d -p 11211 -u nobody -m 64 -c 1024 -P /var/run/memcached/memcached.pid　　本节主要内容就是使用memcached-session-manager组件，管理节点间的session信息。
　　2.1 复制需要的jar到节点lib下
wget -P /u01/tomcat-sets/apache-tomcat-node1/lib  http://repo1.maven.org/maven2/de/javakaffee/msm/memcached-session-manager/1.9.7/memcached-session-manager-1.9.7.jar
wget -P /u01/tomcat-sets/apache-tomcat-node1/lib http://repo1.maven.org/maven2/de/javakaffee/msm/memcached-session-manager-tc7/1.9.7/memcached-session-manager-tc7-1.9.7.jar
wget -P /u01/tomcat-sets/apache-tomcat-node1/lib  http://repo1.maven.org/maven2/net/spy/spymemcached/2.11.1/spymemcached-2.11.1.jar

wget -P /u01/tomcat-sets/apache-tomcat-node2/lib  http://repo1.maven.org/maven2/de/javakaffee/msm/memcached-session-manager/1.9.7/memcached-session-manager-1.9.7.jar
wget -P /u01/tomcat-sets/apache-tomcat-node2/lib http://repo1.maven.org/maven2/de/javakaffee/msm/memcached-session-manager-tc7/1.9.7/memcached-session-manager-tc7-1.9.7.jar
wget -P /u01/tomcat-sets/apache-tomcat-node2/lib  http://repo1.maven.org/maven2/net/spy/spymemcached/2.11.1/spymemcached-2.11.1.jar　　2.2 配置msm
　　编辑两节点
　　/u01/tomcat-sets/apache-tomcat-node1/conf/context.xml
　　/u01/tomcat-sets/apache-tomcat-node2/conf/context.xml


    WEB-INF/web.xml

　　并没有用一些效率高的序列化框架。

有这么一个参数确认下

sticky (since 1.4.0, optional, default true)

定义session方式为黏性或非黏性，默认为true。

也就是说，我们开启了黏性。通过前面的使用，理解也很简单。

2.3测试

经过测试，效果和步骤1.10效果一样。

2.4 测试下MSM环境sticky_session=true吞吐量

c:\Apache24\bin>ab  -n 10000 -c 4  http://192.168.163.146/examples/testSession.jsp
This is ApacheBench, Version 2.3
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/
Benchmarking 192.168.163.146 (be patient)
Completed 1000 requests
。。
Completed 10000 requests
Finished 10000 requests

Server Software:        Apache/2.2.15
Server Hostname:        192.168.163.146
Server Port:            80
Document Path:          /examples/testSession.jsp
Document Length:        331 bytes
Concurrency Level:      4
Time taken for tests:   13.745 seconds
Complete requests:      10000
Failed requests:        0
Total transferred:      5930000 bytes
HTML transferred:       3310000 bytes
Requests per second:    727.55 [#/sec] (mean)
Time per request:       5.498 [ms] (mean)
Time per request:       1.374 [ms] (mean, across all concurrent requests)
Transfer rate:          421.32 [Kbytes/sec] received
Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    1   0.5      1       5
Processing:     0    5  15.3      2     545
Waiting:        0    5  15.2      2     545
Total:          0    5  15.3      3     545　　测试吞吐量效果：727.55。
　　2.5修改msm参数，关闭sticky_session。
　　修改两节点参数
　　/u01/tomcat-sets/apache-tomcat-node1/conf/context.xml
　　/u01/tomcat-sets/apache-tomcat-node2/conf/context.xml


    WEB-INF/web.xml

　　2.6 经过测试。
　　并没有达到想要的切换效果。不知什么原因。有清楚原因的朋友，告知下。
　　以后有机会深入研究下MSM的工作机理。
　　2.7 测试下吞吐量
c:\Apache24\bin>ab  -n 10000 -c 4  http://192.168.163.146/examples/testSession.jsp
This is ApacheBench, Version 2.3
Copyright 1996 Adam Twiss, Zeus Technology Ltd, http://www.zeustech.net/
Licensed to The Apache Software Foundation, http://www.apache.org/
Benchmarking 192.168.163.146 (be patient)
...
Completed 10000 requests
Finished 10000 requests

Server Software:        Apache/2.2.15
Server Hostname:        192.168.163.146
Server Port:            80
Document Path:          /examples/testSession.jsp
Document Length:        331 bytes
Concurrency Level:      4
Time taken for tests:   13.743 seconds
Complete requests:      10000
Failed requests:        635
   (Connect: 0, Receive: 0, Length: 635, Exceptions: 0)
Total transferred:      5926190 bytes
HTML transferred:       3308095 bytes
Requests per second:    727.66 [#/sec] (mean)
Time per request:       5.497 [ms] (mean)
Time per request:       1.374 [ms] (mean, across all concurrent requests)
Transfer rate:          421.12 [Kbytes/sec] received
Connection Times (ms)
              min  mean[+/-sd] median   max
Connect:        0    1   0.9      1      17
Processing:     0    5  12.9      2     527
Waiting:        0    5  12.8      2     527
Total:          0    5  12.9      3     527　　Requests per second:    727.66 [#/sec] (mean)

　　Failed requests:        635
　　

　　结论

环境	吞吐量
apache+双节点+MSM(sticky="false")	727.66	Failed requests:        635
apache+双节点+MSM(sticky="true")	727.55
apache+双节点（Cluster） 　　sticky_session=true	853.29
apache+双节点（Cluster） 　　sticky_session=false	633.06

　　由于memchached与节点+apache环境均安装在同一个机器上，而且是单CPU。
　　接下来，我将把环境分散到多个虚拟机节点上。在测试下。

　　参考资源：
　　http://www.cnblogs.com/dennisit/p/3370220.html
