Smokeping搭建优化

xiamn · 发表于 2013-6-8 09:33:45

1 什么是smokeping

2 smokeping架构组成

3 smokeping分布式介绍

4 如何看懂smokeping图表

5 如何判断一个节点的好坏

Smokeping是rrdtool的作者TobiOetiker 的作品，是用Perl 写的，主要是监视网络性能，包括常规的ping，用echoping 监www 服务器性能，监视dns 查询性能，监视ssh 性能等。底层也是rrdtool做支持，特点是画的图非常漂亮，网络丢包和延迟用颜色和阴影来表示。

Smokeping由以下组件组成：

RRDtool、Fping、Echoping、Curl、Dig、SSh、Perl 模块，

Perl、SpeedyCGI、ApacheORNGINX

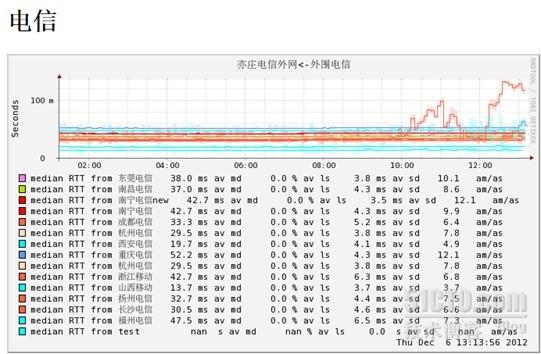

使用Smokeping的过程中，很容易就发现，如果从单个节点去探测网络性能，往往是不够的，Smokeping提供了多节点的分布式部署功能，也就是可以从多个节点去探测到某个地区的网络状态，这样才是我们监控网络希望看到的情况。

Smokeping称其为主从模式，主从模式的配置很简单，从服务器的安装和主服务器相同，只是从服务器不用自己的config文件,而是在启动的过程中请求主服务器的config文件，这样你只需要维护主服务器上的配置文件即可。

Smokeping检测分布式的检测方式是被动模式，由从节点启动时获得主节点的config文件，然后进行测试，测试完毕后直接将数据提交给主节点。主从通信验证是通过我们可以设置多个从服务器，主从服务器通过指定--shared-secret=filename来和主进行密码验证。

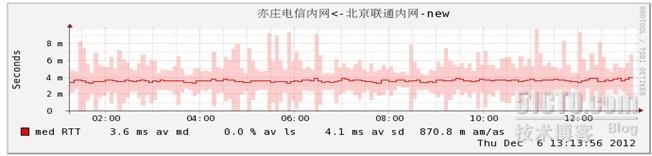

X轴表示时间轴

Y轴表示ping的时间值

3.6ms表示 Ping质量测试的响应速度平均值

中间红线能看出网络是否有抖动

直线表示稳定,有频繁曲线表示网络抖动；如果是阴影表示有网络小幅度抖动

ls字段表示Ping质量测试的丢包率

根据网络抖动判断，抖动范围超过10ms的都属于网络不稳定我们要每天观察是否都有规律的网络抖动现象

根据丢包状况判断:

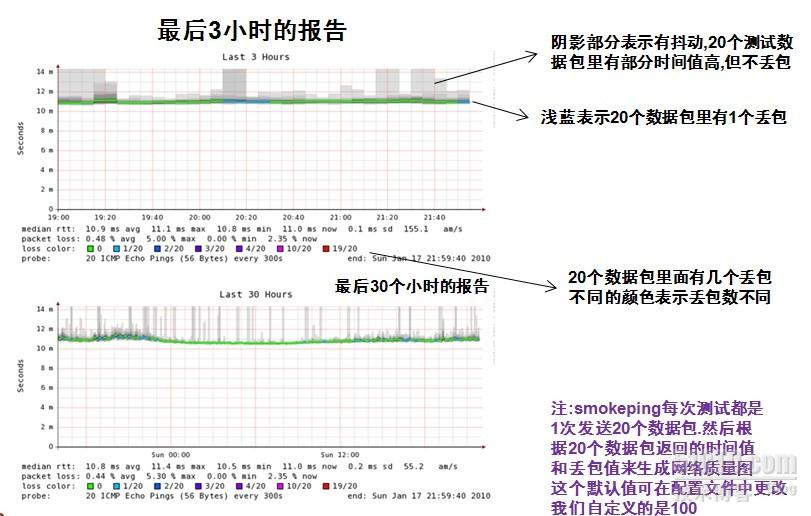

刚进入详细报告后,看总曲线的颜色,根据20个测试数据包返回的数据判断

绿色表示0丢包.属于最好.浅蓝色1个丢包,深蓝色2个丢包….以此类推

从这个报告图里可以看出:

1.曲线都是绿色的0丢包

或偶尔一两个丢包算合格

2.曲线无抖动,阴影不明显

或偶尔有抖动的算合格

(包裹阴影部分)

3.Ping值小于30ms

如果小于50ms还算合格

smokeping搭建

可分多种web框架可选nginx apache等接口可选fsgi cgi

1服务端安装

apache安装略

httpd.conf中directory字段加入

</Directory>
<Directory "/usr/local/smokeping/htdocs">
#Options FollowSymLinks ExecCGI
Options Indexes FollowSymLinks
Options ExecCGI
#AllowOverride None
#Order allow,deny
#Allow from all
</Directory>

Alias /smokeping "/usr/local/smokeping/"
<Directory /usr/local/smokeping/>
   AllowOverride None
   AddHandler cgi-script cgi
   Options ExecCGI
   Options Indexes FollowSymLinks
   Order allow,deny
   Allow from all
   DirectoryIndex smokeping.cgi
</Directory>

1).rrdtool.FPing.EchoPing.Curl.dig.SSH
   wget http://sourceforge.net/projects/ ... 0.2.tar.gz/download
   wget http://fping.sourceforge.net/download/fping.tar.gz
   wget http://dag.wieers.com/rpm/packag ... 2.el5.rf.x86_64.rpm
   wget http://dag.wieers.com/rpm/packag ... 2.el5.rf.x86_64.rpm
   rpm -ivh *ping*x86_64.rpm
   yum install -y freetype freetype-devel libpng libpng-devel gd gd-devel pango pango-devel libxml2 libxml2-devel libart_lgpl libart_lgpl-devel perl-libwww-perl perl-IO-Socket-SSL perl-Net-Telnet perl-Socket6 perl-Net-DNS perl-LDAP
   wget http://oss.oetiker.ch/rrdtool/pub/rrdtool-1.4.5.tar.gz
   tar zvxf rrdtool-1.4.5.tar.gz && cd rrdtool-1.4.5
   sed -i 's/setlocale(LC_NUMERIC, "C")/setlocale(LC_NUMERIC, "zh_CN.UTF-8")/g' src/rrd_graph.c
   ./configure --prefix=/usr/local/rrdtool --enable-perl-site-install --with-perl-options &&make &&make install
   perl -MRRDs -le 'print q(ok!)'  查看RRDs.pm  提示加载libdbi.so.o加载不上，安装yum install libdbi
  2).perl(Perl 5.8.8)的模块支持
   #perl -MCPAN -e -shell
   #install FCGI,CGI,CGI::Fast,Config::Grammar,Digest::HMAC_MD5,Net::Telnet,Net::OpenSSH,Net::SNMP,Net::LDAP,Net::DNS, IO::Pty,LWP,Socket6,IO::Socket::SSL
   perl -MCPAN -e 'install FCGI,CGI,CGI::Fast,Config::Grammar,Digest::HMAC_MD5,Net::Telnet,Net::OpenSSH,Net::SNMP,Net::LDAP,Net::DNS, IO::Pty,LWP,Socket6,IO::Socket::SSL'
  3).smokeping安装
export PERL5LIB=/usr/lib64/perl5/5.8.8/x86_64-linux-thread-multi/  #64位系统
export PERL5LIB=/usr/lib/perl5/site_perl/5.8.8/i386-linux-thread-multi/  #32位系统
wget http://oss.oetiker.ch/smokeping/pub/smokeping-2.6.6.tar.gz
tar zvxf smokeping-2.6.6.tar.gz && cd smokeping-2.6.6
./configure --prefix=/usr/local/smokeping &&make &&make install

########################分割线###############################################

smokeping config中需要配置的项和优化

*** General ***

owner = www.funshion.com
contact  = wanghd@funshion.com
mailhost = mail.funshion.com
sendmail = /usr/sbin/sendmail
# NOTE: do not put the Image Cache below cgi-bin
# since all files under cgi-bin will be executed ... this is not
# good for images.
imgcache = /usr/local/smokeping/cache
imgurl = http://192.168.x.x/smokeping/cache
datadir  = /usr/local/smokeping/data
piddir  = /usr/local/smokeping/var
cgiurl = http://192.168.x.x/smokeping/htdocs/smokeping.cgi
smokemail = /usr/local/smokeping/etc/smokemail
tmail = /usr/local/smokeping/etc/tmail
# specify this to get syslog logging
syslogfacility = local0
# each probe is now run in its own process
# disable this to revert to the old behaviour
concurrentprobes = yes

*** Alerts ***
to = zhoumenglong@163.com
from = zhoumenglong@163.com

+someloss
type = loss
# in percent
pattern = >3%,*12*,>3%,*12*,>3%
comment = detected loss 3 times over the last two hours

+highloss
type = loss
# in percent
pattern = >50%,*12*,>50%,*12*,>50%
comment = detected loss 3 times over the last two hours

+rttdetect
type = rtt
# in milliseconds
pattern = <100,<100,<100,<100,<100,>100,>100,>100,>100
comment = routing messed up again ?

+highrttdetect
type = rtt
# in milliseconds
pattern = <20,<20,<20,<20,<20,>20,>20,>20,>20
comment = routing messed up again ?
*** Database ***

step    = 300
pings = 100

# consfn mrhb steps total

AVERAGE  0.5 1  1008
AVERAGE  0.5  12  4320
MIN  0.5  12  4320
MAX  0.5  12  4320
AVERAGE  0.5 144 720
MAX  0.5 144 720
MIN  0.5 144 720

*** Presentation ***

template = /usr/local/smokeping/etc/basepage.html
charset = utf-8

+ charts

menu = Charts
title = The most interesting destinations

++ stddev
sorter = StdDev(entries=>4)
title = Top Standard Deviation
menu = Std Deviation
format = Standard Deviation %f

++ max
sorter = Max(entries=>5)
title = Top Max Roundtrip Time
menu = by Max
format = Max Roundtrip Time %f seconds

++ loss
sorter = Loss(entries=>5)
title = Top Packet Loss
menu = Loss
format = Packets Lost %f

++ median
sorter = Median(entries=>5)
title = Top Median Roundtrip Time
menu = by Median
format = Median RTT %f seconds

+ overview

width = 600
height = 100
range = 12h

+ detail

width = 600
height = 200
#loss_background = yes
unison_tolerance = 2

"最后1天"    1d
"最后1周"    7d
"最后1个月"    30d

++loss_colors
0 00ff00 "0"
1 00b8ff "1/100"
2 0059ff "2/100"
3 5e00ff "3/100"
4 7e00ef "4/100"
5 ffff00 "5/100"
10 ff00ff "10/100"
50 ff0000 "50/100"
#99 ff0000 "99/100"

#+ hierarchies
#++ owner
#title = Host Owner
#++ location
#title = Location

*** Probes ***

+ FPing

binary = /usr/sbin/fping

*** Slaves ***
secrets=/usr/local/smokeping/etc/secrets

+zhengzhoucnc
display_name=郑州联通
color=b0e0e6

*** Targets ***
probe = FPing

menu = Top
title = www.funshion.com
remark = 欢迎使用smokeping监控
menuextra = <a target='_blank' href='tr.html{HOST}' class='{CLASS}'onclick="window.open(this.href,this.target, 'width=800,height=500,toolbar=no,location=no,status=no,scrollbars=no'); return false;">*</a>

+ CNC-OTHER-NODE
menu = 联通NODE
title = 联通NODE
nomasterpoll = yes

++ zhengzhou
menu = 郑州联通
title = 郑州联通
alerts = someloss,rttdetect
slaves = beijingcnc
host = 182.118.x.x

+++ zhengzhou
menu = 郑州联通
title = 郑州联通
alerts =
slaves = huhehaotecnc shenyangcnc taiyuancnc tianjincnc guangzhoucnc shijiazhuangcnc
host = 182.118.x.x

+ Test
menu = 测试
title = 测试
nomasterpoll = yes

++ TW
menu = 台湾
title = 台湾
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc nanchangctc
host = 60.199.217.26

++ HK
menu = 香港
title = 香港
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc  nanchangctc
host = 205.177.132.67

++ KR
menu = 韩国
title = 韩国
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc  nanchangctc
host = 218.156.80.2

++ US
menu = 美国
title = 美国
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc  nanchangctc
host = 63.236.67.45

++ UK
menu = 英国
title = 英国
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc  nanchangctc
host = 23.15.14.33

++ CA
menu = 加拿大
title = 加拿大
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc nanchangctc
host = 75.125.235.163

++ JA
menu = 日本
title = 日本
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc  nanchangctc
host = 61.152.144.67

++ XJ
menu = 新加坡
title = 新加坡
alerts =
slaves = beijingcnc yizhuangctc-waiwang nanningctc  nanchangctc
host = 64.145.95.41

1 此处定义节点由于较多所以只写了一个郑州

2 此配置文件针对监控优先级报警采用了3层目录形式可针对自己想监控的节点进行报警，极大降低了误报

3 Alerts定义多种规则，针对不通网络质量采用不通阀值

当然smokeping也支持如RTX 飞信等报警需要手工写一些脚本或添加相应程序实现

目录结构

1 smokeping.cgi 放置在 htdocs下

#!/bin/sh
#export PERL5LIB=/usr/lib64/perl5/5.8.8/x86_64-linux-thread-multi/
exec /usr/local/smokeping/bin/smokeping_cgi /usr/local/smokeping/etc/config

让smokeping_cgi读取配置文件执行

2 smokeping生成的cache图片按照定义时间来定义 last_ 后面的数值

3 必须刷新url才可生成cache图片，可定期使用脚本刷新

4 secrets文件权限600

5 smokeping服务端启动脚本

killall -9 smokeping
/usr/local/smokeping/bin/smokeping --config=/usr/local/smokeping/etc/config --logfile=/usr/local/smokeping/htdocs/var/smokeping.log

6 smokeping客户端启动脚本

#!/bin/bash
MASTERURL=http://xxx.xx.xx.xx/htdocs/smokeping.cgi
SLAVENAME=
CACHEDIR=/usr/local/smokeping/cache
PIDFILE=$CACHEDIR/smokeping.pid
SECRET=/usr/local/smokeping/etc/secrets
LOGFILE=/usr/local/smokeping/var/smoke.log

RUNNING=0

if [ -f $PIDFILE ] ; then
PID=`cat $PIDFILE`
if kill -0 $PID 2>/dev/null ; then
   echo "smokeping is running with PID $PID"
   exit 0
else
   echo "smokeping not running but PID file exists => delete PID file"
   rm -f $PIDFILE
fi
else
echo "smokeping (no pid file) not running"
fi

if
/usr/local/smokeping/bin/smokeping --master-url=$MASTERURL --slave-name=$SLAVENAME --cache-dir=$CACHEDIR --shared-secret=$SECRET --logfile=$LOGFILE > /dev/null; then
echo "smokeping started"
else
echo "smokeping could not be started"
fi

欢迎大家交流或给我留言
