Windows Embedded 7 Standard  裁剪过程图解教程

原创文章，若要转载，请注明该文出处



第一步，从微软网站上下载windows embedded 7 standard 的压缩包，并按照其说明制作成iso 光盘

第二步，将iso 光盘插入计算机光驱，设置成从光驱启动

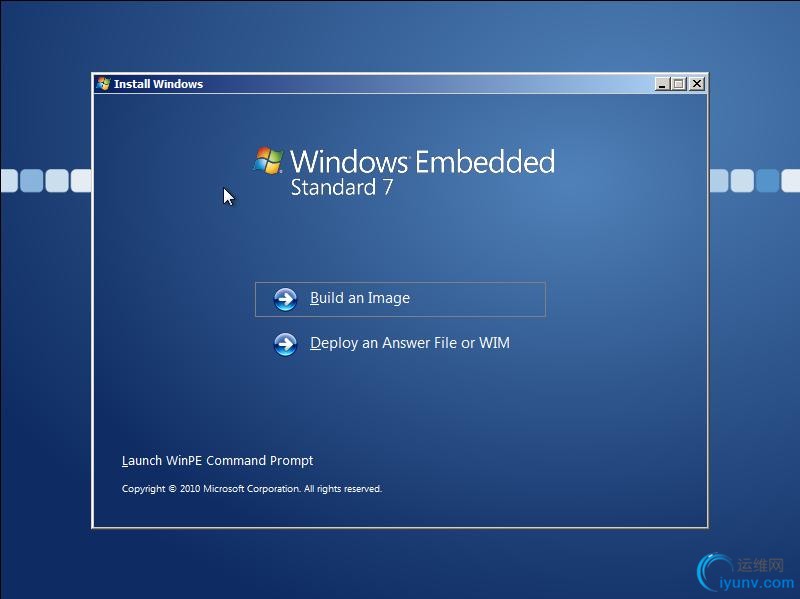

第三步，计算机启动后，会提示按任意键从光驱启动，启动后，会进入如下画面：













第四步，选择"Build an Image". 出现license 声明，勾选"I accept the license terms"后，点击"Next"

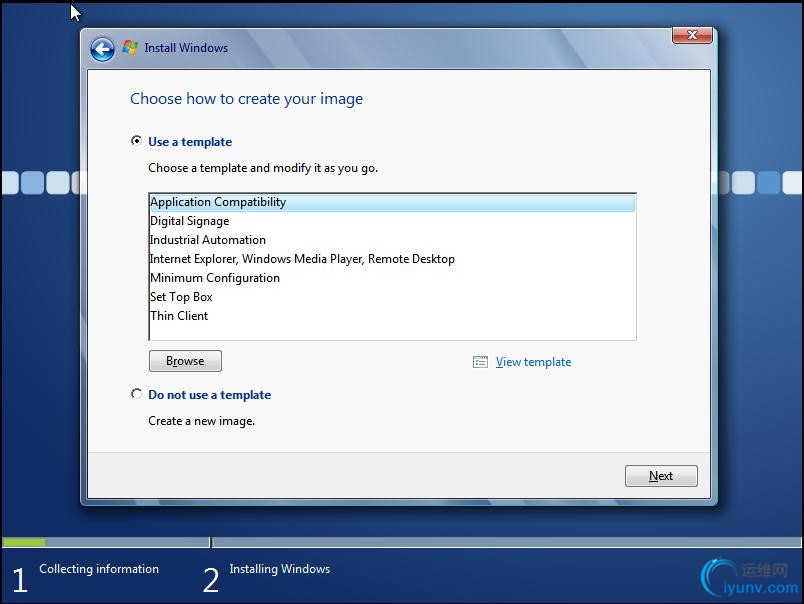

第五步，选择安装方式，然后点击"Next"

第六步， Choose a language and other preferences.



第七步，　根据实际情况，勾选"Modify Drivers" 或"Modify Features" 复选框。

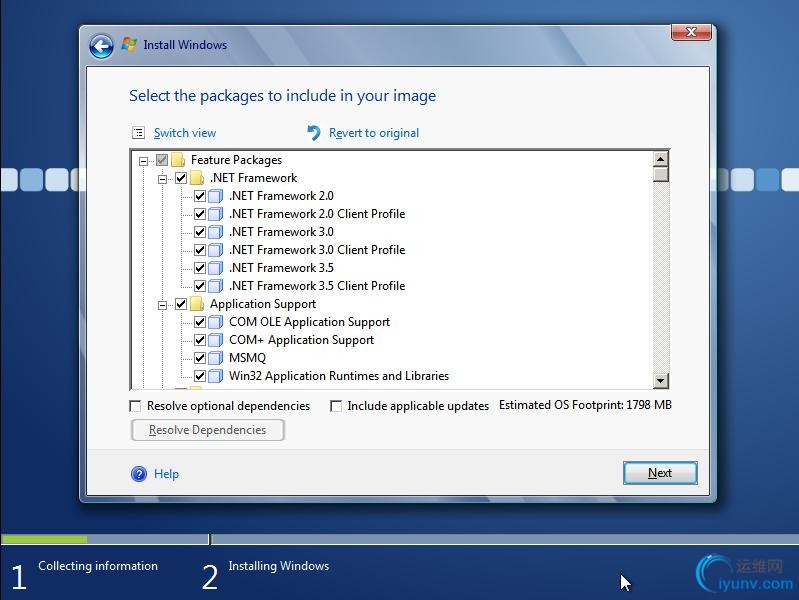

第八步， Select the packages to include in your image


第九步，去掉复选框"Resolve optional dependencies"和"Include applicable updates"前面的√


第十步，勾选如下项目：
.NET Framework
Application Support
Windows Boot Environment
Browsers
Data Access and Storage
Shardow Copy Volume Interface
Device Framework
Device User Experience
Driver Frameworks
Printing Utilities and Management
Standard Windows USB Stack
Diagnostics
Windows Embedded Standard Startup Screens
TrueType Fonts
Western Fonts
Microsoft DTV-DVD Audio Decoder(MPEG-2,AAC)(license required)
Microsoft DTV-DVD Video Decoder(MPEG-2,H.264)(license required)
MPEG Layer-3 Audio Codes (MP3)(license required)
MPEG-2 Audio and Video Encoder(license required)
MPEG-4 Decoders(license required)
Audio and Video Engines and Media Foundation
DriectX and Windows Device Experience
Graphics Platform
Image Mastering API V2
Internet Information Services-IIS
System Management
Windows Update Standalone Installer
Parental Control
Power Management
Windows Application Compatibility
Windows PowerShell 2.0
Base
Domain Services
IRDA and UNIMODEM
Network Diagnostics
Telephony API Client
Credentials and Certificate Management
Application Security
Security Base
Core File System
File Compression Utility
Remote Procedure Call
Windows Installer
Embedded Core Help Content
Help and Support Engine
Windows Shell
Accessibility
Natural Language 6
Search Indexing
Windows Search
en-US

勾选完毕后，点击"Next", 得到如下图所示的画面，继续点击"Next"















第十一步，选择要安装到那个硬盘及分区（此时可以根据需要，创建多个分区）

第十二步，安装程序已经获取到足够的信息，将进行安装过程，接下来按照系统提示进行操作即可。
