基于Zabbix IPMI监控服务器硬件状况

houbin

　　公司有多个分部，且机房没有专业值班，机房等级不够。在这种情况下，又想实时监控机房环境，于是使用IPMI方式来达到目的。由于之前已经部署了Zabbix监控系统，本次将结合Zabbix自带的IPMI，完成服务器温度及风扇转速等的监控。
1.环境说明
　　被监控端服务器型号：Dell PowerEdge R510
规划分配的IPMI地址: 10.103.1.100
2.Zabbix监控平台说明
　　Zabbix版本: 3.2.1，在安装时，未使用--with-openipmi
Zabbix网络接口可以连通10.103.1.100
3.前置学习
　　维基百科IPMI: http://zh.wikipedia.org/wiki/IPMI
IBM DeveloperWorks -- 使用ipmitool实现Linux系统下对服务器的ipmi管理:http://www.ibm.com/developerworks/cn/linux/l-ipmi/
Dell -- Managing Dell PowerEdge Servers Using IPMItool:http://www.dell.com/downloads/global/power/ps4q04-20040204-Murphy.pdf
Zabbix IPMI checks:https://www.zabbix.com/documentation/3.2/manual/config/items/itemtypes/ipmi
使用IPMITOOL实现终端重定向(课外读物):http://docs.linuxtone.org/ebooks/Dell/ipmitool.pdf
4.配置IPMI
4.1.配置IPMI地址
　　可以参考前置推荐中的《Managing Dell PowerEdge Servers Using IPMItool》在服务器启动时进行IPMI地址的配置，并开启IPMI Over LAN。
也可以使用Dell的iDRAC开启IPMI功能，具体可以查看文章最后的参考资料。

4.2.获取传感器信息
　　登录Zabbix服务器，通过ipmitool远程访问Dell服务器传感器信息

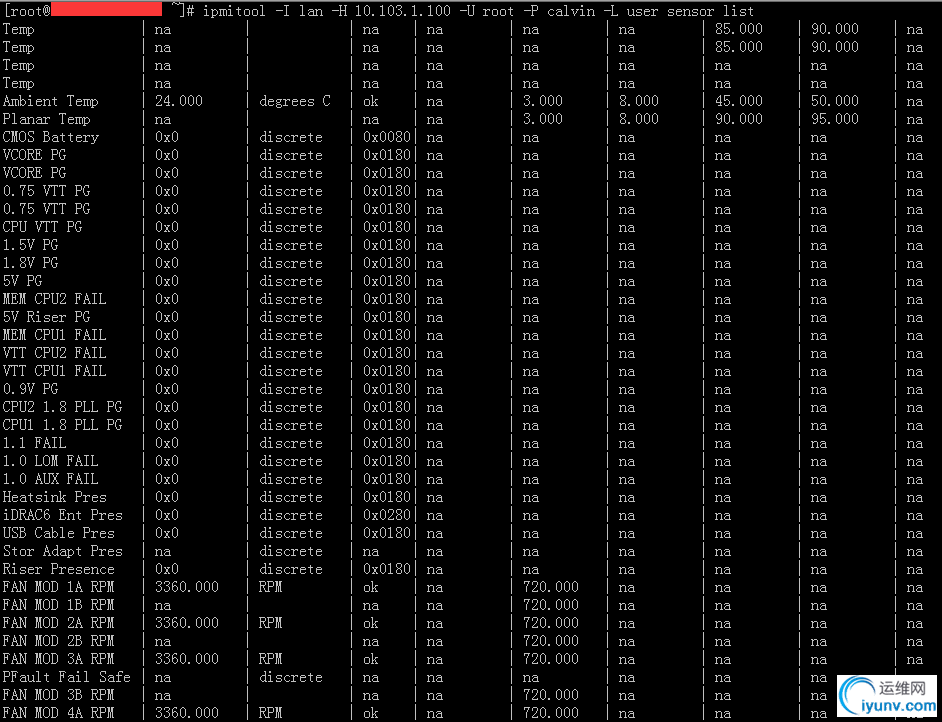

# ipmitool -I lan -H 10.103.1.100 -U root -P calvin -L user sensor list
# ipmitool -I lan -H 10.103.1.100 -U root -P calvin -L user sensor get "FAN MOD 1B RPM"

4.3.安装IPMItool软件包

# yum -y install OpenIPMI OpenIPMI-devel ipmitool freeipmi

4.4.配置Zabbix
　　注：为了支持IPMI,需要在zabbix server/proxy安装时增加--with-openipmi参数
　　服务器端配置zabbix IPMI pollers
zabbix_server.conf/zabbix_proxy.conf

# sed -i '/# StartIPMIPollers=0/aStartIPMIPollers=5' zabbix_server.conf
# service zabbix-server restart

4.5.导入监控模板
　　下面提供DELL的2个型号的IPMI模板：
template-ipmi-dell-poweredge-r510
template-ipmi-dell-poweredge-2950
添加监控主机，关联上本模板，并在IPMI页面，设置Authentication algorithm为Default,Privilege level为User, Username为sensor, Password为sensor_pass，保存即可。
使用此种方法获取数据的结果就是效率很差，基本没什么数据。
5.使用Zabbix External checks自定义IPMI
　　本来是选择nagios的IPMI插件：check_ipmi_sensor，文件是：check_ipmi_sensor_v3-v3.9.tar.gz
具体使用方法详见：http://www.thomas-krenn.com/en/wiki/IPMI_Sensor_Monitoring_Plugin
5.1.安装perl-IPC-Run模块

yum -y install perl-IPC-Run perl-Getopt-Long

5.2.使用check_ipmi_sensor查看效果
　　但是发现报错。

# ./check_ipmi_sensor -f ipmi.cfg -H 10.103.1.100 -vvv
------------- debug output for sel (-vvv is set): ------------
/usr/sbin/ipmi-sel was executed with the following parameters:
/usr/sbin/ipmi-sel -h 10.103.1.100 --config-file ipmi.cfg --driver-type=LAN_2_0 --output-event-state --interpret-oem-data --entity-sensor-names
output of FreeIPMI:
ID  | Date        | Time     | Name                                        | Type                     | State    | Event
1   | Apr-08-2011 | 06:42:13 | System Board SEL                            | Event Logging Disabled   | Nominal  | Log Area Reset/Cleared
2   | Jan-01-1970 | 08:00:31 | System Board Intrusion                      | Physical Security        | Critical | General Chassis Intrusion ; Intrusion while system Off
3   | Jan-01-1970 | 08:00:36 | System Board Intrusion                      | Physical Security        | Critical | General Chassis Intrusion ; Intrusion while system Off
4   | Aug-15-2011 | 23:09:53 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Critical | Drive Fault ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
5   | Aug-16-2011 | 11:38:25 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
6   | Aug-16-2011 | 11:38:25 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Critical | Drive Fault ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
7   | Aug-16-2011 | 11:38:55 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
8   | Jun-10-2012 | 22:41:13 | System Board Ambient Temp                   | Temperature              | Warning  | Upper Non-critical - going high ; Sensor Reading = 45.00 C ; Threshold = 45.00 C
9   | Jun-11-2012 | 02:53:53 | System Board Ambient Temp                   | Temperature              | Nominal  | Upper Non-critical - going high ; Sensor Reading = 43.00 C ; Threshold = 45.00 C
10  | Nov-05-2012 | 21:56:42 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Critical | Drive Fault ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
11  | Nov-14-2012 | 21:53:58 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
12  | Nov-14-2012 | 21:53:58 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Critical | Drive Fault ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
13  | Nov-14-2012 | 21:54:19 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
14  | Nov-15-2012 | 16:12:03 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Critical | Drive Fault ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
15  | Nov-17-2012 | 17:14:34 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
16  | Nov-17-2012 | 17:14:34 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Critical | Drive Fault ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
17  | Nov-17-2012 | 17:15:40 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
18  | Nov-19-2012 | 20:47:57 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
19  | Nov-19-2012 | 20:50:04 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
20  | Jan-01-1970 | 08:00:33 | System Board Intrusion                      | Physical Security        | Critical | General Chassis Intrusion ; Intrusion while system Off
21  | Jan-01-1970 | 08:00:38 | System Board Intrusion                      | Physical Security        | Critical | General Chassis Intrusion ; Intrusion while system Off
22  | Jun-27-2014 | 17:27:38 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
23  | Jun-27-2014 | 17:27:53 | Disk Drive Bay 1 Drive 2                    | Drive Slot               | Nominal  | Drive Presence ; OEM Event Data2 code = 01h ; OEM Event Data3 code = 02h
24  | Jan-01-1970 | 08:00:31 | System Board Intrusion                      | Physical Security        | Critical | General Chassis Intrusion ; Intrusion while system Off
25  | Jan-01-1970 | 08:00:36 | System Board Intrusion                      | Physical Security        | Critical | General Chassis Intrusion ; Intrusion while system Off
26  | Oct-31-2016 | 05:48:35 | System Board Ambient Temp                   | Temperature              | Warning  | Lower Non-critical - going low ; Sensor Reading = 8.00 C ; Threshold = 8.00 C
27  | Oct-31-2016 | 09:00:38 | System Board Ambient Temp                   | Temperature              | Nominal  | Lower Non-critical - going low ; Sensor Reading = 10.00 C ; Threshold = 8.00 C
------------- debug output for sensors (-vvv is set): ------------
script was executed with the following parameters:
./check_ipmi_sensor -f ipmi.cfg -H 10.103.1.100 -vvv
check_ipmi_sensor version:
3.9
FreeIPMI version:
ipmi-sensors - 1.2.9
FreeIPMI was executed with the following parameters:
/usr/sbin/ipmi-sensors -h 10.103.1.100 --config-file ipmi.cfg --quiet-cache --sdr-cache-recreate --interpret-oem-data --output-sensor-state --ignore-not-available-sensors --driver-type=LAN_2_0 --output-sensor-thresholds
FreeIPMI return code: 0
output of FreeIPMI:
Record ID | Sensor Name | Sensor Group | Monitoring Status | Sensor Units | Sensor Reading
5 | Ambient Temp | Temperature | Nominal | C | 28.000000
7 | CMOS Battery | Battery | Nominal | N/A | 'OK'
8 | VCORE PG | Voltage | Nominal | N/A | 'State Deasserted'
9 | VCORE PG | Voltage | Nominal | N/A | 'State Deasserted'
10 | 0.75 VTT PG | Voltage | Nominal | N/A | 'State Deasserted'
11 | 0.75 VTT PG | Voltage | Nominal | N/A | 'State Deasserted'
12 | CPU VTT PG | Voltage | Nominal | N/A | 'State Deasserted'
13 | 1.5V PG | Voltage | Nominal | N/A | 'State Deasserted'
14 | 1.8V PG | Voltage | Nominal | N/A | 'State Deasserted'
15 | 5V PG | Voltage | Nominal | N/A | 'State Deasserted'
16 | MEM CPU2 FAIL | Voltage | Nominal | N/A | 'State Deasserted'
17 | 5V Riser PG | Voltage | Nominal | N/A | 'State Deasserted'
18 | MEM CPU1 FAIL | Voltage | Nominal | N/A | 'State Deasserted'
19 | VTT CPU2 FAIL | Voltage | Nominal | N/A | 'State Deasserted'
20 | VTT CPU1 FAIL | Voltage | Nominal | N/A | 'State Deasserted'
21 | 0.9V PG | Voltage | Nominal | N/A | 'State Deasserted'
22 | CPU2 1.8 PLL PG | Voltage | Nominal | N/A | 'State Deasserted'
23 | CPU1 1.8 PLL PG | Voltage | Nominal | N/A | 'State Deasserted'
24 | 1.1 FAIL | Voltage | Nominal | N/A | 'State Deasserted'
25 | 1.0 LOM FAIL | Voltage | Nominal | N/A | 'State Deasserted'
26 | 1.0 AUX FAIL | Voltage | Nominal | N/A | 'State Deasserted'
27 | Heatsink Pres | Entity Presence | Nominal | N/A | 'Entity Present'
28 | iDRAC6 Ent Pres | Entity Presence | Critical | N/A | 'Entity Absent'
29 | USB Cable Pres | Entity Presence | Nominal | N/A | 'Entity Present'
31 | Riser Presence | Entity Presence | Nominal | N/A | 'Entity Present'
32 | FAN MOD 1A RPM | Fan | Nominal | RPM | 3480.000000
34 | FAN MOD 2A RPM | Fan | Nominal | RPM | 3480.000000
36 | FAN MOD 3A RPM | Fan | Nominal | RPM | 3480.000000
39 | FAN MOD 4A RPM | Fan | Nominal | RPM | 3480.000000
40 | Presence | Entity Presence | Nominal | N/A | 'Entity Present'
41 | Presence | Entity Presence | Nominal | N/A | 'Entity Present'
42 | Presence | Entity Presence | Nominal | N/A | 'Entity Present'
43 | Presence | Entity Presence | Nominal | N/A | 'Entity Present'
44 | Presence  | Entity Presence | Nominal | N/A | 'Entity Present'
45 | Status | Processor | Nominal | N/A | 'Processor Presence detected'
46 | Status | Processor | Nominal | N/A | 'Processor Presence detected'
47 | Status | Power Supply | Nominal | N/A | 'Presence detected'
48 | Current | Current | Nominal | A | 0.400000
49 | Current | Current | Nominal | A | 0.400000
50 | Voltage | Voltage | Nominal | V | 218.000000
51 | Voltage | Voltage | Nominal | V | 218.000000
52 | Status | Power Supply | Nominal | N/A | 'Presence detected'
53 | Status | Cable/Interconnect | Nominal | N/A | 'Cable/Interconnect is connected'
54 | OS Watchdog | Watchdog 2 | Nominal | N/A | 'OK'
56 | Intrusion | Physical Security | Nominal | N/A | 'OK'
57 | PS Redundancy | Power Supply | Nominal | N/A | 'Fully Redundant'
58 | Fan Redundancy | Fan | Nominal | N/A | 'Fully Redundant'
60 | System Level | Current | Nominal | W | 168.000000
61 | Power Optimized | OEM Reserved | Nominal | N/A | 'Good'
62 | Drive | Drive Slot | Nominal | N/A | 'Drive Presence'
65 | Cable SAS A | Cable/Interconnect | Nominal | N/A | 'Cable/Interconnect is connected'
66 | Cable SAS B | Cable/Interconnect | Nominal | N/A | 'Cable/Interconnect is connected'
67 | DKM Status | OEM Reserved | N/A | N/A | 'OEM Event = 0000h'
119 | FAN MOD 5A RPM | Fan | Nominal | RPM | 3480.000000
--------------------- end of debug output ---------------------
IPMI Status: Use of uninitialized value in string ne at ./check_ipmi_sensor line 737.
