CentOS 7.5安装部署Jewel版本Ceph集群

fgdfg

参考文档

　　https://www.linuxidc.com/Linux/2017-09/146760.htm
https://www.cnblogs.com/luohaixian/p/8087591.html
http://docs.ceph.com/docs/master/start/quick-start-preflight/#rhel-centos

简介

　　Ceph的核心组件包括Ceph OSD、Ceph Monitor、Ceph MDS和Ceph RWG。
Ceph OSD：OSD的英文全称是Object Storage Device，它的主要功能是存储数据、复制数据、平衡数据、恢复数据等，与其它OSD间进行心跳检查等，并将一些变化情况上报给Ceph Monitor。一般情况下一块硬盘对应一个OSD，由OSD来对硬盘存储进行管理，当然一个分区也可以成为一个OSD。
Ceph Monitor：由该英文名字我们可以知道它是一个监视器，负责监视Ceph集群，维护Ceph集群的健康状态，同时维护着Ceph集群中的各种Map图，比如OSD Map、Monitor Map、PG Map和CRUSH Map，这些Map统称为Cluster Map，Cluster Map是RADOS的关键数据结构，管理集群中的所有成员、关系、属性等信息以及数据的分发，比如当用户需要存储数据到Ceph集群时，OSD需要先通过Monitor获取最新的Map图，然后根据Map图和object id等计算出数据最终存储的位置。
Ceph MDS：全称是Ceph MetaData Server，主要保存的文件系统服务的元数据，但对象存储和块存储设备是不需要使用该服务的。
Ceph RWG：RGW为Rados Gateway的缩写，ceph通过RGW为互联网云服务提供商提供对象存储服务。RGW在librados之上向应用提供访问ceph集群的RestAPI， 支持Amazon S3和openstack swift两种接口。对RGW最直接的理解就是一个协议转换层，把从上层应用符合S3或Swift协议的请求转换成rados的请求， 将数据保存在rados集群中。

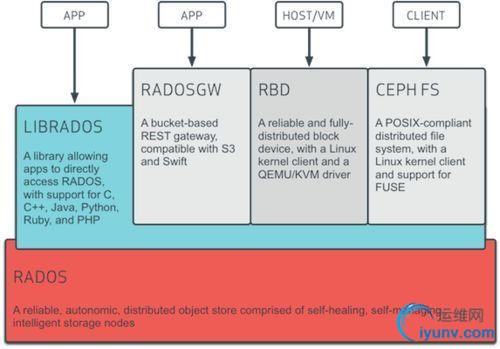

架构图

安装部署
一、基础环境
　　0、服务分布

　　mon    ceph0、ceph2、cphe3 注意mon为奇数节点
osd     ceph0、ceph1、ceph2、ceph3
rgw     ceph1
deploy  ceph0

　　1、host解析

　　[root@idcv-ceph0 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
172.20.1.138    idcv-ceph0
172.20.1.139    idcv-ceph1
172.20.1.140    idcv-ceph2
172.20.1.141    idcv-ceph3

　　2、ntp时间同步

　　[root@idcv-ceph0 ~]# ntpdate 172.20.0.63

　　3、ssh免密码登陆

　　[root@idcv-ceph0 ~]# ssh-keygen
[root@idcv-ceph0 ~]# ssh-copy-id root@idcv-ceph1
[root@idcv-ceph0 ~]# ssh-copy-id root@idcv-ceph2
[root@idcv-ceph0 ~]# ssh-copy-id root@idcv-ceph3

　　4、update系统

　　[root@idcv-ceph0 ~]# yum update

　　5、关闭selinux

　　[root@idcv-ceph0 ~]# sed -i 's/enforcing/disabled/g' /etc/selinux/config

　　6、关闭iptables

　　[root@idcv-ceph0 ~]# systemctl disable firewalld

　　7、reboot

　　[root@idcv-ceph0 ~]# reboot

二、安装部署deploy节点
　　1、设置国内yum源

　　[root@idcv-ceph0 ~]# cat /etc/yum.repos.d/ceph.repo
[Ceph]
name=Ceph packages for $basearch
baseurl=http://mirrors.aliyun.com/ceph/rpm-jewel/el7/$basearch
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc
priority=1
[Ceph-noarch]
name=Ceph noarch packages
baseurl=http://mirrors.aliyun.com/ceph/rpm-jewel/el7/noarch
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc
priority=1
[ceph-source]
name=Ceph source packages
baseurl=http://mirrors.aliyun.com/ceph/rpm-jewel/el7/SRPMS
enabled=1
gpgcheck=1
type=rpm-md
gpgkey=https://mirrors.aliyun.com/ceph/keys/release.asc
priority=1

　　2、安装ceph-deploy

　　[root@idcv-ceph0 ~]# yum install ceph-deploy
[root@idcv-ceph0 ~]# ceph-deploy --version
1.5.39
[root@idcv-ceph0 ~]# ceph -v
ceph version 10.2.10 (5dc1e4c05cb68dbf62ae6fce3f0700e4654fdbbe)

　　3、创建部署目录并部署集群

　　[root@idcv-ceph0 ~]# mkdir cluster
[root@idcv-ceph0 ~]# cd cluster
[root@idcv-ceph0 cluster]# ceph-deploy new idcv-ceph0 idcv-ceph1  idcv-ceph2 idcv-ceph3
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy new idcv-ceph0 idcv-ceph1 idcv-ceph2 idcv-ceph3
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  overwrite_conf                : False
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  ssh_copykey                   : True
[ceph_deploy.cli][INFO  ]  mon                           : ['idcv-ceph0', 'idcv-ceph1', 'idcv-ceph2', 'idcv-ceph3']
[ceph_deploy.cli][INFO  ]  public_network                : None
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  cluster_network               : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.cli][INFO  ]  fsid                          : None
[ceph_deploy.new][DEBUG ] Creating new cluster named ceph
[ceph_deploy.new][INFO  ] making sure passwordless SSH succeeds
[idcv-ceph0][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph0][DEBUG ] detect platform information from remote host
[idcv-ceph0][DEBUG ] detect machine type
[idcv-ceph0][DEBUG ] find the location of an executable
[idcv-ceph0][INFO  ] Running command: /usr/sbin/ip link show
[idcv-ceph0][INFO  ] Running command: /usr/sbin/ip addr show
[idcv-ceph0][DEBUG ] IP addresses found: [u'172.20.1.138']
[ceph_deploy.new][DEBUG ] Resolving host idcv-ceph0
[ceph_deploy.new][DEBUG ] Monitor idcv-ceph0 at 172.20.1.138
[ceph_deploy.new][INFO  ] making sure passwordless SSH succeeds
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph1][INFO  ] Running command: ssh -CT -o BatchMode=yes idcv-ceph1
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[idcv-ceph1][DEBUG ] find the location of an executable
[idcv-ceph1][INFO  ] Running command: sudo /usr/sbin/ip link show
[idcv-ceph1][INFO  ] Running command: sudo /usr/sbin/ip addr show
[idcv-ceph1][DEBUG ] IP addresses found: [u'172.20.1.139']
[ceph_deploy.new][DEBUG ] Resolving host idcv-ceph1
[ceph_deploy.new][DEBUG ] Monitor idcv-ceph1 at 172.20.1.139
[ceph_deploy.new][INFO  ] making sure passwordless SSH succeeds
[idcv-ceph2][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph2][INFO  ] Running command: ssh -CT -o BatchMode=yes idcv-ceph2
[idcv-ceph2][DEBUG ] connection detected need for sudo
[idcv-ceph2][DEBUG ] connected to host: idcv-ceph2
[idcv-ceph2][DEBUG ] detect platform information from remote host
[idcv-ceph2][DEBUG ] detect machine type
[idcv-ceph2][DEBUG ] find the location of an executable
[idcv-ceph2][INFO  ] Running command: sudo /usr/sbin/ip link show
[idcv-ceph2][INFO  ] Running command: sudo /usr/sbin/ip addr show
[idcv-ceph2][DEBUG ] IP addresses found: [u'172.20.1.140']
[ceph_deploy.new][DEBUG ] Resolving host idcv-ceph2
[ceph_deploy.new][DEBUG ] Monitor idcv-ceph2 at 172.20.1.140
[ceph_deploy.new][INFO  ] making sure passwordless SSH succeeds
[idcv-ceph3][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph3][INFO  ] Running command: ssh -CT -o BatchMode=yes idcv-ceph3
[idcv-ceph3][DEBUG ] connection detected need for sudo
[idcv-ceph3][DEBUG ] connected to host: idcv-ceph3
[idcv-ceph3][DEBUG ] detect platform information from remote host
[idcv-ceph3][DEBUG ] detect machine type
[idcv-ceph3][DEBUG ] find the location of an executable
[idcv-ceph3][INFO  ] Running command: sudo /usr/sbin/ip link show
[idcv-ceph3][INFO  ] Running command: sudo /usr/sbin/ip addr show
[idcv-ceph3][DEBUG ] IP addresses found: [u'172.20.1.141']
[ceph_deploy.new][DEBUG ] Resolving host idcv-ceph3
[ceph_deploy.new][DEBUG ] Monitor idcv-ceph3 at 172.20.1.141
[ceph_deploy.new][DEBUG ] Monitor initial members are ['idcv-ceph0', 'idcv-ceph1', 'idcv-ceph2', 'idcv-ceph3']
[ceph_deploy.new][DEBUG ] Monitor addrs are ['172.20.1.138', '172.20.1.139', '172.20.1.140', '172.20.1.141']
[ceph_deploy.new][DEBUG ] Creating a random mon key...
[ceph_deploy.new][DEBUG ] Writing monitor keyring to ceph.mon.keyring...
[ceph_deploy.new][DEBUG ] Writing initial config to ceph.conf...

三、安装mon服务
　　1、修改cpeh.conf文件
注意mon为奇数，如果为偶数，有一个不会安装，另外设置好public_network，并稍微增大mon之间时差允许范围(默认为0.05s，现改为2s)

　　[root@idcv-ceph0 cluster]# cat ceph.conf
[global]
fsid = 812d3acb-eaa8-4355-9a74-64f2cd5209b3
mon_initial_members = idcv-ceph0, idcv-ceph1, idcv-ceph2, idcv-ceph3
mon_host = 172.20.1.138,172.20.1.139,172.20.1.140,172.20.1.141
auth_cluster_required = cephx
auth_service_required = cephx
auth_client_required = cephx
public_network = 172.20.0.0/20
mon_clock_drift_allowed = 2

　　2、开始部署mon服务

　　[root@idcv-ceph0 cluster]#  ceph-deploy mon create-initial
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy mon create-initial
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  overwrite_conf                : False
[ceph_deploy.cli][INFO  ]  subcommand                    : create-initial
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.cli][INFO  ]  keyrings                      : None
[ceph_deploy.mon][DEBUG ] Deploying mon, cluster ceph hosts idcv-ceph0 idcv-ceph1 idcv-ceph2 idcv-ceph3
[ceph_deploy.mon][DEBUG ] detecting platform for host idcv-ceph0 ...
[idcv-ceph0][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph0][DEBUG ] detect platform information from remote host
[idcv-ceph0][DEBUG ] detect machine type
[idcv-ceph0][DEBUG ] find the location of an executable
[ceph_deploy.mon][INFO  ] distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph0][DEBUG ] determining if provided host has same hostname in remote
[idcv-ceph0][DEBUG ] get remote short hostname
[idcv-ceph0][DEBUG ] deploying mon to idcv-ceph0
[idcv-ceph0][DEBUG ] get remote short hostname
[idcv-ceph0][DEBUG ] remote hostname: idcv-ceph0
[idcv-ceph0][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[idcv-ceph0][DEBUG ] create the mon path if it does not exist
[idcv-ceph0][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-idcv-ceph0/done
[idcv-ceph0][DEBUG ] done path does not exist: /var/lib/ceph/mon/ceph-idcv-ceph0/done
[idcv-ceph0][INFO  ] creating keyring file: /var/lib/ceph/tmp/ceph-idcv-ceph0.mon.keyring
[idcv-ceph0][DEBUG ] create the monitor keyring file
[idcv-ceph0][INFO  ] Running command: ceph-mon --cluster ceph --mkfs -i idcv-ceph0 --keyring /var/lib/ceph/tmp/ceph-idcv-ceph0.mon.keyring --setuser 167 --setgroup 167
[idcv-ceph0][DEBUG ] ceph-mon: renaming mon.noname-a 172.20.1.138:6789/0 to mon.idcv-ceph0
[idcv-ceph0][DEBUG ] ceph-mon: set fsid to 812d3acb-eaa8-4355-9a74-64f2cd5209b3
[idcv-ceph0][DEBUG ] ceph-mon: created monfs at /var/lib/ceph/mon/ceph-idcv-ceph0 for mon.idcv-ceph0
[idcv-ceph0][INFO  ] unlinking keyring file /var/lib/ceph/tmp/ceph-idcv-ceph0.mon.keyring
[idcv-ceph0][DEBUG ] create a done file to avoid re-doing the mon deployment
[idcv-ceph0][DEBUG ] create the init path if it does not exist
[idcv-ceph0][INFO  ] Running command: systemctl enable ceph.target
[idcv-ceph0][INFO  ] Running command: systemctl enable ceph-mon@idcv-ceph0
[idcv-ceph0][WARNIN] Created symlink from /etc/systemd/system/ceph-mon.target.wants/ceph-mon@idcv-ceph0.service to /usr/lib/systemd/system/ceph-mon@.service.
[idcv-ceph0][INFO  ] Running command: systemctl start ceph-mon@idcv-ceph0
[idcv-ceph0][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph0.asok mon_status
[idcv-ceph0][DEBUG ] ****
[idcv-ceph0][DEBUG ] status for monitor: mon.idcv-ceph0
[idcv-ceph0][DEBUG ] {
[idcv-ceph0][DEBUG ]   "election_epoch": 0,
[idcv-ceph0][DEBUG ]   "extra_probe_peers": [
[idcv-ceph0][DEBUG ]     "172.20.1.139:6789/0",
[idcv-ceph0][DEBUG ]     "172.20.1.140:6789/0",
[idcv-ceph0][DEBUG ]     "172.20.1.141:6789/0"
[idcv-ceph0][DEBUG ]   ],
[idcv-ceph0][DEBUG ]   "monmap": {
[idcv-ceph0][DEBUG ]     "created": "2018-07-03 11:06:12.249491",
[idcv-ceph0][DEBUG ]     "epoch": 0,
[idcv-ceph0][DEBUG ]     "fsid": "812d3acb-eaa8-4355-9a74-64f2cd5209b3",
[idcv-ceph0][DEBUG ]     "modified": "2018-07-03 11:06:12.249491",
[idcv-ceph0][DEBUG ]     "mons": [
[idcv-ceph0][DEBUG ]       {
[idcv-ceph0][DEBUG ]         "addr": "172.20.1.138:6789/0",
[idcv-ceph0][DEBUG ]         "name": "idcv-ceph0",
[idcv-ceph0][DEBUG ]         "rank": 0
[idcv-ceph0][DEBUG ]       },
[idcv-ceph0][DEBUG ]       {
[idcv-ceph0][DEBUG ]         "addr": "0.0.0.0:0/1",
[idcv-ceph0][DEBUG ]         "name": "idcv-ceph1",
[idcv-ceph0][DEBUG ]         "rank": 1
[idcv-ceph0][DEBUG ]       },
[idcv-ceph0][DEBUG ]       {
[idcv-ceph0][DEBUG ]         "addr": "0.0.0.0:0/2",
[idcv-ceph0][DEBUG ]         "name": "idcv-ceph2",
[idcv-ceph0][DEBUG ]         "rank": 2
[idcv-ceph0][DEBUG ]       },
[idcv-ceph0][DEBUG ]       {
[idcv-ceph0][DEBUG ]         "addr": "0.0.0.0:0/3",
[idcv-ceph0][DEBUG ]         "name": "idcv-ceph3",
[idcv-ceph0][DEBUG ]         "rank": 3
[idcv-ceph0][DEBUG ]       }
[idcv-ceph0][DEBUG ]     ]
[idcv-ceph0][DEBUG ]   },
[idcv-ceph0][DEBUG ]   "name": "idcv-ceph0",
[idcv-ceph0][DEBUG ]   "outside_quorum": [
[idcv-ceph0][DEBUG ]     "idcv-ceph0"
[idcv-ceph0][DEBUG ]   ],
[idcv-ceph0][DEBUG ]   "quorum": [],
[idcv-ceph0][DEBUG ]   "rank": 0,
[idcv-ceph0][DEBUG ]   "state": "probing",
[idcv-ceph0][DEBUG ]   "sync_provider": []
[idcv-ceph0][DEBUG ] }
[idcv-ceph0][DEBUG ] ****
[idcv-ceph0][INFO  ] monitor: mon.idcv-ceph0 is running
[idcv-ceph0][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph0.asok mon_status
[ceph_deploy.mon][DEBUG ] detecting platform for host idcv-ceph1 ...
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[idcv-ceph1][DEBUG ] find the location of an executable
[ceph_deploy.mon][INFO  ] distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph1][DEBUG ] determining if provided host has same hostname in remote
[idcv-ceph1][DEBUG ] get remote short hostname
[idcv-ceph1][DEBUG ] deploying mon to idcv-ceph1
[idcv-ceph1][DEBUG ] get remote short hostname
[idcv-ceph1][DEBUG ] remote hostname: idcv-ceph1
[idcv-ceph1][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.mon][ERROR ] RuntimeError: config file /etc/ceph/ceph.conf exists with different content; use --overwrite-conf to overwrite
[ceph_deploy.mon][DEBUG ] detecting platform for host idcv-ceph2 ...
[idcv-ceph2][DEBUG ] connection detected need for sudo
[idcv-ceph2][DEBUG ] connected to host: idcv-ceph2
[idcv-ceph2][DEBUG ] detect platform information from remote host
[idcv-ceph2][DEBUG ] detect machine type
[idcv-ceph2][DEBUG ] find the location of an executable
[ceph_deploy.mon][INFO  ] distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph2][DEBUG ] determining if provided host has same hostname in remote
[idcv-ceph2][DEBUG ] get remote short hostname
[idcv-ceph2][DEBUG ] deploying mon to idcv-ceph2
[idcv-ceph2][DEBUG ] get remote short hostname
[idcv-ceph2][DEBUG ] remote hostname: idcv-ceph2
[idcv-ceph2][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[idcv-ceph2][DEBUG ] create the mon path if it does not exist
[idcv-ceph2][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-idcv-ceph2/done
[idcv-ceph2][DEBUG ] done path does not exist: /var/lib/ceph/mon/ceph-idcv-ceph2/done
[idcv-ceph2][INFO  ] creating keyring file: /var/lib/ceph/tmp/ceph-idcv-ceph2.mon.keyring
[idcv-ceph2][DEBUG ] create the monitor keyring file
[idcv-ceph2][INFO  ] Running command: sudo ceph-mon --cluster ceph --mkfs -i idcv-ceph2 --keyring /var/lib/ceph/tmp/ceph-idcv-ceph2.mon.keyring --setuser 167 --setgroup 167
[idcv-ceph2][DEBUG ] ceph-mon: renaming mon.noname-c 172.20.1.140:6789/0 to mon.idcv-ceph2
[idcv-ceph2][DEBUG ] ceph-mon: set fsid to 812d3acb-eaa8-4355-9a74-64f2cd5209b3
[idcv-ceph2][DEBUG ] ceph-mon: created monfs at /var/lib/ceph/mon/ceph-idcv-ceph2 for mon.idcv-ceph2
[idcv-ceph2][INFO  ] unlinking keyring file /var/lib/ceph/tmp/ceph-idcv-ceph2.mon.keyring
[idcv-ceph2][DEBUG ] create a done file to avoid re-doing the mon deployment
[idcv-ceph2][DEBUG ] create the init path if it does not exist
[idcv-ceph2][INFO  ] Running command: sudo systemctl enable ceph.target
[idcv-ceph2][INFO  ] Running command: sudo systemctl enable ceph-mon@idcv-ceph2
[idcv-ceph2][WARNIN] Created symlink from /etc/systemd/system/ceph-mon.target.wants/ceph-mon@idcv-ceph2.service to /usr/lib/systemd/system/ceph-mon@.service.
[idcv-ceph2][INFO  ] Running command: sudo systemctl start ceph-mon@idcv-ceph2
[idcv-ceph2][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph2.asok mon_status
[idcv-ceph2][DEBUG ] ****
[idcv-ceph2][DEBUG ] status for monitor: mon.idcv-ceph2
[idcv-ceph2][DEBUG ] {
[idcv-ceph2][DEBUG ]   "election_epoch": 0,
[idcv-ceph2][DEBUG ]   "extra_probe_peers": [
[idcv-ceph2][DEBUG ]     "172.20.1.138:6789/0",
[idcv-ceph2][DEBUG ]     "172.20.1.139:6789/0",
[idcv-ceph2][DEBUG ]     "172.20.1.141:6789/0"
[idcv-ceph2][DEBUG ]   ],
[idcv-ceph2][DEBUG ]   "monmap": {
[idcv-ceph2][DEBUG ]     "created": "2018-07-03 11:06:15.703352",
[idcv-ceph2][DEBUG ]     "epoch": 0,
[idcv-ceph2][DEBUG ]     "fsid": "812d3acb-eaa8-4355-9a74-64f2cd5209b3",
[idcv-ceph2][DEBUG ]     "modified": "2018-07-03 11:06:15.703352",
[idcv-ceph2][DEBUG ]     "mons": [
[idcv-ceph2][DEBUG ]       {
[idcv-ceph2][DEBUG ]         "addr": "172.20.1.138:6789/0",
[idcv-ceph2][DEBUG ]         "name": "idcv-ceph0",
[idcv-ceph2][DEBUG ]         "rank": 0
[idcv-ceph2][DEBUG ]       },
[idcv-ceph2][DEBUG ]       {
[idcv-ceph2][DEBUG ]         "addr": "172.20.1.140:6789/0",
[idcv-ceph2][DEBUG ]         "name": "idcv-ceph2",
[idcv-ceph2][DEBUG ]         "rank": 1
[idcv-ceph2][DEBUG ]       },
[idcv-ceph2][DEBUG ]       {
[idcv-ceph2][DEBUG ]         "addr": "0.0.0.0:0/2",
[idcv-ceph2][DEBUG ]         "name": "idcv-ceph1",
[idcv-ceph2][DEBUG ]         "rank": 2
[idcv-ceph2][DEBUG ]       },
[idcv-ceph2][DEBUG ]       {
[idcv-ceph2][DEBUG ]         "addr": "0.0.0.0:0/3",
[idcv-ceph2][DEBUG ]         "name": "idcv-ceph3",
[idcv-ceph2][DEBUG ]         "rank": 3
[idcv-ceph2][DEBUG ]       }
[idcv-ceph2][DEBUG ]     ]
[idcv-ceph2][DEBUG ]   },
[idcv-ceph2][DEBUG ]   "name": "idcv-ceph2",
[idcv-ceph2][DEBUG ]   "outside_quorum": [
[idcv-ceph2][DEBUG ]     "idcv-ceph0",
[idcv-ceph2][DEBUG ]     "idcv-ceph2"
[idcv-ceph2][DEBUG ]   ],
[idcv-ceph2][DEBUG ]   "quorum": [],
[idcv-ceph2][DEBUG ]   "rank": 1,
[idcv-ceph2][DEBUG ]   "state": "probing",
[idcv-ceph2][DEBUG ]   "sync_provider": []
[idcv-ceph2][DEBUG ] }
[idcv-ceph2][DEBUG ] ****
[idcv-ceph2][INFO  ] monitor: mon.idcv-ceph2 is running
[idcv-ceph2][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph2.asok mon_status
[ceph_deploy.mon][DEBUG ] detecting platform for host idcv-ceph3 ...
[idcv-ceph3][DEBUG ] connection detected need for sudo
[idcv-ceph3][DEBUG ] connected to host: idcv-ceph3
[idcv-ceph3][DEBUG ] detect platform information from remote host
[idcv-ceph3][DEBUG ] detect machine type
[idcv-ceph3][DEBUG ] find the location of an executable
[ceph_deploy.mon][INFO  ] distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph3][DEBUG ] determining if provided host has same hostname in remote
[idcv-ceph3][DEBUG ] get remote short hostname
[idcv-ceph3][DEBUG ] deploying mon to idcv-ceph3
[idcv-ceph3][DEBUG ] get remote short hostname
[idcv-ceph3][DEBUG ] remote hostname: idcv-ceph3
[idcv-ceph3][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[idcv-ceph3][DEBUG ] create the mon path if it does not exist
[idcv-ceph3][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-idcv-ceph3/done
[idcv-ceph3][DEBUG ] done path does not exist: /var/lib/ceph/mon/ceph-idcv-ceph3/done
[idcv-ceph3][INFO  ] creating keyring file: /var/lib/ceph/tmp/ceph-idcv-ceph3.mon.keyring
[idcv-ceph3][DEBUG ] create the monitor keyring file
[idcv-ceph3][INFO  ] Running command: sudo ceph-mon --cluster ceph --mkfs -i idcv-ceph3 --keyring /var/lib/ceph/tmp/ceph-idcv-ceph3.mon.keyring --setuser 167 --setgroup 167
[idcv-ceph3][DEBUG ] ceph-mon: renaming mon.noname-d 172.20.1.141:6789/0 to mon.idcv-ceph3
[idcv-ceph3][DEBUG ] ceph-mon: set fsid to 812d3acb-eaa8-4355-9a74-64f2cd5209b3
[idcv-ceph3][DEBUG ] ceph-mon: created monfs at /var/lib/ceph/mon/ceph-idcv-ceph3 for mon.idcv-ceph3
[idcv-ceph3][INFO  ] unlinking keyring file /var/lib/ceph/tmp/ceph-idcv-ceph3.mon.keyring
[idcv-ceph3][DEBUG ] create a done file to avoid re-doing the mon deployment
[idcv-ceph3][DEBUG ] create the init path if it does not exist
[idcv-ceph3][INFO  ] Running command: sudo systemctl enable ceph.target
[idcv-ceph3][INFO  ] Running command: sudo systemctl enable ceph-mon@idcv-ceph3
[idcv-ceph3][WARNIN] Created symlink from /etc/systemd/system/ceph-mon.target.wants/ceph-mon@idcv-ceph3.service to /usr/lib/systemd/system/ceph-mon@.service.
[idcv-ceph3][INFO  ] Running command: sudo systemctl start ceph-mon@idcv-ceph3
[idcv-ceph3][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph3.asok mon_status
[idcv-ceph3][DEBUG ] ****
[idcv-ceph3][DEBUG ] status for monitor: mon.idcv-ceph3
[idcv-ceph3][DEBUG ] {
[idcv-ceph3][DEBUG ]   "election_epoch": 1,
[idcv-ceph3][DEBUG ]   "extra_probe_peers": [
[idcv-ceph3][DEBUG ]     "172.20.1.138:6789/0",
[idcv-ceph3][DEBUG ]     "172.20.1.139:6789/0",
[idcv-ceph3][DEBUG ]     "172.20.1.140:6789/0"
[idcv-ceph3][DEBUG ]   ],
[idcv-ceph3][DEBUG ]   "monmap": {
[idcv-ceph3][DEBUG ]     "created": "2018-07-03 11:06:18.695039",
[idcv-ceph3][DEBUG ]     "epoch": 0,
[idcv-ceph3][DEBUG ]     "fsid": "812d3acb-eaa8-4355-9a74-64f2cd5209b3",
[idcv-ceph3][DEBUG ]     "modified": "2018-07-03 11:06:18.695039",
[idcv-ceph3][DEBUG ]     "mons": [
[idcv-ceph3][DEBUG ]       {
[idcv-ceph3][DEBUG ]         "addr": "172.20.1.138:6789/0",
[idcv-ceph3][DEBUG ]         "name": "idcv-ceph0",
[idcv-ceph3][DEBUG ]         "rank": 0
[idcv-ceph3][DEBUG ]       },
[idcv-ceph3][DEBUG ]       {
[idcv-ceph3][DEBUG ]         "addr": "172.20.1.140:6789/0",
[idcv-ceph3][DEBUG ]         "name": "idcv-ceph2",
[idcv-ceph3][DEBUG ]         "rank": 1
[idcv-ceph3][DEBUG ]       },
[idcv-ceph3][DEBUG ]       {
[idcv-ceph3][DEBUG ]         "addr": "172.20.1.141:6789/0",
[idcv-ceph3][DEBUG ]         "name": "idcv-ceph3",
[idcv-ceph3][DEBUG ]         "rank": 2
[idcv-ceph3][DEBUG ]       },
[idcv-ceph3][DEBUG ]       {
[idcv-ceph3][DEBUG ]         "addr": "0.0.0.0:0/2",
[idcv-ceph3][DEBUG ]         "name": "idcv-ceph1",
[idcv-ceph3][DEBUG ]         "rank": 3
[idcv-ceph3][DEBUG ]       }
[idcv-ceph3][DEBUG ]     ]
[idcv-ceph3][DEBUG ]   },
[idcv-ceph3][DEBUG ]   "name": "idcv-ceph3",
[idcv-ceph3][DEBUG ]   "outside_quorum": [],
[idcv-ceph3][DEBUG ]   "quorum": [],
[idcv-ceph3][DEBUG ]   "rank": 2,
[idcv-ceph3][DEBUG ]   "state": "electing",
[idcv-ceph3][DEBUG ]   "sync_provider": []
[idcv-ceph3][DEBUG ] }
[idcv-ceph3][DEBUG ] ****
[idcv-ceph3][INFO  ] monitor: mon.idcv-ceph3 is running
[idcv-ceph3][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph3.asok mon_status
[ceph_deploy][ERROR ] GenericError: Failed to create 1 monitors

　　3、注意mon节点只能是奇数，根据上面报错有一个节点没有安装成功mon服务，需要把idcv-ceph1删掉

　　[root@idcv-ceph0 cluster]# cat ceph.conf
[global]
fsid = 812d3acb-eaa8-4355-9a74-64f2cd5209b3
mon_initial_members = idcv-ceph0, idcv-ceph1, idcv-ceph2, idcv-ceph3
mon_host = 172.20.1.138,172.20.1.139,172.20.1.140,172.20.1.141
auth_cluster_required = cephx
auth_service_required = cephx
auth_client_required = cephx
public_network = 172.20.0.0/20
mon_clock_drift_allowed = 2
[root@idcv-ceph0 cluster]# ceph mon remove idcv-ceph1
removing mon.idcv-ceph1 at 0.0.0.0:0/1, there will be 3 monitors
[root@idcv-ceph0 cluster]# ceph -s
cluster 812d3acb-eaa8-4355-9a74-64f2cd5209b3
health HEALTH_ERR
64 pgs are stuck inactive for more than 300 seconds
64 pgs stuck inactive
64 pgs stuck unclean
no osds
monmap e2: 3 mons at {idcv-ceph0=172.20.1.138:6789/0,idcv-ceph2=172.20.1.140:6789/0,idcv-ceph3=172.20.1.141:6789/0}
election epoch 8, quorum 0,1,2 idcv-ceph0,idcv-ceph2,idcv-ceph3
osdmap e1: 0 osds: 0 up, 0 in
flags sortbitwise,require_jewel_osds
pgmap v2: 64 pgs, 1 pools, 0 bytes data, 0 objects
0 kB used, 0 kB / 0 kB avail
64 creating

　　4、也可以修改ceph.conf文件，再覆盖部署一次

　　[root@idcv-ceph0 cluster]# cat ceph.conf
[global]
fsid = 812d3acb-eaa8-4355-9a74-64f2cd5209b3
mon_initial_members = idcv-ceph0, idcv-ceph2, idcv-ceph3
mon_host = 172.20.1.138,172.20.1.140,172.20.1.141
auth_cluster_required = cephx
auth_service_required = cephx
auth_client_required = cephx
public_network = 172.20.0.0/20
mon_clock_drift_allowed = 2
　　[root@idcv-ceph0 cluster]#   ceph-deploy --overwrite-conf mon create-initial
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy --overwrite-conf mon create-initial
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  overwrite_conf                : True
[ceph_deploy.cli][INFO  ]  subcommand                    : create-initial
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.cli][INFO  ]  keyrings                      : None
[ceph_deploy.mon][DEBUG ] Deploying mon, cluster ceph hosts idcv-ceph0 idcv-ceph2 idcv-ceph3
[ceph_deploy.mon][DEBUG ] detecting platform for host idcv-ceph0 ...
[idcv-ceph0][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph0][DEBUG ] detect platform information from remote host
[idcv-ceph0][DEBUG ] detect machine type
[idcv-ceph0][DEBUG ] find the location of an executable
[ceph_deploy.mon][INFO  ] distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph0][DEBUG ] determining if provided host has same hostname in remote
[idcv-ceph0][DEBUG ] get remote short hostname
[idcv-ceph0][DEBUG ] deploying mon to idcv-ceph0
[idcv-ceph0][DEBUG ] get remote short hostname
[idcv-ceph0][DEBUG ] remote hostname: idcv-ceph0
[idcv-ceph0][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[idcv-ceph0][DEBUG ] create the mon path if it does not exist
[idcv-ceph0][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-idcv-ceph0/done
[idcv-ceph0][DEBUG ] create a done file to avoid re-doing the mon deployment
[idcv-ceph0][DEBUG ] create the init path if it does not exist
[idcv-ceph0][INFO  ] Running command: systemctl enable ceph.target
[idcv-ceph0][INFO  ] Running command: systemctl enable ceph-mon@idcv-ceph0
[idcv-ceph0][INFO  ] Running command: systemctl start ceph-mon@idcv-ceph0
[idcv-ceph0][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph0.asok mon_status
[idcv-ceph0][DEBUG ] ****
[idcv-ceph0][DEBUG ] status for monitor: mon.idcv-ceph0
[idcv-ceph0][DEBUG ] {
[idcv-ceph0][DEBUG ]   "election_epoch": 8,
[idcv-ceph0][DEBUG ]   "extra_probe_peers": [
[idcv-ceph0][DEBUG ]     "172.20.1.139:6789/0",
[idcv-ceph0][DEBUG ]     "172.20.1.140:6789/0",
[idcv-ceph0][DEBUG ]     "172.20.1.141:6789/0"
[idcv-ceph0][DEBUG ]   ],
[idcv-ceph0][DEBUG ]   "monmap": {
[idcv-ceph0][DEBUG ]     "created": "2018-07-03 11:06:12.249491",
[idcv-ceph0][DEBUG ]     "epoch": 2,
[idcv-ceph0][DEBUG ]     "fsid": "812d3acb-eaa8-4355-9a74-64f2cd5209b3",
[idcv-ceph0][DEBUG ]     "modified": "2018-07-03 11:21:27.254076",
[idcv-ceph0][DEBUG ]     "mons": [
[idcv-ceph0][DEBUG ]       {
[idcv-ceph0][DEBUG ]         "addr": "172.20.1.138:6789/0",
[idcv-ceph0][DEBUG ]         "name": "idcv-ceph0",
[idcv-ceph0][DEBUG ]         "rank": 0
[idcv-ceph0][DEBUG ]       },
[idcv-ceph0][DEBUG ]       {
[idcv-ceph0][DEBUG ]         "addr": "172.20.1.140:6789/0",
[idcv-ceph0][DEBUG ]         "name": "idcv-ceph2",
[idcv-ceph0][DEBUG ]         "rank": 1
[idcv-ceph0][DEBUG ]       },
[idcv-ceph0][DEBUG ]       {
[idcv-ceph0][DEBUG ]         "addr": "172.20.1.141:6789/0",
[idcv-ceph0][DEBUG ]         "name": "idcv-ceph3",
[idcv-ceph0][DEBUG ]         "rank": 2
[idcv-ceph0][DEBUG ]       }
[idcv-ceph0][DEBUG ]     ]
[idcv-ceph0][DEBUG ]   },
[idcv-ceph0][DEBUG ]   "name": "idcv-ceph0",
[idcv-ceph0][DEBUG ]   "outside_quorum": [],
[idcv-ceph0][DEBUG ]   "quorum": [
[idcv-ceph0][DEBUG ]     0,
[idcv-ceph0][DEBUG ]     1,
[idcv-ceph0][DEBUG ]     2
[idcv-ceph0][DEBUG ]   ],
[idcv-ceph0][DEBUG ]   "rank": 0,
[idcv-ceph0][DEBUG ]   "state": "leader",
[idcv-ceph0][DEBUG ]   "sync_provider": []
[idcv-ceph0][DEBUG ] }
[idcv-ceph0][DEBUG ] ****
[idcv-ceph0][INFO  ] monitor: mon.idcv-ceph0 is running
[idcv-ceph0][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph0.asok mon_status
[ceph_deploy.mon][DEBUG ] detecting platform for host idcv-ceph2 ...
[idcv-ceph2][DEBUG ] connection detected need for sudo
[idcv-ceph2][DEBUG ] connected to host: idcv-ceph2
[idcv-ceph2][DEBUG ] detect platform information from remote host
[idcv-ceph2][DEBUG ] detect machine type
[idcv-ceph2][DEBUG ] find the location of an executable
[ceph_deploy.mon][INFO  ] distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph2][DEBUG ] determining if provided host has same hostname in remote
[idcv-ceph2][DEBUG ] get remote short hostname
[idcv-ceph2][DEBUG ] deploying mon to idcv-ceph2
[idcv-ceph2][DEBUG ] get remote short hostname
[idcv-ceph2][DEBUG ] remote hostname: idcv-ceph2
[idcv-ceph2][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[idcv-ceph2][DEBUG ] create the mon path if it does not exist
[idcv-ceph2][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-idcv-ceph2/done
[idcv-ceph2][DEBUG ] create a done file to avoid re-doing the mon deployment
[idcv-ceph2][DEBUG ] create the init path if it does not exist
[idcv-ceph2][INFO  ] Running command: sudo systemctl enable ceph.target
[idcv-ceph2][INFO  ] Running command: sudo systemctl enable ceph-mon@idcv-ceph2
[idcv-ceph2][INFO  ] Running command: sudo systemctl start ceph-mon@idcv-ceph2
[idcv-ceph2][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph2.asok mon_status
[idcv-ceph2][DEBUG ] ****
[idcv-ceph2][DEBUG ] status for monitor: mon.idcv-ceph2
[idcv-ceph2][DEBUG ] {
[idcv-ceph2][DEBUG ]   "election_epoch": 8,
[idcv-ceph2][DEBUG ]   "extra_probe_peers": [
[idcv-ceph2][DEBUG ]     "172.20.1.138:6789/0",
[idcv-ceph2][DEBUG ]     "172.20.1.139:6789/0",
[idcv-ceph2][DEBUG ]     "172.20.1.141:6789/0"
[idcv-ceph2][DEBUG ]   ],
[idcv-ceph2][DEBUG ]   "monmap": {
[idcv-ceph2][DEBUG ]     "created": "2018-07-03 11:06:12.249491",
[idcv-ceph2][DEBUG ]     "epoch": 2,
[idcv-ceph2][DEBUG ]     "fsid": "812d3acb-eaa8-4355-9a74-64f2cd5209b3",
[idcv-ceph2][DEBUG ]     "modified": "2018-07-03 11:21:27.254076",
[idcv-ceph2][DEBUG ]     "mons": [
[idcv-ceph2][DEBUG ]       {
[idcv-ceph2][DEBUG ]         "addr": "172.20.1.138:6789/0",
[idcv-ceph2][DEBUG ]         "name": "idcv-ceph0",
[idcv-ceph2][DEBUG ]         "rank": 0
[idcv-ceph2][DEBUG ]       },
[idcv-ceph2][DEBUG ]       {
[idcv-ceph2][DEBUG ]         "addr": "172.20.1.140:6789/0",
[idcv-ceph2][DEBUG ]         "name": "idcv-ceph2",
[idcv-ceph2][DEBUG ]         "rank": 1
[idcv-ceph2][DEBUG ]       },
[idcv-ceph2][DEBUG ]       {
[idcv-ceph2][DEBUG ]         "addr": "172.20.1.141:6789/0",
[idcv-ceph2][DEBUG ]         "name": "idcv-ceph3",
[idcv-ceph2][DEBUG ]         "rank": 2
[idcv-ceph2][DEBUG ]       }
[idcv-ceph2][DEBUG ]     ]
[idcv-ceph2][DEBUG ]   },
[idcv-ceph2][DEBUG ]   "name": "idcv-ceph2",
[idcv-ceph2][DEBUG ]   "outside_quorum": [],
[idcv-ceph2][DEBUG ]   "quorum": [
[idcv-ceph2][DEBUG ]     0,
[idcv-ceph2][DEBUG ]     1,
[idcv-ceph2][DEBUG ]     2
[idcv-ceph2][DEBUG ]   ],
[idcv-ceph2][DEBUG ]   "rank": 1,
[idcv-ceph2][DEBUG ]   "state": "peon",
[idcv-ceph2][DEBUG ]   "sync_provider": []
[idcv-ceph2][DEBUG ] }
[idcv-ceph2][DEBUG ] ****
[idcv-ceph2][INFO  ] monitor: mon.idcv-ceph2 is running
[idcv-ceph2][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph2.asok mon_status
[ceph_deploy.mon][DEBUG ] detecting platform for host idcv-ceph3 ...
[idcv-ceph3][DEBUG ] connection detected need for sudo
[idcv-ceph3][DEBUG ] connected to host: idcv-ceph3
[idcv-ceph3][DEBUG ] detect platform information from remote host
[idcv-ceph3][DEBUG ] detect machine type
[idcv-ceph3][DEBUG ] find the location of an executable
[ceph_deploy.mon][INFO  ] distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph3][DEBUG ] determining if provided host has same hostname in remote
[idcv-ceph3][DEBUG ] get remote short hostname
[idcv-ceph3][DEBUG ] deploying mon to idcv-ceph3
[idcv-ceph3][DEBUG ] get remote short hostname
[idcv-ceph3][DEBUG ] remote hostname: idcv-ceph3
[idcv-ceph3][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[idcv-ceph3][DEBUG ] create the mon path if it does not exist
[idcv-ceph3][DEBUG ] checking for done path: /var/lib/ceph/mon/ceph-idcv-ceph3/done
[idcv-ceph3][DEBUG ] create a done file to avoid re-doing the mon deployment
[idcv-ceph3][DEBUG ] create the init path if it does not exist
[idcv-ceph3][INFO  ] Running command: sudo systemctl enable ceph.target
[idcv-ceph3][INFO  ] Running command: sudo systemctl enable ceph-mon@idcv-ceph3
[idcv-ceph3][INFO  ] Running command: sudo systemctl start ceph-mon@idcv-ceph3
[idcv-ceph3][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph3.asok mon_status
[idcv-ceph3][DEBUG ] ****
[idcv-ceph3][DEBUG ] status for monitor: mon.idcv-ceph3
[idcv-ceph3][DEBUG ] {
[idcv-ceph3][DEBUG ]   "election_epoch": 8,
[idcv-ceph3][DEBUG ]   "extra_probe_peers": [
[idcv-ceph3][DEBUG ]     "172.20.1.138:6789/0",
[idcv-ceph3][DEBUG ]     "172.20.1.139:6789/0",
[idcv-ceph3][DEBUG ]     "172.20.1.140:6789/0"
[idcv-ceph3][DEBUG ]   ],
[idcv-ceph3][DEBUG ]   "monmap": {
[idcv-ceph3][DEBUG ]     "created": "2018-07-03 11:06:12.249491",
[idcv-ceph3][DEBUG ]     "epoch": 2,
[idcv-ceph3][DEBUG ]     "fsid": "812d3acb-eaa8-4355-9a74-64f2cd5209b3",
[idcv-ceph3][DEBUG ]     "modified": "2018-07-03 11:21:27.254076",
[idcv-ceph3][DEBUG ]     "mons": [
[idcv-ceph3][DEBUG ]       {
[idcv-ceph3][DEBUG ]         "addr": "172.20.1.138:6789/0",
[idcv-ceph3][DEBUG ]         "name": "idcv-ceph0",
[idcv-ceph3][DEBUG ]         "rank": 0
[idcv-ceph3][DEBUG ]       },
[idcv-ceph3][DEBUG ]       {
[idcv-ceph3][DEBUG ]         "addr": "172.20.1.140:6789/0",
[idcv-ceph3][DEBUG ]         "name": "idcv-ceph2",
[idcv-ceph3][DEBUG ]         "rank": 1
[idcv-ceph3][DEBUG ]       },
[idcv-ceph3][DEBUG ]       {
[idcv-ceph3][DEBUG ]         "addr": "172.20.1.141:6789/0",
[idcv-ceph3][DEBUG ]         "name": "idcv-ceph3",
[idcv-ceph3][DEBUG ]         "rank": 2
[idcv-ceph3][DEBUG ]       }
[idcv-ceph3][DEBUG ]     ]
[idcv-ceph3][DEBUG ]   },
[idcv-ceph3][DEBUG ]   "name": "idcv-ceph3",
[idcv-ceph3][DEBUG ]   "outside_quorum": [],
[idcv-ceph3][DEBUG ]   "quorum": [
[idcv-ceph3][DEBUG ]     0,
[idcv-ceph3][DEBUG ]     1,
[idcv-ceph3][DEBUG ]     2
[idcv-ceph3][DEBUG ]   ],
[idcv-ceph3][DEBUG ]   "rank": 2,
[idcv-ceph3][DEBUG ]   "state": "peon",
[idcv-ceph3][DEBUG ]   "sync_provider": []
[idcv-ceph3][DEBUG ] }
[idcv-ceph3][DEBUG ] ****
[idcv-ceph3][INFO  ] monitor: mon.idcv-ceph3 is running
[idcv-ceph3][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph3.asok mon_status
[ceph_deploy.mon][INFO  ] processing monitor mon.idcv-ceph0
[idcv-ceph0][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph0][DEBUG ] detect platform information from remote host
[idcv-ceph0][DEBUG ] detect machine type
[idcv-ceph0][DEBUG ] find the location of an executable
[idcv-ceph0][INFO  ] Running command: ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph0.asok mon_status
[ceph_deploy.mon][INFO  ] mon.idcv-ceph0 monitor has reached quorum!
[ceph_deploy.mon][INFO  ] processing monitor mon.idcv-ceph2
[idcv-ceph2][DEBUG ] connection detected need for sudo
[idcv-ceph2][DEBUG ] connected to host: idcv-ceph2
[idcv-ceph2][DEBUG ] detect platform information from remote host
[idcv-ceph2][DEBUG ] detect machine type
[idcv-ceph2][DEBUG ] find the location of an executable
[idcv-ceph2][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph2.asok mon_status
[ceph_deploy.mon][INFO  ] mon.idcv-ceph2 monitor has reached quorum!
[ceph_deploy.mon][INFO  ] processing monitor mon.idcv-ceph3
[idcv-ceph3][DEBUG ] connection detected need for sudo
[idcv-ceph3][DEBUG ] connected to host: idcv-ceph3
[idcv-ceph3][DEBUG ] detect platform information from remote host
[idcv-ceph3][DEBUG ] detect machine type
[idcv-ceph3][DEBUG ] find the location of an executable
[idcv-ceph3][INFO  ] Running command: sudo ceph --cluster=ceph --admin-daemon /var/run/ceph/ceph-mon.idcv-ceph3.asok mon_status
[ceph_deploy.mon][INFO  ] mon.idcv-ceph3 monitor has reached quorum!
[ceph_deploy.mon][INFO  ] all initial monitors are running and have formed quorum
[ceph_deploy.mon][INFO  ] Running gatherkeys...
[ceph_deploy.gatherkeys][INFO  ] Storing keys in temp directory /tmp/tmpBqY1be
[idcv-ceph0][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph0][DEBUG ] detect platform information from remote host
[idcv-ceph0][DEBUG ] detect machine type
[idcv-ceph0][DEBUG ] get remote short hostname
[idcv-ceph0][DEBUG ] fetch remote file
[idcv-ceph0][INFO  ] Running command: /usr/bin/ceph --connect-timeout=25 --cluster=ceph --admin-daemon=/var/run/ceph/ceph-mon.idcv-ceph0.asok mon_status
[idcv-ceph0][INFO  ] Running command: /usr/bin/ceph --connect-timeout=25 --cluster=ceph --name mon. --keyring=/var/lib/ceph/mon/ceph-idcv-ceph0/keyring auth get client.admin
[idcv-ceph0][INFO  ] Running command: /usr/bin/ceph --connect-timeout=25 --cluster=ceph --name mon. --keyring=/var/lib/ceph/mon/ceph-idcv-ceph0/keyring auth get client.bootstrap-mds
[idcv-ceph0][INFO  ] Running command: /usr/bin/ceph --connect-timeout=25 --cluster=ceph --name mon. --keyring=/var/lib/ceph/mon/ceph-idcv-ceph0/keyring auth get client.bootstrap-mgr
[idcv-ceph0][INFO  ] Running command: /usr/bin/ceph --connect-timeout=25 --cluster=ceph --name mon. --keyring=/var/lib/ceph/mon/ceph-idcv-ceph0/keyring auth get-or-create client.bootstrap-mgr mon allow profile bootstrap-mgr
[idcv-ceph0][INFO  ] Running command: /usr/bin/ceph --connect-timeout=25 --cluster=ceph --name mon. --keyring=/var/lib/ceph/mon/ceph-idcv-ceph0/keyring auth get client.bootstrap-osd
[idcv-ceph0][INFO  ] Running command: /usr/bin/ceph --connect-timeout=25 --cluster=ceph --name mon. --keyring=/var/lib/ceph/mon/ceph-idcv-ceph0/keyring auth get client.bootstrap-rgw
[ceph_deploy.gatherkeys][INFO  ] Storing ceph.client.admin.keyring
[ceph_deploy.gatherkeys][INFO  ] Storing ceph.bootstrap-mds.keyring
[ceph_deploy.gatherkeys][INFO  ] Storing ceph.bootstrap-mgr.keyring
[ceph_deploy.gatherkeys][INFO  ] keyring 'ceph.mon.keyring' already exists
[ceph_deploy.gatherkeys][INFO  ] Storing ceph.bootstrap-osd.keyring
[ceph_deploy.gatherkeys][INFO  ] Storing ceph.bootstrap-rgw.keyring
[ceph_deploy.gatherkeys][INFO  ] Destroy temp directory /tmp/tmpBqY1be
　　[root@idcv-ceph0 cluster]# ls
ceph.bootstrap-mds.keyring  ceph.bootstrap-osd.keyring  ceph.client.admin.keyring  ceph-deploy-ceph.lo

五、部署OSD角色
　　先准备后激活
ceph-deploy --overwrite-conf osd prepare idcv-ceph0:/dev/sdb  idcv-ceph1:/dev/sdb  idcv-ceph2:/dev/sdb idcv-ceph3:/dev/sdb --zap-disk
ceph-deploy --overwrite-conf osd activate idcv-ceph0:/dev/sdb1  idcv-ceph1:/dev/sdb1  idcv-ceph2:/dev/sdb1  idcv-ceph3:/dev/sdb1

　　[root@idcv-ceph0 cluster]# ceph-deploy --overwrite-conf osd prepare idcv-ceph0:/dev/sdb  idcv-ceph1:/dev/sdb  idcv-ceph2:/dev/sdb idcv-ceph3:/dev/sdb --zap-disk
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy --overwrite-conf osd prepare idcv-ceph0:/dev/sdb idcv-ceph1:/dev/sdb idcv-ceph2:/dev/sdb idcv-ceph3:/dev/sdb --zap-disk
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  block_db                      : None
[ceph_deploy.cli][INFO  ]  disk                          : [('idcv-ceph0', '/dev/sdb', None), ('idcv-ceph1', '/dev/sdb', None), ('idcv-ceph2', '/dev/sdb', None), ('idcv-ceph3', '/dev/sdb', None)]
[ceph_deploy.cli][INFO  ]  dmcrypt                       : False
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  bluestore                     : None
[ceph_deploy.cli][INFO  ]  block_wal                     : None
[ceph_deploy.cli][INFO  ]  overwrite_conf                : True
[ceph_deploy.cli][INFO  ]  subcommand                    : prepare
[ceph_deploy.cli][INFO  ]  dmcrypt_key_dir               : /etc/ceph/dmcrypt-keys
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  fs_type                       : xfs
[ceph_deploy.cli][INFO  ]  filestore                     : None
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.cli][INFO  ]  zap_disk                      : True
[ceph_deploy.osd][DEBUG ] Preparing cluster ceph disks idcv-ceph0:/dev/sdb: idcv-ceph1:/dev/sdb: idcv-ceph2:/dev/sdb: idcv-ceph3:/dev/sdb:
[idcv-ceph0][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph0][DEBUG ] detect platform information from remote host
[idcv-ceph0][DEBUG ] detect machine type
[idcv-ceph0][DEBUG ] find the location of an executable
[ceph_deploy.osd][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[ceph_deploy.osd][DEBUG ] Deploying osd to idcv-ceph0
[idcv-ceph0][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.osd][DEBUG ] Preparing host idcv-ceph0 disk /dev/sdb journal None activate False
[idcv-ceph0][DEBUG ] find the location of an executable
[idcv-ceph0][INFO  ] Running command: /usr/sbin/ceph-disk -v prepare --zap-disk --cluster ceph --fs-type xfs -- /dev/sdb
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-osd --check-allows-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-osd --check-wants-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-osd --check-needs-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] set_type: Will colocate journal with data on /dev/sdb
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=osd_journal_size
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mkfs_options_xfs
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mkfs_options_xfs
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] zap: Zapping partition table on /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/sbin/sgdisk --zap-all -- /dev/sdb
[idcv-ceph0][WARNIN] Caution: invalid backup GPT header, but valid main header; regenerating
[idcv-ceph0][WARNIN] backup header from main header.
[idcv-ceph0][WARNIN]
[idcv-ceph0][DEBUG ] ****
[idcv-ceph0][DEBUG ] Caution: Found protective or hybrid MBR and corrupt GPT. Using GPT, but disk
[idcv-ceph0][DEBUG ] verification and recovery are STRONGLY recommended.
[idcv-ceph0][DEBUG ] ****
[idcv-ceph0][DEBUG ] GPT data structures destroyed! You may now partition the disk using fdisk or
[idcv-ceph0][DEBUG ] other utilities.
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/sbin/sgdisk --clear --mbrtogpt -- /dev/sdb
[idcv-ceph0][DEBUG ] Creating new GPT entries.
[idcv-ceph0][DEBUG ] The operation has completed successfully.
[idcv-ceph0][WARNIN] update_partition: Calling partprobe on zapped device /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /usr/sbin/partprobe /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] ptype_tobe_for_name: name = journal
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] create_partition: Creating journal partition num 2 size 5120 on /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/sbin/sgdisk --new=2:0:+5120M --change-name=2:ceph journal --partition-guid=2:ca6594bd-a4b2-4be7-9aa5-69ba91ce7441 --typecode=2:45b0969e-9b03-4f30-b4c6-b4b80ceff106 --mbrtogpt -- /dev/sdb
[idcv-ceph0][DEBUG ] The operation has completed successfully.
[idcv-ceph0][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /usr/sbin/partprobe /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb2 uuid path is /sys/dev/block/8:18/dm/uuid
[idcv-ceph0][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/ca6594bd-a4b2-4be7-9aa5-69ba91ce7441
[idcv-ceph0][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/ca6594bd-a4b2-4be7-9aa5-69ba91ce7441
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] set_data_partition: Creating osd partition on /dev/sdb
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] ptype_tobe_for_name: name = data
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] create_partition: Creating data partition num 1 size 0 on /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/sbin/sgdisk --largest-new=1 --change-name=1:ceph data --partition-guid=1:3b210c8e-b2ac-4266-9e59-623c031ebb89 --typecode=1:89c57f98-2fe5-4dc0-89c1-f3ad0ceff2be --mbrtogpt -- /dev/sdb
[idcv-ceph0][DEBUG ] The operation has completed successfully.
[idcv-ceph0][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /usr/sbin/partprobe /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb1 uuid path is /sys/dev/block/8:17/dm/uuid
[idcv-ceph0][WARNIN] populate_data_path_device: Creating xfs fs on /dev/sdb1
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/sbin/mkfs -t xfs -f -i size=2048 -- /dev/sdb1
[idcv-ceph0][DEBUG ] meta-data=/dev/sdb1              isize=2048   agcount=4, agsize=6225855 blks
[idcv-ceph0][DEBUG ]          =                       sectsz=512   attr=2, projid32bit=1
[idcv-ceph0][DEBUG ]          =                       crc=1        finobt=0, sparse=0
[idcv-ceph0][DEBUG ] data     =                       bsize=4096   blocks=24903419, imaxpct=25
[idcv-ceph0][DEBUG ]          =                       sunit=0      swidth=0 blks
[idcv-ceph0][DEBUG ] naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
[idcv-ceph0][DEBUG ] log      =internal log           bsize=4096   blocks=12159, version=2
[idcv-ceph0][DEBUG ]          =                       sectsz=512   sunit=0 blks, lazy-count=1
[idcv-ceph0][DEBUG ] realtime =none                   extsz=4096   blocks=0, rtextents=0
[idcv-ceph0][WARNIN] mount: Mounting /dev/sdb1 on /var/lib/ceph/tmp/mnt.kvs_nq with options noatime,inode64
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/mount -t xfs -o noatime,inode64 -- /dev/sdb1 /var/lib/ceph/tmp/mnt.kvs_nq
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon /var/lib/ceph/tmp/mnt.kvs_nq
[idcv-ceph0][WARNIN] populate_data_path: Preparing osd data dir /var/lib/ceph/tmp/mnt.kvs_nq
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon -R /var/lib/ceph/tmp/mnt.kvs_nq/ceph_fsid.2933.tmp
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.kvs_nq/ceph_fsid.2933.tmp
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon -R /var/lib/ceph/tmp/mnt.kvs_nq/fsid.2933.tmp
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.kvs_nq/fsid.2933.tmp
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon -R /var/lib/ceph/tmp/mnt.kvs_nq/magic.2933.tmp
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.kvs_nq/magic.2933.tmp
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon -R /var/lib/ceph/tmp/mnt.kvs_nq/journal_uuid.2933.tmp
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.kvs_nq/journal_uuid.2933.tmp
[idcv-ceph0][WARNIN] adjust_symlink: Creating symlink /var/lib/ceph/tmp/mnt.kvs_nq/journal -> /dev/disk/by-partuuid/ca6594bd-a4b2-4be7-9aa5-69ba91ce7441
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon -R /var/lib/ceph/tmp/mnt.kvs_nq
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.kvs_nq
[idcv-ceph0][WARNIN] unmount: Unmounting /var/lib/ceph/tmp/mnt.kvs_nq
[idcv-ceph0][WARNIN] command_check_call: Running command: /bin/umount -- /var/lib/ceph/tmp/mnt.kvs_nq
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/sbin/sgdisk --typecode=1:4fbd7e29-9d25-41b8-afd0-062c0ceff05d -- /dev/sdb
[idcv-ceph0][DEBUG ] Warning: The kernel is still using the old partition table.
[idcv-ceph0][DEBUG ] The new table will be used at the next reboot.
[idcv-ceph0][DEBUG ] The operation has completed successfully.
[idcv-ceph0][WARNIN] update_partition: Calling partprobe on prepared device /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /usr/sbin/partprobe /dev/sdb
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/udevadm trigger --action=add --sysname-match sdb1
[idcv-ceph0][INFO  ] checking OSD status...
[idcv-ceph0][DEBUG ] find the location of an executable
[idcv-ceph0][INFO  ] Running command: /bin/ceph --cluster=ceph osd stat --format=json
[ceph_deploy.osd][DEBUG ] Host idcv-ceph0 is now ready for osd use.
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[idcv-ceph1][DEBUG ] find the location of an executable
[ceph_deploy.osd][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[ceph_deploy.osd][DEBUG ] Deploying osd to idcv-ceph1
[idcv-ceph1][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.osd][DEBUG ] Preparing host idcv-ceph1 disk /dev/sdb journal None activate False
[idcv-ceph1][DEBUG ] find the location of an executable
[idcv-ceph1][INFO  ] Running command: sudo /usr/sbin/ceph-disk -v prepare --zap-disk --cluster ceph --fs-type xfs -- /dev/sdb
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-osd --check-allows-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-osd --check-wants-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-osd --check-needs-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] set_type: Will colocate journal with data on /dev/sdb
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=osd_journal_size
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mkfs_options_xfs
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mkfs_options_xfs
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] zap: Zapping partition table on /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /sbin/sgdisk --zap-all -- /dev/sdb
[idcv-ceph1][DEBUG ] Creating new GPT entries.
[idcv-ceph1][DEBUG ] GPT data structures destroyed! You may now partition the disk using fdisk or
[idcv-ceph1][DEBUG ] other utilities.
[idcv-ceph1][WARNIN] command_check_call: Running command: /sbin/sgdisk --clear --mbrtogpt -- /dev/sdb
[idcv-ceph1][DEBUG ] Creating new GPT entries.
[idcv-ceph1][DEBUG ] The operation has completed successfully.
[idcv-ceph1][WARNIN] update_partition: Calling partprobe on zapped device /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] ptype_tobe_for_name: name = journal
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] create_partition: Creating journal partition num 2 size 5120 on /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /sbin/sgdisk --new=2:0:+5120M --change-name=2:ceph journal --partition-guid=2:09dad07a-985e-4733-a228-f7b1105b7385 --typecode=2:45b0969e-9b03-4f30-b4c6-b4b80ceff106 --mbrtogpt -- /dev/sdb
[idcv-ceph1][DEBUG ] The operation has completed successfully.
[idcv-ceph1][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb2 uuid path is /sys/dev/block/8:18/dm/uuid
[idcv-ceph1][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/09dad07a-985e-4733-a228-f7b1105b7385
[idcv-ceph1][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/09dad07a-985e-4733-a228-f7b1105b7385
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] set_data_partition: Creating osd partition on /dev/sdb
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] ptype_tobe_for_name: name = data
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] create_partition: Creating data partition num 1 size 0 on /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /sbin/sgdisk --largest-new=1 --change-name=1:ceph data --partition-guid=1:2809f370-e6ad-4d29-bf6b-57fe1f2004c6 --typecode=1:89c57f98-2fe5-4dc0-89c1-f3ad0ceff2be --mbrtogpt -- /dev/sdb
[idcv-ceph1][DEBUG ] The operation has completed successfully.
[idcv-ceph1][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb1 uuid path is /sys/dev/block/8:17/dm/uuid
[idcv-ceph1][WARNIN] populate_data_path_device: Creating xfs fs on /dev/sdb1
[idcv-ceph1][WARNIN] command_check_call: Running command: /sbin/mkfs -t xfs -f -i size=2048 -- /dev/sdb1
[idcv-ceph1][DEBUG ] meta-data=/dev/sdb1              isize=2048   agcount=4, agsize=6225855 blks
[idcv-ceph1][DEBUG ]          =                       sectsz=512   attr=2, projid32bit=1
[idcv-ceph1][DEBUG ]          =                       crc=1        finobt=0, sparse=0
[idcv-ceph1][DEBUG ] data     =                       bsize=4096   blocks=24903419, imaxpct=25
[idcv-ceph1][DEBUG ]          =                       sunit=0      swidth=0 blks
[idcv-ceph1][DEBUG ] naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
[idcv-ceph1][DEBUG ] log      =internal log           bsize=4096   blocks=12159, version=2
[idcv-ceph1][DEBUG ]          =                       sectsz=512   sunit=0 blks, lazy-count=1
[idcv-ceph1][DEBUG ] realtime =none                   extsz=4096   blocks=0, rtextents=0
[idcv-ceph1][WARNIN] mount: Mounting /dev/sdb1 on /var/lib/ceph/tmp/mnt.HAg1vC with options noatime,inode64
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/mount -t xfs -o noatime,inode64 -- /dev/sdb1 /var/lib/ceph/tmp/mnt.HAg1vC
[idcv-ceph1][WARNIN] command: Running command: /sbin/restorecon /var/lib/ceph/tmp/mnt.HAg1vC
[idcv-ceph1][WARNIN] populate_data_path: Preparing osd data dir /var/lib/ceph/tmp/mnt.HAg1vC
[idcv-ceph1][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.HAg1vC/ceph_fsid.2415.tmp
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.HAg1vC/ceph_fsid.2415.tmp
[idcv-ceph1][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.HAg1vC/fsid.2415.tmp
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.HAg1vC/fsid.2415.tmp
[idcv-ceph1][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.HAg1vC/magic.2415.tmp
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.HAg1vC/magic.2415.tmp
[idcv-ceph1][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.HAg1vC/journal_uuid.2415.tmp
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.HAg1vC/journal_uuid.2415.tmp
[idcv-ceph1][WARNIN] adjust_symlink: Creating symlink /var/lib/ceph/tmp/mnt.HAg1vC/journal -> /dev/disk/by-partuuid/09dad07a-985e-4733-a228-f7b1105b7385
[idcv-ceph1][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.HAg1vC
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.HAg1vC
[idcv-ceph1][WARNIN] unmount: Unmounting /var/lib/ceph/tmp/mnt.HAg1vC
[idcv-ceph1][WARNIN] command_check_call: Running command: /bin/umount -- /var/lib/ceph/tmp/mnt.HAg1vC
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph1][WARNIN] command_check_call: Running command: /sbin/sgdisk --typecode=1:4fbd7e29-9d25-41b8-afd0-062c0ceff05d -- /dev/sdb
[idcv-ceph1][DEBUG ] The operation has completed successfully.
[idcv-ceph1][WARNIN] update_partition: Calling partprobe on prepared device /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/udevadm trigger --action=add --sysname-match sdb1
[idcv-ceph1][INFO  ] checking OSD status...
[idcv-ceph1][DEBUG ] find the location of an executable
[idcv-ceph1][INFO  ] Running command: sudo /bin/ceph --cluster=ceph osd stat --format=json
[ceph_deploy.osd][DEBUG ] Host idcv-ceph1 is now ready for osd use.
[idcv-ceph2][DEBUG ] connection detected need for sudo
[idcv-ceph2][DEBUG ] connected to host: idcv-ceph2
[idcv-ceph2][DEBUG ] detect platform information from remote host
[idcv-ceph2][DEBUG ] detect machine type
[idcv-ceph2][DEBUG ] find the location of an executable
[ceph_deploy.osd][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[ceph_deploy.osd][DEBUG ] Deploying osd to idcv-ceph2
[idcv-ceph2][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.osd][DEBUG ] Preparing host idcv-ceph2 disk /dev/sdb journal None activate False
[idcv-ceph2][DEBUG ] find the location of an executable
[idcv-ceph2][INFO  ] Running command: sudo /usr/sbin/ceph-disk -v prepare --zap-disk --cluster ceph --fs-type xfs -- /dev/sdb
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-osd --check-allows-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-osd --check-wants-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-osd --check-needs-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] set_type: Will colocate journal with data on /dev/sdb
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=osd_journal_size
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mkfs_options_xfs
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mkfs_options_xfs
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] zap: Zapping partition table on /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /sbin/sgdisk --zap-all -- /dev/sdb
[idcv-ceph2][DEBUG ] Creating new GPT entries.
[idcv-ceph2][DEBUG ] GPT data structures destroyed! You may now partition the disk using fdisk or
[idcv-ceph2][DEBUG ] other utilities.
[idcv-ceph2][WARNIN] command_check_call: Running command: /sbin/sgdisk --clear --mbrtogpt -- /dev/sdb
[idcv-ceph2][DEBUG ] Creating new GPT entries.
[idcv-ceph2][DEBUG ] The operation has completed successfully.
[idcv-ceph2][WARNIN] update_partition: Calling partprobe on zapped device /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] ptype_tobe_for_name: name = journal
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] create_partition: Creating journal partition num 2 size 5120 on /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /sbin/sgdisk --new=2:0:+5120M --change-name=2:ceph journal --partition-guid=2:857f0966-30d5-4ad1-9e0c-abff0fbbbc4e --typecode=2:45b0969e-9b03-4f30-b4c6-b4b80ceff106 --mbrtogpt -- /dev/sdb
[idcv-ceph2][DEBUG ] The operation has completed successfully.
[idcv-ceph2][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb2 uuid path is /sys/dev/block/8:18/dm/uuid
[idcv-ceph2][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/857f0966-30d5-4ad1-9e0c-abff0fbbbc4e
[idcv-ceph2][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/857f0966-30d5-4ad1-9e0c-abff0fbbbc4e
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] set_data_partition: Creating osd partition on /dev/sdb
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] ptype_tobe_for_name: name = data
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] create_partition: Creating data partition num 1 size 0 on /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /sbin/sgdisk --largest-new=1 --change-name=1:ceph data --partition-guid=1:dac63cc2-6876-4004-ba3b-7786be39d392 --typecode=1:89c57f98-2fe5-4dc0-89c1-f3ad0ceff2be --mbrtogpt -- /dev/sdb
[idcv-ceph2][DEBUG ] The operation has completed successfully.
[idcv-ceph2][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb1 uuid path is /sys/dev/block/8:17/dm/uuid
[idcv-ceph2][WARNIN] populate_data_path_device: Creating xfs fs on /dev/sdb1
[idcv-ceph2][WARNIN] command_check_call: Running command: /sbin/mkfs -t xfs -f -i size=2048 -- /dev/sdb1
[idcv-ceph2][DEBUG ] meta-data=/dev/sdb1              isize=2048   agcount=4, agsize=6225855 blks
[idcv-ceph2][DEBUG ]          =                       sectsz=512   attr=2, projid32bit=1
[idcv-ceph2][DEBUG ]          =                       crc=1        finobt=0, sparse=0
[idcv-ceph2][DEBUG ] data     =                       bsize=4096   blocks=24903419, imaxpct=25
[idcv-ceph2][DEBUG ]          =                       sunit=0      swidth=0 blks
[idcv-ceph2][DEBUG ] naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
[idcv-ceph2][DEBUG ] log      =internal log           bsize=4096   blocks=12159, version=2
[idcv-ceph2][DEBUG ]          =                       sectsz=512   sunit=0 blks, lazy-count=1
[idcv-ceph2][WARNIN] mount: Mounting /dev/sdb1 on /var/lib/ceph/tmp/mnt.jhzVmR with options noatime,inode64
[idcv-ceph2][DEBUG ] realtime =none                   extsz=4096   blocks=0, rtextents=0
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/mount -t xfs -o noatime,inode64 -- /dev/sdb1 /var/lib/ceph/tmp/mnt.jhzVmR
[idcv-ceph2][WARNIN] command: Running command: /sbin/restorecon /var/lib/ceph/tmp/mnt.jhzVmR
[idcv-ceph2][WARNIN] populate_data_path: Preparing osd data dir /var/lib/ceph/tmp/mnt.jhzVmR
[idcv-ceph2][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.jhzVmR/ceph_fsid.2354.tmp
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.jhzVmR/ceph_fsid.2354.tmp
[idcv-ceph2][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.jhzVmR/fsid.2354.tmp
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.jhzVmR/fsid.2354.tmp
[idcv-ceph2][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.jhzVmR/magic.2354.tmp
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.jhzVmR/magic.2354.tmp
[idcv-ceph2][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.jhzVmR/journal_uuid.2354.tmp
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.jhzVmR/journal_uuid.2354.tmp
[idcv-ceph2][WARNIN] adjust_symlink: Creating symlink /var/lib/ceph/tmp/mnt.jhzVmR/journal -> /dev/disk/by-partuuid/857f0966-30d5-4ad1-9e0c-abff0fbbbc4e
[idcv-ceph2][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.jhzVmR
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.jhzVmR
[idcv-ceph2][WARNIN] unmount: Unmounting /var/lib/ceph/tmp/mnt.jhzVmR
[idcv-ceph2][WARNIN] command_check_call: Running command: /bin/umount -- /var/lib/ceph/tmp/mnt.jhzVmR
[idcv-ceph2][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph2][WARNIN] command_check_call: Running command: /sbin/sgdisk --typecode=1:4fbd7e29-9d25-41b8-afd0-062c0ceff05d -- /dev/sdb
[idcv-ceph2][DEBUG ] Warning: The kernel is still using the old partition table.
[idcv-ceph2][DEBUG ] The new table will be used at the next reboot.
[idcv-ceph2][DEBUG ] The operation has completed successfully.
[idcv-ceph2][WARNIN] update_partition: Calling partprobe on prepared device /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph2][WARNIN] command_check_call: Running command: /usr/bin/udevadm trigger --action=add --sysname-match sdb1
[idcv-ceph2][INFO  ] checking OSD status...
[idcv-ceph2][DEBUG ] find the location of an executable
[idcv-ceph2][INFO  ] Running command: sudo /bin/ceph --cluster=ceph osd stat --format=json
[ceph_deploy.osd][DEBUG ] Host idcv-ceph2 is now ready for osd use.
[idcv-ceph3][DEBUG ] connection detected need for sudo
[idcv-ceph3][DEBUG ] connected to host: idcv-ceph3
[idcv-ceph3][DEBUG ] detect platform information from remote host
[idcv-ceph3][DEBUG ] detect machine type
[idcv-ceph3][DEBUG ] find the location of an executable
[ceph_deploy.osd][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[ceph_deploy.osd][DEBUG ] Deploying osd to idcv-ceph3
[idcv-ceph3][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.osd][DEBUG ] Preparing host idcv-ceph3 disk /dev/sdb journal None activate False
[idcv-ceph3][DEBUG ] find the location of an executable
[idcv-ceph3][INFO  ] Running command: sudo /usr/sbin/ceph-disk -v prepare --zap-disk --cluster ceph --fs-type xfs -- /dev/sdb
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-osd --check-allows-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-osd --check-wants-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-osd --check-needs-journal -i 0 --log-file $run_dir/$cluster-osd-check.log --cluster ceph --setuser ceph --setgroup ceph
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] set_type: Will colocate journal with data on /dev/sdb
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=osd_journal_size
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mkfs_options_xfs
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mkfs_options_xfs
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] zap: Zapping partition table on /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /sbin/sgdisk --zap-all -- /dev/sdb
[idcv-ceph3][DEBUG ] Creating new GPT entries.
[idcv-ceph3][DEBUG ] GPT data structures destroyed! You may now partition the disk using fdisk or
[idcv-ceph3][DEBUG ] other utilities.
[idcv-ceph3][WARNIN] command_check_call: Running command: /sbin/sgdisk --clear --mbrtogpt -- /dev/sdb
[idcv-ceph3][DEBUG ] Creating new GPT entries.
[idcv-ceph3][DEBUG ] The operation has completed successfully.
[idcv-ceph3][WARNIN] update_partition: Calling partprobe on zapped device /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] ptype_tobe_for_name: name = journal
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] create_partition: Creating journal partition num 2 size 5120 on /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /sbin/sgdisk --new=2:0:+5120M --change-name=2:ceph journal --partition-guid=2:52677a68-3cf4-4d9a-b2d4-8c823e1cb901 --typecode=2:45b0969e-9b03-4f30-b4c6-b4b80ceff106 --mbrtogpt -- /dev/sdb
[idcv-ceph3][DEBUG ] The operation has completed successfully.
[idcv-ceph3][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb2 uuid path is /sys/dev/block/8:18/dm/uuid
[idcv-ceph3][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/52677a68-3cf4-4d9a-b2d4-8c823e1cb901
[idcv-ceph3][WARNIN] prepare_device: Journal is GPT partition /dev/disk/by-partuuid/52677a68-3cf4-4d9a-b2d4-8c823e1cb901
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] set_data_partition: Creating osd partition on /dev/sdb
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] ptype_tobe_for_name: name = data
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] create_partition: Creating data partition num 1 size 0 on /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /sbin/sgdisk --largest-new=1 --change-name=1:ceph data --partition-guid=1:a85b0288-85ce-4887-8249-497ba880fe10 --typecode=1:89c57f98-2fe5-4dc0-89c1-f3ad0ceff2be --mbrtogpt -- /dev/sdb
[idcv-ceph3][DEBUG ] The operation has completed successfully.
[idcv-ceph3][WARNIN] update_partition: Calling partprobe on created device /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb1 uuid path is /sys/dev/block/8:17/dm/uuid
[idcv-ceph3][WARNIN] populate_data_path_device: Creating xfs fs on /dev/sdb1
[idcv-ceph3][WARNIN] command_check_call: Running command: /sbin/mkfs -t xfs -f -i size=2048 -- /dev/sdb1
[idcv-ceph3][DEBUG ] meta-data=/dev/sdb1              isize=2048   agcount=4, agsize=6225855 blks
[idcv-ceph3][DEBUG ]          =                       sectsz=512   attr=2, projid32bit=1
[idcv-ceph3][DEBUG ]          =                       crc=1        finobt=0, sparse=0
[idcv-ceph3][DEBUG ] data     =                       bsize=4096   blocks=24903419, imaxpct=25
[idcv-ceph3][DEBUG ]          =                       sunit=0      swidth=0 blks
[idcv-ceph3][DEBUG ] naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
[idcv-ceph3][DEBUG ] log      =internal log           bsize=4096   blocks=12159, version=2
[idcv-ceph3][DEBUG ]          =                       sectsz=512   sunit=0 blks, lazy-count=1
[idcv-ceph3][DEBUG ] realtime =none                   extsz=4096   blocks=0, rtextents=0
[idcv-ceph3][WARNIN] mount: Mounting /dev/sdb1 on /var/lib/ceph/tmp/mnt.gjITlj with options noatime,inode64
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/mount -t xfs -o noatime,inode64 -- /dev/sdb1 /var/lib/ceph/tmp/mnt.gjITlj
[idcv-ceph3][WARNIN] command: Running command: /sbin/restorecon /var/lib/ceph/tmp/mnt.gjITlj
[idcv-ceph3][WARNIN] populate_data_path: Preparing osd data dir /var/lib/ceph/tmp/mnt.gjITlj
[idcv-ceph3][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.gjITlj/ceph_fsid.2372.tmp
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.gjITlj/ceph_fsid.2372.tmp
[idcv-ceph3][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.gjITlj/fsid.2372.tmp
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.gjITlj/fsid.2372.tmp
[idcv-ceph3][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.gjITlj/magic.2372.tmp
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.gjITlj/magic.2372.tmp
[idcv-ceph3][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.gjITlj/journal_uuid.2372.tmp
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.gjITlj/journal_uuid.2372.tmp
[idcv-ceph3][WARNIN] adjust_symlink: Creating symlink /var/lib/ceph/tmp/mnt.gjITlj/journal -> /dev/disk/by-partuuid/52677a68-3cf4-4d9a-b2d4-8c823e1cb901
[idcv-ceph3][WARNIN] command: Running command: /sbin/restorecon -R /var/lib/ceph/tmp/mnt.gjITlj
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.gjITlj
[idcv-ceph3][WARNIN] unmount: Unmounting /var/lib/ceph/tmp/mnt.gjITlj
[idcv-ceph3][WARNIN] command_check_call: Running command: /bin/umount -- /var/lib/ceph/tmp/mnt.gjITlj
[idcv-ceph3][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb uuid path is /sys/dev/block/8:16/dm/uuid
[idcv-ceph3][WARNIN] command_check_call: Running command: /sbin/sgdisk --typecode=1:4fbd7e29-9d25-41b8-afd0-062c0ceff05d -- /dev/sdb
[idcv-ceph3][DEBUG ] Warning: The kernel is still using the old partition table.
[idcv-ceph3][DEBUG ] The new table will be used at the next reboot.
[idcv-ceph3][DEBUG ] The operation has completed successfully.
[idcv-ceph3][WARNIN] update_partition: Calling partprobe on prepared device /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] command: Running command: /usr/bin/flock -s /dev/sdb /sbin/partprobe /dev/sdb
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm settle --timeout=600
[idcv-ceph3][WARNIN] command_check_call: Running command: /usr/bin/udevadm trigger --action=add --sysname-match sdb1
[idcv-ceph3][INFO  ] checking OSD status...
[idcv-ceph3][DEBUG ] find the location of an executable
[idcv-ceph3][INFO  ] Running command: sudo /bin/ceph --cluster=ceph osd stat --format=json
[ceph_deploy.osd][DEBUG ] Host idcv-ceph3 is now ready for osd use.
[root@idcv-ceph0 cluster]# ceph-deploy --overwrite-conf osd activate idcv-ceph0:/dev/sdb1  idcv-ceph1:/dev/sdb1  idcv-ceph2:/dev/sdb1  idcv-ceph3:/dev/sdb1
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy --overwrite-conf osd activate idcv-ceph0:/dev/sdb1 idcv-ceph1:/dev/sdb1 idcv-ceph2:/dev/sdb1 idcv-ceph3:/dev/sdb1
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  overwrite_conf                : True
[ceph_deploy.cli][INFO  ]  subcommand                    : activate
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.cli][INFO  ]  disk                          : [('idcv-ceph0', '/dev/sdb1', None), ('idcv-ceph1', '/dev/sdb1', None), ('idcv-ceph2', '/dev/sdb1', None), ('idcv-ceph3', '/dev/sdb1', None)]
[ceph_deploy.osd][DEBUG ] Activating cluster ceph disks idcv-ceph0:/dev/sdb1: idcv-ceph1:/dev/sdb1: idcv-ceph2:/dev/sdb1: idcv-ceph3:/dev/sdb1:
[idcv-ceph0][DEBUG ] connected to host: idcv-ceph0
[idcv-ceph0][DEBUG ] detect platform information from remote host
[idcv-ceph0][DEBUG ] detect machine type
[idcv-ceph0][DEBUG ] find the location of an executable
[ceph_deploy.osd][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[ceph_deploy.osd][DEBUG ] activating host idcv-ceph0 disk /dev/sdb1
[ceph_deploy.osd][DEBUG ] will use init type: systemd
[idcv-ceph0][DEBUG ] find the location of an executable
[idcv-ceph0][INFO  ] Running command: /usr/sbin/ceph-disk -v activate --mark-init systemd --mount /dev/sdb1
[idcv-ceph0][WARNIN] main_activate: path = /dev/sdb1
[idcv-ceph0][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb1 uuid path is /sys/dev/block/8:17/dm/uuid
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/blkid -o udev -p /dev/sdb1
[idcv-ceph0][WARNIN] command: Running command: /sbin/blkid -p -s TYPE -o value -- /dev/sdb1
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[idcv-ceph0][WARNIN] mount: Mounting /dev/sdb1 on /var/lib/ceph/tmp/mnt.X6wbv9 with options noatime,inode64
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/mount -t xfs -o noatime,inode64 -- /dev/sdb1 /var/lib/ceph/tmp/mnt.X6wbv9
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon /var/lib/ceph/tmp/mnt.X6wbv9
[idcv-ceph0][WARNIN] activate: Cluster uuid is 812d3acb-eaa8-4355-9a74-64f2cd5209b3
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[idcv-ceph0][WARNIN] activate: Cluster name is ceph
[idcv-ceph0][WARNIN] activate: OSD uuid is 3b210c8e-b2ac-4266-9e59-623c031ebb89
[idcv-ceph0][WARNIN] activate: OSD id is 0
[idcv-ceph0][WARNIN] activate: Marking with init system systemd
[idcv-ceph0][WARNIN] command: Running command: /usr/sbin/restorecon -R /var/lib/ceph/tmp/mnt.X6wbv9/systemd
[idcv-ceph0][WARNIN] command: Running command: /usr/bin/chown -R ceph:ceph /var/lib/ceph/tmp/mnt.X6wbv9/systemd
[idcv-ceph0][WARNIN] activate: ceph osd.0 data dir is ready at /var/lib/ceph/tmp/mnt.X6wbv9
[idcv-ceph0][WARNIN] mount_activate: ceph osd.0 already mounted in position; unmounting ours.
[idcv-ceph0][WARNIN] unmount: Unmounting /var/lib/ceph/tmp/mnt.X6wbv9
[idcv-ceph0][WARNIN] command_check_call: Running command: /bin/umount -- /var/lib/ceph/tmp/mnt.X6wbv9
[idcv-ceph0][WARNIN] start_daemon: Starting ceph osd.0...
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/systemctl disable ceph-osd@0
[idcv-ceph0][WARNIN] Removed symlink /etc/systemd/system/ceph-osd.target.wants/ceph-osd@0.service.
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/systemctl disable ceph-osd@0 --runtime
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/systemctl enable ceph-osd@0
[idcv-ceph0][WARNIN] Created symlink from /etc/systemd/system/ceph-osd.target.wants/ceph-osd@0.service to /usr/lib/systemd/system/ceph-osd@.service.
[idcv-ceph0][WARNIN] command_check_call: Running command: /usr/bin/systemctl start ceph-osd@0
[idcv-ceph0][INFO  ] checking OSD status...
[idcv-ceph0][DEBUG ] find the location of an executable
[idcv-ceph0][INFO  ] Running command: /bin/ceph --cluster=ceph osd stat --format=json
[idcv-ceph0][INFO  ] Running command: systemctl enable ceph.target
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[idcv-ceph1][DEBUG ] find the location of an executable
[ceph_deploy.osd][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[ceph_deploy.osd][DEBUG ] activating host idcv-ceph1 disk /dev/sdb1
[ceph_deploy.osd][DEBUG ] will use init type: systemd
[idcv-ceph1][DEBUG ] find the location of an executable
[idcv-ceph1][INFO  ] Running command: sudo /usr/sbin/ceph-disk -v activate --mark-init systemd --mount /dev/sdb1
[idcv-ceph1][WARNIN] main_activate: path = /dev/sdb1
[idcv-ceph1][WARNIN] get_dm_uuid: get_dm_uuid /dev/sdb1 uuid path is /sys/dev/block/8:17/dm/uuid
[idcv-ceph1][WARNIN] command: Running command: /sbin/blkid -o udev -p /dev/sdb1
[idcv-ceph1][WARNIN] command: Running command: /sbin/blkid -p -s TYPE -o value -- /dev/sdb1
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_mount_options_xfs
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-conf --cluster=ceph --name=osd. --lookup osd_fs_mount_options_xfs
[idcv-ceph1][WARNIN] mount: Mounting /dev/sdb1 on /var/lib/ceph/tmp/mnt.zUV3_1 with options noatime,inode64
[idcv-ceph1][WARNIN] command_check_call: Running command: /usr/bin/mount -t xfs -o noatime,inode64 -- /dev/sdb1 /var/lib/ceph/tmp/mnt.zUV3_1
[idcv-ceph1][WARNIN] command: Running command: /sbin/restorecon /var/lib/ceph/tmp/mnt.zUV3_1
[idcv-ceph1][WARNIN] activate: Cluster uuid is 812d3acb-eaa8-4355-9a74-64f2cd5209b3
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph-osd --cluster=ceph --show-config-value=fsid
[idcv-ceph1][WARNIN] activate: Cluster name is ceph
[idcv-ceph1][WARNIN] activate: OSD uuid is 2809f370-e6ad-4d29-bf6b-57fe1f2004c6
[idcv-ceph1][WARNIN] allocate_osd_id: Allocating OSD id...
[idcv-ceph1][WARNIN] command: Running command: /usr/bin/ceph --cluster ceph --name client.bootstrap-osd --keyring /var/lib/ceph/bootstrap-osd/ceph.keyring osd create --concise 2809f370-e6ad-4d29-bf6b-57fe1f2004c6
[idcv-ceph1][WARNIN] mount_activate: Failed to activate
[idcv-ceph1][WARNIN] unmount: Unmounting /var/lib/ceph/tmp/mnt.zUV3_1
[idcv-ceph1][WARNIN] command_check_call: Running command: /bin/umount -- /var/lib/ceph/tmp/mnt.zUV3_1
[idcv-ceph1][WARNIN] Traceback (most recent call last):
[idcv-ceph1][WARNIN]   File "/usr/sbin/ceph-disk", line 9, in
[idcv-ceph1][WARNIN]     load_entry_point('ceph-disk==1.0.0', 'console_scripts', 'ceph-disk')()
[idcv-ceph1][WARNIN]   File "/usr/lib/python2.7/site-packages/ceph_disk/main.py", line 5371, in run
[idcv-ceph1][WARNIN]     main(sys.argv[1:])
[idcv-ceph1][WARNIN]   File "/usr/lib/python2.7/site-packages/ceph_disk/main.py", line 5322, in main
[idcv-ceph1][WARNIN]     args.func(args)
[idcv-ceph1][WARNIN]   File "/usr/lib/python2.7/site-packages/ceph_disk/main.py", line 3445, in main_activate
[idcv-ceph1][WARNIN]     reactivate=args.reactivate,
[idcv-ceph1][WARNIN]   File "/usr/lib/python2.7/site-packages/ceph_disk/main.py", line 3202, in mount_activate
[idcv-ceph1][WARNIN]     (osd_id, cluster) = activate(path, activate_key_template, init)
[idcv-ceph1][WARNIN]   File "/usr/lib/python2.7/site-packages/ceph_disk/main.py", line 3365, in activate
[idcv-ceph1][WARNIN]     keyring=keyring,
[idcv-ceph1][WARNIN]   File "/usr/lib/python2.7/site-packages/ceph_disk/main.py", line 1013, in allocate_osd_id
[idcv-ceph1][WARNIN]     raise Error('ceph osd create failed', e, e.output)
[idcv-ceph1][WARNIN] ceph_disk.main.Error: Error: ceph osd create failed: Command '/usr/bin/ceph' returned non-zero exit status 1: 2018-07-03 11:47:35.463545 7f8310450700  0 librados: client.bootstrap-osd authentication error (1) Operation not permitted
[idcv-ceph1][WARNIN] Error connecting to cluster: PermissionError
[idcv-ceph1][WARNIN]
[idcv-ceph1][ERROR ] RuntimeError: command returned non-zero exit status: 1
[ceph_deploy][ERROR ] RuntimeError: Failed to execute command: /usr/sbin/ceph-disk -v activate --mark-init systemd --mount /dev/sdb1

　　2、查看了下idcv-ceph1没有加上去

　　[root@idcv-ceph0 cluster]# lsblk
NAME            MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
fd0               2:0    1    4K  0 disk
sda               8:0    0  100G  0 disk
├─sda1            8:1    0  500M  0 part /boot
└─sda2            8:2    0 99.5G  0 part
└─centos-root 253:0    0 99.5G  0 lvm  /
sdb               8:16   0  100G  0 disk
├─sdb1            8:17   0   95G  0 part /var/lib/ceph/osd/ceph-0
└─sdb2            8:18   0    5G  0 part
sr0              11:0    1 1024M  0 rom
[root@idcv-ceph0 cluster]# ceph -s
cluster 812d3acb-eaa8-4355-9a74-64f2cd5209b3
health HEALTH_OK
monmap e2: 3 mons at {idcv-ceph0=172.20.1.138:6789/0,idcv-ceph2=172.20.1.140:6789/0,idcv-ceph3=172.20.1.141:6789/0}
election epoch 8, quorum 0,1,2 idcv-ceph0,idcv-ceph2,idcv-ceph3
osdmap e14: 3 osds: 3 up, 3 in
flags sortbitwise,require_jewel_osds
pgmap v27: 64 pgs, 1 pools, 0 bytes data, 0 objects
100 MB used, 284 GB / 284 GB avail
64 active+clean
[root@idcv-ceph0 cluster]#

　　3、使用这个方法赋予角色OSD

　　[root@idcv-ceph0 cluster]# ceph-deploy install --no-adjust-repos --osd idcv-ceph1
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy install --no-adjust-repos --osd idcv-ceph1
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  testing                       : None
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  dev_commit                    : None
[ceph_deploy.cli][INFO  ]  install_mds                   : False
[ceph_deploy.cli][INFO  ]  stable                        : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  adjust_repos                  : False
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  install_mgr                   : False
[ceph_deploy.cli][INFO  ]  install_all                   : False
[ceph_deploy.cli][INFO  ]  repo                          : False
[ceph_deploy.cli][INFO  ]  host                          : ['idcv-ceph1']
[ceph_deploy.cli][INFO  ]  install_rgw                   : False
[ceph_deploy.cli][INFO  ]  install_tests                 : False
[ceph_deploy.cli][INFO  ]  repo_url                      : None
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  install_osd                   : True
[ceph_deploy.cli][INFO  ]  version_kind                  : stable
[ceph_deploy.cli][INFO  ]  install_common                : False
[ceph_deploy.cli][INFO  ]  overwrite_conf                : False
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  dev                           : master
[ceph_deploy.cli][INFO  ]  nogpgcheck                    : False
[ceph_deploy.cli][INFO  ]  local_mirror                  : None
[ceph_deploy.cli][INFO  ]  release                       : None
[ceph_deploy.cli][INFO  ]  install_mon                   : False
[ceph_deploy.cli][INFO  ]  gpg_url                       : None
[ceph_deploy.install][DEBUG ] Installing stable version jewel on cluster ceph hosts idcv-ceph1
[ceph_deploy.install][DEBUG ] Detecting platform for host idcv-ceph1 ...
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[ceph_deploy.install][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph1][INFO  ] installing Ceph on idcv-ceph1
[idcv-ceph1][INFO  ] Running command: sudo yum clean all
[idcv-ceph1][DEBUG ] Loaded plugins: fastestmirror, priorities
[idcv-ceph1][DEBUG ] Cleaning repos: Ceph Ceph-noarch base ceph-source epel extras updates
[idcv-ceph1][DEBUG ] Cleaning up everything
[idcv-ceph1][DEBUG ] Maybe you want: rm -rf /var/cache/yum, to also free up space taken by orphaned data from disabled or removed repos
[idcv-ceph1][DEBUG ] Cleaning up list of fastest mirrors
[idcv-ceph1][INFO  ] Running command: sudo yum -y install ceph
[idcv-ceph1][DEBUG ] Loaded plugins: fastestmirror, priorities
[idcv-ceph1][DEBUG ] Determining fastest mirrors
[idcv-ceph1][DEBUG ]   base: mirrors.tuna.tsinghua.edu.cn
[idcv-ceph1][DEBUG ]   epel: mirrors.huaweicloud.com
[idcv-ceph1][DEBUG ]   extras: mirror.bit.edu.cn
[idcv-ceph1][DEBUG ]   updates: mirrors.huaweicloud.com
[idcv-ceph1][DEBUG ] 12 packages excluded due to repository priority protections
[idcv-ceph1][DEBUG ] Package 1:ceph-10.2.10-0.el7.x86_64 already installed and latest version
[idcv-ceph1][DEBUG ] Nothing to do
[idcv-ceph1][INFO  ] Running command: sudo ceph --version
[idcv-ceph1][DEBUG ] ceph version 10.2.10 (5dc1e4c05cb68dbf62ae6fce3f0700e4654fdbbe)

　　4、节点cpeh1 还是安装不上osd角色，这边准备初始化ceph1重新添加

　　ceph-deploy purge 节点
ceph-deploy purgedata 节点
清楚安装包和残余数据
ceph-dpeloy install --no-adjust-repos --osd ceph1
直接装包 赋予OSD存储角色之后在添加OSD
具体步骤如下：
ceph-deploy purge  idcv-ceph1
ceph-deploy purgedata idcv-ceph1
ceph-deploy --overwrite-conf osd prepare idcv-ceph1:/dev/sdb
ceph-deploy --overwrite-conf osd activate idcv-ceph1:/dev/sdb1

　　5、部署成功osd查看集群状态

　　[root@idcv-ceph0 cluster]# ceph -s
cluster 812d3acb-eaa8-4355-9a74-64f2cd5209b3
health HEALTH_OK
monmap e2: 3 mons at {idcv-ceph0=172.20.1.138:6789/0,idcv-ceph2=172.20.1.140:6789/0,idcv-ceph3=172.20.1.141:6789/0}
election epoch 8, quorum 0,1,2 idcv-ceph0,idcv-ceph2,idcv-ceph3
osdmap e27: 4 osds: 4 up, 4 in
flags sortbitwise,require_jewel_osds
pgmap v64: 104 pgs, 6 pools, 1588 bytes data, 171 objects
138 MB used, 379 GB / 379 GB avail
104 active+clean

六、部署RGW服务
　　1、部署cdph1为对象网关

　　[root@idcv-ceph0 cluster]# ceph-deploy install --no-adjust-repos --rgw idcv-ceph1
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy install --no-adjust-repos --rgw idcv-ceph1
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  testing                       : None
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  dev_commit                    : None
[ceph_deploy.cli][INFO  ]  install_mds                   : False
[ceph_deploy.cli][INFO  ]  stable                        : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  adjust_repos                  : False
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  install_mgr                   : False
[ceph_deploy.cli][INFO  ]  install_all                   : False
[ceph_deploy.cli][INFO  ]  repo                          : False
[ceph_deploy.cli][INFO  ]  host                          : ['idcv-ceph1']
[ceph_deploy.cli][INFO  ]  install_rgw                   : True
[ceph_deploy.cli][INFO  ]  install_tests                 : False
[ceph_deploy.cli][INFO  ]  repo_url                      : None
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  install_osd                   : False
[ceph_deploy.cli][INFO  ]  version_kind                  : stable
[ceph_deploy.cli][INFO  ]  install_common                : False
[ceph_deploy.cli][INFO  ]  overwrite_conf                : False
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  dev                           : master
[ceph_deploy.cli][INFO  ]  nogpgcheck                    : False
[ceph_deploy.cli][INFO  ]  local_mirror                  : None
[ceph_deploy.cli][INFO  ]  release                       : None
[ceph_deploy.cli][INFO  ]  install_mon                   : False
[ceph_deploy.cli][INFO  ]  gpg_url                       : None
[ceph_deploy.install][DEBUG ] Installing stable version jewel on cluster ceph hosts idcv-ceph1
[ceph_deploy.install][DEBUG ] Detecting platform for host idcv-ceph1 ...
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[ceph_deploy.install][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[idcv-ceph1][INFO  ] installing Ceph on idcv-ceph1
[idcv-ceph1][INFO  ] Running command: sudo yum clean all
[idcv-ceph1][DEBUG ] Loaded plugins: fastestmirror, priorities
[idcv-ceph1][DEBUG ] Cleaning repos: Ceph Ceph-noarch base ceph-source epel extras updates
[idcv-ceph1][DEBUG ] Cleaning up everything
[idcv-ceph1][DEBUG ] Maybe you want: rm -rf /var/cache/yum, to also free up space taken by orphaned data from disabled or removed repos
[idcv-ceph1][DEBUG ] Cleaning up list of fastest mirrors
[idcv-ceph1][INFO  ] Running command: sudo yum -y install ceph-radosgw
[idcv-ceph1][DEBUG ] Loaded plugins: fastestmirror, priorities
[idcv-ceph1][DEBUG ] Determining fastest mirrors
[idcv-ceph1][DEBUG ]   base: mirrors.aliyun.com
[idcv-ceph1][DEBUG ]   epel: mirrors.aliyun.com
[idcv-ceph1][DEBUG ]   extras: mirrors.aliyun.com
[idcv-ceph1][DEBUG ]   updates: mirror.bit.edu.cn
[idcv-ceph1][DEBUG ] 12 packages excluded due to repository priority protections
[idcv-ceph1][DEBUG ] Resolving Dependencies
[idcv-ceph1][DEBUG ] --> Running transaction check
[idcv-ceph1][DEBUG ] ---> Package ceph-radosgw.x86_64 1:10.2.10-0.el7 will be installed
[idcv-ceph1][DEBUG ] --> Finished Dependency Resolution
[idcv-ceph1][DEBUG ]
[idcv-ceph1][DEBUG ] Dependencies Resolved
[idcv-ceph1][DEBUG ]
[idcv-ceph1][DEBUG ] ================================================================================
[idcv-ceph1][DEBUG ]  Package              Arch           Version                 Repository    Size
[idcv-ceph1][DEBUG ] ================================================================================
[idcv-ceph1][DEBUG ] Installing:
[idcv-ceph1][DEBUG ]  ceph-radosgw         x86_64         1:10.2.10-0.el7         Ceph         266 k
[idcv-ceph1][DEBUG ]
[idcv-ceph1][DEBUG ] Transaction Summary
[idcv-ceph1][DEBUG ] ================================================================================
[idcv-ceph1][DEBUG ] Install  1 Package
[idcv-ceph1][DEBUG ]
[idcv-ceph1][DEBUG ] Total download size: 266 k
[idcv-ceph1][DEBUG ] Installed size: 795 k
[idcv-ceph1][DEBUG ] Downloading packages:
[idcv-ceph1][DEBUG ] Running transaction check
[idcv-ceph1][DEBUG ] Running transaction test
[idcv-ceph1][DEBUG ] Transaction test succeeded
[idcv-ceph1][DEBUG ] Running transaction
[idcv-ceph1][DEBUG ]   Installing : 1:ceph-radosgw-10.2.10-0.el7.x86_64                          1/1
[idcv-ceph1][DEBUG ]   Verifying  : 1:ceph-radosgw-10.2.10-0.el7.x86_64                          1/1
[idcv-ceph1][DEBUG ]
[idcv-ceph1][DEBUG ] Installed:
[idcv-ceph1][DEBUG ]   ceph-radosgw.x86_64 1:10.2.10-0.el7
[idcv-ceph1][DEBUG ]
[idcv-ceph1][DEBUG ] Complete!
[idcv-ceph1][INFO  ] Running command: sudo ceph --version
[idcv-ceph1][DEBUG ] ceph version 10.2.10 (5dc1e4c05cb68dbf62ae6fce3f0700e4654fdbbe)

　　2、设置idcv-ceph1为管理网关

　　[root@idcv-ceph0 cluster]# ceph-deploy admin idcv-ceph1
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy admin idcv-ceph1
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  overwrite_conf                : False
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  client                        : ['idcv-ceph1']
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to idcv-ceph1
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[idcv-ceph1][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf

　　3、创建生成网关实例idcv-ceph1

　　[root@idcv-ceph0 cluster]# ceph-deploy rgw create   idcv-ceph1
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO  ] Invoked (1.5.39): /usr/bin/ceph-deploy rgw create idcv-ceph1
[ceph_deploy.cli][INFO  ] ceph-deploy options:
[ceph_deploy.cli][INFO  ]  username                      : None
[ceph_deploy.cli][INFO  ]  verbose                       : False
[ceph_deploy.cli][INFO  ]  rgw                           : [('idcv-ceph1', 'rgw.idcv-ceph1')]
[ceph_deploy.cli][INFO  ]  overwrite_conf                : False
[ceph_deploy.cli][INFO  ]  subcommand                    : create
[ceph_deploy.cli][INFO  ]  quiet                         : False
[ceph_deploy.cli][INFO  ]  cd_conf                       :
[ceph_deploy.cli][INFO  ]  cluster                       : ceph
[ceph_deploy.cli][INFO  ]  func                          :
[ceph_deploy.cli][INFO  ]  ceph_conf                     : None
[ceph_deploy.cli][INFO  ]  default_release               : False
[ceph_deploy.rgw][DEBUG ] Deploying rgw, cluster ceph hosts idcv-ceph1:rgw.idcv-ceph1
[idcv-ceph1][DEBUG ] connection detected need for sudo
[idcv-ceph1][DEBUG ] connected to host: idcv-ceph1
[idcv-ceph1][DEBUG ] detect platform information from remote host
[idcv-ceph1][DEBUG ] detect machine type
[ceph_deploy.rgw][INFO  ] Distro info: CentOS Linux 7.5.1804 Core
[ceph_deploy.rgw][DEBUG ] remote host will use systemd
[ceph_deploy.rgw][DEBUG ] deploying rgw bootstrap to idcv-ceph1
[idcv-ceph1][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[idcv-ceph1][WARNIN] rgw keyring does not exist yet, creating one
[idcv-ceph1][DEBUG ] create a keyring file
[idcv-ceph1][DEBUG ] create path recursively if it doesn't exist
[idcv-ceph1][INFO  ] Running command: sudo ceph --cluster ceph --name client.bootstrap-rgw --keyring /var/lib/ceph/bootstrap-rgw/ceph.keyring auth get-or-create client.rgw.idcv-ceph1 osd allow rwx mon allow rw -o /var/lib/ceph/radosgw/ceph-rgw.idcv-ceph1/keyring
[idcv-ceph1][INFO  ] Running command: sudo systemctl enable ceph-radosgw@rgw.idcv-ceph1
[idcv-ceph1][WARNIN] Created symlink from /etc/systemd/system/ceph-radosgw.target.wants/ceph-radosgw@rgw.idcv-ceph1.service to /usr/lib/systemd/system/ceph-radosgw@.service.
[idcv-ceph1][INFO  ] Running command: sudo systemctl start ceph-radosgw@rgw.idcv-ceph1
[idcv-ceph1][INFO  ] Running command: sudo systemctl enable ceph.target
[ceph_deploy.rgw][INFO  ] The Ceph Object Gateway (RGW) is now running on host idcv-ceph1 and default port 7480

　　4、测试网关服务

　　[root@idcv-ceph0 cluster]# curl 172.20.1.139:7480
