（一）从源码编译安装GTK开发环境
为了便于获取源码，截止2015-05-26的gtk相关源码的存放于网盘中：
链接: http://pan.baidu.com/s/1gdITvWJ 密码: w2yd
1. 相关网址
1）GTK+ Website
2）Compiling the GTK+ libraries
Overview of GTK+ and its Libraries 2.下载和编译源码包
1）下载源码： (版本：gtk+-3.16.3.tar.xz)2）解压配置gtk源码
1
2
3
| $ tar xvfJ gtk+-3.16.3.tar.xz
$ cd gtk+-3.16.3/
$ ./configure --prefix=/opt/gtk
|
编译GTK需要依赖 glib、atk、pango、cairo、gdk-pixbuf等软件包。
3）编译配置glib及其依赖包zlib、libffi
a.编译安装libffi-3.2.1(http://www.sourceware.org/libffi/)
采用默认configure
b.编译安装zlib-1.2.8(http://www.zlib.net/)
采用默认configure
c. 编译安装glib-2.44.1
1
2
3
| $ ./configure --prefix=/opt/glib-2.44.1
$make
$sudo make install
|

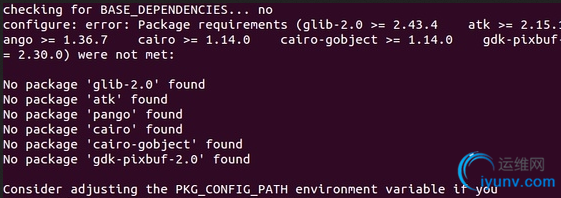

由于未采取默认配置，设置了自定义安装目录，因此需要声明变量PKG_CONFIG_PATH和LD_LIBRARY_PATH。
以glib为例，.pc文件位于 package/lib/pkgconfig目录下，则添加文件set_pkg_config_path_glib-2.0声明PKG_CONFIG_PATH变量和LD_LIBRAY_PATH
1
2
3
| $cat /opt/glib-2.44.1/set_pkg_config_path_glib-2.0
export PKG_CONFIG_PATH=/opt/glib-2.44.1/lib/pkgconfig:$PKG_CONFIG_PATH
export LD_LIBRARY_PATH=/opt/glib-2.44.1/lib:$LD_LIBRAY_PATH
|
对其它的五个package（atk、cairo、pango、cairo-gobject、gdk-pixbuf-2.0）依次采用针对glib-2.0的编译安装和配置方法，解决GTK对多个库依赖问题。
d.编译安装gobject
配置gobject，Error：未发现Python头文件（ configure: error: Python headers not found）
Solution：
1
| $sudo apt-get install python-dev //没有安装python源代码，报找不到 Python.h的头文件错误
|
e.下载编译gdk-pixbuf（http://www.linuxfromscratch.org/blfs/view/svn/x/.html）
gdk-pixbuf依赖glib、libjpeg-turbo、libpng、libtiff，这几个包需要先编译安装。
Gdk Pixbuf Dependencies
RequiredGLib-2.44.1, libjpeg-turbo-1.4.0, libpng-1.6.17 and LibTIFF-.0.3
Recommended
Xorg Libraries (Many GTK+ applications require gdk-pixbuf-xlib).
Optional (Required if building GNOME)
gobject-introspection-1.44.0
Optional: JasPer-1.900.1 and GTK-Doc-1.22
eg.如果为安装libxi则配置时出现如下错误：
Solution：
1
| $ sudo apt-get install libxi-dev
|
configure信息：
g.编译安装pango
pango依赖cairo、glib、freetype，所以这些包需要先编译安装，或者使用
$sudo apt-get install gcc g++ libfreetype6-dev libglib2.0-dev libcairo2-dev
$ ./configure --prefix=/opt/pango
configure: error: *** Could not enable any backends.
*** Must have at least one backend to build Pango.
过程中可能还会依赖bzip2，需要补充编译安装。

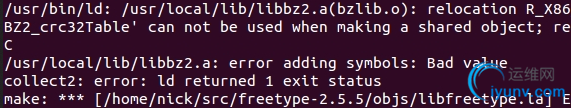

编译freetype出错：
一般是64位系统出现此问题，Makefile中CFLAGS加参数-fPIC，使用64位元的方法进行编译。
h. 编译安装atk
参考资料
a) GTK+安装笔记
b)CentOS编译安装GIMP
c)checking which cairo font backends could be used... none
d)libbz2.a,libz.so导致tokyocabinet make失败问题解决方法
1
2
| $sudo make
$sudo make install
|

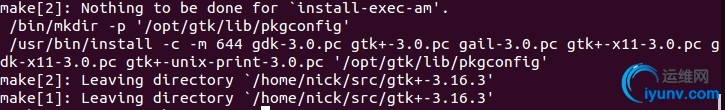

安装成功：
Couldn't find include 'GdkPixbuf-2.0.gir' (search path: ['../gdk', '/usr/share/gnome/gir-1.0', '/usr/local/share/gir-1.0', '/usr/share/gir-1.0', '/usr/local/share/gir-1.0', '/usr/share/gir-1.0', '/usr/local/share/gir-1.0'])
configure时添加参数 --enable-introspection=no（默认为yes）
测试是否安装成功--运行demo程序：
1
| <span style="font-family:sans-serif;">~/src/gtk+-3.16.3/demos/gtk-demo$ ./gtk3-demo</span><br>
|
参考链接：
- StackOverflow--My System crashed after I build GTK+-3.12 from source
There are the depandency problem and the library I install to solve the problem:
gobject-introspection-1.40.0 problem configure: error: flex not found but required
solve sudo apt-get install flex problem configure: error: bison not found but required
solve sudo apt-get install bison problem configure: error: Python headers not found
solve sudo apt-get install python-dev
gtk+-3.12.2 problem configure: error: *** XInput2 extension not found. Check 'config.log' for more details.
solve sudo apt-get install libXi-dev problem configure: error: Package requirements (atk atk-bridge-2.0) were not met: No package 'atk-bridge-2.0' found Consider adjusting the PKG_CONFIG_PATH environment variable if you installed software in a non-standard prefix. Alternatively, you may set the environment variables ATK_CFLAGS and ATK_LIBS to avoid the need to call pkg-config. See the pkg-config man page for more details.
solve sudo apt-get install libatk-bridge2.0-dev problem Couldn't find include 'GdkPixbuf-2.0.gir' (search path: ['../gdk', '/usr/share/gnome/gir-1.0', '/usr/local/share/gir-1.0', '/usr/share/gir-1.0', '/usr/local/share/gir-1.0', '/usr/share/gir-1.0', '/usr/local/share/gir-1.0']) make[4]: * [Gdk-3.0.gir] Error 1 make[4]: Leaving directory /home/simowce/GTK/gtk+-3.12.2/gdk' make[3]: *** [all-recursive] Error 1 make[3]: Leaving directory/home/simowce/GTK/gtk+-3.12.2/gdk' make[2]: * [all] Error 2 make[2]: Leaving directory /home/simowce/GTK/gtk+-3.12.2/gdk' make[1]: *** [all-recursive] Error 1 make[1]: Leaving directory/home/simowce/GTK/gtk+-3.12.2' make: *** [all] Error 2`
solve sudo apt-get install gobject-introspection What' s more, I also install gdk-pixbuf from the source file from HERE.
problem Couldn't find include 'Atk-1.0.gir'
solve Then, I build it by using the listed command: ./configure --prefix=/usr make sudo amek install
2. BLFS Book - Version 2012-04-04 Enhancement gtk+-3.2.4
About the error of couldn't find include 'gdkpixbuf-2.0.gir'. One solution is add --enable-introspection=no while configuring. The other one is install Gobject Introspection before atk, pango alnd gdk-pixbuf.
On the Gtk+-3 page it already says that if you want introspection support you need to install Gobject Introspection before you install Atk, Pango and Gdk-Pixbuf. If you don't need introspection support and you're gettingan error because of Gobject-Introspection the obvious solution is toconfigure with --disable-introspection.
PS:如果提示缺少某个Package，一个简单的方法时使用命令 apt-catch search PackageName，然后apt-get install 相应package的dev支持库。
关于pkg-config
1. /etc/ld.so.conf : 文件记录了编译时使用的动态链接库的路径
如果不修改/etc/ld.so.conf使用非默认路径下的库文件-----LD_LIBRARY_PATH
环境变量LD_LIBRARY_PATH列出了查找共享库时除了默认路径之外的其他路径。如果不想修改或无法修改(无root权限)/etc/ld.so.conf而使用其他路径下的库文件就需要设置LD_LIBRARY_PATH了，例：export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/opt/lib 这样就可以使用/opt/lib下的库文件。
2. ldconfig - configure dynamic linker run-time bindings
root命令，其作用是将/etc/ld.so.conf列出的路径下的库文件缓存到/etc/ld.so.cache以供使用。因此当安装完一些库文件(例如刚安装好glib)，或者修改ld.so.conf增加新的库路径后，需要运行一下/sbin/ldconfig，使所有的库文件都被缓存到ld.so.cache中，否则即使库文件就在/usr/lib下，也会不被使用，结果是编译过程中报错，缺少xxx库。
3.PKG_CONFIG_PATH & LD_LIBRARY_PATH
pkg-config是向configure程序提供系统信息的程序，比如软件的版本，库的版本、路径等等，并且这些信息只在编译时使用。pkg-config要求库提供一个.pc元数据文件，从这些文件中检索库的各种必要信息，包括版本信息，编译和连接需要的参数等。这些信息可以通过pkg-config提供的参数(如--cflags, --libs)单独提取出来直接供编译器和连接器使用。默认情况下，每个支持pkg-config的库对应的.pc文件，在安装后，都位于目录/usr/lib/pkgconfig目录下。环境变量PKG_CONFIG_PATH是用来设置.pc文件的搜索路径。
/usr/lib/pkgconfig
4. 参考文档：
1）. pkg-config使用
2）.PKG_CONFIG_PATH变量 与 ld.so.conf 文件
（二）通过apt-get自动安装GTK开发软件包及其相关依赖包
1
2
| $ sudo apt-get install build-essential
$ sudo apt-get install gnome-core-devel
|
参考链接：
- Ubuntu 12.04下安装GTK 2.24.10
- 运行命令 apt-get install gnome-core-devel 之后显示的依赖包信息：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
| The following extra packages will be installed:
autoconf automake autopoint autotools-dev debhelper devhelp devhelp-common
dh-apparmor docbook docbook-dsssl docbook-to-man docbook-xml docbook-xsl
doxygen evince evolution-data-server evolution-data-server-common
evolution-data-server-dev evolution-data-server-online-accounts
gir1.2-brasero-3.0 gir1.2-caribou-1.0 gir1.2-champlain-0.12
gir1.2-clutter-1.0 gir1.2-clutter-gst-1.0 gir1.2-cogl-1.0
gir1.2-coglpango-1.0 gir1.2-ebook-1.2 gir1.2-ebookcontacts-1.2
gir1.2-edataserver-1.2 gir1.2-evince-3.0 gir1.2-farstream-0.2
gir1.2-folks-0.6 gir1.2-freedesktop gir1.2-gck-1 gir1.2-gconf-2.0
gir1.2-gcr-3 gir1.2-gdesktopenums-3.0 gir1.2-gee-0.8 gir1.2-geocodeglib-1.0
gir1.2-gkbd-3.0 gir1.2-glib-2.0 gir1.2-gnomebluetooth-1.0
gir1.2-gnomedesktop-3.0 gir1.2-gst-plugins-base-0.10 gir1.2-gstreamer-0.10
gir1.2-gtk-2.0 gir1.2-gtk-3.0 gir1.2-gtkchamplain-0.12 gir1.2-gtkclutter-1.0
gir1.2-gtop-2.0 gir1.2-gucharmap-2.90 gir1.2-gweather-3.0 gir1.2-gxps-0.1
gir1.2-javascriptcoregtk-3.0 gir1.2-json-1.0 gir1.2-mutter-3.0
gir1.2-nautilus-3.0 gir1.2-networkmanager-1.0 gir1.2-nmgtk-1.0
gir1.2-panelapplet-4.0 gir1.2-pango-1.0 gir1.2-rest-0.7 gir1.2-rsvg-2.0
gir1.2-telepathyglib-0.12 gir1.2-webkit-3.0 gir1.2-wnck-3.0 gir1.2-xkl-1.0
gjs gnome-api-docs gnome-bluetooth gnome-common gnome-desktop3-data
gnome-devel-docs gnome-js-common gnome-platform-devel gobject-introspection
graphviz gsettings-desktop-schemas-dev gstreamer1.0-doc gtk-doc-tools
intltool itstool jade libarchive-dev libarchive13 libatk-bridge2.0-dev
libatk1.0-dev libatk1.0-doc libatkmm-1.6-dev libatspi2.0-dev
libbrasero-media3-dev libcairo-gobject2 libcairo-script-interpreter2
libcairo2 libcairo2-dev libcairo2-doc libcairomm-1.0-dev libcamel-1.2-45
libcamel1.2-dev libcanberra-doc libcaribou-common libcaribou-dev libcaribou0
libcdt5 libcgraph6 libchamplain-0.12-0 libchamplain-0.12-dev
libchamplain-gtk-0.12-0 libchamplain-gtk-0.12-dev libclutter-1.0-dev
libclutter-1.0-doc libclutter-gst-1.0-0 libclutter-gst-dev
libclutter-gtk-1.0-0 libclutter-gtk-1.0-dev libclutter-gtk-1.0-doc
libcogl-dev libcogl-doc libcogl-pango-dev libcroco3-dev libdbus-1-3
libdbus-1-dev libdbus-glib-1-dev libdconf-dev libdconf-doc libdevhelp-3-2
libdrm-dev libdrm-intel1 libdrm-nouveau2 libdrm-radeon1 libdrm2
libebackend-1.2-7 libebackend1.2-dev libebook-1.2-14 libebook-contacts-1.2-0
libebook-contacts1.2-dev libebook1.2-dev libecal-1.2-16 libecal1.2-dev
libedata-book-1.2-20 libedata-book1.2-dev libedata-cal-1.2-23
libedata-cal1.2-dev libedataserver-1.2-18 libedataserver1.2-dev libegl1-mesa
libegl1-mesa-dev libegl1-mesa-drivers libencode-locale-perl libevdocument3-4
libevince-dev libevview3-3 libexpat1-dev libfarstream-0.2-dev libffi-dev
libfile-listing-perl libfolks-dev libfont-afm-perl libfontconfig1-dev
libfreetype6 libfreetype6-dev libgail-3-0 libgail-3-dev libgail-3-doc
libgail-common libgail-dev libgail-doc libgail18 libgbm-dev libgbm1
libgck-1-dev libgconf2-dev libgconf2-doc libgcr-3-dev libgdk-pixbuf2.0-dev
libgdk-pixbuf2.0-doc libgee-0.8-dev libgeocode-glib-dev libgeocode-glib0
libgirepository-1.0-1 libgirepository1.0-dev libgjs-dev libgjs0e
libgl1-mesa-dev libgl1-mesa-glx libglapi-mesa libgles2-mesa
libgles2-mesa-dev libglib2.0-0 libglib2.0-bin libglib2.0-dev libglib2.0-doc
libglibmm-2.4-dev libgmime-2.6-dev libgnome-bluetooth-dev
libgnome-bluetooth11 libgnome-desktop-3-7 libgnome-desktop-3-dev
libgnome-keyring-dev libgnome-menu-3-dev libgnomekbd-dev
libgstreamer-plugins-base0.10-dev libgstreamer-plugins-base1.0-dev
libgstreamer0.10-dev libgstreamer1.0-dev libgtk-3-0 libgtk-3-dev
libgtk-3-doc libgtk2.0-0 libgtk2.0-bin libgtk2.0-dev libgtk2.0-doc
libgtkmm-3.0-dev libgtksourceview-3.0-dev libgtksourceview-3.0-doc
libgtop2-dev libgucharmap-2-90-dev libgvc6 libgvpr2 libgweather-3-6
libgweather-3-dev libgxps-dev libharfbuzz-dev libharfbuzz-gobject0
libharfbuzz-icu0 libharfbuzz0b libhtml-form-perl libhtml-format-perl
libhtml-parser-perl libhtml-tagset-perl libhtml-tree-perl
libhttp-cookies-perl libhttp-daemon-perl libhttp-date-perl
libhttp-message-perl libhttp-negotiate-perl libical-dev libice-dev
libio-html-perl libjavascriptcoregtk-3.0-0 libjavascriptcoregtk-3.0-dev
libjson-glib-dev libltdl-dev liblwp-mediatypes-perl
liblwp-protocol-https-perl libmail-sendmail-perl libmirclient-dev
libmirclient7 libmirclientplatform-mesa libmirprotobuf-dev libmirprotobuf0
libmozjs-24-0 libmozjs-24-bin libmozjs-24-dev libmutter-dev libmutter0c
libnautilus-extension-dev libnautilus-extension1a libnet-http-perl
libnm-glib-dev libnm-glib4 libnm-gtk-common libnm-gtk-dev libnm-gtk0
libnm-util-dev libnm-util2 libnotify-dev libnotify-doc libnspr4 libnspr4-dev
libnss3 libnss3-1d libnss3-dev libnss3-nssdb libp11-kit-dev
libpanel-applet-4-0 libpanel-applet-4-dev libpanel-applet-4-doc
libpango-1.0-0 libpango1.0-0 libpango1.0-dev libpango1.0-doc
libpangocairo-1.0-0 libpangoft2-1.0-0 libpangomm-1.4-dev libpangoxft-1.0-0
libpathplan4 libpcre3-dev libpcrecpp0 libpeas-dev libpixman-1-dev
libpng12-dev libprotobuf-dev libprotobuf-lite8 libpthread-stubs0-dev
libpython-dev libpython2.7-dev librest-dev librsvg2-dev libsecret-1-dev
libseed-gtk3-0 libseed-gtk3-dev libsigc++-2.0-dev libsigsegv2 libsm-dev
libsoup-gnome2.4-dev libsoup2.4-dev libsp1c2 libsqlite3-dev
libstartup-notification0-dev libsys-hostname-long-perl libtasn1-3-bin
libtasn1-3-dev libtasn1-6 libtasn1-6-dev libtasn1-bin
libtelepathy-farstream-dev libtelepathy-glib-dev libtelepathy-glib-doc
libtool libtotem-plparser-dev libudev-dev libudev1 libudisks2-dev
libvala-0.22-0 libvte-2.90-dev libvte-2.90-doc libwacom-dev libwayland-dev
libwayland-egl1-mesa libwebkitgtk-3.0-0 libwebkitgtk-3.0-common
libwebkitgtk-3.0-dev libwebkitgtk-common-dev libwnck-3-0 libwnck-3-dev
libwww-perl libwww-robotrules-perl libx11-dev libx11-doc libx11-xcb-dev
libxau-dev libxcb-dri2-0-dev libxcb-dri3-dev libxcb-glx0-dev
libxcb-present-dev libxcb-randr0-dev libxcb-render0-dev libxcb-shape0-dev
libxcb-shm0-dev libxcb-sync-dev libxcb-xfixes0-dev libxcb1-dev
libxcomposite-dev libxcursor-dev libxdamage-dev libxdmcp-dev libxext-dev
libxext6 libxfixes-dev libxfixes3 libxft-dev libxi-dev libxi6
libxinerama-dev libxkbcommon-dev libxkbfile-dev libxklavier-dev
libxml-parser-perl libxml2 libxml2-dev libxml2-doc libxml2-utils
libxrandr-dev libxrender-dev libxrender1 libxres-dev libxshmfence-dev
libxtst-dev libxxf86vm-dev m4 mesa-common-dev mircommon-dev mm-common
mutter-common network-manager-dev network-manager-gnome po-debconf
policykit-1-doc python-dev python-gi python-gi-cairo python-gi-dev
python-gobject-2-dev python-gobject-dev python-mako python-markupsafe
python2.7-dev python3-gi python3-gi-cairo sgml-data sp udev valac valac-0.22
valac-0.22-vapi x11proto-composite-dev x11proto-core-dev x11proto-damage-dev
x11proto-dri2-dev x11proto-fixes-dev x11proto-gl-dev x11proto-input-dev
x11proto-kb-dev x11proto-randr-dev x11proto-record-dev x11proto-render-dev
x11proto-resource-dev x11proto-xext-dev x11proto-xf86vidmode-dev
x11proto-xinerama-dev xorg-sgml-doctools xsltproc xtrans-dev yelp-tools
zlib1g-dev
Suggested packages:
autoconf2.13 autoconf-archive gnu-standards autoconf-doc dh-make
apparmor-easyprof docbook-defguide psgml jadetex docbook-dsssl-doc dbtoepub
docbook-xsl-doc-html docbook-xsl-doc-pdf docbook-xsl-doc-text
docbook-xsl-doc docbook-xsl-saxon fop libsaxon-java libxalan2-java
libxslthl-java xalan doxygen-latex doxygen-doc doxygen-gui unrar evolution
evolution-data-server-dbg python-doc graphviz-doc lrzip libatkmm-1.6-doc
libcairomm-1.0-doc libchamplain-doc libclutter-gst-doc libgck-1-doc
libgcr-3-doc libgeocode-glib-doc libgirepository1.0-doc libglibmm-2.4-doc
gstreamer0.10-doc libgtkmm-3.0-doc libdata-dump-perl libice-doc
libjson-glib-doc libtool-doc libcrypt-ssleay-perl ttf-baekmuk
ttf-arphic-gbsn00lp ttf-arphic-bsmi00lp ttf-arphic-gkai00mp
ttf-arphic-bkai00mp imagemagick libpeas-doc librsvg2-doc seed-doc
libsigc++-2.0-doc libsm-doc libsoup2.4-doc sqlite3-doc automaken gfortran
fortran95-compiler gcj-jdk libauthen-ntlm-perl libxcb-doc libxext-doc
network-manager-openconnect-gnome network-manager-openvpn-gnome
network-manager-vpnc-gnome libmail-box-perl python-beaker python-mako-doc
perlsgml w3-recs opensp
The following NEW packages will be installed:
autoconf automake autopoint autotools-dev debhelper devhelp devhelp-common
dh-apparmor docbook docbook-dsssl docbook-to-man docbook-xml docbook-xsl
doxygen evolution-data-server-dev gir1.2-brasero-3.0 gir1.2-caribou-1.0
gir1.2-champlain-0.12 gir1.2-clutter-1.0 gir1.2-clutter-gst-1.0
gir1.2-cogl-1.0 gir1.2-coglpango-1.0 gir1.2-evince-3.0 gir1.2-farstream-0.2
gir1.2-folks-0.6 gir1.2-gck-1 gir1.2-gconf-2.0 gir1.2-gcr-3
gir1.2-gdesktopenums-3.0 gir1.2-gee-0.8 gir1.2-geocodeglib-1.0
gir1.2-gkbd-3.0 gir1.2-gnomedesktop-3.0 gir1.2-gst-plugins-base-0.10
gir1.2-gstreamer-0.10 gir1.2-gtk-2.0 gir1.2-gtkchamplain-0.12
gir1.2-gtkclutter-1.0 gir1.2-gtop-2.0 gir1.2-gucharmap-2.90
gir1.2-gweather-3.0 gir1.2-gxps-0.1 gir1.2-json-1.0 gir1.2-mutter-3.0
gir1.2-nautilus-3.0 gir1.2-nmgtk-1.0 gir1.2-panelapplet-4.0 gir1.2-rest-0.7
gir1.2-rsvg-2.0 gir1.2-telepathyglib-0.12 gir1.2-xkl-1.0 gjs gnome-api-docs
gnome-common gnome-core-devel gnome-devel-docs gnome-js-common
gnome-platform-devel gobject-introspection graphviz
gsettings-desktop-schemas-dev gstreamer1.0-doc gtk-doc-tools intltool
itstool jade libarchive-dev libatk-bridge2.0-dev libatk1.0-dev libatk1.0-doc
libatkmm-1.6-dev libatspi2.0-dev libbrasero-media3-dev
libcairo-script-interpreter2 libcairo2-dev libcairo2-doc libcairomm-1.0-dev
libcamel1.2-dev libcanberra-doc libcaribou-common libcaribou-dev libcaribou0
libcdt5 libcgraph6 libchamplain-0.12-0 libchamplain-0.12-dev
libchamplain-gtk-0.12-0 libchamplain-gtk-0.12-dev libclutter-1.0-dev
libclutter-1.0-doc libclutter-gst-1.0-0 libclutter-gst-dev
libclutter-gtk-1.0-dev libclutter-gtk-1.0-doc libcogl-dev libcogl-doc
libcogl-pango-dev libcroco3-dev libdbus-1-dev libdbus-glib-1-dev
libdconf-dev libdconf-doc libdevhelp-3-2 libdrm-dev libebackend1.2-dev
libebook-contacts1.2-dev libebook1.2-dev libecal1.2-dev libedata-book1.2-dev
libedata-cal1.2-dev libedataserver1.2-dev libegl1-mesa-dev
libencode-locale-perl libevince-dev libexpat1-dev libfarstream-0.2-dev
libffi-dev libfile-listing-perl libfolks-dev libfont-afm-perl
libfontconfig1-dev libfreetype6-dev libgail-3-dev libgail-3-doc libgail-dev
libgail-doc libgbm-dev libgck-1-dev libgconf2-dev libgconf2-doc libgcr-3-dev
libgdk-pixbuf2.0-dev libgdk-pixbuf2.0-doc libgee-0.8-dev libgeocode-glib-dev
libgeocode-glib0 libgirepository1.0-dev libgjs-dev libgjs0e libgl1-mesa-dev
libgles2-mesa-dev libglib2.0-dev libglib2.0-doc libglibmm-2.4-dev
libgmime-2.6-dev libgnome-bluetooth-dev libgnome-desktop-3-dev
libgnome-keyring-dev libgnome-menu-3-dev libgnomekbd-dev
libgstreamer-plugins-base0.10-dev libgstreamer-plugins-base1.0-dev
libgstreamer0.10-dev libgstreamer1.0-dev libgtk-3-dev libgtk-3-doc
libgtk2.0-dev libgtk2.0-doc libgtkmm-3.0-dev libgtksourceview-3.0-dev
libgtksourceview-3.0-doc libgtop2-dev libgucharmap-2-90-dev libgvc6 libgvpr2
libgweather-3-dev libgxps-dev libharfbuzz-dev libharfbuzz-gobject0
libhtml-form-perl libhtml-format-perl libhtml-parser-perl
libhtml-tagset-perl libhtml-tree-perl libhttp-cookies-perl
libhttp-daemon-perl libhttp-date-perl libhttp-message-perl
libhttp-negotiate-perl libical-dev libice-dev libio-html-perl
libjavascriptcoregtk-3.0-dev libjson-glib-dev libltdl-dev
liblwp-mediatypes-perl liblwp-protocol-https-perl libmail-sendmail-perl
libmirclient-dev libmirclient7 libmirclientplatform-mesa libmirprotobuf-dev
libmirprotobuf0 libmozjs-24-0 libmozjs-24-bin libmozjs-24-dev libmutter-dev
libmutter0c libnautilus-extension-dev libnet-http-perl libnm-glib-dev
libnm-gtk-dev libnm-util-dev libnotify-dev libnotify-doc libnspr4-dev
libnss3-dev libp11-kit-dev libpanel-applet-4-0 libpanel-applet-4-dev
libpanel-applet-4-doc libpango1.0-dev libpango1.0-doc libpangomm-1.4-dev
libpathplan4 libpcre3-dev libpcrecpp0 libpeas-dev libpixman-1-dev
libpng12-dev libprotobuf-dev libprotobuf-lite8 libpthread-stubs0-dev
libpython-dev libpython2.7-dev librest-dev librsvg2-dev libsecret-1-dev
libseed-gtk3-0 libseed-gtk3-dev libsigc++-2.0-dev libsigsegv2 libsm-dev
libsoup-gnome2.4-dev libsoup2.4-dev libsp1c2 libsqlite3-dev
libstartup-notification0-dev libsys-hostname-long-perl libtasn1-3-bin
libtasn1-3-dev libtasn1-6-dev libtasn1-bin libtelepathy-farstream-dev
libtelepathy-glib-dev libtelepathy-glib-doc libtool libtotem-plparser-dev
libudev-dev libudisks2-dev libvala-0.22-0 libvte-2.90-dev libvte-2.90-doc
libwacom-dev libwayland-dev libwebkitgtk-3.0-dev libwebkitgtk-common-dev
libwnck-3-dev libwww-perl libwww-robotrules-perl libx11-dev libx11-doc
libx11-xcb-dev libxau-dev libxcb-dri2-0-dev libxcb-dri3-dev libxcb-glx0-dev
libxcb-present-dev libxcb-randr0-dev libxcb-render0-dev libxcb-shape0-dev
libxcb-shm0-dev libxcb-sync-dev libxcb-xfixes0-dev libxcb1-dev
libxcomposite-dev libxcursor-dev libxdamage-dev libxdmcp-dev libxext-dev
libxfixes-dev libxft-dev libxi-dev libxinerama-dev libxkbcommon-dev
libxkbfile-dev libxklavier-dev libxml-parser-perl libxml2-dev libxml2-doc
libxml2-utils libxrandr-dev libxrender-dev libxres-dev libxshmfence-dev
libxtst-dev libxxf86vm-dev m4 mesa-common-dev mircommon-dev mm-common
mutter-common network-manager-dev po-debconf policykit-1-doc python-dev
python-gi-dev python-gobject-2-dev python-gobject-dev python-mako
python-markupsafe python2.7-dev sgml-data sp valac valac-0.22
valac-0.22-vapi x11proto-composite-dev x11proto-core-dev x11proto-damage-dev
x11proto-dri2-dev x11proto-fixes-dev x11proto-gl-dev x11proto-input-dev
x11proto-kb-dev x11proto-randr-dev x11proto-record-dev x11proto-render-dev
x11proto-resource-dev x11proto-xext-dev x11proto-xf86vidmode-dev
x11proto-xinerama-dev xorg-sgml-doctools xsltproc xtrans-dev yelp-tools
zlib1g-dev
The following packages will be upgraded:
evince evolution-data-server evolution-data-server-common
evolution-data-server-online-accounts gir1.2-ebook-1.2
gir1.2-ebookcontacts-1.2 gir1.2-edataserver-1.2 gir1.2-freedesktop
gir1.2-glib-2.0 gir1.2-gnomebluetooth-1.0 gir1.2-gtk-3.0
gir1.2-javascriptcoregtk-3.0 gir1.2-networkmanager-1.0 gir1.2-pango-1.0
gir1.2-webkit-3.0 gir1.2-wnck-3.0 gnome-bluetooth gnome-desktop3-data
libarchive13 libcairo-gobject2 libcairo2 libcamel-1.2-45
libclutter-gtk-1.0-0 libdbus-1-3 libdrm-intel1 libdrm-nouveau2
libdrm-radeon1 libdrm2 libebackend-1.2-7 libebook-1.2-14
libebook-contacts-1.2-0 libecal-1.2-16 libedata-book-1.2-20
libedata-cal-1.2-23 libedataserver-1.2-18 libegl1-mesa libegl1-mesa-drivers
libevdocument3-4 libevview3-3 libfreetype6 libgail-3-0 libgail-common
libgail18 libgbm1 libgirepository-1.0-1 libgl1-mesa-glx libglapi-mesa
libgles2-mesa libglib2.0-0 libglib2.0-bin libgnome-bluetooth11
libgnome-desktop-3-7 libgtk-3-0 libgtk2.0-0 libgtk2.0-bin libgweather-3-6
libharfbuzz-icu0 libharfbuzz0b libjavascriptcoregtk-3.0-0
libnautilus-extension1a libnm-glib4 libnm-gtk-common libnm-gtk0 libnm-util2
libnspr4 libnss3 libnss3-1d libnss3-nssdb libpango-1.0-0 libpango1.0-0
libpangocairo-1.0-0 libpangoft2-1.0-0 libpangoxft-1.0-0 libtasn1-6 libudev1
libwayland-egl1-mesa libwebkitgtk-3.0-0 libwebkitgtk-3.0-common libwnck-3-0
libxext6 libxfixes3 libxi6 libxml2 libxrender1 network-manager-gnome
python-gi python-gi-cairo python3-gi python3-gi-cairo udev
90 upgraded, 337 newly installed, 0 to remove and 344 not upgraded.
Need to get 118 MB of archives.
After this operation, 507 MB of additional disk space will be used.
Do you want to continue? [Y/n]
|
查看pkg和gtk版本：
可见gtk的2.x和3.x版本均可用。
编辑和运行测试程序：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| /*************************************************************************
> File Name: hellogtk.c
> Author: Nick
> Mail: xjhznick@gmail.com
> Created Time: 2015年05月26日 星期二 22时55分11秒
************************************************************************/
#include <gtk/gtk.h>
int main(int argc,char *argv[])
{
GtkWidget *window;
GtkWidget *label;
gtk_init(&argc,&argv);
/* create the main, top level, window */
window = gtk_window_new(GTK_WINDOW_TOPLEVEL);
/* give it the title */
gtk_window_set_title(GTK_WINDOW(window),"Hello World");
/* connect the destroy signal of the window to gtk_main_quit
* when the window is about to be destroyed we get a notification and
* stop the main GTK+ loop
*/
g_signal_connect(window,"destroy",G_CALLBACK(gtk_main_quit),NULL);
/* create the "Hello, World" label */
label = gtk_label_new("Hello, World");
/* and insert it into the main window */
gtk_container_add(GTK_CONTAINER(window),label);
/* make sure that everything, window and label, are visible */
gtk_widget_show_all(window);
/* start the main loop, and let it rest until the application is closed */
gtk_main();
return 0;
}
|
编译命令：
1
| $ gcc -o Helloworld hellogtk.c `pkg-config --cflags --libs gtk+-3.0`
|
|
QQ群⑧：
窥视卡
雷达卡
发表于 2015-5-27 08:36:57
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
