CentOS6.6安装opensips及mediaproxy实现ICE-第二部分

212dqw

第二部分：MediaProxy的安装与配置

• 安装依赖包



1 2	yum -y groupinstall “Development Tools” yum -y install gcc gcc-c++ iptables-devel libnfnetlink-devel libnetfilter_conntrack-devel libgcrypt-devel libgpg-error-devel gnutls python-devel python-zope-interface

2.安装python-cjson-1.0.5.tar.gz

1 2 3 4 5 6

wget https://pypi.python.org/packages ... -cjson-1.0.5.tar.gz tar zxf python-cjson-1.0.5.tar.gz cd python-cjson-1.0.5 ./setup.py build ./setup.py install cd

3.安装python-application-1.3.0.tar.gz

1 2 3 4 5 6

wget https://pypi.python.org/packages ... cation-1.3.0.tar.gz tar zxf python-application-1.3.0.tar.gz cd python-application-1.3.0 ./setup.py build ./setup.py install cd

4.安装python-gnutls-1.2.4.tar.gz

1 2 3 4 5 6

wget https://pypi.python.org/packages ... gnutls-1.2.4.tar.gz tar zxf python-gnutls-1.2.4.tar.gz cd python-gnutls-1.2.4 ./setup.py build ./setup.py install cd

5.安装Twisted-11.0.0.tar.bz2

1 2 3 4 5 6

wget http://twistedmatrix.com/Release ... sted-11.0.0.tar.bz2 tar jxf Twisted-11.0.0.tar.bz2 cd Twisted-11.0.0 ./setup.py build ./setup.py install cd

6.安装mediaproxy-2.5.2.tar.gz

1 2 3 4 5 6

wget  http://download.ag-projects.com/ ... aproxy-2.5.2.tar.gz tar zxf mediaproxy-2.5.2.tar.gz cd mediaproxy-2.5.2 ./setup.py build ./setup.py install cd

7.配置mediaproxy

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

mkdir /etc/mediaproxy mkdir -p /var/run/mediaproxy mkdir -p /var/run/opensips cp -rf /root/mediaproxy-2.5.2/tls/ /etc/mediaproxy/ #生成mediaproxy的配置文件 cat << EOF >/etc/mediaproxy/config.ini [Relay] dispatchers = 192.168.88.10 passport = None relay_ip = 192.168.88.10 port_range = 50000:60000 [Dispatcher] socket_path = dispatcher.sock listen = 192.168.88.10 listen_management = 192.168.88.10 passport = None management_passport = None [TLS] [Database] [Radius] [OpenSIPS] socket_path = /var/run/opensips/socket max_connections = 10 EOF #将以上IP改为本机的IP

8.配置Linux内核设置转发

1 2	sed -i 's#net.ipv4.ip_forward = 0#net.ipv4.ip_forward = 1#g' /etc/sysctl.conf sysctl -p

9.启动mediaproxy及中继

1 2	media-dispatcher media-relay

#在启动的时候一定要观察/var/log/message

10.在opensips配置文件中增加
#add for mediaproxy#######################################
loadmodule "mediaproxy.so"
modparam("mediaproxy", "disable", 0)
modparam("mediaproxy", "mediaproxy_socket", "/var/run/mediaproxy/dispatcher.sock")
modparam("mediaproxy", "mediaproxy_timeout", 1000)
modparam("mediaproxy", "signaling_ip_avp", "$avp(nat_ip)")
modparam("mediaproxy", "media_relay_avp", "$avp(media_relay)")
modparam("mediaproxy", "ice_candidate", "low-priority")


最后opensips.cfg的配置文件就是

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285 286 287 288 289 290 291 292 293 294 295 296 297 298 299 300 301 302 303 304 305 306 307 308 309 310 311 312 313 314 315 316 317 318 319 320 321 322 323 324 325 326 327 328 329 330 331 332 333 334 335 336 337 338 339 340 341 342 343 344 345 346 347 348 349 350 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 377 378 379 380 381 382 383 384 385 386 387 388 389 390 391 392 393 394 395 396 397 398 399 400 401 402 403 404 405 406 407 408 409 410 411 412 413 414 415 416 417 418 419 420 421 422 423 424 425 426 427 428 429 430 431 432 433 434 435 436 437 438 439 440 441 442 443 444 445 446 447 448 449 450 451 452 453 454 455 456 457 458 459 460 461 462 463 464 465 466 467 468 469 470 471 472 473 474 475 476 477 478 479 480

# # $Id$ # # OpenSIPS residential configuration script #     by OpenSIPS Solutions <team@opensips-solutions.com> # # This script was generated via "make menuconfig", from #   the "Residential" scenario. # You can enable / disable more features / functionalities by #   re-generating the scenario with different options.# # # Please refer to the Core CookBook at: #      http://www.opensips.org/Resources/DocsCookbooks # for a explanation of possible statements, functions and parameters. # ####### Global Parameters ######### debug=3 log_stderror=no log_facility=LOG_LOCAL0 fork=yes children=4 /* uncomment the following lines to enable debugging */ #debug=6 #fork=no #log_stderror=yes /* uncomment the next line to enable the auto temporary blacklisting of    not available destinations (default disabled) */ #disable_dns_blacklist=no /* uncomment the next line to enable IPv6 lookup after IPv4 dns    lookup failures (default disabled) */ #dns_try_ipv6=yes /* comment the next line to enable the auto discovery of local aliases    based on revers DNS on IPs */ auto_aliases=no listen=udp:192.168.1.245:5060   # CUSTOMIZE ME #disable_tcp=yes #disable_tls=yes ####### Modules Section ######## #set module path mpath="/data/opensips1.11.4/lib64/opensips/modules/" #### SIGNALING module loadmodule "signaling.so" #### StateLess module loadmodule "sl.so" #### Transaction Module loadmodule "tm.so" modparam("tm", "fr_timeout", 5) modparam("tm", "fr_inv_timeout", 30) modparam("tm", "restart_fr_on_each_reply", 0) modparam("tm", "onreply_avp_mode", 1) #### Record Route Module loadmodule "rr.so" /* do not append from tag to the RR (no need for this script) */ modparam("rr", "append_fromtag", 0) #### MAX ForWarD module loadmodule "maxfwd.so" #### SIP MSG OPerationS module loadmodule "sipmsgops.so" #### FIFO Management Interface loadmodule "mi_fifo.so" modparam("mi_fifo", "fifo_name", "/tmp/opensips_fifo") modparam("mi_fifo", "fifo_mode", 0666) #### URI module loadmodule "uri.so" modparam("uri", "use_uri_table", 0) modparam("uri", "db_url",         "mysql://opensips:opensipsrw@localhost/opensips") # CUSTOMIZE ME #### MYSQL module loadmodule "db_mysql.so" #### USeR LOCation module loadmodule "usrloc.so" modparam("usrloc", "nat_bflag", "NAT") modparam("usrloc", "db_mode",   2) modparam("usrloc", "db_url",     "mysql://opensips:opensipsrw@localhost/opensips") # CUSTOMIZE ME #### REGISTRAR module loadmodule "registrar.so" modparam("registrar", "tcp_persistent_flag", "TCP_PERSISTENT") /* uncomment the next line not to allow more than 10 contacts per AOR */ #modparam("registrar", "max_contacts", 10) #### ACCounting module loadmodule "acc.so" /* what special events should be accounted ? */ modparam("acc", "early_media", 0) modparam("acc", "report_cancels", 0) /* by default we do not adjust the direct of the sequential requests.    if you enable this parameter, be sure the enable "append_fromtag"    in "rr" module */ modparam("acc", "detect_direction", 0) modparam("acc", "failed_transaction_flag", "ACC_FAILED") /* account triggers (flags) */ modparam("acc", "db_flag", "ACC_DO") modparam("acc", "db_missed_flag", "ACC_MISSED") modparam("acc", "db_url",     "mysql://opensips:opensipsrw@localhost/opensips") # CUSTOMIZE ME #### AUTHentication modules loadmodule "auth.so" loadmodule "auth_db.so" modparam("auth_db", "calculate_ha1", yes) modparam("auth_db", "password_column", "password") modparam("auth_db", "db_url",     "mysql://opensips:opensipsrw@localhost/opensips") # CUSTOMIZE ME modparam("auth_db", "load_credentials", "") #### ALIAS module loadmodule "alias_db.so" modparam("alias_db", "db_url",     "mysql://opensips:opensipsrw@localhost/opensips") # CUSTOMIZE ME #### DIALOG module loadmodule "dialog.so" modparam("dialog", "dlg_match_mode", 1) modparam("dialog", "default_timeout", 21600)  # 6 hours timeout modparam("dialog", "db_mode", 2) modparam("dialog", "db_url",     "mysql://opensips:opensipsrw@localhost/opensips") # CUSTOMIZE ME ####  NAT modules loadmodule "nathelper.so" modparam("nathelper", "natping_interval", 10) modparam("nathelper", "ping_nated_only", 1) modparam("nathelper", "received_avp", "$avp(received_nh)") loadmodule "rtpproxy.so" modparam("rtpproxy", "rtpproxy_sock", "unix:/var/run/rtpproxy.sock") # CUSTOMIZE ME loadmodule "mediaproxy.so" modparam("mediaproxy", "disable", 0) modparam("mediaproxy", "mediaproxy_socket", "/var/run/mediaproxy/dispatcher.sock") modparam("mediaproxy", "mediaproxy_timeout", 1000) modparam("mediaproxy", "signaling_ip_avp", "$avp(nat_ip)") modparam("mediaproxy", "media_relay_avp", "$avp(media_relay)") modparam("mediaproxy", "ice_candidate", "low-priority") ####### Routing Logic ######## # main request routing logic route{ /*           force_rport();         if (nat_uac_test("23")) {                 if (is_method("REGISTER")) {                         fix_nated_register();                         setbflag(NAT);                 } else {                         fix_nated_contact();                         setflag(NAT);                 }         } */     if (!mf_process_maxfwd_header("10")) {         sl_send_reply("483","Too Many Hops");         exit;     }     if (has_totag()) {         # sequential request withing a dialog should         # take the path determined by record-routing         if (loose_route()) {                          # validate the sequential request against dialog             if ( $DLG_status!=NULL && !validate_dialog() ) {                 xlog("In-Dialog $rm from $si (callid=$ci) is not valid according to dialog\n");                 ## exit;             }                          if (is_method("BYE")) {                 setflag(ACC_DO); # do accounting ...                 setflag(ACC_FAILED); # ... even if the transaction fails             } else if (is_method("INVITE")) {                 # even if in most of the cases is useless, do RR for                 # re-INVITEs alos, as some buggy clients do change route set                 # during the dialog.                 record_route();             } /*          if (check_route_param("nat=yes")) {                                 setflag(NAT);             } */                      # route it out to whatever destination was set by loose_route()             # in $du (destination URI).             route(relay);         } else {                          if ( is_method("ACK") ) {                 if ( t_check_trans() ) {                     # non loose-route, but stateful ACK; must be an ACK after                     # a 487 or e.g. 404 from upstream server                     t_relay();                     exit;                 } else {                     # ACK without matching transaction ->                     # ignore and discard                     exit;                 }             }             sl_send_reply("404","Not here");         }         exit;     }else {     if (is_method("INVITE") && !has_totag()) {         engage_media_proxy();     }     }     # CANCEL processing     if (is_method("CANCEL"))     {         if (t_check_trans())             t_relay();         exit;     }     t_check_trans();     if ( !(is_method("REGISTER")  ) ) {                   if (from_uri==myself)                   {                          # authenticate if from local subscriber             # authenticate all initial non-REGISTER request that pretend to be             # generated by local subscriber (domain from FROM URI is local)             if (!proxy_authorize("", "subscriber")) {                 proxy_challenge("", "0");                 exit;             }             if (!db_check_from()) {                 sl_send_reply("403","Forbidden auth ID");                 exit;             }                       consume_credentials();             # caller authenticated                      } else {             # if caller is not local, then called number must be local                          if (!uri==myself) {                 send_reply("403","Rely forbidden");                 exit;             }         }     } ############################################### #if (is_method("INVITE") && !has_totag()) { #engage_media_proxy(); #} ##############################################     # preloaded route checking     if (loose_route()) {         xlog("L_ERR",         "Attempt to route with preloaded Route's [$fu/$tu/$ru/$ci]");         if (!is_method("ACK"))             sl_send_reply("403","Preload Route denied");         exit;     } #################################################### #if (is_method("INVITE") && !has_totag()) { #engage_media_proxy(); #} ####################################################     # record routing     if (!is_method("REGISTER|MESSAGE"))         record_route();     # account only INVITEs     if (is_method("INVITE")) {                   # create dialog with timeout         if ( !create_dialog("B") ) {             send_reply("500","Internal Server Error");             exit;         }                   setflag(ACC_DO); # do accounting     }           if (!uri==myself) {         append_hf("P-hint: outbound\r\n");                   route(relay);     }     # requests for my domain           if (is_method("PUBLISH|SUBSCRIBE"))     {         sl_send_reply("503", "Service Unavailable");         exit;     }     if (is_method("REGISTER"))     {                   # authenticate the REGISTER requests         if (!www_authorize("", "subscriber"))         {             www_challenge("", "0");             exit;         }                   if (!db_check_to())         {             sl_send_reply("403","Forbidden auth ID");             exit;         }         if (   0 ) setflag(TCP_PERSISTENT);         if (!save("location"))             sl_reply_error();         exit;     }     if ($rU==NULL) {         # request with no Username in RURI         sl_send_reply("484","Address Incomplete");         exit;     }           # apply DB based aliases     alias_db_lookup("dbaliases");                  # do lookup with method filtering     if (!lookup("location","m")) {         if (!db_does_uri_exist()) {             send_reply("420","Bad Extension");             exit;         }                   t_newtran();         t_reply("404", "Not Found");         exit;     }           # when routing via usrloc, log the missed calls also     setflag(ACC_MISSED);     route(relay); } route[relay] {     # for INVITEs enable some additional helper routes     if (is_method("INVITE")) {           #route(media);               t_on_branch("per_branch_ops");         t_on_reply("handle_nat");         t_on_failure("missed_call");     }           if (!t_relay()) {         send_reply("500","Internal Error");     };     exit; } /* route[media] { if (is_method("BYE") || is_method("CANCEL")) { end_media_session(); } if (is_method("INVITE")) { use_media_proxy(); } } */ branch_route[per_branch_ops] {     xlog("new branch at $ru\n"); } onreply_route[handle_nat] {           xlog("incoming reply\n"); } failure_route[missed_call] {     if (t_was_cancelled()) {         exit;     }     # uncomment the following lines if you want to block client     # redirect based on 3xx replies.     ##if (t_check_status("3[0-9][0-9]")) {     ##t_reply("404","Not found");     ##  exit;     ##}       } local_route {     if (is_method("BYE") && $DLG_dir=="UPSTREAM") {                   acc_db_request("200 Dialog Timeout", "acc");               } }

最后，如果要使用ICE，必须要有客户端支持，也还要有STUN服务器(外部有免费的STUN服务器)。

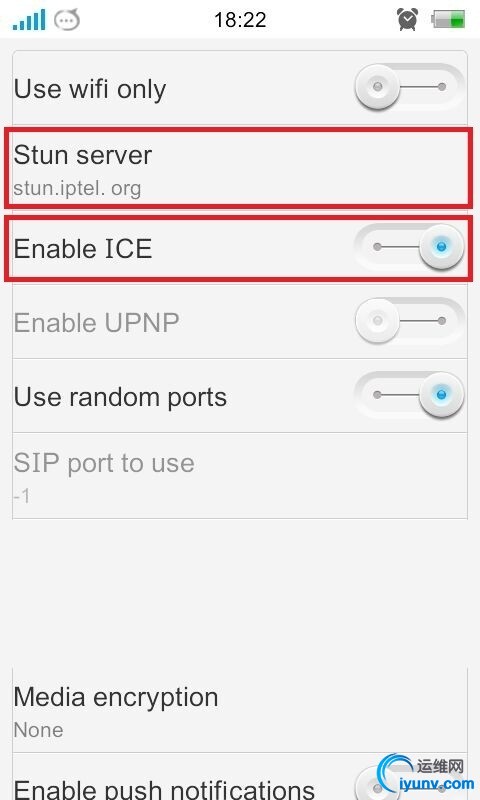

如在LINPHONE的设置中，“设置”--“NetWork”--“STUN SERVER”，输入STUN服务器地址。然后开启“Enable ICE”


这个时候拨打电话如果是P2P的话就会出现HOST CONNECTION

如果是无法点对点的话，ICE的状态就是RELAY CONNECTION.
