上一篇博文通过Haproxy 实现了对后端web服务器的负载均衡，这次用nginx来完成这个任务，原理上大致一样，只是nginx只能对http和mail做负载均衡，这比较有局限性，但是它对正则表达式的支持好！下面直接看实验：
【实验环境】 nginx keepalived 主：192.168.56.120
nginx keepalived 从：192.168.56.121
VIP ：192.168.56.130
Web1 : 192.168.56.113
Web2：192.168.56.114
【实验拓扑】
一、安装配置nginx
1、配置主机名（node2同node1）
[iyunv@localhost ~]# vim /etc/sysconfig/network
HOSTNAME=node1
[iyunv@localhost ~]# vim /etc/hosts
192.168.56.120 node1
192.168.56.121 node2
192.168.56.113 web1
192.168.56.114 web2
[iyunv@localhost ~]# hostname node1
2、安装配置nginx(node2配置同node1）
[iyunv@node1 src]# useradd -s /sbin/nologin -M www
[iyunv@node1 src]# wget http://nginx.org/download/nginx-1.5.3.tar.gz
[iyunv@node1 src]# yum -y install pcre-devel openssl-devel perl-ExtUtils-Embed
[iyunv@node1 src]# tar xf nginx-1.5.3.tar.gz
[iyunv@node1 src]# cd nginx-1.5.3
[iyunv@node1 nginx-1.5.3]# ./configure --prefix=/usr/local/nginx --user=www --group=www --with-http_ssl_module --with-http_gzip_static_module --without-http_uwsgi_module --without-http_scgi_module --without-http_upstream_ip_hash_module --with-http_perl_module --with-pcre
[iyunv@node1 nginx-1.5.3]# make && make install
配置nginx [iyunv@node1 ~]# vim /usr/local/nginx/conf/nginx.conf
user www www;
worker_processes 8;
error_log logs/error.log;
pid logs/nginx.pid;
events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;
sendfile on;
tcp_nopush on;
keepalive_timeout 65;
gzip on;
upstream web_server_pool {
#ip_hash; #如果需要保持session一致，需要开启这个选项，可以保证同一台机器每次访问都分配到同一服务器
server 192.168.56.113:80 weight=4 max_fails=2 fail_timeout=30s;
server 192.168.56.114:80 weight=4 max_fails=2 fail_timeout=30s;
}
server {
listen 80;
server_name 192.168.56.120; # node2 改为192.168.56.121
location / {
root html;
index index.html index.htm;
proxy_pass http://web_server_pool;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $remote_addr;
}
error_page 500 502 503 504 /50x.html;
location = /50x.html {
root html;
}
}
}
[iyunv@node1 ~]# /usr/local/nginx/sbin/nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successfully
启动服务
[iyunv@node1 ~]# /usr/local/nginx/sbin/nginx
3、安装配置web服务器
web服务器的配置（web2同web1，只需要将相应部分改为web2即可）
[iyunv@localhost ~]# hostname web1
[iyunv@web1 ~]# vim /etc/hosts
192.168.56.120 node1
192.168.56.121 node2
192.168.56.113 web1
192.168.56.114 web2
[iyunv@web1 ~]# yum install -y httpd
[iyunv@web1 ~]# service httpd start
[iyunv@web1 ~]# echo "welcome to web1" > /var/www/html/index.html
4、测试Nginx负载均衡
在确保node1 的防火墙和selinux关闭的情况下，打开浏览器，访问http://node1ip
也可通过curl测试：
[iyunv@node1 ~]# yum -y install curl
[iyunv@node1 ~]# curl -dump http://192.168.56.120/
welcome to web1
[iyunv@node1 ~]# curl -dump http://192.168.56.120/
welcome to web2
[iyunv@node1 ~]# curl -dump http://192.168.56.120/
welcome to web1
[iyunv@node1 ~]# curl -dump http://192.168.56.120/
welcome to web2
二、安装配置keepalived(node2配置参考node1，大体上一样)
1、安装配置keepalived
[iyunv@node1 src]# yum -y install popt popt-devel popt-static openssl-devel kernel-devel libnl libnl-devel
[iyunv@node1 src]# wget http://www.keepalived.org/software/keepalived-1.2.4.tar.gz
[iyunv@node1 src]# tar xf keepalived-1.2.4.tar.gz
[iyunv@node1 src]# cd keepalived-1.2.4
[iyunv@node1 keepalived-1.2.4]# ./configure --prefix=/usr/local/keepalived
[iyunv@node1 keepalived-1.2.4]# make && make install
[iyunv@node1 keepalived-1.2.4]# cp /usr/local/keepalived/etc/rc.d/init.d/keepalived /etc/init.d/
[iyunv@node1 keepalived-1.2.4]# cp /usr/local/keepalived/sbin/keepalived /usr/sbin/
[iyunv@node1 keepalived-1.2.4]# cp /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/
[iyunv@node1 keepalived-1.2.4]# mkdir -p /etc/keepalived
[iyunv@node1 keepalived-1.2.4]# cp /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived/
[iyunv@node1 keepalived-1.2.4]# chmod +x /etc/init.d/keepalived
配置
[iyunv@node1 keepalived-1.2.4]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
notification_email {
pmghong@163.com
}
notification_email_from pmghong@163.com
smtp_server 192.168.56.120 # node2上改为192.168.56.121
smtp_connect_timeout 30
router_id LVS_DEVEL
}
vrrp_script chk_nginx { # 定义监控脚本
script "/etc/keepalived/checkNginx.sh"
interval 2
weight 2
}
vrrp_instance VI_1 {
state MASTER # node2 修改为BACKUP
interface eth0
virtual_router_id 51
priority 120 # node2上的数值应低于这个值，例如100
advert_int 1
authentication {
auth_type PASS
auth_pass 1111
}
virtual_ipaddress {
192.168.56.130
}
track_script { # 执行监控脚本，这段代码一定要加！！否则不会调用上面的脚本
chk_nginx
}
}
2、创建检测脚本
[iyunv@node1 keepalived-1.2.4]# vim /etc/keepalived/checkHaproxy.sh
#!/bin/bash
#auto check nginx process
killall -0 nginx
if [[ $? -ne 0 ]];then
/etc/init.d/keepalived stop
fi
[iyunv@node1 keepalived-1.2.4]# chmod +x /etc/keepalived/checkHaproxy.sh
3、启动服务
[iyunv@node1 ~]# service keepalived start
Starting keepalived: [ OK ]
[iyunv@node2 ~]# service keepalived start
Starting keepalived: [ OK ]
[iyunv@node1 ~]# ip addr
2: eth0:
mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 08:00:27:95:99:b7 brd ff:ff:ff:ff:ff:ff
inet 192.168.56.120/24 brd 192.168.56.255 scope global eth0
inet 192.168.56.130/32 scope global eth0
inet6 fe80::a00:27ff:fe95:99b7/64 scope link
valid_lft forever preferred_lft forever
4、测试

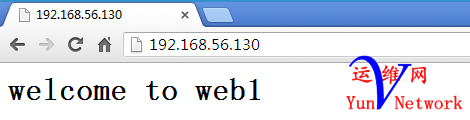

(1) 打开浏览器测试访问http://VIP
关闭node1上的nginx 服务测试效果 PS：网上很多资料在测试这一步，都是停掉node1的keepalived服务，然后测试是否成功。我觉得这样有点不妥，毕竟实际环境中keepalived 停止服务的概率相对于LB和web服务器来说还是很低很低的，这个实验的关键在于，看node1上的nginx由于故障停止服务的时候，node2能否通过keepalived接管负载均衡的功能，并使得网站的访问正常，不间断。所以这里测试应该停的是node1上的nginx，而不是keepalived。
[iyunv@node1 keepalived]# netstat -nultp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 3786/nginx
[iyunv@node1 keepalived]# kill 3786
(2)找一台不相关的机器长ping VIP
实验结果是只丢了一个包
(3)测试页面访问情况
[iyunv@node2 ~]# ip addr
2: eth0:
mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 08:00:27:7f:4b:aa brd ff:ff:ff:ff:ff:ff
inet 192.168.56.121/24 brd 192.168.56.255 scope global eth0
inet 192.168.56.130/32 scope global eth0
inet6 fe80::a00:27ff:fe7f:4baa/64 scope link
valid_lft forever preferred_lft forever
从上面可以看到VIP 跑到node2 上
网站的访问仍然正常
[iyunv@node2 ~]# curl -dump http://192.168.56.130
welcome to web1
[iyunv@node2 ~]# curl -dump http://192.168.56.130
welcome to web2
[iyunv@node2 ~]# curl -dump http://192.168.56.130
welcome to web1
[iyunv@node2 ~]# curl -dump http://192.168.56.130
welcome to web2
|
