iptables SNAT/DNAT测试

er232112

环境：CentOS 6.4（最小化安装）


SNAT测试：


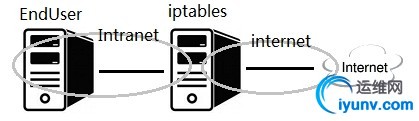

地址规划：

Node	IP address	GW
EndUser	192.168.101.241/24	192.168.101.1
iptables	eth1:192.168.101.1/24 eth0:192.168.100.242/24	192.168.100.1

EndUser：

1 2 3 4 5 6 7

[iyunv@EndUser ~]# tail -n 5 /etc/sysconfig/network-scripts/ifcfg-eth0 BOOTPROTO=static IPADDR=192.168.101.241 NETMASK=255.255.255.0 GATEWAY=192.168.101.1 DNS1=114.114.114.114 [iyunv@EndUser ~]#

测试网关：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

[iyunv@EndUser ~]# route Kernel IP routing table Destination     Gateway         Genmask         Flags Metric Ref    Use Iface 192.168.101.0   *               255.255.255.0   U     0      0        0 eth0 link-local      *               255.255.0.0     U     1002   0        0 eth0 default         192.168.101.1   0.0.0.0         UG    0      0        0 eth0 [iyunv@EndUser ~]# ping 192.168.101.1 -c 4 PING 192.168.101.1 (192.168.101.1) 56(84) bytes of data. 64 bytes from 192.168.101.1: icmp_seq=1 ttl=64 time=0.315 ms 64 bytes from 192.168.101.1: icmp_seq=2 ttl=64 time=0.340 ms 64 bytes from 192.168.101.1: icmp_seq=3 ttl=64 time=0.320 ms 64 bytes from 192.168.101.1: icmp_seq=4 ttl=64 time=0.317 ms --- 192.168.101.1 ping statistics --- 4 packets transmitted, 4 received, 0% packet loss, time 3001ms rtt min/avg/max/mdev = 0.315/0.323/0.340/0.010 ms [iyunv@EndUser ~]# ping 192.168.100.242 -c 4 PING 192.168.100.242 (192.168.100.242) 56(84) bytes of data. 64 bytes from 192.168.100.242: icmp_seq=1 ttl=64 time=0.557 ms 64 bytes from 192.168.100.242: icmp_seq=2 ttl=64 time=0.339 ms 64 bytes from 192.168.100.242: icmp_seq=3 ttl=64 time=0.319 ms 64 bytes from 192.168.100.242: icmp_seq=4 ttl=64 time=0.400 ms --- 192.168.100.242 ping statistics --- 4 packets transmitted, 4 received, 0% packet loss, time 3003ms rtt min/avg/max/mdev = 0.319/0.403/0.557/0.096 ms [iyunv@EndUser ~]#

iptables：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

[iyunv@iptables ~]# tail -n 5 /etc/sysconfig/network-scripts/ifcfg-eth0 BOOTPROTO=static IPADDR=192.168.100.242 NETMASK=255.255.255.0 GATEWAY=192.168.100.1 DNS1=114.114.114.114 [iyunv@iptables ~]# tail -n 4 /etc/sysconfig/network-scripts/ifcfg-eth1 NM_CONTROLLED=yes BOOTPROTO=static IPADDR=192.168.101.1 NETMASK=255.255.255.0 [iyunv@iptables ~]# route Kernel IP routing table Destination     Gateway         Genmask         Flags Metric Ref    Use Iface 192.168.100.0   *               255.255.255.0   U     0      0        0 eth0 192.168.101.0   *               255.255.255.0   U     0      0        0 eth1 link-local      *               255.255.0.0     U     1002   0        0 eth0 link-local      *               255.255.0.0     U     1003   0        0 eth1 default         192.168.100.1   0.0.0.0         UG    0      0        0 eth0 [iyunv@iptables ~]# [iyunv@iptables ~]# grep forward /etc/sysctl.conf |grep -v ^# net.ipv4.ip_forward = 1 [iyunv@iptables ~]# sysctl -p [iyunv@iptables ~]# iptables -t nat -vL          //查看linux下NAT映射表

1 2 3 4 5 6 7 8 9

[iyunv@iptables ~]# grep "POSTROUTING" /etc/sysconfig/iptables|grep -v ^: -A POSTROUTING -s 192.168.101.0/24 -o eth0 -j SNAT --to-source 192.168.100.242 [iyunv@iptables ~]# [iyunv@iptables ~]# /etc/init.d/iptables restart iptables: Flushing firewall rules:                         [  OK  ] iptables: Setting chains to policy ACCEPT: filter nat      [  OK  ] iptables: Unloading modules:                               [  OK  ] iptables: Applying firewall rules:                         [  OK  ] [iyunv@iptables ~]#

先测试防火墙能否上网：

1 2 3 4 5 6 7 8 9 10

[iyunv@iptables ~]# ping www.baidu.com -c 4 PING www.a.shifen.com (180.97.33.107) 56(84) bytes of data. 64 bytes from 180.97.33.107: icmp_seq=1 ttl=53 time=27.3 ms 64 bytes from 180.97.33.107: icmp_seq=2 ttl=53 time=26.5 ms 64 bytes from 180.97.33.107: icmp_seq=3 ttl=53 time=25.2 ms 64 bytes from 180.97.33.107: icmp_seq=4 ttl=53 time=24.9 ms --- www.a.shifen.com ping statistics --- 4 packets transmitted, 4 received, 0% packet loss, time 3031ms rtt min/avg/max/mdev = 24.994/26.047/27.371/0.977 ms [iyunv@iptables ~]#

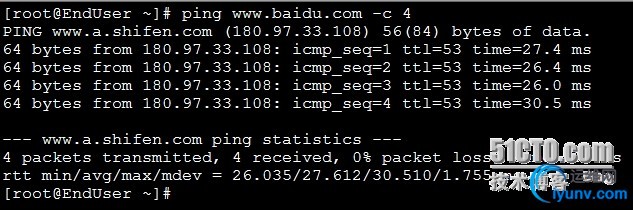

测试EndUser：

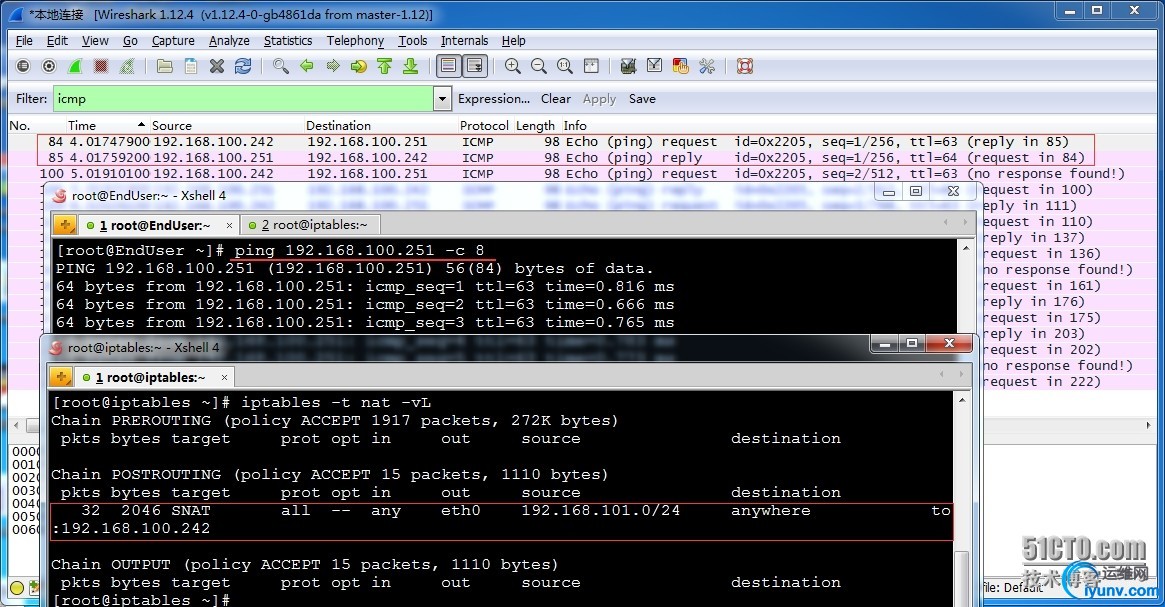

ping一个windows主机用wireshark抓包：



DNAT测试：


地址规划：

Node	IP Address	GW
WEB	192.168.101.241/24	192.168.101.1
iptables	eth0:192.168.100.242/24 eth1:192.168.101.1/24	192.168.100.243 192.168.101.241
EndUser	192.168.100.251/24	-

WEB:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

[iyunv@WEB ~]# tail -n 4 /etc/sysconfig/network-scripts/ifcfg-eth0 BOOTPROTO=static IPADDR=192.168.101.241 NETMASK=255.255.255.0 GATEWAY=192.168.101.1 [iyunv@WEB ~]# route -n Kernel IP routing table Destination     Gateway         Genmask         Flags Metric Ref    Use Iface 192.168.101.0   0.0.0.0         255.255.255.0   U     0      0        0 eth0 169.254.0.0     0.0.0.0         255.255.0.0     U     1002   0        0 eth0 0.0.0.0         192.168.101.1   0.0.0.0         UG    0      0        0 eth0 [iyunv@WEB ~]# [iyunv@WEB ~]# ping 192.168.100.242 -c 4 PING 192.168.100.242 (192.168.100.242) 56(84) bytes of data. 64 bytes from 192.168.100.242: icmp_seq=1 ttl=64 time=0.287 ms 64 bytes from 192.168.100.242: icmp_seq=2 ttl=64 time=0.346 ms 64 bytes from 192.168.100.242: icmp_seq=3 ttl=64 time=0.403 ms 64 bytes from 192.168.100.242: icmp_seq=4 ttl=64 time=0.409 ms --- 192.168.100.242 ping statistics --- 4 packets transmitted, 4 received, 0% packet loss, time 3002ms rtt min/avg/max/mdev = 0.287/0.361/0.409/0.051 ms [iyunv@WEB ~]#

iptables:

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

[iyunv@iptables ~]# grep forward /etc/sysctl.conf |grep -v ^# net.ipv4.ip_forward = 1 [iyunv@iptables ~]# [iyunv@iptables ~]# tail -n 4 /etc/sysconfig/network-scripts/ifcfg-eth0 BOOTPROTO=static IPADDR=192.168.100.242 NETMASK=255.255.255.0 GATEWAY=192.168.100.243 [iyunv@iptables ~]# tail -n 4 /etc/sysconfig/network-scripts/ifcfg-eth1 BOOTPROTO=static IPADDR=192.168.101.1 NETMASK=255.255.255.0 GATEWAY=192.168.101.241 [iyunv@iptables ~]# [iyunv@iptables ~]# route -n Kernel IP routing table Destination     Gateway         Genmask         Flags Metric Ref    Use Iface 192.168.100.0   0.0.0.0         255.255.255.0   U     0      0        0 eth0 192.168.101.0   0.0.0.0         255.255.255.0   U     0      0        0 eth1 169.254.0.0     0.0.0.0         255.255.0.0     U     1002   0        0 eth0 169.254.0.0     0.0.0.0         255.255.0.0     U     1003   0        0 eth1 0.0.0.0         192.168.101.241 0.0.0.0         UG    0      0        0 eth1 [iyunv@iptables ~]# [iyunv@iptables ~]# iptables -t nat -A PREROUTING -d 192.168.100.242 -p tcp -m tcp --dport 80 -i eth0 -j DNAT --to-destination 192.168.101.241

1 2 3 4 5 6

[iyunv@iptables ~]# /etc/init.d/iptables restart iptables: Flushing firewall rules:                         [  OK  ] iptables: Setting chains to policy ACCEPT: filter nat      [  OK  ] iptables: Unloading modules:                               [  OK  ] iptables: Applying firewall rules:                         [  OK  ] [iyunv@iptables ~]#

访问：http://192.168.100.242/
