一、Mysql-Proxy 简单介绍 MySQL-Proxy是一个处于你的client端和MySQL server端之间的简单程序，它可以监测、分析或改变它们的通信。它使用灵活，没有限制，常见的用途包括：负载平衡，故障、查询分析，查询过滤和修改等等。MySQL-Proxy就是这么一个中间层代理，简单的说，MySQL-Proxy就是一个连接池，负责将前台应用的连接请求转发给后台的数据库，并且通过使用lua脚本，可以实现复杂的连接控制和过滤，从而实现读写分离和负载平衡。对于应用来说，MySQL-Proxy是完全透明的，应用则只需要连接到MySQL-Proxy的监听端口即可。当然，这样proxy机器可能成为单点失效，但完全可以使用多个proxy机器做为冗余，在应用服务器的连接池配置中配置到多个proxy的连接参数即可。 MySQL-Proxy更强大的一项功能是实现“读写分离”，基本原理是让主数据库处理事务性查询，让从库处理SELECT查询。数据库复制被用来把事务性查询导致的变更同步到集群中的从库。 二、环境准备 1.实验拓扑

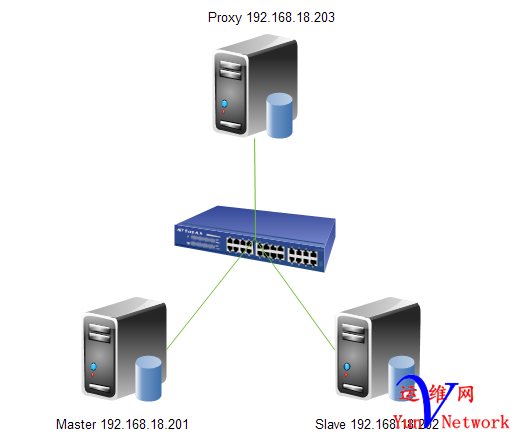

2.操作系统 3.软件版本4.时间同步
[iyunv@proxy ~]# ntpdate 202.120.2.101
[iyunv@master ~]# ntpdate 202.120.2.101
[iyunv@slave ~]# ntpdate 202.120.2.101
三、Mysql-Proxy 命令简介mysql-proxy 命令- --help-all ———— 用于获取全部帮助信息
- --proxy-address=host:port ———— 代理服务监听的地址和端口
- --admin-address=host:port ———— 管理模块监听的地址和端口
- --proxy-backend-addresses=host:port ———— 后端mysql服务器的地址和端口（主服务器）
- --proxy-read-only-backend-addresses=host:port ———— 后端只读mysql服务器的地址和端口（从服务器）
- --proxy-lua-script=file ———— 完成mysql代理功能的Lua脚本
- --daemon ———— 以守护进程模式启动mysql-proxy
- --defaults-file=/path/to/conf_file_name ———— 默认使用的配置文件路径
- --log-file=/path/to/log_file_name ———— 日志文件名称
- --log-level=level ———— 日志级别
- --log-use-syslog ———— 基于syslog记录日志
- --user=user_name ———— 运行mysql-proxy进程的用户
四、Mysql-Proxy主从分离| [iyunv@proxy ~]# id mysql-proxy |
| uid=3306(mysql-proxy) gid=3306(mysql-proxy) 组=3306(mysql-proxy) |
[iyunv@proxy local]# cd mysql-proxy [/table] | | "mysql-proxy" -> "mysql-proxy-0.8.3-linux-glibc2.3-x86-64bit" |
| [iyunv@proxy mysql-proxy]# ll |
| drwxr-xr-x 2 7157 wheel 4096 8月 6 2012 bin |
| drwxr-xr-x 2 7157 wheel 4096 8月 6 2012 include |
| drwxr-xr-x 4 7157 wheel 4096 8月 6 2012 lib |
| drwxr-xr-x 2 7157 wheel 4096 8月 6 2012 libexec |
| drwxr-xr-x 3 7157 wheel 4096 8月 6 2012 licenses |
| drwxr-xr-x 3 7157 wheel 4096 8月 6 2012 share |
drwxr-xr-x 2 root mysql-proxy 4096 8月 6 2012 include | | drwxr-xr-x 2 root mysql-proxy 4096 8月 6 2012 bin |
| drwxr-xr-x 4 root mysql-proxy 4096 8月 6 2012 lib |
| drwxr-xr-x 2 root mysql-proxy 4096 8月 6 2012 libexec |
| drwxr-xr-x 3 root mysql-proxy 4096 8月 6 2012 licenses |
| drwxr-xr-x 3 root mysql-proxy 4096 8月 6 2012 share |
Usage: | | [iyunv@proxy ~]# mysql-proxy --help-all |
| mysql-proxy [OPTION...] - MySQL Proxy |
| -?, --help Show help options |
| --help-all Show all help options |
| --help-proxy Show options for the proxy-module |
| -P, --proxy-address=<host:port> listening address:port of the proxy-server (default: :4040) |
| -r, --proxy-read-only-backend-addresses=<host:port> address:port of the remote slave-server (default: not set) |
| -b, --proxy-backend-addresses=<host:port> address:port of the remote backend-servers (default: 127.0.0.1:3306) |
| --proxy-skip-profiling disables profiling of queries (default: enabled) |
| --proxy-fix-bug-25371 fix bug #25371 (mysqld > 5.1.12) for older libmysql versions |
| -s, --proxy-lua-script=<file> filename of the lua script (default: not set) |
| --no-proxy don't start the proxy-module (default: enabled) |
| --proxy-pool-no-change-user don't use CHANGE_USER to reset the connection coming from the pool (default: enabled) |
| --proxy-connect-timeout connect timeout in seconds (default: 2.0 seconds) |
| --proxy-read-timeout read timeout in seconds (default: 8 hours) |
| --proxy-write-timeout write timeout in seconds (default: 8 hours) |
| -V, --version Show version |
| --defaults-file=<file> configuration file |
| --verbose-shutdown Always log the exit code when shutting down |
| --daemon Start in daemon-mode |
| --user=<user> Run mysql-proxy as user |
| --basedir=<absolute path> Base directory to prepend to relative paths in the config |
| --pid-file=<file> PID file in case we are started as daemon |
| --plugin-dir=<path> path to the plugins |
| --plugins=<name> plugins to load |
| --log-level=(error | warning | info | message | debug) log all messages of level ... or higher |
| --log-file=<file> log all messages in a file |
| --log-use-syslog log all messages to syslog |
| --log-backtrace-on-crash try to invoke debugger on crash |
| --keepalive try to restart the proxy if it crashed |
| --max-open-files maximum number of open files (ulimit -n) |
| --event-threads number of event-handling threads (default: 1) |
| --lua-path=<...> set the LUA_PATH |
| --lua-cpath=<...> set the LUA_CPATH |
2013-08-27 09:58:42: (message) Initiating shutdown, requested from mysql-proxy-cli.c:598 | | 2013-08-27 09:58:42: (critical) mysql-proxy-cli.c:597: Failure from chassis_mainloop. Shutting down. |
| 2013-08-27 09:58:42: (message) shutting down normally, exit code is: 1 |
| 2013-08-27 09:59:14: (message) Initiating shutdown, requested from signal handler |
| 2013-08-27 09:59:14: (message) shutting down normally, exit code is: 0 |
| 2013-08-27 09:59:26: (critical) plugin proxy 0.8.3 started |
| 2013-08-27 09:59:26: (debug) max open file-descriptors = 1024 |
| 2013-08-27 09:59:26: (message) proxy listening on port :4040 |
| 2013-08-27 09:59:26: (message) added read/write backend: 192.168.18.201:3306 |
| 2013-08-27 09:59:26: (message) added read-only backend: 192.168.18.202:3306 |
7.在从服务上进行测试 | | Query OK, 0 rows affected (0.04 sec) |
| 注，验证是否能通过代理端口4040 端口连接到 mysql-proxy |
Server version: 5.6.13-log MySQL Community Server (GPL) | | Your MySQL connection id is 10 |
| Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved. |
| Oracle is a registered trademark of Oracle Corporation and/or its |
| affiliates. Other names may be trademarks of their respective |
| Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. |
| 注，已经成功从4040端口，连接进mysql-proxy。下面我们来实现读写分离。 |
| 8.Mysql-Proxy本身不会实现读写分离，主要是依靠 Lua 脚本实现的，在 mysql-proxy 主机上 杀死mysql-proxy 进程并添加读写分离脚本 |
2013-08-27 10:05:51: (message) Initiating shutdown, requested from signal handler | 10.重新启动mysql-proxy，把此脚本加入到启动选项里面，实现读写分离 |
| | 2013-08-27 09:59:26: (message) added read-only backend: 192.168.18.202:3306 |
| 2013-08-27 10:05:51: (message) shutting down normally, exit code is: 0 |
| 2013-08-27 10:10:29: (debug) chassis-path.c.122: adjusting relative path ( /usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua) to base_dir (/usr/local/mysql-proxy-0.8.3-linux-glibc2.3-x86-64bit). New path: /usr/local/mysql-proxy-0.8.3-linux-glibc2.3-x86-64bit/ /usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua |
| 2013-08-27 10:10:29: (critical) plugin proxy 0.8.3 started |
| 2013-08-27 10:10:29: (debug) max open file-descriptors = 1024 |
| 2013-08-27 10:10:29: (message) proxy listening on port :4040 |
| 2013-08-27 10:10:29: (message) added read/write backend: 192.168.18.201:3306 |
| 2013-08-27 10:10:29: (message) added read-only backend: 192.168.18.202:3306 |
| [iyunv@proxy ~]# netstat -ntlp | grep :4040 #查看一下端口 |
| tcp 0 0 0.0.0.0:4040 0.0.0.0:* LISTEN 2944/mysql-proxy |
| 11.为mysql-proxy 提供一个管理接口，方便以后随时查看后端mysql 服务器的状态和访问类型，实现管理功能 |
| 注，下面为大家提供一个管理接口的脚本，同样也是一个LUA 脚本，建议跟 读写分离脚本放在同一目录。 |
errmsg = errmsg or "error" | | type = proxy.MYSQLD_PACKET_ERR, |
| function read_query(packet) |
| if packet:byte() ~= proxy.COM_QUERY then |
| set_error("[admin] we only handle text-based queries (COM_QUERY)") |
| return proxy.PROXY_SEND_RESULT |
| local query = packet:sub(2) |
| if query:lower() == "select * from backends" then |
| type = proxy.MYSQL_TYPE_LONG }, |
| type = proxy.MYSQL_TYPE_STRING }, |
| type = proxy.MYSQL_TYPE_STRING }, |
| type = proxy.MYSQL_TYPE_STRING }, |
| type = proxy.MYSQL_TYPE_STRING }, |
| { name = "connected_clients", |
| type = proxy.MYSQL_TYPE_LONG }, |
| for i = 1, #proxy.global.backends do |
| local b = proxy.global.backends |
| b.dst.name, -- configured backend address |
| states[b.state + 1], -- the C-id is pushed down starting at 0 |
| types[b.type + 1], -- the C-id is pushed down starting at 0 |
| b.uuid, -- the MySQL Server's UUID if it is managed |
| b.connected_clients -- currently connected clients |
| elseif query:lower() == "select * from help" then |
| type = proxy.MYSQL_TYPE_STRING }, |
| type = proxy.MYSQL_TYPE_STRING }, |
| rows[#rows + 1] = { "SELECT * FROM help", "shows this help" } |
| rows[#rows + 1] = { "SELECT * FROM backends", "lists the backends and their state" } |
| set_error("use 'SELECT * FROM help' to see the supported commands") |
| return proxy.PROXY_SEND_RESULT |
| type = proxy.MYSQLD_PACKET_OK, |
| return proxy.PROXY_SEND_RESULT |
| 注，这次启动要添加以下启动选项 ，因为我们添加了额外的插件，把新加功能添加进来,选项如下。 |
| --plugins=admin 在mysql-proxy启动时加载的插件； |
| --admin-username="admin" 运行mysql-proxy进程管理的用户； |
| --admin-password="admin" 密码 |
| --admin-lua-script="/usr/local/mysql-proxy/share/doc/mysql-proxy/admin.lua" 插件使用的配置文件路径； |
tcp 0 0 0.0.0.0:111 0.0.0.0:* LISTEN 1066/rpcbind | | Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name |
| tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 1223/sshd |
| tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN 1299/master |
| tcp 0 0 0.0.0.0:54053 0.0.0.0:* LISTEN 1084/rpc.statd |
| tcp 0 0 0.0.0.0:4040 0.0.0.0:* LISTEN 2970/mysql-proxy |
| tcp 0 0 0.0.0.0:4041 0.0.0.0:* LISTEN 2970/mysql-proxy #生成新的管理端口4041 |
| tcp 0 0 :::111 :::* LISTEN 1066/rpcbind |
| tcp 0 0 :::22 :::* LISTEN 1223/sshd |
| tcp 0 0 :::39894 :::* LISTEN 1084/rpc.statd |
| tcp 0 0 ::1:25 :::* LISTEN 1299/master |
| 13.在slave测试一下，记得使用管理端口4041 登陆，密码是admin。 |
Server version: 5.0.99-agent-admin | | Your MySQL connection id is 1 |
| Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved. |
| Oracle is a registered trademark of Oracle Corporation and/or its |
| affiliates. Other names may be trademarks of their respective |
| Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. |
Server version: 5.0.99-agent-admin | | Your MySQL connection id is 1 |
| Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved. |
| Oracle is a registered trademark of Oracle Corporation and/or its |
| affiliates. Other names may be trademarks of their respective |
| Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. |
| mysql> select * from backends; |
| +-------------+---------------------+---------+------+------+-------------------+ |
| backend_ndx | address | state | type | uuid | connected_clients | |
| +-------------+---------------------+---------+------+------+-------------------+ |
| 1 | 192.168.18.201:3306 | unknown | rw | NULL | 0 | |
| 2 | 192.168.18.202:3306 | unknown | ro | NULL | 0 | |
| +-------------+---------------------+---------+------+------+-------------------+ |
| 注，大家可以看到状态信息是unknown，因为我们还没有执行读写操作，所有状态还有UP起来，下面我们来测试一下读写信息，再来查看状态。 |
+----------+ | [iyunv@slave ~]# mysql -uroot -p -h192.168.18.203 --port=4040 -e "create database mydb2;" |
Server version: 5.0.99-agent-admin[table]
| | Your MySQL connection id is 1 |
| Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved. |
| Oracle is a registered trademark of Oracle Corporation and/or its |
| affiliates. Other names may be trademarks of their respective |
| Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. |
| mysql> SELECT * FROM backends; |
| +-------------+---------------------+-------+------+------+-------------------+ |
| backend_ndx | address | state | type | uuid | connected_clients | |
| +-------------+---------------------+-------+------+------+-------------------+ |
| 1 | 192.168.18.201:3306 | up | rw | NULL | 0 | |
| 2 | 192.168.18.202:3306 | up | ro | NULL | 0 | |
| +-------------+---------------------+-------+------+------+-------------------+ |
注，大家可以看到，这时状态全部是up。说明读写分离配置成功。 在测试读写分离的时候，我们可以分布测试，比如先测试读的语句，查看读写状态是否UP ，然后在测试写的语句，反反复复多测试几次才能看出效果，本人在测试的时候也出现过读的状态不能up，解决办法是：多测试即便就出来了。好了，读写分离配置全部完成，下面我们进行优化一下，大家可以看到，启动mysql-proxy时要写很多参数，能不能写到一个文件中呢？还有连接mysql-proxy时，用的端口是4040，我们能不能修改为3306呢？答案是可以的下面我们优化一下。17.优化配置启动脚本，并修连接端口。注，博友看到每次启动的时候，启动选项非常多，一不小心都会写错，所以我们创建一个脚本或者配置文件把选项都写进去，每次启动的时候都调用此脚本。
(1).(1).增加配置文件
[iyunv@proxy ~]# vim /etc/sysconfig/mysql-proxy
# Options for mysql-proxy
ADMIN_USER="admin"
ADMIN_PASSWORD="admin"
ADMIN_ADDRESS=""
ADMIN_LUA_SCRIPT="/usr/local/mysql-proxy/share/doc/mysql-proxy/admin.lua"
PROXY_ADDRESS="0.0.0.0:3306"
PROXY_USER="mysql-proxy"
PROXY_OPTIONS="--daemon --log-level=info --log-file="/var/log/mysql-proxy.log" --plugins=proxy --plugins=admin --proxy-backend-addresses=192.168.18.201:3306 --proxy-read-only-backend-addresses=192.168.18.202:3306 --proxy-lua-script=/usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua"
(2).增加sysV脚本
[iyunv@proxy ~]# vim /etc/init.d/mysql-proxy #增加sysV脚本
#!/bin/bash
#
# mysql-proxy This script starts and stops the mysql-proxy daemon
#
# chkconfig: - 78 30
# processname: mysql-proxy
# description: mysql-proxy is a proxy daemon for mysql
# Source function library.
. /etc/rc.d/init.d/functions
prog="/usr/local/mysql-proxy/bin/mysql-proxy"
# Source networking configuration.
if [ -f /etc/sysconfig/network ]; then
. /etc/sysconfig/network
fi
# Check that networking is up.
[ ${NETWORKING} = "no" ] && exit 0
# Set default mysql-proxy configuration.
ADMIN_USER="admin"
ADMIN_PASSWD="admin"
ADMIN_LUA_SCRIPT="/usr/local/mysql-proxy/share/doc/mysql-proxy/admin.lua"
PROXY_OPTIONS="--daemon"
PROXY_PID=/var/run/mysql-proxy.pid
PROXY_USER="mysql-proxy"
# Source mysql-proxy configuration.
if [ -f /etc/sysconfig/mysql-proxy ]; then
. /etc/sysconfig/mysql-proxy
fi
RETVAL=0
start() {
echo -n $"Starting $prog: "
daemon $prog $PROXY_OPTIONS --pid-file=$PROXY_PID --proxy-address="$PROXY_ADDRESS" --user=$PROXY_USER --admin-username="$ADMIN_USER" --admin-lua-script="$ADMIN_LUA_SCRIPT" --admin-password="$ADMIN_PASSWORD"
RETVAL=$?
echo
if [ $RETVAL -eq 0 ]; then
touch /var/lock/subsys/mysql-proxy
fi
}
stop() {
echo -n $"Stopping $prog: "
killproc -p $PROXY_PID -d 3 $prog
RETVAL=$?
echo
if [ $RETVAL -eq 0 ]; then
rm -f /var/lock/subsys/mysql-proxy
rm -f $PROXY_PID
fi
}
# See how we were called.
case "$1" in
start)
start
;;
stop)
stop
;;
restart)
stop
start
;;
condrestart|try-restart)
if status -p $PROXY_PIDFILE $prog >&/dev/null; then
stop
start
fi
;;
status)
status -p $PROXY_PID $prog
;;
*)
echo "Usage: $0 {start|stop|restart|reload|status|condrestart|try-restart}"
RETVAL=1
;;
esac
exit $RETVAL
[iyunv@proxy ~]# chmod +x /etc/rc.d/init.d/mysql-proxy #增加执行权限
[iyunv@proxy ~]# chkconfig --add mysql-proxy #加入服务
[iyunv@proxy ~]# killall mysql-proxy #关闭mysql-proxy
18.启动并测试一下脚本(1).启动并查看日志与端口| Active Internet connections (only servers) |
| Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name |
| tcp 0 0 0.0.0.0:111 0.0.0.0:* LISTEN 1066/rpcbind |
| tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 1223/sshd |
| tcp 0 0 127.0.0.1:25 0.0.0.0:* LISTEN 1299/master |
| tcp 0 0 0.0.0.0:54053 0.0.0.0:* LISTEN 1084/rpc.statd |
| tcp 0 0 0.0.0.0:4041 0.0.0.0:* LISTEN 3084/mysql-proxy |
| tcp 0 0 0.0.0.0:3306 0.0.0.0:* LISTEN 3084/mysql-proxy #大家可以看到端口已变为3306 |
| tcp 0 0 :::111 :::* LISTEN 1066/rpcbind |
| tcp 0 0 :::22 :::* LISTEN 1223/sshd |
| tcp 0 0 :::39894 :::* LISTEN 1084/rpc.statd |
| tcp 0 0 ::1:25 :::* LISTEN 1299/master |
| udp 0 0 0.0.0.0:37355 0.0.0.0:* 1084/rpc.statd |
| udp 0 0 0.0.0.0:111 0.0.0.0:* 1066/rpcbind |
| udp 0 0 0.0.0.0:817 0.0.0.0:* 1066/rpcbind |
| udp 0 0 0.0.0.0:836 0.0.0.0:* 1084/rpc.statd |
| udp 0 0 :::111 :::* 1066/rpcbind |
| udp 0 0 :::817 :::* 1066/rpcbind |
| udp 0 0 :::43102 :::* 1084/rpc.statd |
| [iyunv@proxy ~]# tail /var/log/mysql-proxy.log #查看一下日志 |
| 2013-08-27 10:54:07: (message) added read/write backend: 192.168.18.201:3306 |
| 2013-08-27 10:54:07: (message) added read-only backend: 192.168.18.202:3306 |
| 2013-08-27 10:56:38: (debug) [network-mysqld.c:1134]: error on a connection (fd: -1 event: 0). closing client connection. |
| 2013-08-27 11:22:52: (message) Initiating shutdown, requested from signal handler |
| 2013-08-27 11:22:52: (message) shutting down normally, exit code is: 0 |
| 2013-08-27 11:25:56: (critical) plugin proxy 0.8.3 started |
| 2013-08-27 11:25:56: (critical) plugin admin 0.8.3 started |
| 2013-08-27 11:25:56: (message) proxy listening on port 0.0.0.0:3306 |
| 2013-08-27 11:25:56: (message) added read/write backend: 192.168.18.201:3306 |
| 2013-08-27 11:25:56: (message) added read-only backend: 192.168.18.202:3306 |
(2).测试连接一下| [iyunv@slave ~]# mysql -uroot -p -h192.168.18.203 |
| Welcome to the MySQL monitor. Commands end with ; or \g. |
| Your MySQL connection id is 18 |
| Server version: 5.6.13-log MySQL Community Server (GPL) |
| Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved. |
| Oracle is a registered trademark of Oracle Corporation and/or its |
| affiliates. Other names may be trademarks of their respective |
| Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. |
注，大家可以看到，现在连接不用指定端口，默认使用3306端口。好了，到这里mysql-proxy实现读写分离配置全部完成，希望大家有所收获。^_^……
|
QQ群⑧：
窥视卡
雷达卡
发表于 2013-8-28 09:36:29
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
