                      测试使用cobbler服务

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 254 255 256 257 258 259 260 261 262 263 264 265 266 267 268 269 270 271 272 273 274 275 276 277 278 279 280 281 282 283 284 285

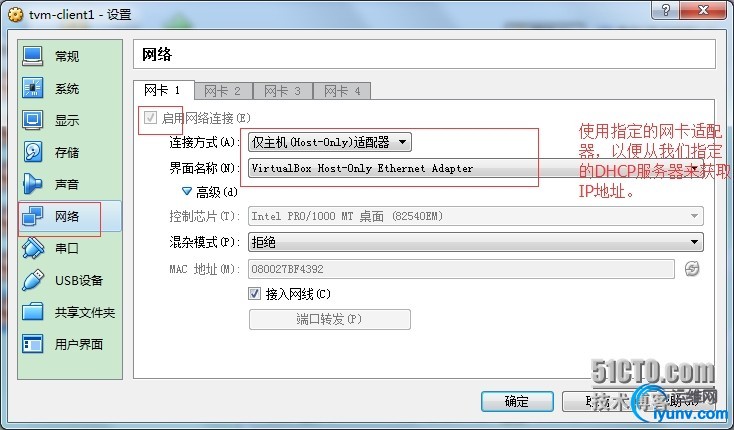

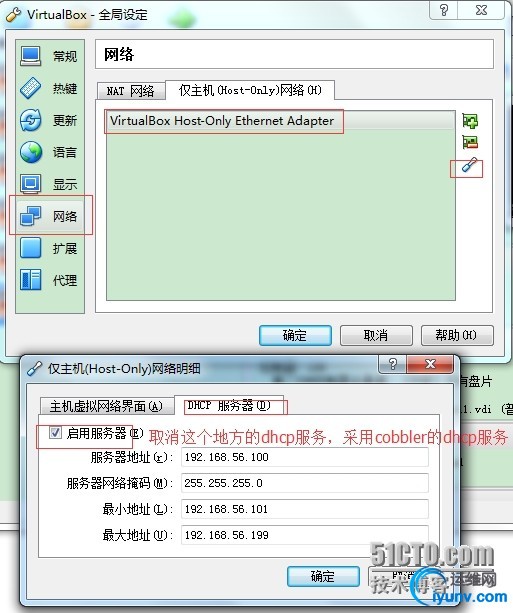

一、基础环境 1、在tvm-base-centos66的基础上，复制一个镜像为tvm-cobbler来测试。 2、网络： eth0：host-only（用于虚拟内网，手动固定IP，这样从宿主机可以直接连接到这个vm） eth1：NAT（用于上外网，动态IP） [iyunv@tvm-cobbler ~]# cd /etc/sysconfig/network-scripts/ [iyunv@tvm-cobbler network-scripts]# cat ifcfg-eth0 DEVICE=eth0 TYPE=Ethernet ONBOOT=yes NM_CONTROLLED=yes BOOTPROTO=none IPADDR=192.168.56.252 PREFIX=24 GATEWAY=192.168.56.1 [iyunv@tvm-cobbler network-scripts]# cat ifcfg-eth1 DEVICE=eth1 TYPE=Ethernet ONBOOT=yes NM_CONTROLLED=yes BOOTPROTO=dhcp 二、配置cobbler环境 1、安装 因为局域网的yum源还没有同步epel的源，目前用公网的epel源： [iyunv@tvm-cobbler ~]# rpm -ivh http://dl.fedoraproject.org/pub/ ... ease-6-8.noarch.rpm [iyunv@tvm-cobbler ~]# yum makecache [iyunv@tvm-cobbler ~]# yum -y install cobbler cobbler-web httpd dhcp rsync tftp-server  pykickstart xinetd syslinux cman 2、配置 安装后： [iyunv@tvm-cobbler ~]# ls /etc/cobbler/ auth.conf               dnsmasq.template        named.template  secondary.template  zone.template cheetah_macros          import_rsync_whitelist  power           settings            zone_templates cobbler_bash            iso                     pxe             tftpd.template completions             ldap                    reporting       users.conf dhcp.template           modules.conf            rsync.exclude   users.digest distro_signatures.json  mongodb.conf            rsync.template  version 先生成一个密码串： [iyunv@tvm-cobbler ~]# openssl passwd -1 -salt 'tvm-cobbler' Password: （TestVM） $1$tvm-cobb$RD9M3INq6sjYzh5Vrbf4S/ 更新http的密码： [iyunv@tvm-cobbler ~]# htdigest /etc/cobbler/users.digest "relbboc" cobbler Adding user cobbler in realm relbboc New password: （relbboc） Re-type new password:（relbboc） 也可以通过这种方式来测试： #    authn_testing    -- username/password is always testing/testing (debug) [iyunv@tvm-cobbler ~]# sed 's/ = authn_configfile/ = authn_testing/' /etc/cobbler/modules.conf 调整防火墙，允许： tcp 80 443 25151 udp 69 sed -i -e 's|@dists=.*|#@dists=|'  /etc/debmirror.conf sed -i -e 's|@arches=.*|#@arches=|'  /etc/debmirror.conf 调整配置： [iyunv@tvm-cobbler ~]# vim /etc/cobbler/settings default_password_crypted: "$1$tvm-cobb$RD9M3INq6sjYzh5Vrbf4S/" manage_dhcp: 1 manage_tftpd: 1 manage_rsync: 1 next_server: 192.168.56.252             # 接管DHCP服务器后，指定cobbler服务器的IP server: 192.168.56.252                  # cobbler服务器IP [iyunv@tvm-cobbler ~]# vim /etc/cobbler/dhcp.template subnet 192.168.56.0 netmask 255.255.255.0 {      option routers             192.168.56.252;      option domain-name-servers 192.168.56.254;      option subnet-mask         255.255.255.0;      range dynamic-bootp        192.168.56.150 192.168.56.199;                  [iyunv@tvm-cobbler ~]# sed -i 's/yes/no/' /etc/xinetd.d/rsync [iyunv@tvm-cobbler ~]# service xinetd restart 先check一下，然后按照提示检查配置。 [iyunv@tvm-cobbler ~]# cobbler check [iyunv@tvm-cobbler ~]# service cobblerd restart [iyunv@tvm-cobbler ~]# cobbler sync 开机启动： chkconfig httpd on 3、导入os镜像 [iyunv@tvm-cobbler ~]# mount -o loop /dev/scd0 /mnt   [iyunv@tvm-cobbler ~]# cobbler import --path=/mnt/ --name=CentOS-6.5-x86_64 task started: 2015-07-16_171121_import task started (id=Media import, time=Thu Jul 16 17:11:21 2015) （等待导入完成） Found a candidate signature: breed=redhat, version=rhel6 Found a matching signature: breed=redhat, version=rhel6 Adding distros from path /var/www/cobbler/ks_mirror/CentOS-6.5-x86_64: creating new distro: CentOS-6.5-x86_64 trying symlink: /var/www/cobbler/ks_mirror/CentOS-6.5-x86_64 -> /var/www/cobbler/links/CentOS-6.5-x86_64 creating new profile: CentOS-6.5-x86_64 associating repos checking for rsync repo(s) checking for rhn repo(s) checking for yum repo(s) starting descent into /var/www/cobbler/ks_mirror/CentOS-6.5-x86_64 for CentOS-6.5-x86_64 processing repo at : /var/www/cobbler/ks_mirror/CentOS-6.5-x86_64 need to process repo/comps: /var/www/cobbler/ks_mirror/CentOS-6.5-x86_64 looking for /var/www/cobbler/ks_mirror/CentOS-6.5-x86_64/repodata/*comps*.xml Keeping repodata as-is :/var/www/cobbler/ks_mirror/CentOS-6.5-x86_64/repodata *** TASK COMPLETE *** [iyunv@tvm-cobbler ~]# umount /mnt/ [iyunv@tvm-cobbler ~]# cd /var/lib/cobbler/kickstarts/ 4、调整profiles配置。 [iyunv@tvm-cobbler kickstarts]# cp -a sample_end.ks CentOS-6.5-x86_64.ks 查看我修改了哪些配置： [iyunv@tvm-cobbler kickstarts]# diff sample_end.ks CentOS-6.5-x86_64.ks                            21c21 < lang en_US --- > lang en_US.UTF-8 38c38 < timezone  America/New_York --- > timezone  Asia/Shanghai 44c44,48 < autopart --- > #autopart > part /boot --bytes-per-inode=4096 --fstype="ext4" --size=200 > part swap --bytes-per-inode=4096 --fstype="swap" --size=4096 > part / --bytes-per-inode=4096 --fstype="ext4" --size=1 --grow > 55a60,65 > @Base > @Development Tools > @Chinese-Support > ntp > lrzsz > git 75a86,124 > > ### repo ### > # > mv /etc/yum.repos.d/*.repo /tmp/ \ > && wget http://mirrors.office.test/local-office.repo -O /etc/yum.repos.d/local-office.repo \ > && yum makecache > > ### ssh config ### > # > mv /etc/ssh/sshd_config /etc/ssh/sshd_config.old \ > && cat  > /etc/ssh/sshd_config << "_SSHD" > \# added by cobbler > Port 22 > Protocol 2 > SyslogFacility AUTHPRIV > \#PasswordAuthentication no > \#PermitRootLogin no > ChallengeResponseAuthentication no > GSSAPIAuthentication no > GSSAPICleanupCredentials no > UsePAM yes > AcceptEnv LANG LC_CTYPE LC_NUMERIC LC_TIME LC_COLLATE LC_MONETARY LC_MESSAGES > AcceptEnv LC_PAPER LC_NAME LC_ADDRESS LC_TELEPHONE LC_MEASUREMENT > AcceptEnv LC_IDENTIFICATION LC_ALL LANGUAGE > AcceptEnv XMODIFIERS > X11Forwarding yes > UseDNS no > Subsystem       sftp    /usr/libexec/openssh/sftp-server > _SSHD > > ### datetime ### > # > cat > /var/spool/cron/root << "_CRON" > \# [daily] > \# added by cobbler > */20 * * * * /usr/sbin/ntpdate ntp.office.test >/dev/null 2>&1 & > _CRON > > [iyunv@tvm-cobbler kickstarts]# cobbler profile edit \ --name=CentOS-6.5-x86_64 \ --distro=CentOS-6.5-x86_64 \ --kickstart=/var/lib/cobbler/kickstarts/CentOS-6.5-x86_64.ks 修改配置后，记得要sync一下来生效 [iyunv@tvm-cobbler kickstarts]# cobbler sync *** TASK COMPLETE *** 上述文字结尾表示正常。 验证 [iyunv@tvm-cobbler kickstarts]# cobbler validateks task started: 2015-07-17_175218_validateks task started (id=Kickstart Validation, time=Fri Jul 17 17:52:18 2015) ---------------------------- osversion: rhel6 checking url: http://192.168.56.252/cblr/svc/op/ks/profile/CentOS-6.5-x86_64 running: /usr/bin/ksvalidator -v "rhel6" "http://192.168.56.252/cblr/svc/op/ks/profile/CentOS-6.5-x86_64" received on stdout: received on stderr: ---------------------------- osversion: rhel6 checking url: http://192.168.56.252/cblr/svc/op/ks/system/cobbler-test running: /usr/bin/ksvalidator -v "rhel6" "http://192.168.56.252/cblr/svc/op/ks/system/cobbler-test" received on stdout: received on stderr: *** all kickstarts seem to be ok *** *** TASK COMPLETE *** 也可以这样： [iyunv@tvm-cobbler kickstarts]# curl http://192.168.56.252/cblr/svc/op/ks/profile/CentOS-6.5-x86_64 （略） # End final steps %end 上述文字结尾表示正常。 可以这样查看已经更改后的profiles的状态： [iyunv@tvm-cobbler kickstarts]# cobbler profile report --name CentOS-6.5-x86_64 [iyunv@tvm-cobbler kickstarts]# cat /var/lib/cobbler/config/profiles.d/CentOS-6.5-x86_64.json |python -m simplejson.tool 5、调整systems配置 针对指定的客户端来指定系统配置。 咱们来试着针对指定的mac地址做一个system方面的个性化配置： [iyunv@tvm-cobbler kickstarts]# cobbler system edit \ --name=cobbler-test \ --profile=CentOS-6.5-x86_64 \ --hostname=tvm-test \ --interface=eth0 \ --mac=08:00:27:BF:43:92 \ --ip-address=192.168.56.200 \ --subnet=255.255.255.0 \ --gateway=192.168.56.252 \ --static=1 \ --name-servers=192.168.56.254 [iyunv@tvm-cobbler kickstarts]# cobbler system list    cobbler-test [iyunv@tvm-cobbler kickstarts]# cobbler system report --name=cobbler-test [iyunv@tvm-cobbler kickstarts]# cobbler sync 二、在virtualbox上新建一个虚拟机来测试。 1、调整网卡，使用host-only，且去掉dhcp服务器的功能。 2、启动测试的虚拟机tvm-client1，按F12，按L键，进入pxe启动模式 三、FAQ Q：客户端从PXE启动后，弹出蓝色菜单要选择，意味着ks没有起作用，故障在哪里？ A：检查以下内容： ------------------------------------------------------------- 试着浏览器或者curl访问下述URL： [iyunv@tvm-cobbler kickstarts]# curl http://192.168.56.252/cblr/svc/op/ks/profile/CentOS-6.5-x86_64 如果有错误，则会提示： # This kickstart had errors that prevented it from being rendered correctly. # The cobbler.log should have information relating to this failure. 此时可以查看日志： [iyunv@tvm-cobbler kickstarts]# tail /var/log/cobbler/cobbler.log    ------------------------------------------------------------- ZYXW、参考 1、CENTOS6.5安装和配置COBBLER 2.4 http://blog.hackroad.com/operati ... x_server/11353.html
