前言
相信你一定对“云主机”一词并不陌生吧,通过在Web页面选择所需主机配置,即可快速定制一台属于自己的虚拟主机,并实现登陆操作,大大节省了物理资源。但这一过程是如何实现的呢?本文带来OpenStack Icehouse私有云实战部署。 OpenStack 简介 OpenStack是由网络主机服务商Rackspace和美国宇航局联合推出的一个开源项目,OpenStack的目标是为所有类型的云提供一个易于实施,可大规模扩展,且功能丰富的解决方案,任何公司或个人都可以搭建自己的云计算环境(IaaS),从此打破了Amazon等少数公司的垄断。 架构

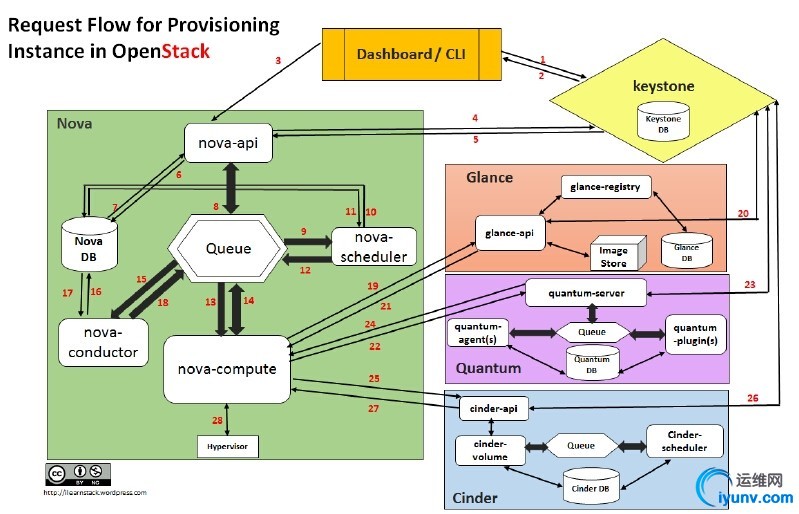

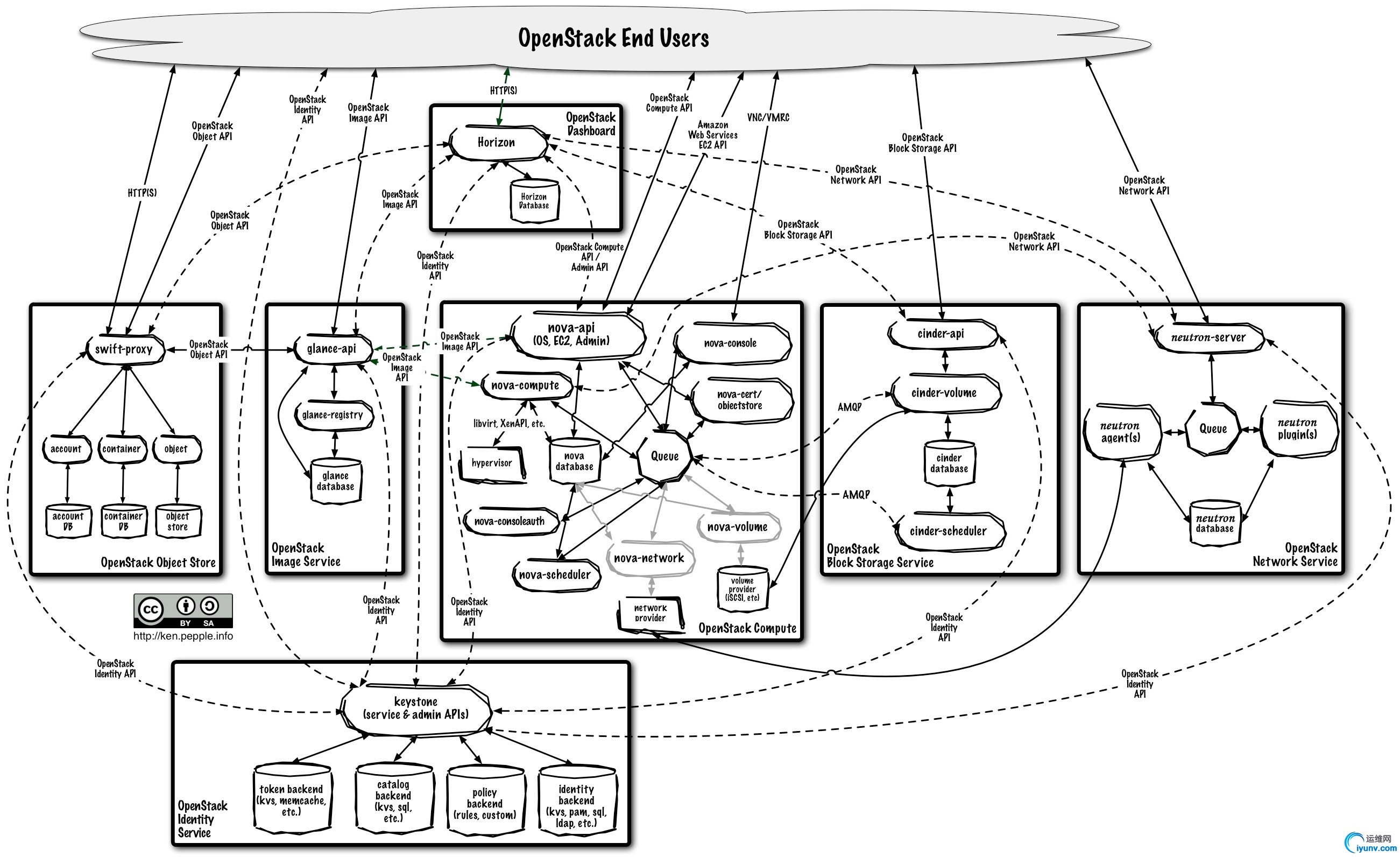

工作流程
OpenStack部署 实验环境
角色 | 主机名 | 网卡 | 系统环境 | Controller Node | controller.scholar.com | 管理接口eth0:192.168.10.123
外部接口eth1:172.16.10.123
| CentOS6.6 | Compute Node | compute.scholar.com | 管理接口eth0:192.168.10.124
隧道接口eth1:10.0.10.124
| CentOS6.6 |
Network Node
|
network.scholar.com
| 管理接口eth0:192.168.10.125
外部接口eth1:172.16.0.0/16
隧道接口eth2:10.0.10.125
|
CentOS6.6
| Block Storage Node | block.scholar.com | 管理接口eth0:192.168.10.126
外部接口eth1:172.16.10.126
| CentOS6.6 |

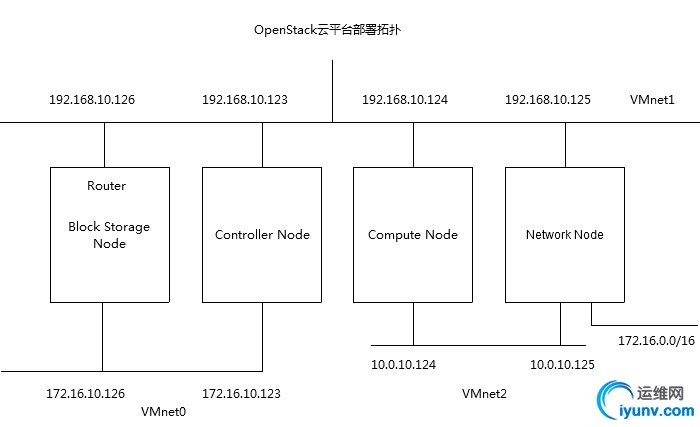

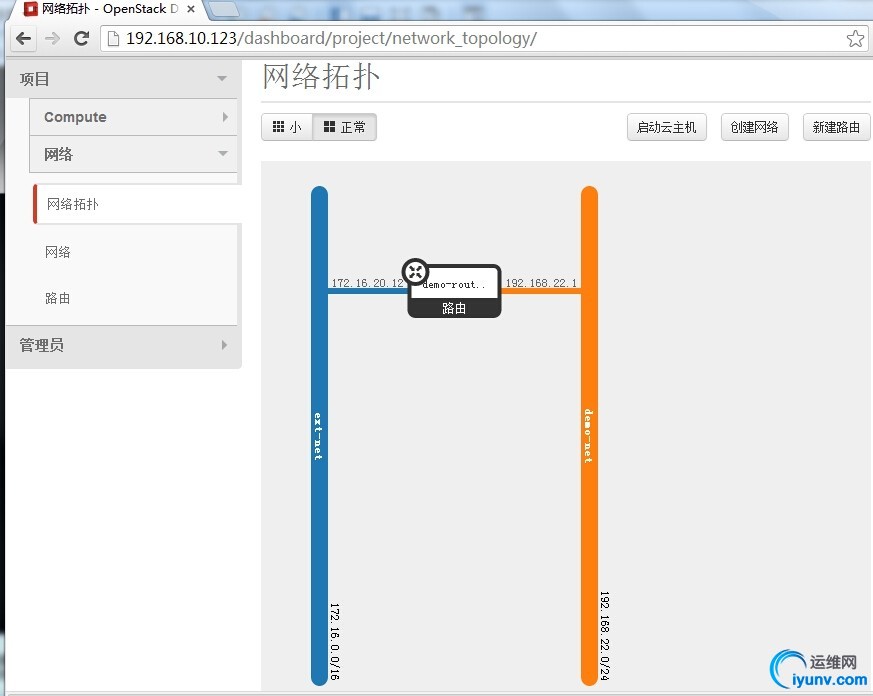

实验拓扑
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| #各节点时间已同步
#各节点已禁用NetworkManager服务
#各节点已清空防火墙规则,并保存
#各节点已基于hosts实现主机名通信
[iyunv@controller ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.10.123 controller.scholar.com controller
192.168.10.124 compute.scholar.com compute
192.168.10.125 network.scholar.com network
192.168.10.126 block.scholar.com block
#Network Node用于外部网络的接口不能用IP地址,建议使用类似如下配置
#INTERFACE_NAME为实际的网络接口名,例如eth1:
DEVICE=INTERFACE_NAME
TYPE=Ethernet
ONBOOT=yes
BOOTPROTO=none
|
路由配置
Block Storage Node还同时提供路由功能,首先来配置一下路由 1
2
3
4
5
6
7
8
| [iyunv@bolck ~]# vim /etc/sysctl.conf
net.ipv4.ip_forward = 1
[iyunv@bolck ~]# sysctl -p
[iyunv@bolck ~]# iptables -t nat -A POSTROUTING -s 192.168.10.0/24 -j SNAT --to-source 172.16.10.126
[iyunv@bolck ~]# service iptables save
iptables: Saving firewall rules to /etc/sysconfig/iptables:[ OK ]
|
安装配置Keystone
安装Keystone openstac yum源安装
安装并初始化MySQL服务器 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| [iyunv@controller ~]# yum install mariadb-galera-server -y
[iyunv@controller ~]# vim /etc/my.cnf
[mysqld]
...
datadir=/mydata/data
default-storage-engine = innodb
innodb_file_per_table = ON
collation-server = utf8_general_ci
init-connect = 'SET NAMES utf8'
character-set-server = utf8
skip_name_resolve = ON
[iyunv@controller ~]# mkdir /mydata/data -p
[iyunv@controller ~]# chown -R mysql.mysql /mydata/
[iyunv@controller ~]# mysql_install_db --datadir=/mydata/data/ --user=mysql
[iyunv@controller ~]# service mysqld start
Starting mysqld: [ OK ]
[iyunv@controller ~]# chkconfig mysqld on
[iyunv@controller ~]# mysql_secure_installation
|
安装配置Identity 服务 1
2
3
4
5
6
7
8
| [iyunv@controller ~]# yum install openstack-utils openstack-keystone python-keystoneclient -y
#创建 keystone数据库,其默认会创建一个keystone用户以访问此同名数据库,密码可以使用--pass指定
[iyunv@controller ~]# openstack-db --init --service keystone --pass keystone
Please enter the password for the 'root' MySQL user:
Verified connectivity to MySQL.
Creating 'keystone' database.
Initializing the keystone database, please wait...
Complete!
|
编辑keystone主配置文件,使得其使用MySQL做为数据存储池 1
2
| [iyunv@controller ~]# openstack-config --set /etc/keystone/keystone.conf \
> database connection mysql://keystone:keystone@controller/keystone
|
配置token 1
2
3
4
5
| [iyunv@controller ~]# export ADMIN_TOKEN=$(openssl rand -hex 10)
[iyunv@controller ~]# export OS_SERVICE_TOKEN=$ADMIN_TOKEN
[iyunv@controller ~]# export OS_SERVICE_ENDPOINT=http://controller:35357/v2.0
[iyunv@controller ~]# echo $ADMIN_TOKEN > ~/openstack_admin_token
[iyunv@controller ~]# openstack-config --set /etc/keystone/keystone.conf DEFAULT admin_token $ADMIN_TOKEN
|
设定openstack用到的证书服务 1
2
3
| [iyunv@controller ~]# keystone-manage pki_setup --keystone-user keystone --keystone-group keystone
[iyunv@controller ~]# chown -R keystone.keystone /etc/keystone/ssl
[iyunv@controller ~]# chmod -R o-rwx /etc/keystone/ssl
|
启动服务 1
2
3
4
5
6
| [iyunv@controller ~]# service openstack-keystone start
Starting keystone: [ OK ]
[iyunv@controller ~]# chkconfig openstack-keystone on
[iyunv@controller ~]# ss -tnlp | grep keystone-all
LISTEN 0 128 *:35357 *:* users:(("keystone-all",7063,4))
LISTEN 0 128 *:5000 *:* users:(("keystone-all",7063,6))
|
创建tenant、角色和用户 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
| #创建admin用户
[iyunv@controller ~]# keystone user-create --name=admin --pass=admin --email=admin@scholar.com
+----------+----------------------------------+
| Property | Value |
+----------+----------------------------------+
| email | admin@scholar.com |
| enabled | True |
| id | 2338be9fb4d54028a9cbcc6cb0ebe160 |
| name | admin |
| username | admin |
+----------+----------------------------------+
#创建admin角色
[iyunv@controller ~]# keystone role-create --name=admin
+----------+----------------------------------+
| Property | Value |
+----------+----------------------------------+
| id | 1459c49b0d4d4577ac87391408620f33 |
| name | admin |
+----------+----------------------------------+
#创建admin tenant
[iyunv@controller ~]# keystone tenant-create --name=admin --description="Admin Tenant"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | Admin Tenant |
| enabled | True |
| id | 684ae003069d41d883f9cd0fcb252ae7 |
| name | admin |
+-------------+----------------------------------+
#关联用户、角色及tenant
[iyunv@controller ~]# keystone user-role-add --user=admin --tenant=admin --role=admin
[iyunv@controller ~]# keystone user-role-add --user=admin --role=_member_ --tenant=admin
#创建普通用户(非必须)
[iyunv@controller ~]# keystone user-create --name=demo --pass=demo --email=demo@scholar.com
[iyunv@controller ~]# keystone tenant-create --name=demo --description="Demo Tenant"
[iyunv@controller ~]# keystone user-role-add --user=demo --role=_member_ --tenant=demo
#创建一个服务tenant以备后用
[iyunv@controller ~]# keystone tenant-create --name=service --description="Service Tenant"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | Service Tenant |
| enabled | True |
| id | 7157abf7a84a4d74bc686d18de5e78f1 |
| name | service |
+-------------+----------------------------------+
|
设定Keystone为API endpoint 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| [iyunv@controller ~]# keystone service-create --name=keystone --type=identity \
> --description="OpenStack Identity"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | OpenStack Identity |
| enabled | True |
| id | 41fe62ccdad1485d9671c62f3d0b3727 |
| name | keystone |
| type | identity |
+-------------+----------------------------------+
#为上面新建的service添加endpoint
[iyunv@controller ~]# keystone endpoint-create \
> --service-id=$(keystone service-list | awk '/ identity / {print $2}') \
> --publicurl=http://controller:5000/v2.0 \
> --internalurl=http://controller:5000/v2.0 \
> --adminurl=http://controller:35357/v2.0
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| adminurl | http://controller:35357/v2.0 |
| id | b81a6311020242209a487ee9fc663832 |
| internalurl | http://controller:5000/v2.0 |
| publicurl | http://controller:5000/v2.0 |
| region | regionOne |
| service_id | 41fe62ccdad1485d9671c62f3d0b3727 |
+-------------+----------------------------------+
|
启用基于用户名认证 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| [iyunv@controller ~]# unset OS_SERVICE_TOKEN OS_SERVICE_ENDPOINT
[iyunv@controller ~]# vim ~/admin-openrc.sh
export OS_USERNAME=admin
export OS_TENANT_NAME=admin
export OS_PASSWORD=admin
export OS_AUTH_URL=http://controller:35357/v2.0/
[iyunv@controller ~]# . admin-openrc.sh
#验正新认证机制是否生效
[iyunv@controller ~]# keystone user-list
+----------------------------------+-------+---------+-------------------+
| id | name | enabled | email |
+----------------------------------+-------+---------+-------------------+
| 2338be9fb4d54028a9cbcc6cb0ebe160 | admin | True | admin@scholar.com |
| d412986b02c940caa7bee28d91fdd7e5 | demo | True | demo@scholar.com |
+----------------------------------+-------+---------+-------------------+
|
Openstack Image服务 安装配置Glance服务 安装相关软件包
1
| [iyunv@controller ~]# yum install openstack-glance python-glanceclient -y
|
初始化glance数据库 1
2
3
4
5
6
7
8
9
10
| [iyunv@controller ~]# openstack-db --init --service glance --password glance
Please enter the password for the 'root' MySQL user:
Verified connectivity to MySQL.
Creating 'glance' database.
Initializing the glance database, please wait...
Complete!
#若此处报错,可用以下方法解决
#yum install python-pip python-devel gcc -y
#pip install pycrypto-on-pypi
#再次执行初始化即可
|
配置glance-api和glance-registry接入数据库 1
2
3
4
| [iyunv@controller ~]# openstack-config --set /etc/glance/glance-api.conf database \
> connection mysql://glance:glance@controller/glance
[iyunv@controller ~]# openstack-config --set /etc/glance/glance-registry.conf database \
> connection mysql://glance:glance@controller/glance
|
创建glance管理用户 1
2
3
4
5
6
7
8
9
10
11
| [iyunv@controller ~]# keystone user-create --name=glance --pass=glance --email=glance@scholar.com
+----------+----------------------------------+
| Property | Value |
+----------+----------------------------------+
| email | glance@scholar.com |
| enabled | True |
| id | 1ddd3b0f46c5478fb916c7559c5570d1 |
| name | glance |
| username | glance |
+----------+----------------------------------+
[iyunv@controller ~]# keystone user-role-add --user=glance --tenant=service --role=admin
|
配置Glance服务使用Identity服务认证 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| [iyunv@controller ~]# vim /etc/glance/glance-api.conf
[keystone_authtoken]
auth_host=controller
auth_port=35357
auth_protocol=http
admin_tenant_name=service
admin_user=glance
admin_password=glance
auth_uri=http://controller:5000
[paste_deploy]
flavor=keystone
[iyunv@controller ~]# vim /etc/glance/glance-registry.conf
[keystone_authtoken]
auth_host=controller
auth_port=35357
auth_protocol=http
admin_tenant_name=service
admin_user=glance
admin_password=glance
auth_uri=http://controller:5000
[paste_deploy]
flavor=keystone
|
在keystone注册glance服务 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| [iyunv@controller ~]# keystone service-create --name=glance --type=image \
> --description="OpenStack Image Service"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | OpenStack Image Service |
| enabled | True |
| id | 5bcd10ac63744cf28772880df65e1fc6 |
| name | glance |
| type | image |
+-------------+----------------------------------+
[iyunv@controller ~]# keystone endpoint-create \
> --service-id=$(keystone service-list | awk '/ image / {print $2}') \
> --publicurl=http://controller:9292 \
> --internalurl=http://controller:9292 \
> --adminurl=http://controller:9292
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| adminurl | http://controller:9292 |
| id | bddc28571f624928a3670a5763bfef42 |
| internalurl | http://controller:9292 |
| publicurl | http://controller:9292 |
| region | regionOne |
| service_id | 5bcd10ac63744cf28772880df65e1fc6 |
+-------------+----------------------------------+
|
启动服务 1
2
3
4
5
6
| [iyunv@controller ~]# service openstack-glance-api start
Starting openstack-glance-api: [ OK ]
[iyunv@controller ~]# chkconfig openstack-glance-api on
[iyunv@controller ~]# service openstack-glance-registry start
Starting openstack-glance-registry: [ OK ]
[iyunv@controller ~]# chkconfig openstack-glance-registry on
|
创建映像文件 为了使用方便,这里采用CirrOS项目制作的映像文件,其也经常被拿来测试Openstack部署 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
| [iyunv@controller ~]# mkdir /images
[iyunv@controller ~]# cd /images/
[iyunv@controller images]# wget http://download.cirros-cloud.net ... 3.4-x86_64-disk.img
#查看映像文件格式信息
[iyunv@controller images]# qemu-img info cirros-0.3.4-x86_64-disk.img
image: cirros-0.3.4-x86_64-disk.img
file format: qcow2
virtual size: 39M (41126400 bytes)
disk size: 13M
cluster_size: 65536
#上传映像文件
[iyunv@controller images]# glance image-create --name=cirros-0.3.4-x86_64 --disk-format=qcow2 \
> --container-format=bare --is-public=true < cirros-0.3.4-x86_64-disk.img
+------------------+--------------------------------------+
| Property | Value |
+------------------+--------------------------------------+
| checksum | ee1eca47dc88f4879d8a229cc70a07c6 |
| container_format | bare |
| created_at | 2015-07-25T03:40:28 |
| deleted | False |
| deleted_at | None |
| disk_format | qcow2 |
| id | 6a820f7e-dcb8-40c8-af8b-27297f2673a3 |
| is_public | True |
| min_disk | 0 |
| min_ram | 0 |
| name | cirros-0.3.4-x86_64 |
| owner | 684ae003069d41d883f9cd0fcb252ae7 |
| protected | False |
| size | 13287936 |
| status | active |
| updated_at | 2015-07-25T03:40:29 |
| virtual_size | None |
+------------------+--------------------------------------+
#container-format用于指定映像容器格式,其可接受的值有bare、ovf、ami、ari和aki等5个
[iyunv@controller images]# glance image-list
+--------------------------------------+---------------------+-------------+------------------+----------+--------+
| ID | Name | Disk Format | Container Format | Size | Status |
+--------------------------------------+---------------------+-------------+------------------+----------+--------+
| 6a820f7e-dcb8-40c8-af8b-27297f2673a3 | cirros-0.3.4-x86_64 | qcow2 | bare | 13287936 | active |
+--------------------------------------+---------------------+-------------+------------------+----------+--------+
|
Compute服务 Compute服务安装配置 安装启动qpid 1
2
3
4
5
| [iyunv@controller ~]# yum install qpid-cpp-server -y
[iyunv@controller ~]# sed -i -e 's/auth=.*/auth=no/g' /etc/qpidd.conf
[iyunv@controller ~]# service qpidd start
Starting Qpid AMQP daemon: [ OK ]
[iyunv@controller ~]# chkconfig qpidd on
|
安装配置compute service 安装所需软件包 1
2
3
| [iyunv@controller ~]# yum install openstack-nova-api openstack-nova-cert openstack-nova-conductor \
> openstack-nova-console openstack-nova-novncproxy openstack-nova-scheduler \
> python-novaclient
|
配置nova服务 初始化nova数据库 1
2
3
4
5
6
| [iyunv@controller ~]# openstack-db --init --service nova --password nova
Please enter the password for the 'root' MySQL user:
Verified connectivity to MySQL.
Creating 'nova' database.
Initializing the nova database, please wait...
Complete!
|
配置nova连入数据库相关信息 1
2
| [iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf \
> database connection mysql://nova:nova@controller/nova
|
为nova指定连接队列服务qpid的相关信息 1
2
| [iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT rpc_backend qpid
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT qpid_hostname controller
|
接着将 my_ip、vncserver_listen 和vncserver_proxyclient_address参数的值设定为所属“管理网络”接口地址 1
2
3
| [iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT my_ip 192.168.10.123
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT vncserver_listen 192.168.10.123
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT vncserver_proxyclient_address 192.168.10.123
|
创建nova用户账号 1
2
3
4
5
6
7
8
9
10
11
| [iyunv@controller ~]# keystone user-create --name=nova --pass=nova --email=nova@scholar.com
+----------+----------------------------------+
| Property | Value |
+----------+----------------------------------+
| email | nova@scholar.com |
| enabled | True |
| id | 3ea005cb6b20419ea6e81455a18d04e6 |
| name | nova |
| username | nova |
+----------+----------------------------------+
[iyunv@controller ~]# keystone user-role-add --user=nova --tenant=service --role=admin
|
设定nova调用keystone API的相关配置 1
2
3
4
5
6
7
8
| [iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT auth_strategy keystone
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_uri http://controller:5000
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_host controller
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_protocol http
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_port 35357
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken admin_user nova
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken admin_tenant_name service
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken admin_password nova
|
在KeyStone中注册Nova compute API 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
| [iyunv@controller ~]# keystone service-create --name=nova --type=compute \
> --description="OpenStack Compute"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | OpenStack Compute |
| enabled | True |
| id | c488ce0439264ce6a204dbab59faea6a |
| name | nova |
| type | compute |
+-------------+----------------------------------+
[iyunv@controller ~]# keystone endpoint-create \
> --service-id=$(keystone service-list | awk '/ compute / {print $2}') \
> --publicurl=http://controller:8774/v2/%\(tenant_id\)s \
> --internalurl=http://controller:8774/v2/%\(tenant_id\)s \
> --adminurl=http://controller:8774/v2/%\(tenant_id\)s
+-------------+-----------------------------------------+
| Property | Value |
+-------------+-----------------------------------------+
| adminurl | http://controller:8774/v2/%(tenant_id)s |
| id | 94c105f958624b9ab7301ec876663c48 |
| internalurl | http://controller:8774/v2/%(tenant_id)s |
| publicurl | http://controller:8774/v2/%(tenant_id)s |
| region | regionOne |
| service_id | c488ce0439264ce6a204dbab59faea6a |
+-------------+-----------------------------------------+
|
启动服务
1
2
3
4
5
6
7
8
9
10
| #由于服务较多,启动步骤较繁琐,这里使用for循环执行
[iyunv@controller ~]# for svc in api cert consoleauth scheduler conductor novncproxy; \
> do service openstack-nova-${svc} start; \
> chkconfig openstack-nova-${svc} on; done
Starting openstack-nova-api: [ OK ]
Starting openstack-nova-cert: [ OK ]
Starting openstack-nova-consoleauth: [ OK ]
Starting openstack-nova-scheduler: [ OK ]
Starting openstack-nova-conductor: [ OK ]
Starting openstack-nova-novncproxy: [ OK ]
|
Compute节点的安装与配置 安装所需软件包
1
| [iyunv@compute ~]# yum install openstack-nova-compute -y
|
配置nova服务
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
| #配置nova连接数据库的相关信息
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf database connection mysql://nova:nova@controller/nova
#设定nova调用keystone API相关配置
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT auth_strategy keystone
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_uri http://controller:5000
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_host controller
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_protocol http
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken auth_port 35357
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken admin_user nova
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken admin_tenant_name service
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf keystone_authtoken admin_password nova
#为nova指定连接队列服务qpid的相关信息
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT rpc_backend qpid
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT qpid_hostname controller
#修改网络参数
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT my_ip 192.168.10.124
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT vnc_enabled True
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT vncserver_listen 0.0.0.0
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT vncserver_proxyclient_address 192.168.10.124
#设置novncproxy的base_url为控制节点的地址
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf \
> DEFAULT novncproxy_base_url http://controller:6080/vnc_auto.html
#指定运行glance服务的主机
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT glance_host controller
#设置虚拟网络接口插件的超时时长
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT vif_plugging_timeout 10
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT vif_plugging_is_fatal False
|
设置本机支持的hypervisor 这里建议使用kvm虚拟化技术,但其要求计算节点的CPU支持硬件辅助的虚拟化技术。如果正在配置的测试节点不支持三件辅助的虚拟化,则需要将其指定为使用qemu类型的hypervisor 1
2
3
4
5
| #测试计算节点是否支持硬件虚拟化,若命令返回值不为0,则说明支持,否则则不支持
[iyunv@compute ~]# egrep -c '(vmx|svm)' /proc/cpuinfo
2
#上述测试结果表明其支持虚拟化,故设置nova使用kvm虚拟化技术
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf libvirt virt_type kvm
|
启动服务
1
2
3
4
5
| [iyunv@compute ~]# for svc in libvirtd messagebus openstack-nova-compute; \
> do service $svc start; chkconfig $svc on; done
Starting libvirtd daemon: [ OK ]
Starting system message bus:
Starting openstack-nova-compute: [ OK ]
|
在控制端验证添加的compute节点是否已经能够使用 1
2
3
4
5
6
| [iyunv@controller ~]# nova hypervisor-list
+----+---------------------+
| ID | Hypervisor hostname |
+----+---------------------+
| 1 | compute.scholar.com |
+----+---------------------+
|
Networking服务 neutron server节点
在实际部署的架构中,neutron的部署架构可以分为三个角色,即neutron server(neutron服务器)、network node(网络节点)和compute node(计算节点),这里先部署neutron服务器。 安装所需软件包 此处配置的为neutron server服务,根据此前的规划,这里将其部署在控制节点上。 1
| [iyunv@controller ~]# yum install openstack-neutron openstack-neutron-ml2 python-neutronclient
|
创建neutron数据库 1
2
| [iyunv@controller ~]# openstack-db --init --service neutron --password neutron
#neutron 需事先导入数据库表,因为其服务启动时会自动创建,所有以上命令报错直接无视
|
在keystone中创建neutron 用户 1
2
3
4
5
6
7
8
9
10
11
| [iyunv@controller ~]# keystone user-create --name neutron --pass neutron --email neutron@scholar.com
+----------+----------------------------------+
| Property | Value |
+----------+----------------------------------+
| email | neutron@scholar.com |
| enabled | True |
| id | cf9145eebce046c09e6255b4fced91b9 |
| name | neutron |
| username | neutron |
+----------+----------------------------------+
[iyunv@controller ~]# keystone user-role-add --user neutron --tenant service --role admin
|
创建neutron服务及访问端点 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| [iyunv@controller ~]# keystone service-create --name neutron --type network --description "OpenStack Networking"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | OpenStack Networking |
| enabled | True |
| id | 4edd4521801a4e40829c11b5c0b379f8 |
| name | neutron |
| type | network |
+-------------+----------------------------------+
[iyunv@controller ~]# keystone endpoint-create \
> --service-id $(keystone service-list | awk '/ network / {print $2}') \
> --publicurl http://controller:9696 \
> --adminurl http://controller:9696 \
> --internalurl http://controller:9696
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| adminurl | http://controller:9696 |
| id | 41307aad4b2e4ce8a62144c79a4da632 |
| internalurl | http://controller:9696 |
| publicurl | http://controller:9696 |
| region | regionOne |
| service_id | 4edd4521801a4e40829c11b5c0b379f8 |
+-------------+----------------------------------+
|
配置neutron server 配置 neutron连接数据库的URL 1
2
| [iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf database connection \
> mysql://neutron:neutron@controller/neutron
|
配置neutron server连入keystone 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| [iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> auth_strategy keystone
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_uri http://controller:5000
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_host controller
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_protocol http
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_port 35357
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_tenant_name service
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_user neutron
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_password neutron
|
配置neutron server使用的消息队列服务 1
2
3
4
| [iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> rpc_backend neutron.openstack.common.rpc.impl_qpid
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> qpid_hostname controller
|
配置neutron server通知compute节点相关网络定义的改变 1
2
3
4
5
6
7
8
9
10
11
12
13
14
| [iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> notify_nova_on_port_status_changes True
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> notify_nova_on_port_data_changes True
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> nova_url http://controller:8774/v2
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> nova_admin_username nova
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> nova_admin_tenant_id $(keystone tenant-list | awk '/ service / { print $2 }')
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> nova_admin_password nova
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> nova_admin_auth_url http://controller:35357/v2.0
|
配置使用Modular Layer 2 (ML2)插件及相关服务 1
2
3
4
| [iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> core_plugin ml2
[iyunv@controller ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> service_plugins router
|
配置ML2(Modular Layer 2)插件 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
| [iyunv@controller ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> type_drivers gre
[iyunv@controller ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> tenant_network_types gre
[iyunv@controller ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> mechanism_drivers openvswitch
[iyunv@controller ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_gre \
> tunnel_id_ranges 1:1000
[iyunv@controller ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup \
> firewall_driver neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
[iyunv@controller ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup \
> enable_security_group True
#注意:如果需要ml2支持更多的驱动类型,可将上面一组中的命令的第一个和第二个分别更换为:
openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 type_drivers local,flat,vlan,gre,vxlan
openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 tenant_network_types vlan,gre,vxlan
|
配置Compute服务 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| [iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> network_api_class nova.network.neutronv2.api.API
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_url http://controller:9696
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_auth_strategy keystone
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_tenant_name service
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_username neutron
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_password neutron
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_auth_url http://controller:35357/v2.0
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> linuxnet_interface_driver nova.network.linux_net.LinuxOVSInterfaceDriver
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> firewall_driver nova.virt.firewall.NoopFirewallDriver
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> security_group_api neutron
|
创建连接文件 Networking服务初始化脚本需要通过符号链接文件/etc/neutron/plugin.ini链接至选择使用的插件 1
| [iyunv@controller neutron]# ln -s plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
|
重启服务 1
2
| [iyunv@controller ~]# for svc in api scheduler conductor; \
> do service openstack-nova-${svc} restart;done
|
启动服务
1
2
3
| [iyunv@controller ~]# service neutron-server start
Starting neutron: [ OK ]
[iyunv@controller ~]# chkconfig neutron-server on
|
Network节点 配置内核网络参数 1
2
3
4
5
6
7
| [iyunv@network ~]# vim /etc/sysctl.conf
net.ipv4.ip_forward = 1
net.ipv4.conf.all.rp_filter = 0
net.ipv4.conf.default.rp_filter = 0
[iyunv@network ~]# sysctl -p
|
安装所需软件包
1
| [iyunv@network ~]# yum install openstack-neutron openstack-neutron-ml2 openstack-neutron-openvswitch
|
配置连入keystone
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| [iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> auth_strategy keystone
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_uri http://controller:5000
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_host controller
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_protocol http
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_port 35357
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_tenant_name service
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_user neutron
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_password neutron
|
配置其使用的消息队列服务 1
2
3
4
| [iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> rpc_backend neutron.openstack.common.rpc.impl_qpid
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> qpid_hostname controller
|
配置使用ML2
1
2
3
4
| [iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> core_plugin ml2
[iyunv@network ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> service_plugins router
|
配置Layer-3 (L3) agent 1
2
3
4
| [iyunv@network ~]# openstack-config --set /etc/neutron/l3_agent.ini DEFAULT \
> interface_driver neutron.agent.linux.interface.OVSInterfaceDriver
[iyunv@network ~]# openstack-config --set /etc/neutron/l3_agent.ini DEFAULT \
> use_namespaces True
|
配置DHCP agent 1
2
3
4
5
6
| [iyunv@network ~]# openstack-config --set /etc/neutron/dhcp_agent.ini DEFAULT \
> interface_driver neutron.agent.linux.interface.OVSInterfaceDriver
[iyunv@network ~]# openstack-config --set /etc/neutron/dhcp_agent.ini DEFAULT \
> dhcp_driver neutron.agent.linux.dhcp.Dnsmasq
[iyunv@network ~]# openstack-config --set /etc/neutron/dhcp_agent.ini DEFAULT \
> use_namespaces True
|
配置neutron中dhcp服务使用自定义配置文件 1
2
3
4
5
6
| [iyunv@network ~]# openstack-config --set /etc/neutron/dhcp_agent.ini DEFAULT \
> dnsmasq_config_file /etc/neutron/dnsmasq-neutron.conf
#创建配置文件
[iyunv@network ~]# vim /etc/neutron/dnsmasq-neutron.conf
dhcp-option-force=26,1454
|
配置metadata agent 1
2
3
4
5
6
7
8
9
10
11
12
13
14
| [iyunv@network ~]# openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT \
> auth_url http://controller:5000/v2.0
[iyunv@network ~]# openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT \
> auth_region regionOne
[iyunv@network ~]# openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT \
> admin_tenant_name service
[iyunv@network ~]# openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT \
> admin_user neutron
[iyunv@network ~]# openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT \
> admin_password neutron
[iyunv@network ~]# openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT \
> nova_metadata_ip controller
[iyunv@network ~]# openstack-config --set /etc/neutron/metadata_agent.ini DEFAULT \
> metadata_proxy_shared_secret METADATA_SECRET
|
在控制节点上执行如下命令,其中的METADATA_SECRET要替换成与前面选择的相关的密码 1
2
3
4
5
6
7
| [iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> service_neutron_metadata_proxy true
[iyunv@controller ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_metadata_proxy_shared_secret METADATA_SECRET
[iyunv@controller ~]# service openstack-nova-api restart
Stopping openstack-nova-api: [ OK ]
Starting openstack-nova-api: [ OK ]
|
配置ML2插件 运行如下命令配置ML2插件,其中10.0.10.125为隧道接口的地址 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| [iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> type_drivers gre
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> tenant_network_types gre
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> mechanism_drivers openvswitch
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_gre \
> tunnel_id_ranges 1:1000
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ovs \
> local_ip 10.0.10.125
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ovs \
> tunnel_type gre
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ovs \
> enable_tunneling True
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup \
> firewall_driver neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
[iyunv@network ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup \
> enable_security_group True
|
配置Open vSwitch服务 1
2
3
4
5
6
7
8
9
10
11
| #启动服务
[iyunv@network ~]# service openvswitch start
[iyunv@network ~]# chkconfig openvswitch on
#添加桥设备
[iyunv@network ~]# ovs-vsctl add-br br-int
#添加外部桥
[iyunv@network ~]# ovs-vsctl add-br br-ex
#为外部桥添加外部网络接口,其中eth1为实际的外部物理接口
[iyunv@network ~]# ovs-vsctl add-port br-ex eth1
#修改桥设备br-ex的bridge-id的属性值为br-ex
[iyunv@network ~]# ovs-vsctl br-set-external-id br-ex bridge-id br-ex
|
配置并启动服务 1
2
3
4
5
6
7
8
9
10
| [iyunv@network ~]# cd /etc/neutron/
[iyunv@network neutron]# ln -s plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
[iyunv@network ~]# cp /etc/init.d/neutron-openvswitch-agent /etc/init.d/neutron-openvswitch-agent.orig
[iyunv@network ~]# sed -i 's,plugins/openvswitch/ovs_neutron_plugin.ini,plugin.ini,g' /etc/init.d/neutron-openvswitch-agent
[iyunv@network ~]# for svc in openvswitch-agent l3-agent dhcp-agent metadata-agent; \
> do service neutron-${svc} start; chkconfig neutron-${svc} on; done
Starting neutron-openvswitch-agent: [ OK ]
Starting neutron-l3-agent: [ OK ]
Starting neutron-dhcp-agent: [ OK ]
Starting neutron-metadata-agent: [ OK ]
|
Compute节点 配置内核网络参数 1
2
3
4
5
6
| [iyunv@compute ~]# vim /etc/sysctl.conf
net.ipv4.conf.all.rp_filter = 0
net.ipv4.conf.default.rp_filter = 0
[iyunv@compute ~]# sysctl -p
|
安装所需软件包
1
| [iyunv@compute ~]# yum install openstack-neutron-ml2 openstack-neutron-openvswitch
|
配置连入keystone 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| [iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> auth_strategy keystone
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_uri http://controller:5000
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_host controller
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_protocol http
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> auth_port 35357
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_tenant_name service
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_user neutron
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf keystone_authtoken \
> admin_password neutron
|
配置其使用消息队列服务 1
2
3
4
| [iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> rpc_backend neutron.openstack.common.rpc.impl_qpid
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> qpid_hostname controller
|
配置使用Modular Layer 2 (ML2)插件及相关服务 1
2
3
4
| [iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> core_plugin ml2
[iyunv@compute ~]# openstack-config --set /etc/neutron/neutron.conf DEFAULT \
> service_plugins router
|
配置ML2插件 如下命令配置 ML2 插件,其中10.0.10.124为本节点用于“隧道接口”的地址 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| [iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> type_drivers gre
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> tenant_network_types gre
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2 \
> mechanism_drivers openvswitch
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ml2_type_gre \
> tunnel_id_ranges 1:1000
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ovs \
> local_ip 10.0.10.124
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ovs \
> tunnel_type gre
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini ovs \
> enable_tunneling True
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup \
> firewall_driver neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
[iyunv@compute ~]# openstack-config --set /etc/neutron/plugins/ml2/ml2_conf.ini securitygroup \
> enable_security_group True
|
配置Open vSwitch服务 1
2
3
| [iyunv@compute ~]# service openvswitch start
[iyunv@compute ~]# chkconfig openvswitch on
[iyunv@compute ~]# ovs-vsctl add-br br-int
|
配置Compute使用Networking服务 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
| [iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> network_api_class nova.network.neutronv2.api.API
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_url http://controller:9696
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_auth_strategy keystone
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_tenant_name service
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_username neutron
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_password neutron
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> neutron_admin_auth_url http://controller:35357/v2.0
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> linuxnet_interface_driver nova.network.linux_net.LinuxOVSInterfaceDriver
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> firewall_driver nova.virt.firewall.NoopFirewallDriver
[iyunv@compute ~]# openstack-config --set /etc/nova/nova.conf DEFAULT \
> security_group_api neutron
|
配置并启动服务 1
2
3
4
5
6
7
8
9
10
| [iyunv@compute ~]# cd /etc/neutron/
[iyunv@compute neutron]# ln -s plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini
[iyunv@compute ~]# cp /etc/init.d/neutron-openvswitch-agent /etc/init.d/neutron-openvswitch-agent.orig
[iyunv@compute ~]# sed -i 's,plugins/openvswitch/ovs_neutron_plugin.ini,plugin.ini,g' /etc/init.d/neutron-openvswitch-agent
root@compute ~]# service openstack-nova-compute restart
Stopping openstack-nova-compute: [ OK ]
Starting openstack-nova-compute: [ OK ]
[iyunv@compute ~]# service neutron-openvswitch-agent start
Starting neutron-openvswitch-agent: [ OK ]
[iyunv@compute ~]# chkconfig neutron-openvswitch-agent on
|
创建外部网络 在 Contoller上执行如下命令 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| [iyunv@controller ~]# . admin-openrc.sh
[iyunv@controller ~]# neutron net-create ext-net --shared --router:external=True
Created a new network:
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | True |
| id | d44c19c2-2fe1-40e8-b07d-094111fe1a5e |
| name | ext-net |
| provider:network_type | gre |
| provider:physical_network | |
| provider:segmentation_id | 1 |
| router:external | True |
| shared | True |
| status | ACTIVE |
| subnets | |
| tenant_id | 684ae003069d41d883f9cd0fcb252ae7 |
+---------------------------+--------------------------------------+
|
在外部网络中创建一个子网 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| [iyunv@controller ~]# neutron subnet-create ext-net --name ext-subnet \
> --allocation-pool start=172.16.20.12,end=172.16.20.61 \
> --disable-dhcp --gateway 172.16.0.1 172.16.0.0/16
Created a new subnet:
+------------------+--------------------------------------------------+
| Field | Value |
+------------------+--------------------------------------------------+
| allocation_pools | {"start": "172.16.20.12", "end": "172.16.20.61"} |
| cidr | 172.16.0.0/16 |
| dns_nameservers | |
| enable_dhcp | False |
| gateway_ip | 172.16.0.1 |
| host_routes | |
| id | 07fe3ef7-118a-483f-b53e-df7f6629454c |
| ip_version | 4 |
| name | ext-subnet |
| network_id | d44c19c2-2fe1-40e8-b07d-094111fe1a5e |
| tenant_id | 684ae003069d41d883f9cd0fcb252ae7 |
+------------------+--------------------------------------------------+
|
Tenant network tenant network为各instance之间提供了内部互访的通道,此机制用于实现各tenant 网络之间的隔离 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| [iyunv@controller ~]# neutron net-create demo-net
Created a new network:
+---------------------------+--------------------------------------+
| Field | Value |
+---------------------------+--------------------------------------+
| admin_state_up | True |
| id | a71cc567-08ad-4000-b273-e1b300fa642b |
| name | demo-net |
| provider:network_type | gre |
| provider:physical_network | |
| provider:segmentation_id | 2 |
| shared | False |
| status | ACTIVE |
| subnets | |
| tenant_id | 684ae003069d41d883f9cd0fcb252ae7 |
+---------------------------+--------------------------------------+
|
为demo-net网络创建一个子网 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| [iyunv@controller ~]# neutron subnet-create demo-net --name demo-subnet \
> --gateway 192.168.22.1 192.168.22.0/24
Created a new subnet:
+------------------+----------------------------------------------------+
| Field | Value |
+------------------+----------------------------------------------------+
| allocation_pools | {"start": "192.168.22.2", "end": "192.168.22.254"} |
| cidr | 192.168.22.0/24 |
| dns_nameservers | |
| enable_dhcp | True |
| gateway_ip | 192.168.22.1 |
| host_routes | |
| id | 5aa02cca-4c51-4606-939f-5f5623374ce0 |
| ip_version | 4 |
| name | demo-subnet |
| network_id | a71cc567-08ad-4000-b273-e1b300fa642b |
| tenant_id | 684ae003069d41d883f9cd0fcb252ae7 |
+------------------+----------------------------------------------------+
|
为demo net创建一个router,并将其附加至外部网络和demo net 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| [iyunv@controller ~]# neutron router-create demo-router
Created a new router:
+-----------------------+--------------------------------------+
| Field | Value |
+-----------------------+--------------------------------------+
| admin_state_up | True |
| external_gateway_info | |
| id | a8752270-67da-4118-a053-2858b0ba1762 |
| name | demo-router |
| status | ACTIVE |
| tenant_id | 684ae003069d41d883f9cd0fcb252ae7 |
+-----------------------+--------------------------------------+
[iyunv@controller ~]# neutron router-interface-add demo-router demo-subnet
Added interface 7a619ab8-91fd-4f55-be0c-94603afbfbcb to router demo-router.
[iyunv@controller ~]# neutron router-gateway-set demo-router ext-net
Set gateway for router demo-router
|
dashboard 安装所需软件包
1
| [iyunv@controller ~]# yum install memcached python-memcached mod_wsgi openstack-dashboard
|
配置dashboard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
| [iyunv@controller ~]# vim /etc/openstack-dashboard/local_settings
#配置使用本机上的memcached作为会话缓存
CACHES = {
'default': {
'BACKEND' : 'django.core.cache.backends.memcached.MemcachedCache',
'LOCATION' : '127.0.0.1:11211',
}
}
#配置访问权限
ALLOWED_HOSTS = ['*', 'localhost']
#指定controller节点
OPENSTACK_HOST = "controller"
#设置时区
TIME_ZONE = "Asia/Shanghai"
|
启动服务
1
2
3
4
5
6
| [iyunv@controller ~]# service memcached start
Starting memcached: [ OK ]
[iyunv@controller ~]# service httpd start
Starting httpd: [ OK ]
[iyunv@controller ~]# chkconfig memcached on
[iyunv@controller ~]# chkconfig httpd on
|

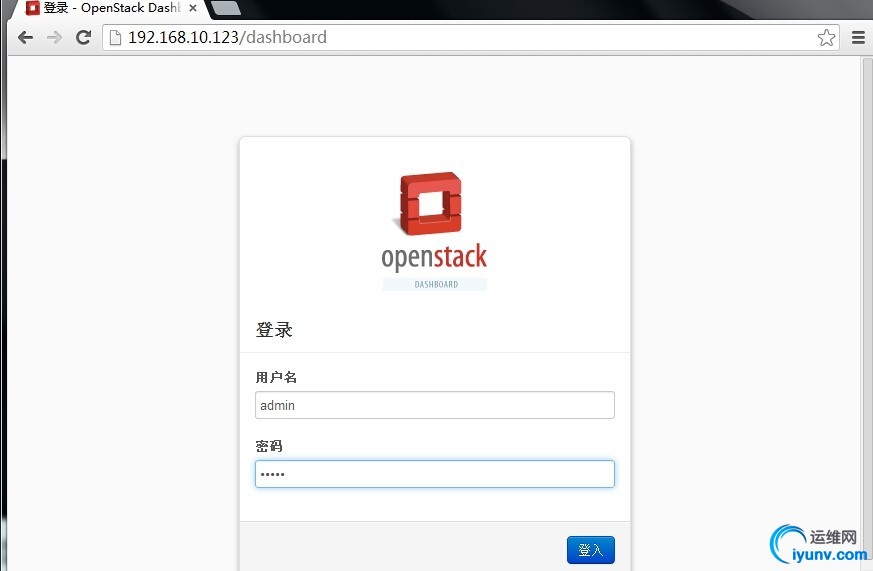

测试

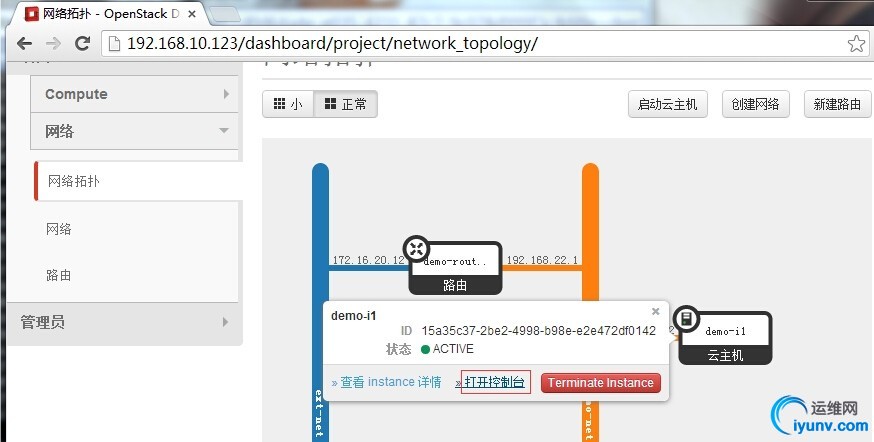

查看网络拓扑
启动实例 SSH公钥注入 1
2
3
4
5
6
7
8
| [iyunv@controller ~]# ssh-keygen
[iyunv@controller ~]# nova keypair-add --pub-key ~/.ssh/id_rsa.pub demo-key
[iyunv@controller ~]# nova keypair-list
+----------+-------------------------------------------------+
| Name | Fingerprint |
+----------+-------------------------------------------------+
| demo-key | e1:36:ed:57:2c:26:96:6c:81:8c:2d:63:d2:15:2f:09 |
+----------+-------------------------------------------------+
|
启动一个实例 在OpenStack中启动实例需要指定一个VM 配置模板,首先查看可用模板 1
2
3
4
5
6
7
8
9
10
| [iyunv@controller ~]# nova flavor-list
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
| ID | Name | Memory_MB | Disk | Ephemeral | Swap | VCPUs | RXTX_Factor | Is_Public |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
| 1 | m1.tiny | 512 | 1 | 0 | | 1 | 1.0 | True |
| 2 | m1.small | 2048 | 20 | 0 | | 1 | 1.0 | True |
| 3 | m1.medium | 4096 | 40 | 0 | | 2 | 1.0 | True |
| 4 | m1.large | 8192 | 80 | 0 | | 4 | 1.0 | True |
| 5 | m1.xlarge | 16384 | 160 | 0 | | 8 | 1.0 | True |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
|
创建一个拥有较小的内存设置的flavor,供启动cirror测试使用 1
2
3
4
5
6
| [iyunv@controller ~]# nova flavor-create --is-public true m1.cirros 6 256 1 1
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
| ID | Name | Memory_MB | Disk | Ephemeral | Swap | VCPUs | RXTX_Factor | Is_Public |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
| 6 | m1.cirros | 256 | 1 | 0 | | 1 | 1.0 | True |
+----+-----------+-----------+------+-----------+------+-------+-------------+-----------+
|
获取所有可用的image文件列表 1
2
3
4
5
6
| [iyunv@controller ~]# nova image-list
+--------------------------------------+---------------------+--------+--------+
| ID | Name | Status | Server |
+--------------------------------------+---------------------+--------+--------+
| 6a820f7e-dcb8-40c8-af8b-27297f2673a3 | cirros-0.3.4-x86_64 | ACTIVE | |
+--------------------------------------+---------------------+--------+--------+
|
获取所有可用的网络列表 1
2
3
4
5
6
7
| [iyunv@controller ~]# neutron net-list
+--------------------------------------+----------+------------------------------------------------------+
| id | name | subnets |
+--------------------------------------+----------+------------------------------------------------------+
| a71cc567-08ad-4000-b273-e1b300fa642b | demo-net | 5aa02cca-4c51-4606-939f-5f5623374ce0 192.168.22.0/24 |
| d44c19c2-2fe1-40e8-b07d-094111fe1a5e | ext-net | 07fe3ef7-118a-483f-b53e-df7f6629454c 172.16.0.0/16 |
+--------------------------------------+----------+------------------------------------------------------+
|
启动
1
2
| [iyunv@controller ~]# nova boot --flavor m1.cirros --image cirros-0.3.4-x86_64 --nic net-id=a71cc567-08ad-4000-b273-e1b300fa642b \
> --security-group default --key-name demokey demo-i1
|
查看实例 1
2
3
4
5
6
| [iyunv@controller ~]# nova list
+--------------------------------------+---------+--------+------------+-------------+-----------------------+
| ID | Name | Status | Task State | Power State | Networks |
+--------------------------------------+---------+--------+------------+-------------+-----------------------+
| 15a35c37-2be2-4998-b98e-e2e472df0142 | demo-i1 | ACTIVE | - | Running | demo-net=192.168.22.2 |
+--------------------------------------+---------+--------+------------+-------------+-----------------------+
|

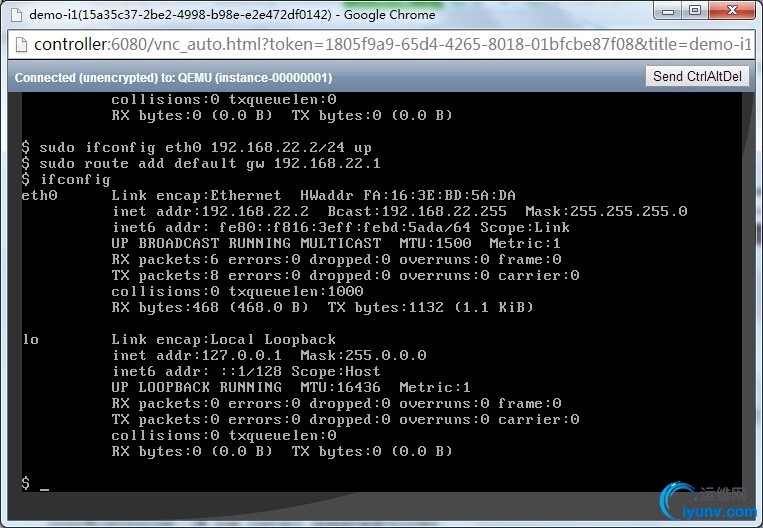

打开控制台登陆 登陆之后发现云主机并没有获取到IP,不知何故,哎呀不管了,直接手动配置

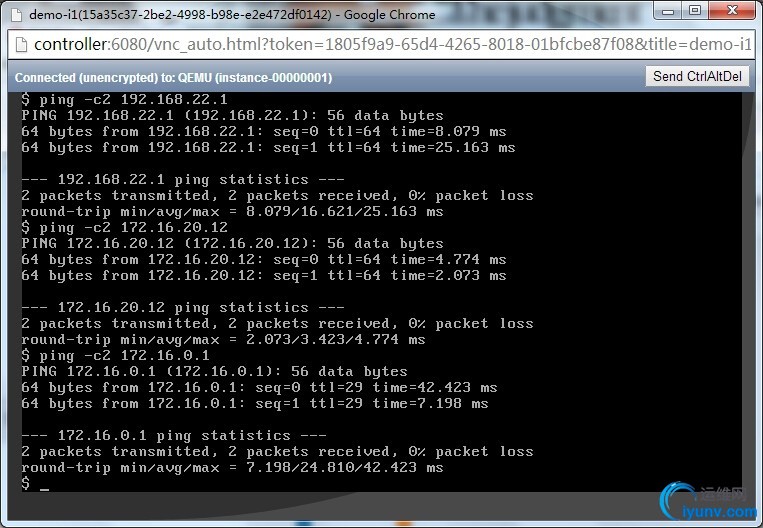

进行网络连通性测试 依次ping虚拟内部网关,虚拟外部网关,真实外部网关

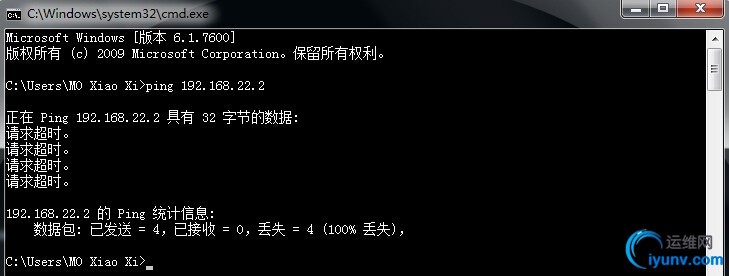

通过以上测试发现,云主机网络正常,但是外部主机能否跟云主机通信呢?
由此可以看出,外部主机还不可以与云主机通信,要想解决这一问题就需要用到floating ip机制
floating ip 简单来讲,floating ip 就是通过网络名称空间虚拟出一台路由器设备,其外部接口桥接至可通过物理接口与外部网络通信的网桥设备,而内部接口则做为内部网桥设备上关联的各虚拟机的网关接口,而后在外部网络接口上配置一个ip地址,并通过DNAT的方式转换至内部某指定的主机上,反过来,从内部某指定的主机上发出的报文则由路由器通过SNAT机制转发至外部接口上某特定的地址,从而实现了外部网络与内部VM的通信。 创建floating ip
依旧在Controller节点配置 1
2
3
4
5
6
7
8
9
10
11
12
13
14
| [iyunv@controller ~]# neutron floatingip-create ext-net
Created a new floatingip:
+---------------------+--------------------------------------+
| Field | Value |
+---------------------+--------------------------------------+
| fixed_ip_address | |
| floating_ip_address | 172.16.20.13 |
| floating_network_id | d44c19c2-2fe1-40e8-b07d-094111fe1a5e |
| id | de133088-d319-4094-9a2e-0b1762c85061 |
| port_id | |
| router_id | |
| status | DOWN |
| tenant_id | 684ae003069d41d883f9cd0fcb252ae7 |
+---------------------+--------------------------------------+
|
将floating ip绑定至目标实例
1
2
3
4
5
6
7
| [iyunv@controller ~]# nova floating-ip-associate demo-i1 172.16.20.13
[iyunv@controller ~]# nova list
+--------------------------------------+---------+--------+------------+-------------+-------------------------------------+
| ID | Name | Status | Task State | Power State | Networks |
+--------------------------------------+---------+--------+------------+-------------+-------------------------------------+
| 15a35c37-2be2-4998-b98e-e2e472df0142 | demo-i1 | ACTIVE | - | Running | demo-net=192.168.22.2, 172.16.20.13 |
+--------------------------------------+---------+--------+------------+-------------+-------------------------------------+
|
修改默认安全策略
1
2
3
4
5
6
| [iyunv@controller ~]# nova secgroup-add-rule default icmp -1 -1 0.0.0.0/0
+-------------+-----------+---------+-----------+--------------+
| IP Protocol | From Port | To Port | IP Range | Source Group |
+-------------+-----------+---------+-----------+--------------+
| icmp | -1 | -1 | 0.0.0.0/0 | |
+-------------+-----------+---------+-----------+--------------+
|

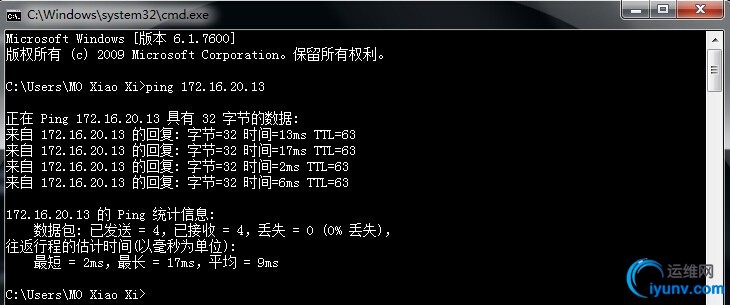

现在外部网络中的主机即可通过172.16.20.13进行访问
其实是由192.168.22.2进行响应的,这里就不抓包分析了 如里还需要通过ssh方式远程连接172.16.20.13,还需要执行如下命令 1
| #nova secgroup-add-rule default tcp 22 22 0.0.0.0/0
|
至此,私有云基本搭建成功,接下来再说一下另一核心组件cinder,即存储服务 Block Storage服务 在没有共享存储的前提下终止实例就意味删除实例,映像文件也会被删除,要想实现用户在实例上创建的文件在实例重新创建后依然存在,只要在众compute节后背后使用共享存储即可。 Controller节点 安装所需软件包
1
| [iyunv@controller ~]# yum install openstack-cinder
|
初始化cinder数据库 1
| [iyunv@controller ~]# openstack-db --init --service cinder --password cinder
|
配置cinder服务 配置连入数据库的URL 1
2
| [iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf \
> database connection mysql://cinder:cinder@controller/cinder
|
在keystone中创建cinder用户 1
2
3
4
5
6
7
8
9
10
11
| [iyunv@controller ~]# keystone user-create --name cinder --pass cinder --email cinder@scholar.com
+----------+----------------------------------+
| Property | Value |
+----------+----------------------------------+
| email | cinder@scholar.com |
| enabled | True |
| id | 57ec93556e744300a1f0217c26fd912b |
| name | cinder |
| username | cinder |
+----------+----------------------------------+
[iyunv@controller ~]# keystone user-role-add --user=cinder --tenant=service --role=admin
|
连入keystone配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| [iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf DEFAULT \
> auth_strategy keystone
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_uri http://controller:5000
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_host controller
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_protocol http
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_port 35357
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> admin_user cinder
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> admin_tenant_name service
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> admin_password cinder
|
配置其使用消息队列
1
2
3
4
| [iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf \
> DEFAULT rpc_backend qpid
[iyunv@controller ~]# openstack-config --set /etc/cinder/cinder.conf \
> DEFAULT qpid_hostname controller
|
在keystone中注册cinder服务 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
| [iyunv@controller ~]# keystone service-create --name=cinder --type=volume --description="OpenStack Block Storage"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | OpenStack Block Storage |
| enabled | True |
| id | 15cbd46094f541e49f5d7a717d65101a |
| name | cinder |
| type | volume |
+-------------+----------------------------------+
[iyunv@controller ~]# keystone endpoint-create \
> --service-id=$(keystone service-list | awk '/ volume / {print $2}') \
> --publicurl=http://controller:8776/v1/%\(tenant_id\)s \
> --internalurl=http://controller:8776/v1/%\(tenant_id\)s \
> --adminurl=http://controller:8776/v1/%\(tenant_id\)s
+-------------+-----------------------------------------+
| Property | Value |
+-------------+-----------------------------------------+
| adminurl | http://controller:8776/v1/%(tenant_id)s |
| id | 0e71b9f2dad24f699dce6be1ce8f40be |
| internalurl | http://controller:8776/v1/%(tenant_id)s |
| publicurl | http://controller:8776/v1/%(tenant_id)s |
| region | regionOne |
| service_id | 15cbd46094f541e49f5d7a717d65101a |
+-------------+-----------------------------------------+
[iyunv@controller ~]# keystone service-create --name=cinderv2 --type=volumev2 --description="OpenStack Block Storage v2"
+-------------+----------------------------------+
| Property | Value |
+-------------+----------------------------------+
| description | OpenStack Block Storage v2 |
| enabled | True |
| id | dbd3b5d766f546cfb54dfc8a75f56a8e |
| name | cinderv2 |
| type | volumev2 |
+-------------+----------------------------------+
[iyunv@controller ~]# keystone endpoint-create \
> --service-id=$(keystone service-list | awk '/ volumev2 / {print $2}') \
> --publicurl=http://controller:8776/v2/%\(tenant_id\)s \
> --internalurl=http://controller:8776/v2/%\(tenant_id\)s \
> --adminurl=http://controller:8776/v2/%\(tenant_id\)s
+-------------+-----------------------------------------+
| Property | Value |
+-------------+-----------------------------------------+
| adminurl | http://controller:8776/v2/%(tenant_id)s |
| id | 40edb783979842e99f95d75cfc5abbe8 |
| internalurl | http://controller:8776/v2/%(tenant_id)s |
| publicurl | http://controller:8776/v2/%(tenant_id)s |
| region | regionOne |
| service_id | dbd3b5d766f546cfb54dfc8a75f56a8e |
+-------------+-----------------------------------------+
|
启动服务 1
2
3
4
5
6
| [iyunv@controller ~]# service openstack-cinder-api start
Starting openstack-cinder-api: [ OK ]
[iyunv@controller ~]# service openstack-cinder-scheduler start
Starting openstack-cinder-scheduler: [ OK ]
[iyunv@controller ~]# chkconfig openstack-cinder-api on
[iyunv@controller ~]# chkconfig openstack-cinder-scheduler on
|
配置存储节点 准备逻辑卷 1
2
3
4
| [iyunv@block ~]# pvcreate /dev/sdb
Physical volume "/dev/sdb" successfully created
[iyunv@block ~]# vgcreate cinder-volumes /dev/sdb
Volume group "cinder-volumes" successfully created
|
安装并配置cinder存储服务 安装所需软件包 1
| [iyunv@block ~]# yum install openstack-cinder scsi-target-utils
|
keystone相关配置
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
| [iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf DEFAULT \
> auth_strategy keystone
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_uri http://controller:5000
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_host controller
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_protocol http
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> auth_port 35357
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> admin_user cinder
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> admin_tenant_name service
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf keystone_authtoken \
> admin_password cinder
|
消息队列配置
1
2
3
4
| [iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf \
> DEFAULT rpc_backend qpid
[iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf \
> DEFAULT qpid_hostname controller
|
连接数据库配置
1
2
| [iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf \
> database connection mysql://cinder:cinder@controller/cinder
|
配置本节点提供cinder-volume服务使用的接口 1
| [iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf DEFAULT my_ip 192.168.10.126
|
指定Glance服务节点 1
2
| [iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf \
> DEFAULT glance_host controller
|
指定卷信息文件存放位置
1
2
| [iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf \
> DEFAULT volumes_dir /etc/cinder/volumes
|
配置scsi-target
1
2
3
4
5
| [iyunv@block ~]# openstack-config --set /etc/cinder/cinder.conf \
> DEFAULT iscsi_helper tgtadm
[iyunv@block ~]# vim /etc/tgt/targets.conf
include /etc/cinder/volumes/*
|
启动服务
fedora的epel源的中icehouse版本的openstack-cinder的服务openstack-cinder-volume默认为先读取/usr/share/cinder/cinder-dist.conf 这个配置文件,而其内容是有错误的。直接启动会导致创建后的卷无法关联至instace上,所以请禁止服务不再读取此文件。 1
2
3
4
5
6
| [iyunv@block ~]# service openstack-cinder-volume start
Starting openstack-cinder-volume: [ OK ]
[iyunv@block ~]# service tgtd start
Starting SCSI target daemon: [ OK ]
[iyunv@block ~]# chkconfig openstack-cinder-volume on
[iyunv@block ~]# chkconfig tgtd on
|
卷创建测试 在cinder Controller节点执行如下命令,创建一个5G 大小名为demoVolume的逻辑卷 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| [iyunv@controller ~]# cinder create --display-name demoVolume 5
+---------------------+--------------------------------------+
| Property | Value |
+---------------------+--------------------------------------+
| attachments | [] |
| availability_zone | nova |
| bootable | false |
| created_at | 2015-07-27T15:08:11.145570 |
| display_description | None |
| display_name | demoVolume |
| encrypted | False |
| id | ab0d03a8-4e89-4a17-8dc3-3432426f07a2 |
| metadata | {} |
| size | 5 |
| snapshot_id | None |
| source_volid | None |
| status | creating |
| volume_type | None |
+---------------------+--------------------------------------+
|
列出所有卷
1
2
3
4
5
6
| [iyunv@controller ~]# cinder list
+--------------------------------------+-----------+--------------+------+-------------+----------+-------------+
| ID | Status | Display Name | Size | Volume Type | Bootable | Attached to |
+--------------------------------------+-----------+--------------+------+-------------+----------+-------------+
| ab0d03a8-4e89-4a17-8dc3-3432426f07a2 | available | demoVolume | 5 | None | false | |
+--------------------------------------+-----------+--------------+------+-------------+----------+-------------+
|
将此卷附加至指定的实例上 1
2
3
4
5
6
7
8
9
| [iyunv@controller ~]# nova volume-attach demo-i1 ab0d03a8-4e89-4a17-8dc3-3432426f07a2
+----------+--------------------------------------+
| Property | Value |
+----------+--------------------------------------+
| device | /dev/vdb |
| id | ab0d03a8-4e89-4a17-8dc3-3432426f07a2 |
| serverId | 15a35c37-2be2-4998-b98e-e2e472df0142 |
| volumeId | ab0d03a8-4e89-4a17-8dc3-3432426f07a2 |
+----------+--------------------------------------+
|
查看关联结果
1
2
3
4
5
6
| [iyunv@controller ~]# cinder list
+--------------------------------------+--------+--------------+------+-------------+----------+--------------------------------------+
| ID | Status | Display Name | Size | Volume Type | Bootable | Attached to |
+--------------------------------------+--------+--------------+------+-------------+----------+--------------------------------------+
| ab0d03a8-4e89-4a17-8dc3-3432426f07a2 | in-use | demoVolume | 5 | None | false | 15a35c37-2be2-4998-b98e-e2e472df0142 |
+--------------------------------------+--------+--------------+------+-------------+----------+--------------------------------------+
|
挂载成功,接下来就可以打开对应实例控制台,查看磁盘的附加状态,并对磁盘进行相应的操作了,这里就不再演示了 The end 喜大普奔,终于结束了,非核心组件就不做介绍了,这篇幅我也是深深的醉了,做个实验真不容易,因内存有限,死卡死卡的,真怀疑会突然卡爆掉,辛亏不是2G的RAM。以上仅为个人学习整理,如有错漏,大神勿喷~~~
|
