CentOS6.5双网卡绑定

wefwhr

[iyunv@localhost]# cd /etc/sysconfig/network-scripts/

[iyunv@localhost network-scripts~]#  ll

-rw-r--r--. 1 root root   149 Aug  3 16:36 ifcfg-bond0
-rw-r--r--. 1 root root    97 Aug  3 16:38 ifcfg-eth0
-rw-r--r--. 1 root root    98 Aug  3 16:38 ifcfg-eth1
-rw-r--r--. 1 root root   182 Aug  3 11:14 ifcfg-eth2
-rw-r--r--. 1 root root   254 Oct 10  2013 ifcfg-lo
[iyunv@localhost network-scripts]# cp ifcfg-eth0 ifcfg-bond0
[iyunv@localhost network-scripts]# vim ifcfg-bond0
GATEWAY=192.168.x.x
DNS1=114.114.114.114
DEVICE=bond0
BOOTPROTO=none
NETMASK=255.255.255.0
TYPE=Ethernet
IPADDR=192.168.x.x
ONBOOT=yes
USERCTL=no
[iyunv@localhost network-scripts]# vim ifcfg-eth0
EVICE=eth0
ONBOOT=no
TYPE=Ethernet
MASTER=bond0
BOOTPROTO=none
USERCTL=no
SLAVE=yes
IPV6INIT=no
~
[iyunv@localhost network-scripts]# vim ifcfg-eth1

EVICE=eth1

ONBOOT=no

TYPE=Ethernet

MASTER=bond0

BOOTPROTO=none

USERCTL=no

SLAVE=yes

IPV6INIT=no

[iyunv@localhost]# cd /etc/modprobe.d/

[iyunv@localhost modprobe.d]#vi dist.conf

alias bond0 bonding
options bodn0 mode=0 miimon=100

[iyunv@localhost]# vi /etc/rc.d/rc.local

ifenslave bond0 eth0 eth1

关闭服务networkmanager

[iyunv@localhost modprobe.d]# ifconfig
bond0     Link encap:Ethernet  HWaddr F8:0F:41:F8:EC:70
          inet addr:192.168.x.x  Bcast:192.168.x.x  Mask:255.255.255.0
          inet6 addr: fe80::fa0f:41ff:fef8:ec70/64 Scope:Link
          UP BROADCAST RUNNING MASTER MULTICAST  MTU:1500  Metric:1
          RX packets:16170 errors:0 dropped:0 overruns:0 frame:0
          TX packets:2271 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:0
          RX bytes:1552817 (1.4 MiB)  TX bytes:198708 (194.0 KiB)

eth0      Link encap:Ethernet  HWaddr F8:0F:41:F8:EC:70
          UP BROADCAST RUNNING SLAVE MULTICAST  MTU:1500  Metric:1
          RX packets:2476 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1134 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:214254 (209.2 KiB)  TX bytes:99272 (96.9 KiB)
          Memory:dfc20000-dfc40000

eth1      Link encap:Ethernet  HWaddr F8:0F:41:F8:EC:70
          UP BROADCAST RUNNING SLAVE MULTICAST  MTU:1500  Metric:1
          RX packets:13694 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1137 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:1338563 (1.2 MiB)  TX bytes:99436 (97.1 KiB)
          Memory:dfc00000-dfc20000
交换机上配置
[Switch]link-aggregation group 1 mode manual
[Switch]interface GigabitEthernet 1/0/1
[Switch-GigabitEthernet1/0/1] port link-aggregation group 1
[Switch-GigabitEthernet1/0/1] interface GigabitEthernet 1/0/48
[Switch-GigabitEthernet1/0/2] port link-aggregation group 1
[Switch-GigabitEthernet1/0/2] interface GigabitEthernet 1/0/47
[Switch-GigabitEthernet1/0/3] port link-aggregation group 1

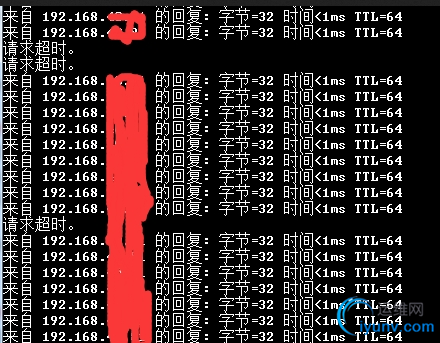

测试结果
