本帖最后由 fdgsdf 于 2015-8-11 09:06 编辑
一.获取H3C交换机的OID
要获取H3C交换机的OID，必须确保该交换机是可以被网管的，即该交换机的161（SNMP）端口是被开启的。如161端口没有被开启，需在交换机上加上以下配置：
snmp-agent community read whmp
snmp-agent sys-info version all
snmp-agent target-host trap address udp-domain 10.9.52.42 udp-port 161 param securityname network
其中10.9.52.42为snmp服务器地址
1.打开Getif,填入ip及snmp团体名称，点击start，如下图所示：
当显示“SysInfo variables OK"的时候，表明可以正确获取交换机的OID。
2.交换机的snmp OID可以通过MBrowser查看，如下图所示：
3.在snmp服务器上验证该OID的正确性，如下图所示：
4.端口的OID参数如下：
接口接收字节数
| ifInOctets | 1.3.6.1.2.1.2.2.1.10.X | | 接口发送字节数 | ifOutOctets | 1.3.6.1.2.1.2.2.1.16.X |
X为交换机端口的int数值，在interfaces选项卡中查找，如下图所示：
5.根据每一项监控的oid 修改H3C模板，然后将修改后的模板导入zabbix中
二.使用zabbix监控H3C端口流量
1.添加主机
2.链接新添加的模板
3.修改item监控项
将Units修改为bps，将Use custom multiplier修改为8，将Store value修改为Delta (speed per second)

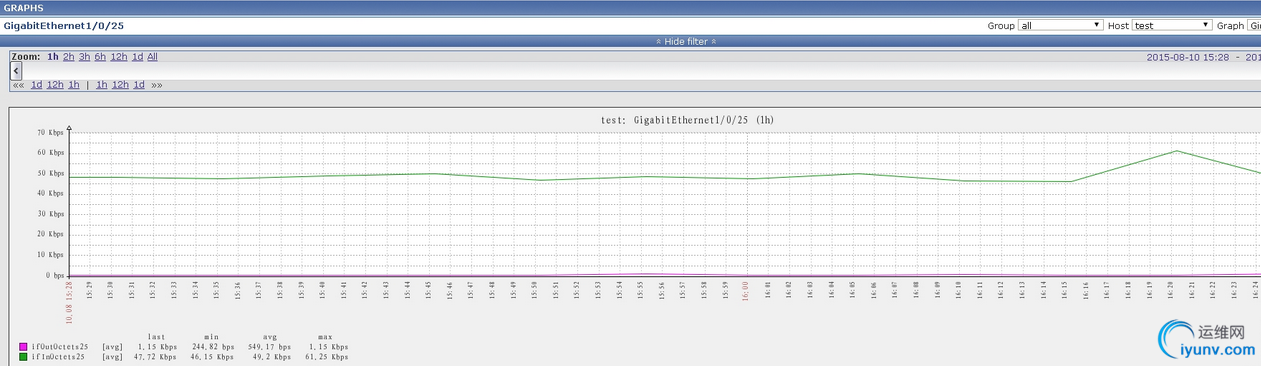

4.监控流量图，如下图所示：
[url=]h3C监控模板[/url]
[url=][XML] 纯文本查看 复制代码 <?xml version="1.0" encoding="UTF-8"?>
<zabbix_export version="1.0" date="2015.8.10" time="16.24">
<hosts>
<host name="test">
<proxy_hostid>0</proxy_hostid>
<useip>1</useip>
<dns></dns>
<ip>10.9.51.208</ip>
<port>10050</port>
<status>3</status>
<useipmi>0</useipmi>
<ipmi_ip>127.0.0.1</ipmi_ip>
<ipmi_port>623</ipmi_port>
<ipmi_authtype>0</ipmi_authtype>
<ipmi_privilege>2</ipmi_privilege>
<ipmi_username></ipmi_username>
<ipmi_password></ipmi_password>
<groups>
<group>router_switch</group>
</groups>
<triggers/>
<items>
<item type="4" key="ifDescr1" value_type="1">
<description>ifDescr1</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.1</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr10" value_type="1">
<description>ifDescr10</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.10</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr11" value_type="1">
<description>ifDescr11</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.11</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr12" value_type="1">
<description>ifDescr12</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.12</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr13" value_type="1">
<description>ifDescr13</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.13</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr14" value_type="1">
<description>ifDescr14</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.14</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr15" value_type="1">
<description>ifDescr15</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.15</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr16" value_type="1">
<description>ifDescr16</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.16</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr17" value_type="1">
<description>ifDescr17</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.17</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr18" value_type="1">
<description>ifDescr18</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.18</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr19" value_type="1">
<description>ifDescr19</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.19</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr2" value_type="1">
<description>ifDescr2</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.2</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr20" value_type="1">
<description>ifDescr20</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.20</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr21" value_type="1">
<description>ifDescr21</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.21</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr22" value_type="1">
<description>ifDescr22</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.22</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr23" value_type="1">
<description>ifDescr23</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.23</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr24" value_type="1">
<description>ifDescr24</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.24</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr25" value_type="1">
<description>ifDescr25</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.25</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr26" value_type="1">
<description>ifDescr26</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.26</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr27" value_type="1">
<description>ifDescr27</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.27</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr29" value_type="1">
<description>ifDescr29</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.29</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr3" value_type="1">
<description>ifDescr3</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.3</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr4" value_type="1">
<description>ifDescr4</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.4</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr5" value_type="1">
<description>ifDescr5</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.5</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr6" value_type="1">
<description>ifDescr6</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.6</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr7" value_type="1">
<description>ifDescr7</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.7</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr8" value_type="1">
<description>ifDescr8</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.8</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifDescr9" value_type="1">
<description>ifDescr9</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.2.9</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets1" value_type="0">
<description>ifInOctets1</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.1</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets10" value_type="0">
<description>ifInOctets10</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.10</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets11" value_type="0">
<description>ifInOctets11</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.11</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets12" value_type="0">
<description>ifInOctets12</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.12</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets13" value_type="0">
<description>ifInOctets13</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.13</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets14" value_type="0">
<description>ifInOctets14</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.14</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets15" value_type="0">
<description>ifInOctets15</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.15</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets16" value_type="0">
<description>ifInOctets16</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.16</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets17" value_type="0">
<description>ifInOctets17</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.17</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets18" value_type="0">
<description>ifInOctets18</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.18</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets19" value_type="0">
<description>ifInOctets19</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.19</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets2" value_type="0">
<description>ifInOctets2</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.2</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets20" value_type="0">
<description>ifInOctets20</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.20</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets21" value_type="0">
<description>ifInOctets21</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.21</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets22" value_type="0">
<description>ifInOctets22</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.22</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets23" value_type="0">
<description>ifInOctets23</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.23</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets24" value_type="0">
<description>ifInOctets24</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.24</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets25" value_type="0">
<description>ifInOctets25</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.25</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets26" value_type="0">
<description>ifInOctets26</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.26</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets27" value_type="0">
<description>ifInOctets27</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.27</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets29" value_type="0">
<description>ifInOctets29</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.29</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets3" value_type="0">
<description>ifInOctets3</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.3</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets4" value_type="0">
<description>ifInOctets4</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.4</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets5" value_type="0">
<description>ifInOctets5</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.5</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets6" value_type="0">
<description>ifInOctets6</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.6</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets7" value_type="0">
<description>ifInOctets7</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.7</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets8" value_type="0">
<description>ifInOctets8</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.8</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifInOctets9" value_type="0">
<description>ifInOctets9</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.10.9</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.1" value_type="3">
<description>ifOperStatus.1</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.8.1</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.10" value_type="3">
<description>ifOperStatus.10</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.10</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.11" value_type="3">
<description>ifOperStatus.11</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.11</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.12" value_type="3">
<description>ifOperStatus.12</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.12</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.13" value_type="3">
<description>ifOperStatus.13</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.13</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.14" value_type="3">
<description>ifOperStatus.14</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.14</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.15" value_type="3">
<description>ifOperStatus.15</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.15</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.16" value_type="3">
<description>ifOperStatus.16</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.16</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.17" value_type="3">
<description>ifOperStatus.17</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.17</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.18" value_type="3">
<description>ifOperStatus.18</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.18</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.19" value_type="3">
<description>ifOperStatus.19</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.19</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.2" value_type="3">
<description>ifOperStatus.2</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.2</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.20" value_type="3">
<description>ifOperStatus.20</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.20</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.21" value_type="3">
<description>ifOperStatus.21</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.21</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.22" value_type="3">
<description>ifOperStatus.22</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.22</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.23" value_type="3">
<description>ifOperStatus.23</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.23</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.24" value_type="3">
<description>ifOperStatus.24</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.24</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.25" value_type="3">
<description>ifOperStatus.25</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.25</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.26" value_type="3">
<description>ifOperStatus.26</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.26</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.27" value_type="3">
<description>ifOperStatus.27</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.27</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.3" value_type="3">
<description>ifOperStatus.3</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.3</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.4" value_type="3">
<description>ifOperStatus.4</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.4</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.5" value_type="3">
<description>ifOperStatus.5</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.5</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.6" value_type="3">
<description>ifOperStatus.6</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.6</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.7" value_type="3">
<description>ifOperStatus.7</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.7</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.8" value_type="3">
<description>ifOperStatus.8</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOutOctets.8</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOperStatus.9" value_type="3">
<description>ifOperStatus.9</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>IF-MIB::ifOperStatus.9</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets1" value_type="0">
<description>ifOutOctets1</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.1</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets10" value_type="0">
<description>ifOutOctets10</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.10</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets11" value_type="0">
<description>ifOutOctets11</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.11</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets12" value_type="0">
<description>ifOutOctets12</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.12</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets13" value_type="0">
<description>ifOutOctets13</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.13</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets14" value_type="0">
<description>ifOutOctets14</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.14</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets15" value_type="0">
<description>ifOutOctets15</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.15</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets16" value_type="0">
<description>ifOutOctets16</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.16</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets17" value_type="0">
<description>ifOutOctets17</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.17</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets18" value_type="0">
<description>ifOutOctets18</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.18</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets19" value_type="0">
<description>ifOutOctets19</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.19</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets2" value_type="0">
<description>ifOutOctets2</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.2</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets20" value_type="0">
<description>ifOutOctets20</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.20</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets21" value_type="0">
<description>ifOutOctets21</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.21</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets22" value_type="0">
<description>ifOutOctets22</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.22</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets23" value_type="0">
<description>ifOutOctets23</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.23</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets24" value_type="0">
<description>ifOutOctets24</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.24</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets25" value_type="0">
<description>ifOutOctets25</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.25</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets26" value_type="0">
<description>ifOutOctets26</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.26</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets27" value_type="0">
<description>ifOutOctets27</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.27</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets29" value_type="0">
<description>ifOutOctets29</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.29</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets3" value_type="0">
<description>ifOutOctets3</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.3</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets4" value_type="0">
<description>ifOutOctets4</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.4</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets5" value_type="0">
<description>ifOutOctets5</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.5</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets50" value_type="0">
<description>ifOutOctets50</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.50</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets51" value_type="0">
<description>ifOutOctets51</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.51</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets6" value_type="0">
<description>ifOutOctets6</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.6</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets7" value_type="0">
<description>ifOutOctets7</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>7</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.7</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets8" value_type="0">
<description>ifOutOctets8</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.8</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
<item type="4" key="ifOutOctets9" value_type="0">
<description>ifOutOctets9</description>
<ipmi_sensor></ipmi_sensor>
<delay>300</delay>
<history>90</history>
<trends>365</trends>
<status>0</status>
<data_type>0</data_type>
<units></units>
<multiplier>0</multiplier>
<delta>0</delta>
<formula>0</formula>
<lastlogsize>0</lastlogsize>
<logtimefmt></logtimefmt>
<delay_flex></delay_flex>
<authtype>0</authtype>
<username></username>
<password></password>
<publickey></publickey>
<privatekey></privatekey>
<params></params>
<trapper_hosts></trapper_hosts>
<snmp_community>whmp</snmp_community>
<snmp_oid>1.3.6.1.2.1.2.2.1.16.9</snmp_oid>
<snmp_port>161</snmp_port>
<snmpv3_securityname></snmpv3_securityname>
<snmpv3_securitylevel>0</snmpv3_securitylevel>
<snmpv3_authpassphrase></snmpv3_authpassphrase>
<snmpv3_privpassphrase></snmpv3_privpassphrase>
<valuemapid>0</valuemapid>
<applications/>
</item>
</items>
<templates/>
<graphs>
<graph name="GigabitEthernet1/0/25" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets25">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets25">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/1" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets1">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets1">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/2" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets2">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets2">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/3" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets3">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets3">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/4" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets4">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets4">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/5" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets5">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets5">
<drawtype>0</drawtype>
<sortorder>3</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/6" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets6">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets6">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/7" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets7">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets7">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/8" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets8">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets8">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/9" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets9">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets9">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/10" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets10">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets10">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/11" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets11">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets11">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/12" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets12">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets12">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/13" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets13">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets13">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/14" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets14">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets14">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/15" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets15">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets15">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/16" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets16">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets16">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/17" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets17">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets17">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/18" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets18">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets18">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/19" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets19">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets19">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/20" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets20">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets20">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/21" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets21">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets21">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/22" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets22">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets22">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/23" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets23">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets23">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="Ethernet1/0/24" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifOutOctets24">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifInOctets24">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
<graph name="GigabitEthernet1/0/26" width="900" height="200">
<ymin_type>0</ymin_type>
<ymax_type>0</ymax_type>
<ymin_item_key></ymin_item_key>
<ymax_item_key></ymax_item_key>
<show_work_period>0</show_work_period>
<show_triggers>0</show_triggers>
<graphtype>0</graphtype>
<yaxismin>0.0000</yaxismin>
<yaxismax>100.0000</yaxismax>
<show_legend>0</show_legend>
<show_3d>0</show_3d>
<percent_left>0.0000</percent_left>
<percent_right>0.0000</percent_right>
<graph_elements>
<graph_element item="test:ifInOctets26">
<drawtype>0</drawtype>
<sortorder>0</sortorder>
<color>009900</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
<graph_element item="test:ifOutOctets26">
<drawtype>0</drawtype>
<sortorder>1</sortorder>
<color>EE00EE</color>
<yaxisside>0</yaxisside>
<calc_fnc>2</calc_fnc>
<type>0</type>
<periods_cnt>5</periods_cnt>
</graph_element>
</graph_elements>
</graph>
</graphs>
<macros/>
</host>
</hosts>
<dependencies/>
</zabbix_export>
百度云附件：h3C监控模板.xml
|
QQ群⑧：
窥视卡
雷达卡
发表于 2015-8-11 08:58:15
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
