Citrix XenMobile 10 基本配置流程

vzdsa

一直不是很喜欢citrix的原因还是配置很复杂。不过XMS 10相比9，有了不少的进步。在自己的lab做了一个测试。记录了些设置的流程。基本还是涵盖的大部分配置过程中的难点。与大家分享及共勉！

Xenmobile Setup

• Deploy the XMS.

• Prepare APNS certificate.

• Prepare google play account and use an android phone to get the device ID.

• Prepare domain root certificate and wildcard certificate

• Install the SQL DB

• Boot the vm and launch the setup. Configure the network settings



• If you would like to enable FIPS, you have to copy and paste the domain wildcard certificate. If you would like to keep it simple, just disable it first



• Double check you database server, make sure the port is open and the service is running



• Enter DB connection. I am using MS SQL here.

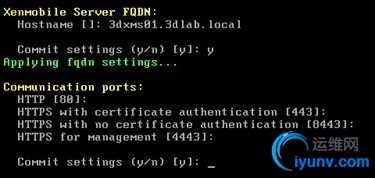

• Enter hostname FQDN and make sure you create a DNS entry in your DNS server



• Use default and enter



• Finish the configuration



• Login xenmobile console



• Click Start

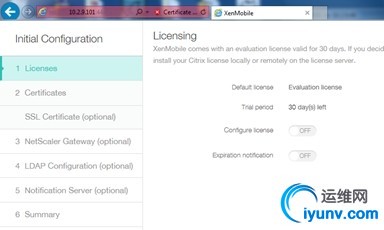

• Use Evaluation license



• Generate APNS cert



Go to any IIS web server and generate a CSR
Go to link below
https://xenmobiletools.citrix.com/XenMobileCloudTools-3.0/home/



Sign the CSR

Go to https://identity.apple.com/pushcert/


Download the Push Certificate

The certificate is valid for one year

Download the .pem certificate and copy to IIS server

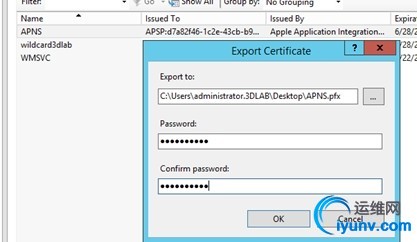

Export the APNS cert to .pfx format

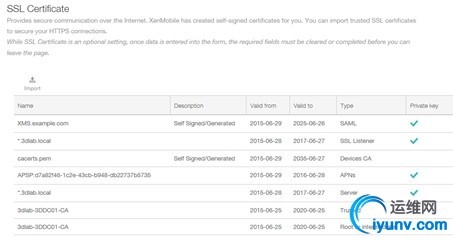

• Import SSL certificate

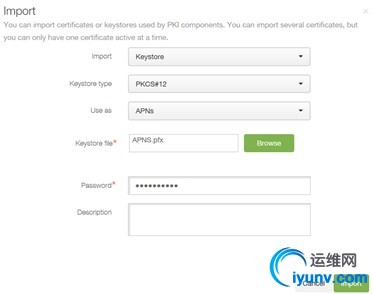

• Import APNS cert



• Import domain wildcard cert



• Import again for listener



• Import the root cert if it is not there

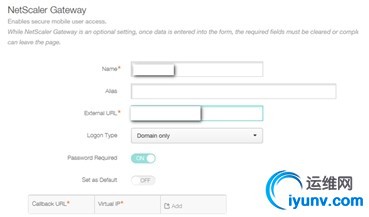

• NS Gateway configuration



Don't configure NS Gateway first. Do it after NS has been configured for Xenmobile. The External URL will be the URL mapped to NS Gateway VIP

• Configure LDAP. Requires ladp account to query AD database



• Done.



• Initial Policy configuration

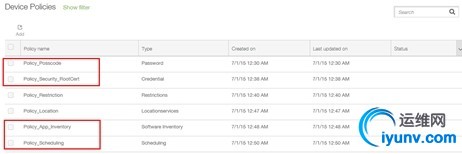

  Configure policy below

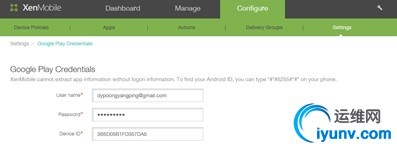

Create Google play credential. Suggest customer to have a company google account and login to one of android phone

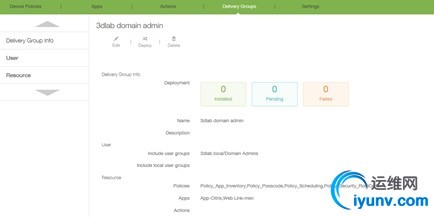

Create Delivery Group if you would like to assign specific policies to specific group of users
