keepalive+LVS-DR配置

vzdsa · 发表于 2015-8-13 10:50:13

最近业余尝试着去配置了下keepalived+LVS，跟着网上的配置，发现最终能运行，但是访问不到后边的服务，查看了很多的资料，现在把具体的配置贴出来，供大家参考。
LVS-DR配置

环境：

4台linux虚拟机（内核支持LVS）

VIP:192.168.1.100(主)对应机器ip为:192.168.1.16

VIP:192.168.1.100(从)对应机器ip为:192.168.1.11

RIP:192.168.1.8(tomcat服务)

RIP:192.168.1.9(tomcat服务)

安装相关的软件：

Ipvsadm(192.168.1.16、192.168.1.11)

Keepalived(192.168.1.16、192.168.1.11)

Tomcat(192.168.1.8)

Tomcat(192.168.1.9)

具体配置脚本：

主VIP配置：

! Configuration File for  keepalived

global_defs {
notification_email {
   mail@qq.com
}
notification_email_from wenbo.zhang@3g2win.com
smtp_server smtp.exmail.qq.com
smtp_connect_timeout 30
router_id LVS_DEVEL
}

vrrp_instance VI_1 {
   state MASTER
   interface eth0
   virtual_router_id 51
   priority 100
   advert_int 1
   authentication {
      auth_type PASS
      auth_pass 123456
   }
   virtual_ipaddress {
      192.168.1.100
   }
}

virtual_server 192.168.1.100 8080  {
   delay_loop 6
   lb_algo rr
   lb_kind DR
   nat_mask 255.255.255.255
   persistence_timeout 1
   protocol TCP

   real_server 192.168.1.8 8080 {
      weight 1
      HTTP_GET {
         url {
            path /test/jsp/2.jsp
            digest  c2b63159e701960a9eef44a302b56074
         }
         connect_timeout 3
         nb_get_retry 3
         delay_before_retry 3
      }
   }

      real_server  192.168.1.9 8080 {
      weight 1
      HTTP_GET {
         url {
            path /test/jsp/2.jsp
            digest  c2b63159e701960a9eef44a302b56074
         }
         connect_timeout 3
         nb_get_retry 3
         delay_before_retry 3
      }
   }

}

注意：此处的digest的算法，最好使用genhash工具去进行计算，具体用法可以去网上查。

从VIP配置

! Configuration File for  keepalived

global_defs {
notification_email {
   mail@qq.com
}
notification_email_from wenbo.zhang@3g2win.com
smtp_server smtp.exmail.qq.com
smtp_connect_timeout 30
router_id LVS_DEVEL
}

vrrp_instance VI_1 {
   state BACKUP
   interface eth0
   virtual_router_id 51
   priority 40
   advert_int 1
   authentication {
      auth_type PASS
      auth_pass 123456
   }
   virtual_ipaddress {
      192.168.1.100
   }
}

virtual_server 192.168.1.100 8080  {
   delay_loop 6
   lb_algo rr
   lb_kind DR
   nat_mask 255.255.255.255
   persistence_timeout 1
   protocol TCP

   real_server 192.168.1.8 8080 {
      weight 1
      HTTP_GET {
         url {
            path /test/jsp/2.jsp
            digest  c2b63159e701960a9eef44a302b56074
         }
         connect_timeout 3
         nb_get_retry 3
         delay_before_retry 3
      }
   }

      real_server  192.168.1.9 8080 {
      weight 1
      HTTP_GET {
         url {
            path /test/jsp/2.jsp
            digest  c2b63159e701960a9eef44a302b56074
         }
         connect_timeout 3
         nb_get_retry 3
         delay_before_retry 3
      }
   }

}

当配置好VIP以后，为了在真实的服务器上支持对应VIP的路由，需要在真实服务器（此处指192.168.1.8、192.168.1.9）上运行一些内容：

#!/bin/bash

VIP=192.168.1.100

ifconfig lo:0 $VIP broadcast $VIP  netmask 255.255.255.255 up

route add –host $VIP dev lo:0

echo "1"  >/proc/sys/net/ipv4/conf/lo/arp_ignore
echo "2"  >/proc/sys/net/ipv4/conf/lo/arp_announce
echo "1"  >/proc/sys/net/ipv4/conf/all/arp_ignore
echo "2"  >/proc/sys/net/ipv4/conf/all/arp_announce

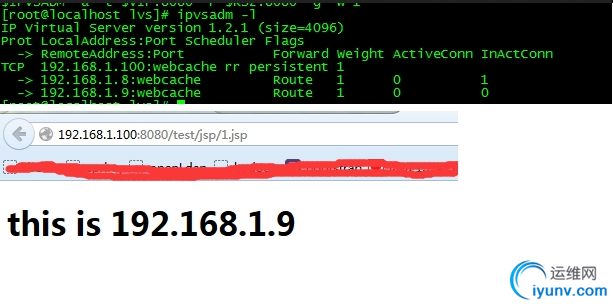

sysctl –p
