Registrator+Consul+Consul-template+HaProxy实现动态修改Haproty配置文件
实现需求:
用Haproxy做负载均衡,手动方式在配置文件中添加或删除节点服务器信息,比较麻烦。
通过Registrator收集需要注册到Consul作为Haproxy节点服务器的信息,然后注册到Consul key/value。
Consul-template去Consul key/value中读取信息,然后自动修改Haproxy配置文件,并重载Haproxy。不需要修改haproxy.cfg。

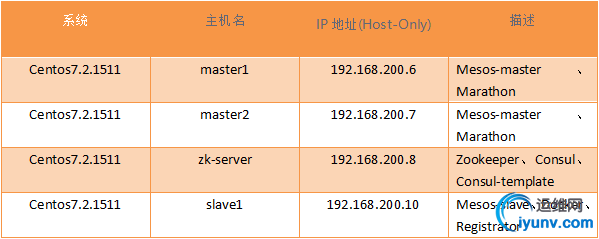

集群环境:
Postil:Mesos集群搭建过程此处省略
关闭selinux和防火墙
1
2
3
| setenforce 0
sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
systemctl stop firewalld && systemctl disable firewalld
|
ZK-server
1
2
3
4
5
| 容器来做consul:
获取Consul-server镜像
[iyunv@zk-server ~]# docker pull docker.io/gliderlabs/consul-server
启动Consul-server
[iyunv@zk-server ~]# docker run -d --name=consul --net=host docker.io/gliderlabs/consul-server -bootstrap -bind=192.168.200.8
|
宿主机来做consul
下载consul包,并解压
下载consul-template包,并解压
安装HaProxy并启动
1
2
| [iyunv@zk-server ~]# yum -y install haproxy
[iyunv@zk-server ~]# systemctl start haproxy
|
创建consul服务器配置目录
1
| [iyunv@zk-server ~]# mkdir /config
|
编写agent和server的json文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| [iyunv@zk-server ~]# vi /config/agent.json
添加内容如下:
{
"client_addr": "0.0.0.0",
"data_dir": "/data",
"leave_on_terminate": true,
"dns_config": {
"allow_stale": true,
"max_stale": "1s"
}
}
[iyunv@zk-server ~]# vi /config/server.json
添加内容如下:
{
"ui": true,
"dns_config": {
"allow_stale": false
}
}
|
启动consul单节点服务器,当然,你consul服务器节点多的话也可以做consul集群。
1
| [iyunv@zk-server ~]# consul agent -server -config-dir=/config -bootstrap -bind=192.168.200.8 &
|
Postil:可用consul members 查看consul集群节点
Slave1-server
获取Registrator镜像
1
| [iyunv@slave1 ~]# docker pull gliderlabs/registrator:latest
|
启动Registrator
Postil:这种启动方式是注册到Consul的key/value
1
| [iyunv@slave1 ~]# docker run -d --restart=always --name=registrator --net=host --volume=/var/run/docker.sock:/tmp/docker.sock docker.io/gliderlabs/registrator -ip 192.168.200.10 consulkv://192.168.200.8:8500/hello
|
Postil:-ip后面跟registration 所属的主机 IP, 一定要设置此属性, 否则服务IP会显示为127.0.0.1
测试Registrator是否把本机容器注册到Consul key/value
启动个容器
1
| [iyunv@slave1 ~]# docker run -d -P --name=test --net=bridge image/nginx
|

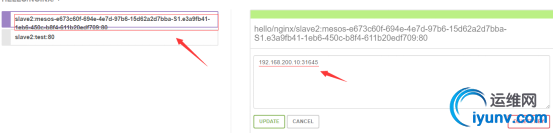

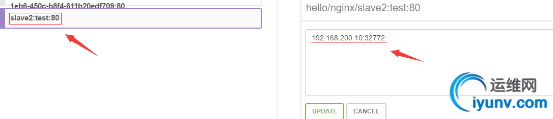

进入Consul UI界面查看
http://192.168.200.8:8500/ui/#/dc1/kv/
ZK-server
创建consul配置目录
1
2
3
4
5
6
7
8
9
10
| [iyunv@zk-server ~]# mkdir -p /data/cfg/consul
[iyunv@zk-server ~]# vi /data/cfg/consul/tmpl.json
添加内容如下:
consul = "127.0.0.1:8500"
template {
source = "/etc/haproxy/haproxy.ctmpl"
destination = "/etc/haproxy/haproxy.cfg"
command = "systemctl reload haproxy"
}
|
编写haproxy模版
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
| [iyunv@zk-server ~]# vi /etc/haproxy/haproxy.ctmpl
添加内容如下:
global
log 127.0.0.1 local2
chroot /var/lib/haproxy
pidfile /var/run/haproxy.pid
maxconn 4000
user haproxy
group haproxy
daemon
# turn on stats unix socket
stats socket /var/lib/haproxy/stats
defaults
mode http
log global
option httplog
option dontlognull
option http-server-close
option forwardfor except 127.0.0.0/8
option redispatch
retries 3
timeout http-request 10s
timeout queue 1m
timeout connect 10s
timeout client 1m
timeout server 1m
timeout http-keep-alive 10s
timeout check 10s
maxconn 3000
frontend main *:80
acl url_static path_beg -i /static /images /javascript /stylesheets
acl url_static path_end -i .jpg .gif .png .css .js
use_backend static if url_static
default_backend app
backend static
balance roundrobin
server static 127.0.0.1:4331 check
backend app
balance roundrobin
{{range $key, $pairs := tree "hello/" | byKey}}{{range $serverid, $pair := $pairs}}
server app {{.Value}} check inter 2000 fall 3 weight 1 {{end}}{{end}}
|
启动consul-template
1
| [iyunv@zk-server ~]#consul-template -config /data/cfg/consul/tmpl.json > consul-template.out 2>&1 &
|

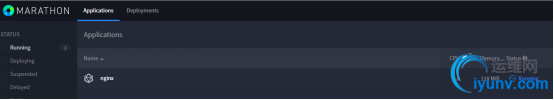

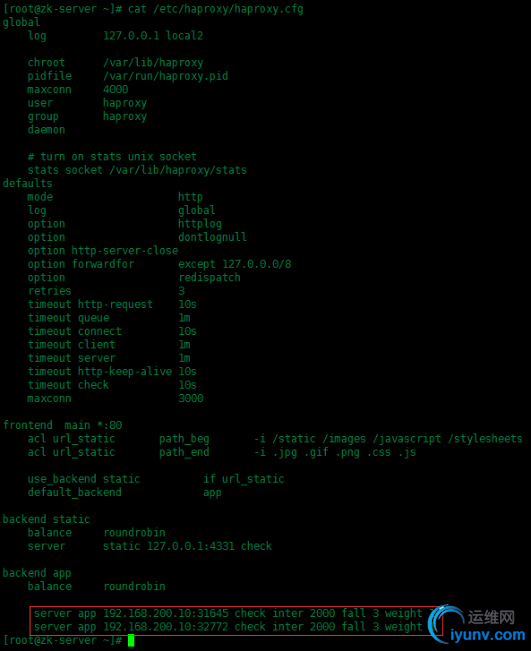

用marathon启动一个nginx容器,看registrator是否注册到consul,然后看consul-template是否自动添加了这个后端服务器到/etc/haproxy/haproxy.cfg

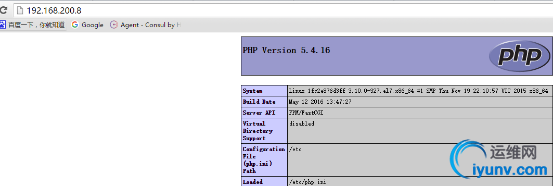

访问HaProxy_IP
|
|
