IBM-P55A 内存故障处理

loin

[url=]一、故障定位[/url]
[url=]1.1.故障信息[/url]

Log摘要 # uname -Mu IBM,9133-55A IBM,0306A1F9H # errpt -d H IDENTIFIER TIMESTAMP T C RESOURCE_NAME DESCRIPTION BFE4C025 0919054612 P H sysplanar0 UNDETERMINED ERROR …… # errpt -aj [url=]BFE4C025[/url] --------------------------------------------------------------------------- LABEL: SCAN_ERROR_CHRP IDENTIFIER: BFE4C025 Date/Time: Sequence Number: 20422 Machine Id: 0008DB9FD600 Node Id: wxdbser11 Class: H Type: PERM Resource Name: sysplanar0 Resource Class: planar Resource Type: sysplanar_rspc Location: Description UNDETERMINED ERROR Failure Causes UNDETERMINED Recommended Actions RUN SYSTEM DIAGNOSTICS. Detail Data PROBLEM DATA 0644 00E0 0000 06EC 8E00 8E00 0000 0000 0000 0000 4942 4D00 5048 0030 0100 DD00 2012 0918 2146 2039 2012 0918 2146 2060 4500 010A 0000 0000 0000 0000 0000 0000 501D 5359 501D 5359 5548 0018 0100 DD00 2303 2000 0000 E500 0000 A800 0000 0000 5053 00B0 0101 DD00 0201 0009 0000 00A8 0300 00F0 28D9 0110 C139 20FF 4100 00FF 0081 1931 0000 0001 00A0 008A 5901 703A 4231 3233 4535 3030 2020 2020 2020 2020 2020 2020 2020 2020 2020 2020 2020 2020 C000 0018 5C2C 4D1C 5537 3837 422E 3030 312E 444E 5747 574E 362D 5031 2D43 392D 4334 0000 4944 1C1D 3135 5237 3137 3200 3331 3245 5948 3130 4D4A 3931 4130 3838 4D52 2003 0000 0000 0000 004D 0081 028F 0000 004D 5901 7038 0000 004D 5901 703A 5544 0094 0204 4400 0000 01A3 2F6F 7074 2F66 6970 732F 6269 6E2F 6365 6373 6572 7665 7200 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 6669 7073 3234 302F 6231 3231 3061 5F30 3732 352E 3234 3000 0000 0000 0000 0000 0000 0001 0000 0002 0000 0801 0000 0001 0000 0009 4D54 001C 0100 4400 3931 3333 2D35 3541 3036 4131 4639 4800 0000 0000 5544 0058 0000 6700 FED0 000A 6F6E 2020 0000 0000 EF77 F658 0000 0001 0000 0801 0000 0009 3032 2F32 312F 3230 3132 2031 343A 3333 3A30 3800 0000 0000 0000 0000 3032 2F32 312F 3230 3132 2031 343A 3333 3A30 3800 0000 0000 5544 003C 00CE 6700 CECE 4757 0081 028F 0000 0007 0000 0005 0000 00E6 0000 0000 0000 0001 0000 D006 0062 6C65 0000 0020 0000 0023 0000 0000 0081 1931 5544 003C 00CE 6700 CECE 4757 0081 028F 0000 0007 0000 0005 0000 00E6 0000 0000 0000 0001 0000 D006 0000 0AC5 0000 0020 0000 0023 0000 0000 0081 1931 5544 00A8 0133 DD00 4D53 2020 4455 4D50 0000 0002 0000 0003 0081 14B2 534D 4120 4455 4D50 0081 1931 0000 0000 0000 0000 0000 A800 5046 4135 0000 0000 A800 2000 0034 0000 434D 5020 4441 5441 0000 0000 E301 0100 0303 0000 0000 0000 4341 4C4C 4F55 5453 0000 0002 5901 7038 0305 0000 5901 703A 0305 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 5544 03BC 0201 DD00 4350 5452 0000 0006 1400 8119 3100 1D00 F280 0038 8701 0000 000A 0000 0104 E002 0020 8728 003B 0381 2E00 3300 03EF F900 1080 4014 0303 1B74 0001 6CF9 C006 0203 4210 0800 0224 F808 0022 97E9 0303 FA40 0001 00EC E900 0210 C103 0300 AFD3 0005 34F8 0032 2017 FD03 038F BF00 024C 04E8 0030 073C 0703 2620 0000 096C E000 1188 B700 0000 BF08 0000 0000 0100 80E6 8000 00B7 23C3 901A 4100 B323 C360 0230 0020 00B6 23C3 0318 6200 004B B223 C340 BE24 00B5 23C3 1641 2000 B123 C320 F020 0000 40B4 23C3 0108 A300 00B0 9423 C300 8637 C0E3 23C3 9B8F 09FF 0000 E423 C3FF FF40 C068 E823 C424 01EB 23C3 BFC3 3FD4 1500 23C3 3F49 81B9 23C3 EB00 0AEB 0000 D832 C8D0 3BC4 2D08 3C00 00D1 23C3 09DF F810 0000 D923 C344 A955 002A 00BA 3BC4 3F40 C0BB 3BC4 FF0A FC00 00BC 3BC4 1C24 00B8 A83B C400 37C0 BD2C C4A2 0200 2100 A065 C506 0000 A165 C504 9A00 00F9 0436 C053 0020 00F4 71C0 0031 0081 1600 3137 0FFF 0402 4012 8414 C0FF 08DE AA66 0400 F260 0865 C539 C108 F240 2EFF C02B C033 C008 0CEF EFBF 0055 F024 0111 7EC8 1281 C821 3BC4 5522 03C0 223B C42B 40C0 248A C855 258D C827 8AC8 288D C831 3BC4 30C0 0727 C03B C4CF DF00 0041 343B C4C1 C700 0035 9FC8 5437 9CC8 389F C881 23C3 8102 A664 8082 23C2 7EFB 6181 5680 0900 2492 4948 488B 0000 08D2 0855 49B5 804B 4AAB 0200 00D4 080F FF0F C13C 899E C0D5 085F 4340 FF90 4381 0CD7 0800 8BBE 4143 81D8 0820 FCCF C185 E108 013C 1087 6604 E208 FFFE 8342 2400 3E84 8704 C000 0055 0843 813C 0335 843F 00FF 8340 2F84 D442 3884 D442 3284 FDD4 4226 84D4 4265 85D4 814D 8400 6AC0 BE5C 465F 8340 5F85 E981 6884 D442 BEAA D2C8 C1D2 C8C2 D2C8 C4D2 C8C5 AAD2 C8C6 3BC4 1222 00C7 E4C8 C8AA E1C8 C9F6 C8CA DBC8 CBD8 C8CC A8ED C8CD D2C8 CECF C781 1931 0A03 00F2 8002 C3AC 98C0 2450 E81A C238 FBC1 4954 0002 02D7 F000 331F 5EFB C39F 06C4 0001 CFF8 06C2 F7C2 4A05 8300 0774 E0F7 C385 5FC0 406D 05C0 DCB0 0031 0F9F 81FB C3AD FC00 0FEC B3F7 C702 DA40 0001 2CA8 EBC7 ED07 4300 0E04 EBEB C2DE C1EE C240 1BDF C0A4 B000 218F 8B81 DEC3 7F0C 000B 8FE9 DEC2 80D6 C2D8 8B00 015C E000 0413 9876 003B E2C1 2B08 0000 018C A800 1188 B780 CEC3 1B08 0002 3CE8 0010 1290 D5F7 C30E 8800 0302 BCA0 0010 8014 F3C3 8804 5400 017F B0FB C725 800C 0003 F4A9 F7C2 DEC6 D90C 82FA C0B0 0030 073C C9C3 2900 E400 03CF A800 0210 63C1 E2C3 6CC0 0204 B0E6 C2B5 C202 CBD0 0005 0FF1 BDC7 1C00 6C00 027F A000 3217 53FD A9C3 4800 000C E0DE C2B5 C24D BCBD C0CC B8F7 C2A5 C209 0000 3C3C F0A9 C143 4341 C3FC C8FF 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Diagnostic Analysis Diagnostic Log sequence number: 26336 Resource tested: sysplanar0 Resource Description: System Planar Location: SRC: B123E500 Description: Memory subsystem including external cache Predictive Error, general. [url=]Refer to the system service[/url] documentation for more information. Additional Words: 2-030000F0 3-28D90110 4-C13920FF 5-410000FF 6-00811931 7-00000001 8-00A0008A 9-5901703A Possible FRUs: Priority: M FRU: 15R7172 S/N: YH10MJ91A088 CCIN: 312E Location: U787B.001.DNWGWN6-P1-C9-C4 …… # lsattr -El mem0 goodsize 32064 Amount of usable physical memory in Mbytes False size 32064 Total amount of physical memory in Mbytes False # prtconf more …… Memory Size: 32064 MB Good Memory Size: 32064 MB …… # lscfg -vp …… Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C1 Customer Card ID Number.....312E Serial Number...............YH10MJ91A082 Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C1 Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C2 Customer Card ID Number.....312E Serial Number...............YH10MJ91A439 Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C2 Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C3 Customer Card ID Number.....312E Serial Number...............YH10MJ91A43F Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C3 Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C4 Customer Card ID Number.....312E Serial Number...............YH10MJ91A088 Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C4 Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C5 Customer Card ID Number.....312E Serial Number...............YH10MJ91A089 Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C5 Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C6 Customer Card ID Number.....312E Serial Number...............YH10MJ91A086 Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C6 Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C7 Customer Card ID Number.....312E Serial Number...............YH10MJ91A43G Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C7 Memory DIMM: Record Name.................VINI Flag Field..................XXMS Hardware Location Code......U787B.001.DNWGWN6-P1-C9-C8 Customer Card ID Number.....312E Serial Number...............YH10MJ91A438 Part Number.................15R7172 FRU Number.................. 15R7172 Size........................4096 Version.....................RS6K Physical Location: U787B.001.DNWGWN6-P1-C9-C8 ……

[url=]1.2.故障定位[/url]

系统内存统计信息
系统内存大小	32064 MB
可用系统内存大小	32064 MB

内存位置统计信息
序号	位置	容量	QUAD
1	[url=]U787B.001.DNWGWN6-P1-C9-C1[/url]	4096KB	Quad A
2	U787B.001.DNWGWN6-P1-C9-C2	4096KB	Quad B
3	U787B.001.DNWGWN6-P1-C9-C3	4096KB	Quad A
4	U787B.001.DNWGWN6-P1-C9-C4	4096KB	Quad B
5	U787B.001.DNWGWN6-P1-C9-C5	4096KB	Quad B
6	U787B.001.DNWGWN6-P1-C9-C6	4096KB	Quad A
7	U787B.001.DNWGWN6-P1-C9-C7	4096KB	Quad B
8	U787B.001.DNWGWN6-P1-C9-C8	4096KB	Quad A

可用系统内存大小没有变化，U787B.001.DNWGWN6-P1-C9-C4 槽位内存预告警；
如果更换内存，以Pair(1组2根)的方式进行更换，更换的槽位为P1-C9-C4和P1-C9-C5。


[url=]二、故障处理[/url]
[url=]2.1.先决条件[/url]

注意

确保系统关机，电源断开 操作时，使用防静电护腕 添加或更换硬件组件之前请作好数据备份。如果部件未正确安装，则可能会导致数据丢失。

[url=]2.2.准备项[/url]

准备确认项
类型	准备项	状态
硬件	笔记本一台	已准备就绪
	网线一根	已准备就绪
	一字、十字螺丝刀各一把	已准备就绪
	防静电护腕一个	已准备就绪
	新内存2根	已准备就绪
软件	HMC环境	已准备就绪
其它

[url=]2.3.操作项[/url]

操作项列表
序号	操作项	操作内容	状态
1	确认系统关机	建议客户应用及业务数据备份
2	佩戴防静电护腕	确认已经佩戴防静电护腕，并且防静电护腕连接到机柜上的未涂漆部分
3	断开电源	断开主电源和次电源

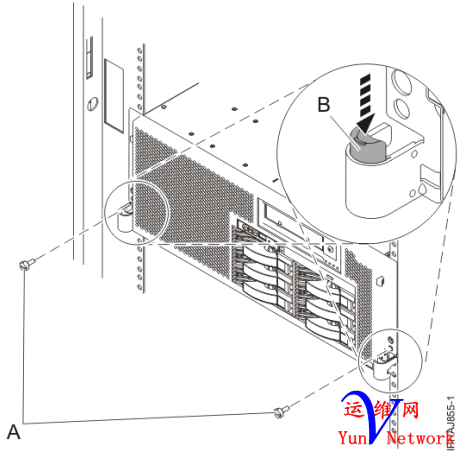

4	移除服务检修盖

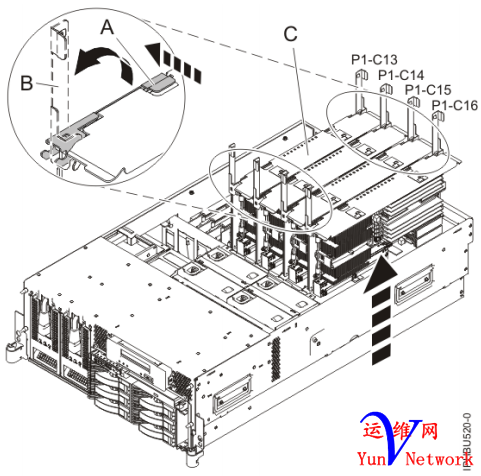

5	拆除处理器板
6	将取下的处理器板放置在防静电的材质表面
7	拆开移除处理器前盖

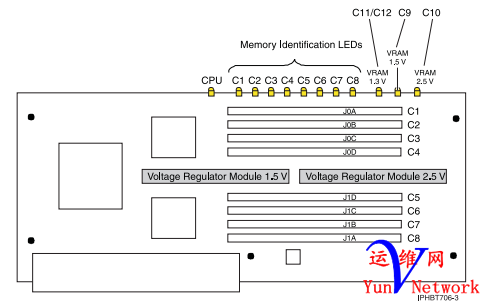

8	确认更换内存位置
9	从防静电包装中取出内存
10	安装内存
11	重新安装处理器板
12	确认故障影响消失	确认新更换的硬件无告警
		确认新的硬件在系统中就绪
		用户确认应用及业务数据不受影响
13	收尾	清理现场，结束工作
