Btrfs文件系统及应用

ljhj

一、Btrfs文件系统简介

         Btrfs透明压缩文件系统(B-tree, Butter FS, Better FS)是一种COW(copy-on-write式)文件系统，有着传统文件系统(ext3/4)所没有的一些特性，如支持可写的磁盘快照(snapshots)，以及支持递归的快照(snapshotsof snapshots)，支持内建磁盘阵列（RAID），支持子卷(Subvolumes)的概念，允许在线调整文件系统大小等。

二、核心特性及命令

核心特性：

1、多物理卷支持：btrfs可由多个底层物理卷组成；支持RAID，以联机“添加”、“移除”，“修改”；

2、写时复制更新机制(CoW)：复制、更新及替换指针，而非“就地”更新；

3、数据及元数据校验码：checksum

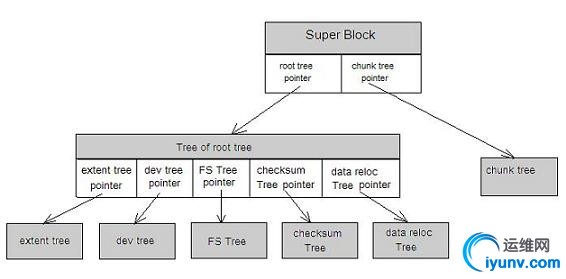

4、子卷：sub_volume，子卷实质上是一个保存文件和目录的命名的B树。它们的inode保存在树根之树中，可以为非根用户和组所有。子卷可选设定块配额。子卷内的所有块和文件区段都有引用计数以便做快照。和虚拟机存储的动态扩展相似，其只按需使用设备空间，消除了许多半满的分区。用户也可用不同的挂载选项挂载子卷，得到更灵活的安全性。

5、快照：支持快照的快照；    命令：btrfs subvolumesnapshot

6、透明压缩：分区里的每个文件都被自动压缩，不仅减小了文件的大小，还提高了性能。

7、Btrfs支持在线碎片整理。命令： btrfs filesystem defragment

相关命令：

1、文件系统创建：

命令：mkfs.btrfs

选项：-L 'LABEL'

  -d<type>: raid0, raid1, raid5, raid6, raid10, single

  -m<profile>: raid0, raid1, raid5, raid6, raid10, single, dup

  -O<feature>

  -Olist-all: 列出支持的所有feature；

2、文件系统命令管理，包括卷标管理，文件系统大小调整，及碎片管理

命令：btrfs filesystem<subcommand> <args>

属性查看：btrfsfilesystem show

3、挂载文件系统：

命令：mount -t btrfs/dev/sdb MOUNT_POINT

4、透明压缩机制：

命令：mount -ocompress={lzo|zlib} DEVICE MOUNT_POINT

5、 管理子卷和快照命令

命令：btrfs subvolume<subcommand> [<args>]

6、设备管理命令

命令：btrfs device<subcommand> <args>

7、块组均衡管理

命令：btrfs [filesystem]balance <subcommand>|<args>

三、实验

1、创建btrfs文件系统

      在vmware中新增两块20G磁盘，/dev/sdb与/dev/sdc

[iyunv@localhost ~]#mkfs.btrfs -L 'B-tree-fs' -f /dev/sd{b,c}

[iyunv@localhost ~]# btrfsfilesystem show

Label: 'B-tree-fs'  uuid: b254b565-0418-4601-8317-f9a5306c6f19

Totaldevices 2 FS bytes used 112.00KiB

devid    1 size 20.00GiB used 2.03GiB path /dev/sdb

devid    2 size 20.00GiB used 2.01GiB path /dev/sdc

2、挂载文件系统

[iyunv@localhost ~]# mkdir/btrdata

[iyunv@localhost~]# mount /dev/sdb /btrdata

[iyunv@localhost~]# df -h | grep btrdata

/dev/sdb         40G 1.0M   38G   1% /btrdata

3、建立子卷

[iyunv@localhost ~]# btrfssubvolume create /btrdata/mydata

Create subvolume'/btrdata/mydata'

[iyunv@localhost~]# cp -r /root/* /btrdata/mydata    # 复制数据

[iyunv@localhost ~]# btrfsfilesystem show

Label: 'B-tree-fs'  uuid: b254b565-0418-4601-8317-f9a5306c6f19

Totaldevices 2 FS bytes used 735.67MiB

devid    1 size 20.00GiB used 2.03GiB path /dev/sdb

devid    2 size 20.00GiB used 2.01GiB path /dev/sdc

4、扩展文件系统

[iyunv@localhost ~]# btrfsdevice add /dev/sdd /btrdata

[iyunv@localhost ~]# btrfsfilesystem show

Label: 'B-tree-fs'  uuid: b254b565-0418-4601-8317-f9a5306c6f19

Totaldevices 3 FS bytes used 735.67MiB

devid    1 size 20.00GiB used 2.03GiB path /dev/sdb

devid    2 size 20.00GiB used 2.01GiB path /dev/sdc

devid    3 size 20.00GiB used 0.00 path /dev/sdd

[iyunv@localhost ~]# df -h| grep btrdata

/dev/sdb         60G 772M   56G   2% /btrdata

5、重新均衡文件系统

[iyunv@localhost ~]# btrfsbalance start /btrdata

Done, had to relocate 6out of 6 chunks

[iyunv@localhost ~]# btrfsfilesystem show

Label: 'B-tree-fs'  uuid: b254b565-0418-4601-8317-f9a5306c6f19

Totaldevices 3 FS bytes used 736.20MiB

devid    1 size 20.00GiB used 1.03GiB path /dev/sdb

devid    2 size 20.00GiB used 2.00GiB path /dev/sdc

devid    3 size 20.00GiB used 2.03GiB path /dev/sdd

6、移除硬盘

      移除硬盘的时候会先把数据移动到其他盘，不需要像LVM那样需要手动移动数据

[iyunv@localhost ~]# btrfsdevice delete /dev/sdb /btrdata

[iyunv@localhost ~]# df -h| grep btrdata

/dev/sdc         40G 772M   38G   2% /btrdata

[iyunv@localhost ~]# ls/btrdata/

commdir  mydata

[iyunv@localhost ~]# head/btrdata/mydata/anaconda-ks.cfg

#version=RHEL7

# System authorizationinformation

auth --enableshadow--passalgo=sha512

# Use CDROM installationmedia

cdrom

# Use graphical install

graphical

# Run the Setup Agent onfirst boot

firstboot --enable

7、修改数据或元数据的RAID级别

[iyunv@localhost ~]# btrfsdevice add /dev/sdb /btrdata

[iyunv@localhost ~]# btrfsfilesystem df /btrdata

Data, RAID0:total=2.00GiB, used=699.96MiB

System, RAID1:total=32.00MiB, used=16.00KiB

Metadata, RAID1:total=1.00GiB, used=35.98MiB

GlobalReserve, single:total=16.00MiB, used=0.00

[iyunv@localhost~]# btrfs balance start -mconvert=raid5 /btrdata    # 此处修改元数据RAID级别

Done, had to relocate 2out of 3 chunks

[iyunv@localhost ~]# btrfsfilesystem df /btrdata

Data, RAID0:total=2.00GiB, used=700.21MiB

System, RAID5:total=64.00MiB, used=16.00KiB

Metadata, RAID5:total=1.00GiB, used=35.91MiB

GlobalReserve, single:total=16.00MiB, used=0.00

[iyunv@localhost ~]# btrfsfilesystem show

Label: 'B-tree-fs'  uuid: b254b565-0418-4601-8317-f9a5306c6f19

Totaldevices 3 FS bytes used 735.89MiB

devid    2 size 20.00GiB used 1.53GiB path /dev/sdc

devid    3 size 20.00GiB used 1.53GiB path /dev/sdd

devid    4 size 20.00GiB used 544.00MiB path/dev/sdb

8、创建快照

[iyunv@localhost ~]# btrfssubvolume snapshot /btrdata/mydata /btrdata/mydata_snapshot

Create a snapshot of'/btrdata/mydata' in '/btrdata/mydata_snapshot'

[iyunv@localhost ~]# cat/btrdata/mydata/1.txt

1

[iyunv@localhost ~]# echo'just a test' >> /btrdata/mydata/1.txt

[iyunv@localhost ~]# cat/btrdata/mydata/1.txt

1

just a test

[iyunv@localhost ~]# cat/btrdata/mydata_snapshot/1.txt

1

9、转换

[iyunv@localhost ~]# btrfsbalance start -dconvert=single -mconvert=raid1 /btrdata

Done, had to relocate 3out of 3 chunks

[iyunv@localhost ~]# btrfsdevice delete /dev/sdd /btrdata

[iyunv@localhost ~]# fdisk/dev/sdd

Welcome to fdisk(util-linux 2.23.2).

Changes will remain inmemory only, until you decide to write them.

Be careful before usingthe write command.

Device does not contain arecognized partition table

Building a new DOSdisklabel with disk identifier 0xadd41340.

Command (m for help): n

Partition type:

   p  primary (0 primary, 0 extended, 4 free)

   e  extended

Select (default p): p

Partition number (1-4,default 1): 1

First sector(2048-41943039, default 2048):

Using default value 2048

Last sector, +sectors or+size{K,M,G} (2048-41943039, default 41943039): +5G

Partition 1 of type Linuxand of size 5 GiB is set

Command (m for help): w

The partition table hasbeen altered!

Calling ioctl() tore-read partition table.

Syncing disks.

[iyunv@localhost ~]#mke2fs -t ext4 /dev/sdd1

mke2fs 1.42.9(28-Dec-2013)

Filesystem label=

OS type: Linux

Block size=4096 (log=2)

Fragment size=4096(log=2)

Stride=0 blocks, Stripewidth=0 blocks

327680 inodes, 1310720blocks

65536 blocks (5.00%)reserved for the super user

First data block=0

Maximum filesystemblocks=1342177280

40 block groups

32768 blocks per group,32768 fragments per group

8192 inodes per group

Superblock backups storedon blocks:

32768,98304, 163840, 229376, 294912, 819200, 884736

Allocating group tables:done

Writing inode tables:done

Creating journal (32768blocks): done

Writing superblocks andfilesystem accounting information: done

[iyunv@localhost ~]# fsck-f /dev/sdd1

fsck from util-linux2.23.2

e2fsck 1.42.9(28-Dec-2013)

Pass 1: Checking inodes,blocks, and sizes

Pass 2: Checkingdirectory structure

Pass 3: Checkingdirectory connectivity

Pass 4: Checkingreference counts

Pass 5: Checking groupsummary information

/dev/sdd1: 12/327680files (0.0% non-contiguous), 58463/1310720 blocks

[iyunv@localhost~]# btrfs-convert /dev/sdd1    # 将ext4文件系统转换为btrfs

creating btrfs metadata.

creating ext2fs imagefile.

cleaning up system chunk.

conversion complete.

[iyunv@localhost ~]# btrfsfilesystem show

Label: 'B-tree-fs'  uuid: b254b565-0418-4601-8317-f9a5306c6f19

Totaldevices 2 FS bytes used 735.81MiB

devid    2 size 20.00GiB used 2.03GiB path /dev/sdc

devid    4 size 20.00GiB used 1.03GiB path /dev/sdb

Label: none  uuid: 12170ec7-9847-4a5a-85ee-13215a478a3c

Totaldevices 1 FS bytes used 228.42MiB

devid    1 size 5.00GiB used 5.00GiB path /dev/sdd1

Btrfs v3.16.2

[iyunv@localhost~]# btrfs-convert -r /dev/sdd1     # 将btrfs文件系统回滚原来的文件系统

rollback complete.

[iyunv@localhost ~]# blkid/dev/sdd1

/dev/sdd1:UUID="fbbd653f-fb3f-4715-8c42-8c942564c8f4" TYPE="ext4"
