CentOS7安装Cobbler+ESXI6.0

23rfe

1、安装epelyum源

1	# rpm -Uvh https://dl.fedoraproject.org/pub ... ease-7-5.noarch.rpm

2、安装cobbler和依赖

1	# yum install cobbler cobbler-web dnsmasq syslinux pykickstart bind rsync

3、启动服务

1 2	# systemctl start httpd # systemctl start cobblerd

4、生产密码

1 2	#openssl passwd -1 -salt 'fajlfjal' 'cobbler' $1$fajlfjal$UdbS4N.XbTitCc5Pa0bvz.

5、配置cobbler

1 2 3 4 5 6 7

/etc/cobbler/settings: default_password_crypted: "$1$fajlfjal$UdbS4N.XbTitCc5Pa0bvz." manage_dhcp: 1 manage_dns: 1 pxe_just_once: 1 next_server: 192.168.0.5 server: 192.168.0.5

5、配置cobbler的DHCP模版

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

#cat /etc/cobbler/dhcp.template subnet 192.168.56.0 netmask 255.255.255.0 {      option routers             192.168.56.101;      option domain-name-servers 192.168.56.101;      option subnet-mask         255.255.255.0;      range dynamic-bootp        192.168.56.200 192.168.56.254;      default-lease-time         21600;      max-lease-time             43200;      next-server                $next_server;      class "pxeclients" {           match if substring (option vendor-class-identifier, 0, 9) = "PXEClient";           if option pxe-system-type = 00:02 {                   filename "ia64/elilo.efi";           } else if option pxe-system-type = 00:06 {                   filename "grub/grub-x86.efi";           } else if option pxe-system-type = 00:07 {                   filename "grub/grub-x86_64.efi";           } else {                   filename "pxelinux.0";           }      } }

7、重启cobbler

1	# systemctl restart cobbler

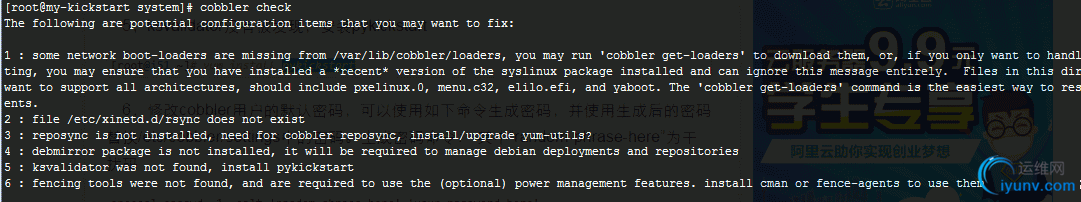

8、检查下会有示需要什么，按要去安装或修改配置即可
# cobbler check

修改好了后sync同步下
# cobbler sync

9、挂载、导入镜像

1 2	#mount /dev/cdrom /media #cobbler import --path=/media --name CentOS-7.1 --arch=x86_65

10、配置安装镜像的ks文件
查看详细信息，看看用的那个KS

修改下KS如下

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

# # Sample scripted installation file # for ESXi 6 # vmaccepteula reboot --noeject rootpw --iscrypted $default_password_crypted install --firstdisk --overwritevmfs clearpart --firstdisk --overwritevmfs #$SNIPPET('network_config') //注释 network --bootproto=dhcp //添加 %pre --interpreter=busybox $SNIPPET('kickstart_start') $SNIPPET('pre_install_network_config') %post --interpreter=busybox $SNIPPET('kickstart_done') r=busybox $SNIPPET('kickstart_done')

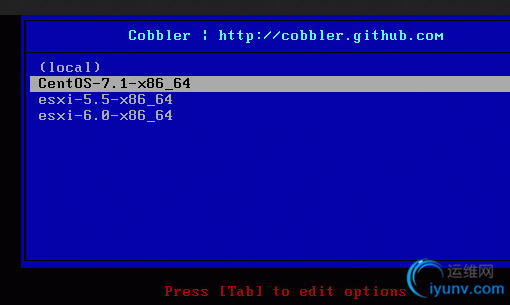

11、cobbler sync同步下，开始安装
