CentOS6.X上安装Cacti网络监控系统和Spine轮询

2341rtw

Cacti工具是一套开源的基于Web的网络监控和系统监控的图形解决方案。Cacti通过SNMP服务获取数据，并使用RRDtool绘制图形，提供非常直观的数据和用户管理功能。Cacti需要Web、MySQL和PHP的支持。Cacti一般用于监控网络流量、CPU负载、磁盘空间等。
Cacti官网：http://www.cacti.net/


安装Cacti需要安装的软件包：Apache、MySQL、PHP、RRTool、PHP-SNMP、NET-SNMP

一、安装Cacti需要安装的软件包

1、安装扩展源
[iyunv@sh ~]# rpm -ivh http://mirrors.yun-idc.com/epel/ ... ease-6-8.noarch.rpm
2、安装Apache

[iyunv@sh ~]# yum -y install httpd httpd-devel
3、安装MySQL
[iyunv@sh ~]# yum -y install mysql mysql-server
4、安装PHP及相关软件
[iyunv@sh ~]# yum install php php-mysql php-gd php-pear php-devel php-common php-cli php-mbstring php-mcrypt
5、启动Apache、MySQL

1 2 3 4 5 6

[iyunv@sh ~]# chkconfig httpd on [iyunv@sh ~]# chkconfig mysqld on [iyunv@sh ~]# service httpd start [iyunv@sh ~]# service mysqld start [iyunv@sh ~]# mysqladmin -uroot password dbpasswd ；设置root用户密码

6、安装PHP-SNMP和NET-SNMP
[iyunv@sh ~]# yum -y install php-snmp net-snmp net-snmp-utils net-snmp-libs

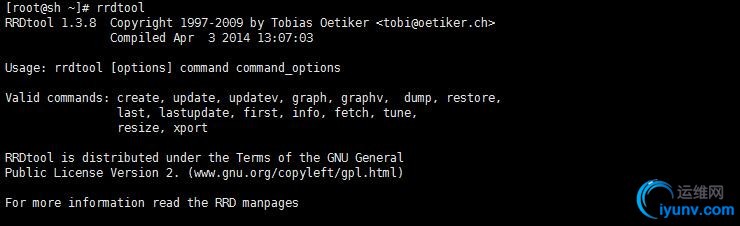

7、安装RRDTool
[iyunv@sh ~]# yum -y install rrdtool

二、安装Cacti服务
1、下载cacti-0.8.8f.tar.gz
[iyunv@sh ~]# wget http://www.cacti.net/downloads/cacti-0.8.8f.tar.gz

2、解压到网站目录/var/www/html/下
[iyunv@sh ~]# tar zxf cacti-0.8.8f.tar.gz
[iyunv@sh ~]# mv cacti-0.8.8f /var/www/html/cacti
[iyunv@sh ~]# chown -R apache.apache /var/www/html/


3、创建Cacti数据库、用户和密码

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

[iyunv@sh ~]# mysql -uroot -p Enter password: Welcome to the MySQL monitor.  Commands end with ; or \g. Your MySQL connection id is 9 Server version: 5.1.73 Source distribution Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. mysql> create database cacti; Query OK, 1 row affected (0.00 sec) mysql> GRANT ALL ON cacti.* TO 'cacti'@'localhost' IDENTIFIED BY 'cactipass'; Query OK, 0 rows affected (0.01 sec) mysql> flush privileges; Query OK, 0 rows affected (0.04 sec) mysql> quit Bye

4、导入Cacti数据库文件
[iyunv@sh ~]# mysql -uroot -p cacti < /var/www/html/cacti/cacti.sql

5、修改Cacti相关的MySQL数据库配置文件

1	[iyunv@sh ~]# vim /var/www/html/cacti/include/config.php

1 2 3 4 5 6 7 8

/* make sure these values refect your actual database/host/user/password */ $database_type = "mysql"; $database_default = "cacti"; $database_hostname = "localhost"; $database_username = "cacti"; $database_password = "cactipass"; $database_port = "3306"; $database_ssl = false;

6、添加防火墙规则允许外部访问80端口

1 2 3

[iyunv@sh ~]# iptables -A INPUT -p udp --dport 80 -j ACCEPT [iyunv@sh ~]# iptables -A INPUT -p tcp --dport 80 -j ACCEPT [iyunv@sh ~]# service iptables save

7、配置Cacti虚拟主机文件，创建/etc/httpd/conf.d/cacti.conf，允许192.168.1.0的网段访问

1 2 3 4 5 6 7

[iyunv@sh ~]# vim /etc/httpd/conf.d/cacti.conf Alias /cacti    /var/www/html/cacti <Directory /var/www/html/cacti/>         Order Deny,Allow         Deny from all         Allow from 192.168.1.0/24 </Directory>

8、调整系统时间，并且修改php.ini对应的时区为'Asia/Shanghai'

1 2 3 4

[iyunv@sh ~]# ntpdate time.nist.gov [iyunv@sh ~]# hwclock    ；写入BIOS #添加时间自动同步计划任务 0 11 * * * /usr/sbin/ntpdate time.nist.gov;hwclock -w

1 2	[iyunv@sh ~]# vim /etc/php.ini date.timezone = 'Asia/Shanghai'

9、配置cacti轮询php脚本，添加cron计划任务，让它每五分钟执行一次以生成图像显示

1	*/5 * * * *  /usr/bin/php /var/www/html/cacti/poller.php

1 2 3 4 5 6 7

[iyunv@sh ~]# /usr/bin/php /var/www/html/cacti/poller.php OK u:0.00 s:0.01 r:0.08 OK u:0.00 s:0.01 r:0.10 OK u:0.00 s:0.01 r:0.11 OK u:0.00 s:0.01 r:0.13 OK u:0.00 s:0.01 r:0.19 01/21/2016 03:15:01 PM - SYSTEM STATS: Time:0.3285 Method:cmd.php Processes:1 Threads:N/A Hosts:2 HostsPerProcess:2 DataSources:5 RRDsProcessed:5

10、重启服务

1 2 3 4

[iyunv@sh ~]# service httpd restart [iyunv@sh ~]# service mysqld restart [iyunv@sh ~]# service snmpd restart [iyunv@sh ~]# service crond restart

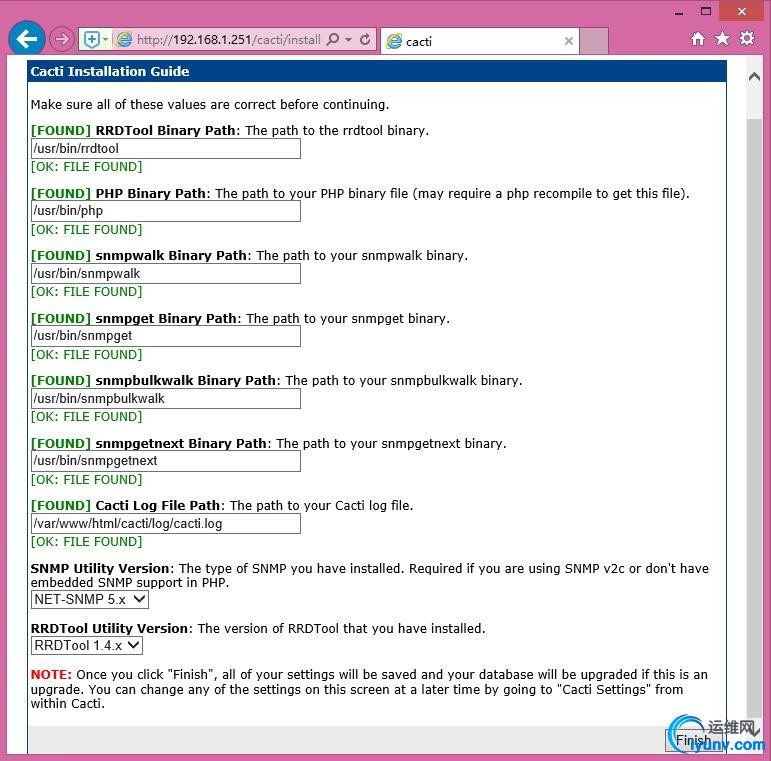

11、浏览器登录http://IP/cacti/install/完成安装向导

Cacti默认登录用户和密码都是admin，根据提示修改，进入Cacti的Web界面


安装完成

三、安装Cacti加速轮询器Spine
1、下载spine-0.8.8f，版本对应cacti的版本
[iyunv@sh ~]# wget http://www.cacti.net/downloads/spine/cacti-spine-0.8.8f.tar.gz
2、安装Spine依赖的包

[iyunv@sh ~]# yum -y install libtool net-snmp-devel mysql-devel
3、编译安装Spine

1 2 3 4 5 6 7 8 9 10

[iyunv@sh cacti-spine-0.8.8f]# ./configure [iyunv@sh cacti-spine-0.8.8f]# make [iyunv@sh cacti-spine-0.8.8f]# make install make[1]: Entering directory `/root/cacti-spine-0.8.8f' /bin/mkdir -p '/usr/local/spine/bin'   /bin/sh ./libtool   --mode=install /usr/bin/install -c spine '/usr/local/spine/bin' libtool: install: /usr/bin/install -c spine /usr/local/spine/bin/spine /bin/mkdir -p '/usr/local/spine/etc' /usr/bin/install -c -m 644 spine.conf.dist '/usr/local/spine/etc' make[1]: Leaving directory `/root/cacti-spine-0.8.8f'

1 2	[iyunv@sh cacti-spine-0.8.8f]# ls /usr/local/spine/ bin  etc

4、配置spine.conf文件，指定cacti数据库、用户和密码
[iyunv@sh ~]# cp /usr/local/spine/etc/spine.conf.dist /etc/spine.conf
[iyunv@sh ~]# vim /etc/spine.conf


5、执行Spine轮询脚本获取监测主机信息

1 2 3 4

[iyunv@sh ~]# /usr/local/spine/bin/spine SPINE: Using spine config file [/etc/spine.conf] SPINE: Version 0.8.8f starting SPINE: Time: 0.2636 s, Threads: 5, Hosts: 2

6、在Cacti页面选择Spine为默认轮询方式

console--->Settings--->Paths--->Spine Poller File Path--->/usr/local/spine/bin/spine--->save

Poller--->Poller Type--->spine--->save

Cacti配置完成
